1FK2204-5AF11-0SB0

Description

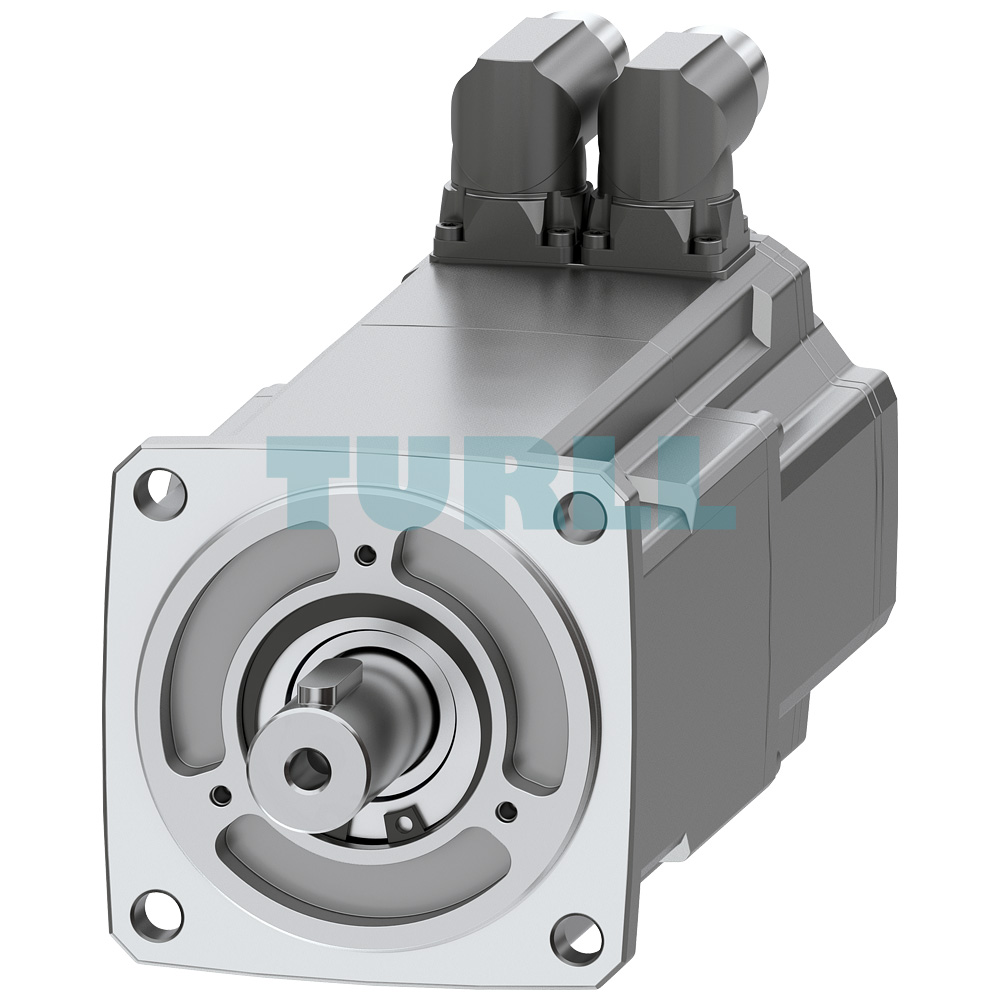

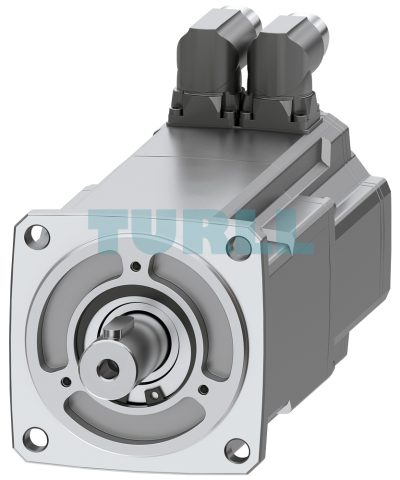

1FK2204-5AF11-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 CT servo motor, with product code 1FK2204-5AF11-0SB0, is designed to deliver outstanding performance and reliability in demanding industrial applications. This compact synchronous motor provides a rated torque of 2.4 Nm, with a power output of 0.75 kW at 3000 rpm (380–480 V) and 0.375 kW at 1500 rpm (200–240 V). Equipped with a holding brake, cylindrical shaft (D19x40mm), and a high-precision absolute single-turn 22-bit encoder (AS22DQC), the motor ensures precise positioning and efficient motion control. The robust IP65 degree of protection safeguards the motor against dust and water, making it suitable for tough operating environments.

The integrated DRIVE-CLiQ interface and M17 connectors simplify installation and communication with the SINAMICS drive family. The SIMOTICS S-1FK2 CT series combines compact dimensions with high dynamic response, offering the flexibility required for modern automation systems. Its ability to maintain stable performance with medium to high inertia loads makes it a reliable choice for machine builders and manufacturers seeking efficiency and accuracy.

Overview

The SIMOTICS S-1FK2 motors are well-known for their compact structure, high power density, and robust overload capacity. This motor series is ideal for applications where fast dynamic response and precision control are critical. The limited number of variants ensures a streamlined selection process, while still covering a wide range of industrial needs. As the foundation of the SINAMICS S210 servo drive system, the 1FK2 motors provide seamless integration and reliable operation in automation networks.

For extended requirements, the SIMOTICS 1FT2 motors complement the 1FK2 portfolio by offering additional torque levels, a broader speed range, and more customization options. This expansion allows users to address more complex tasks or challenging operating conditions, ensuring long-term adaptability and performance consistency.

SIMOTICS S-1FK2 Motor Variants

• High Dynamic motors: Designed with low inertia, delivering extremely fast response times for applications with low moving mass.
• Compact motors: Built for stable, precise control with medium to high moving mass, ensuring balanced performance with medium inertia.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF11-0SB0
