Siemens 3SU1900-0BC31-0AT0 SIRIUS ACT German NOT-HALT Backing Plate
Original price was: $5.87.$2.38Current price is: $2.38.
USDIn warehouse stock
Dispatches in 1–3 days
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
KEY SPECIFICATIONS
PayPalPRODUCT DATA
Check the full model number and every required specification.
| SKU / model | 3SU1900-0BC31-0AT0 |
|---|---|
| Brand | SIEMENS |
| Product function | Emergency-stop backing plate |
| Printed legend | NOT-HALT |
| Outside diameter | 75 mm |
| Centre opening | 23 mm |
| Attachment | Self-adhesive |
| Material | Plastic |
| Background colour | Yellow |
| Text colour | Black |
| Illuminated | No |
| Series | SIRIUS ACT |
| Weight for shipping | 0.001 kg |
| Dimensions for shipping | 78.00 × 78.00 × 1.00 mm |
REFERENCE MATERIAL
Check the document’s model and revision before use.

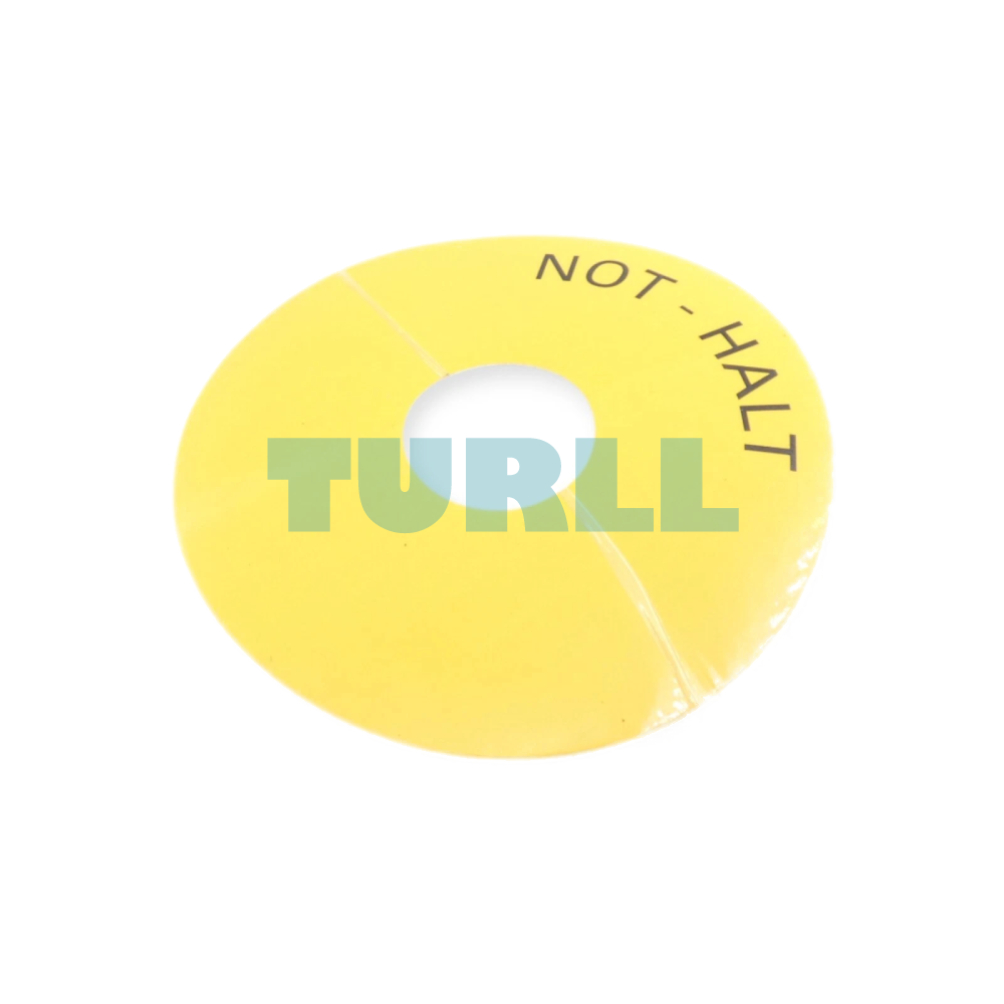

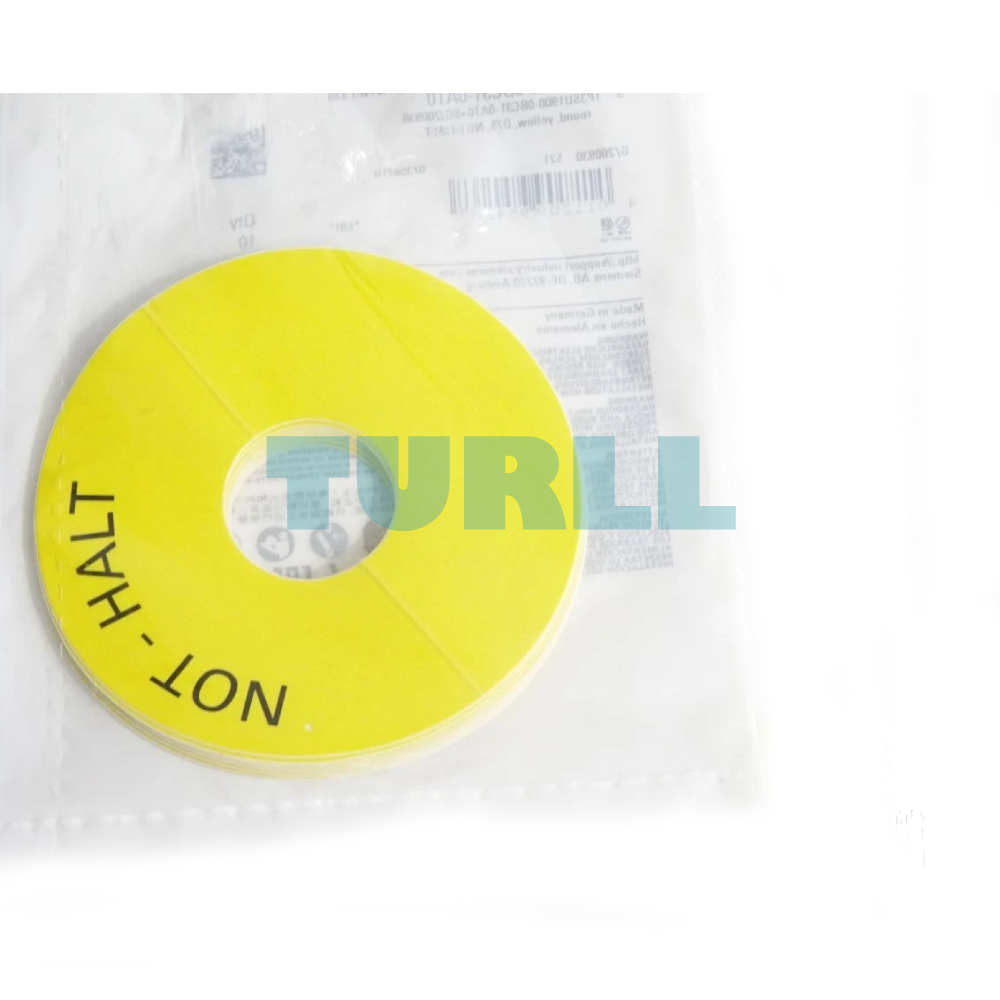

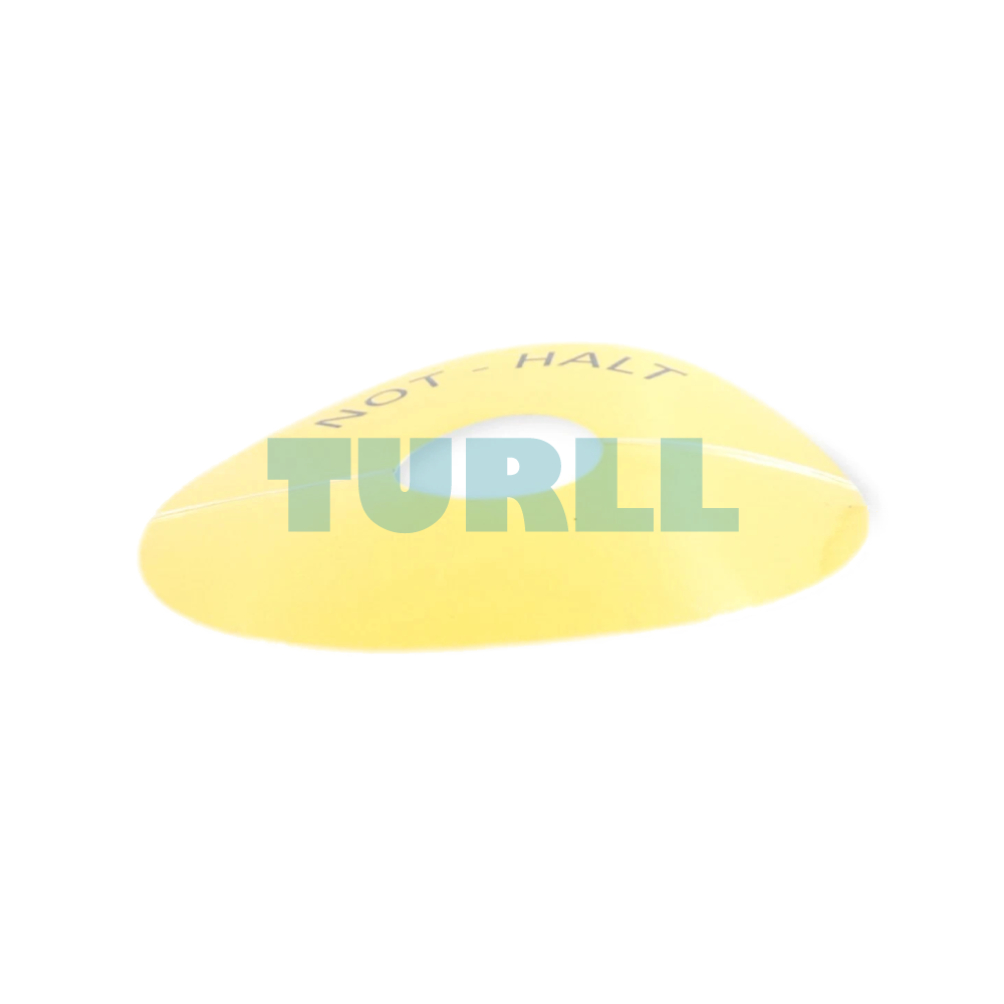

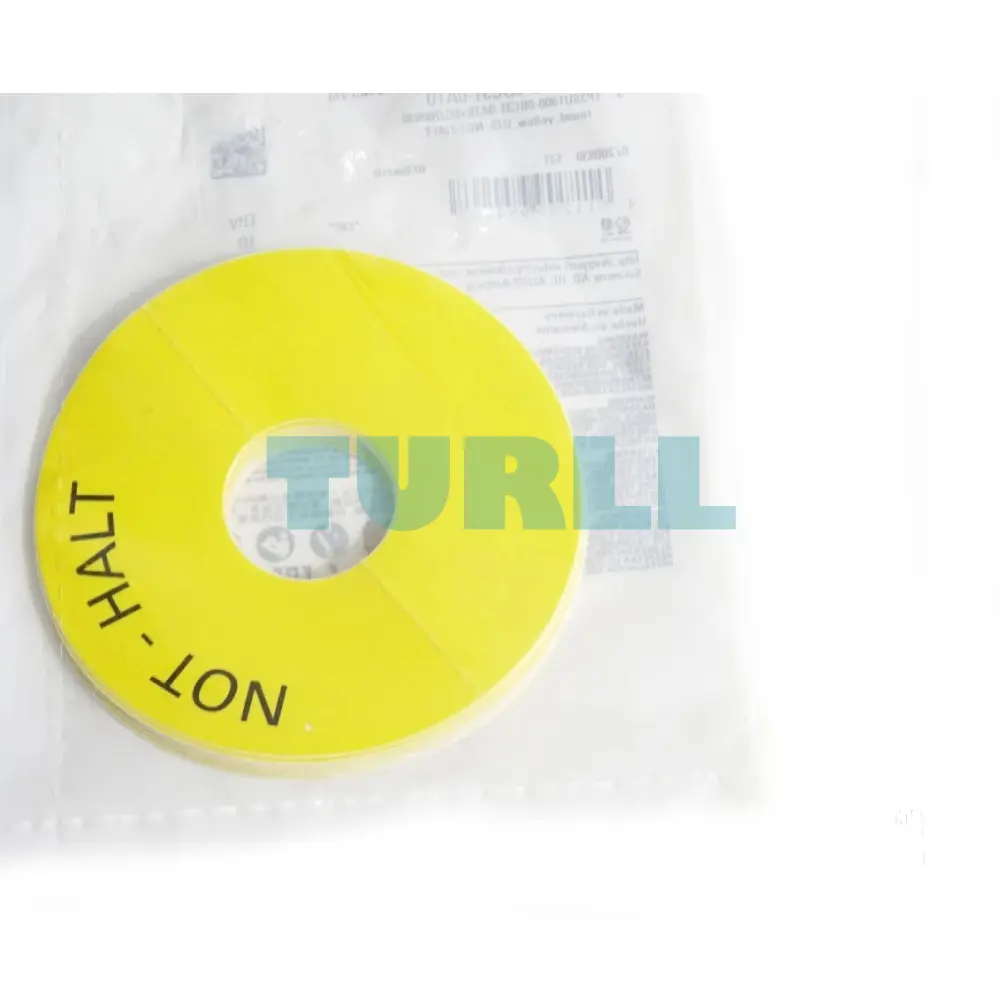

3SU1900-0BC31-0AT0 is a Siemens SIRIUS ACT yellow, self-adhesive backing plate with black NOT-HALT lettering. Its outside diameter is 75 mm and its centre opening is 23 mm. Select it by the required legend and the available space around the emergency-stop actuator.
The four plates below share the 75 mm outside diameter and 23 mm opening. The printed wording is the ordering difference; choose the legend specified for the machine and its operators.
3SU1900-0BC31-0AT0
3SU1900-0BC31-0DA0
3SU1900-0BC31-0NB0
3SU1900-0BC31-0AS0

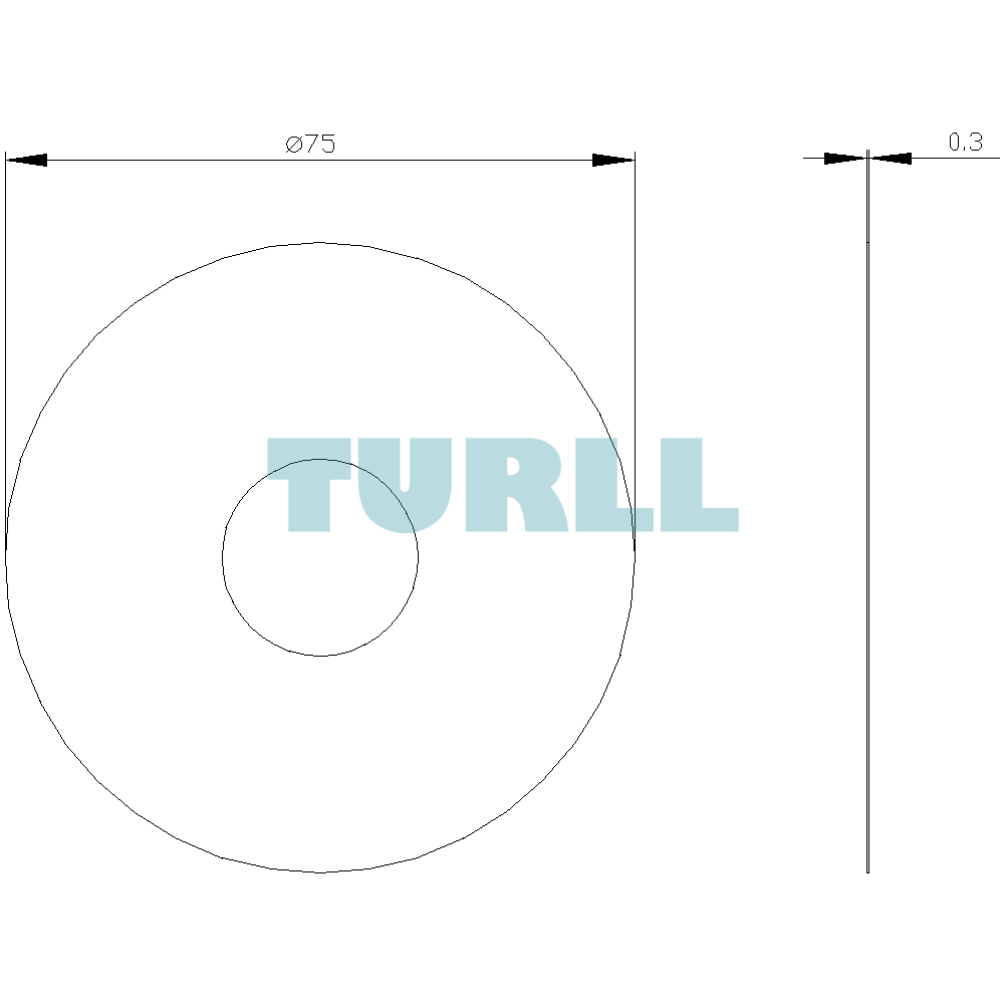

Check the 75 mm circular footprint against neighbouring controls, enclosure edges and any existing labels. The 23 mm measurement is the hole in this backing plate; it does not specify the panel cut-out required by a particular actuator. Use the actuator installation drawing for that dimension.
This item is a plastic identification plate. It does not provide electrical contacts, a latching mechanism or a safety-control function. If you are building a complete operating station, select the actuator, holder and contact modules for the actual circuit as separate components. No individual actuator combination is claimed by this listing.
No. This order number identifies the printed NOT-HALT version. Use the comparison above when a different legend is required.
No. Siemens identifies this model as a non-illuminated backing plate. The yellow background and black printing are physical features of the label.
No. A backing plate identifies the control; the actuator, contacts and completed machine circuit determine the stopping function. Select the wording and components for the machine design.
