1FK2204-5AF11-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AF11-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

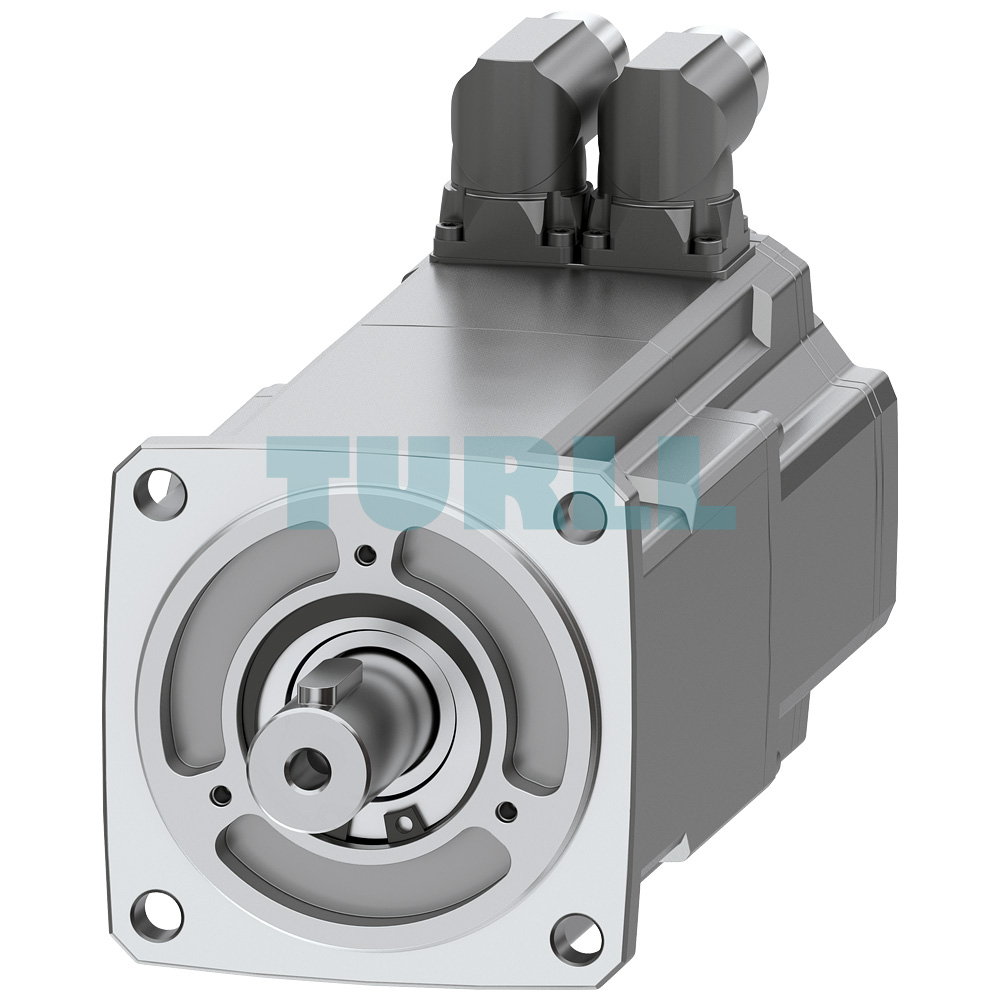

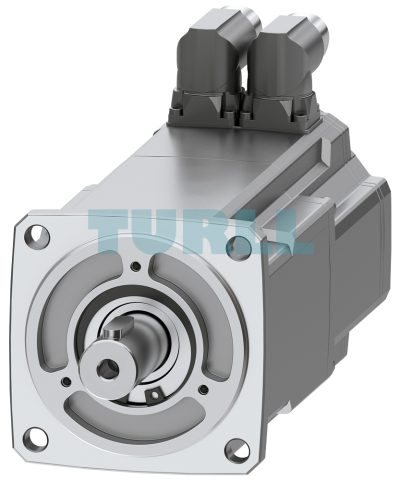

The SIEMENS SIMOTICS S-1FK2 servo motor with product code 1FK2204-5AF11-1MB0 is an advanced synchronous motor designed for precision, durability, and performance in demanding industrial environments. This exclusive variant combines compact design, high dynamic response, and excellent reliability, making it an ideal choice for a wide range of motion control applications. With a rated torque of 2.4 Nm and a rated power of 0.75 kW at 3000 rpm (380–480 V), it delivers consistent performance for tasks requiring both speed and precision. At 1500 rpm (200–240 V), the motor achieves 0.375 kW, ensuring flexibility in diverse operating conditions.

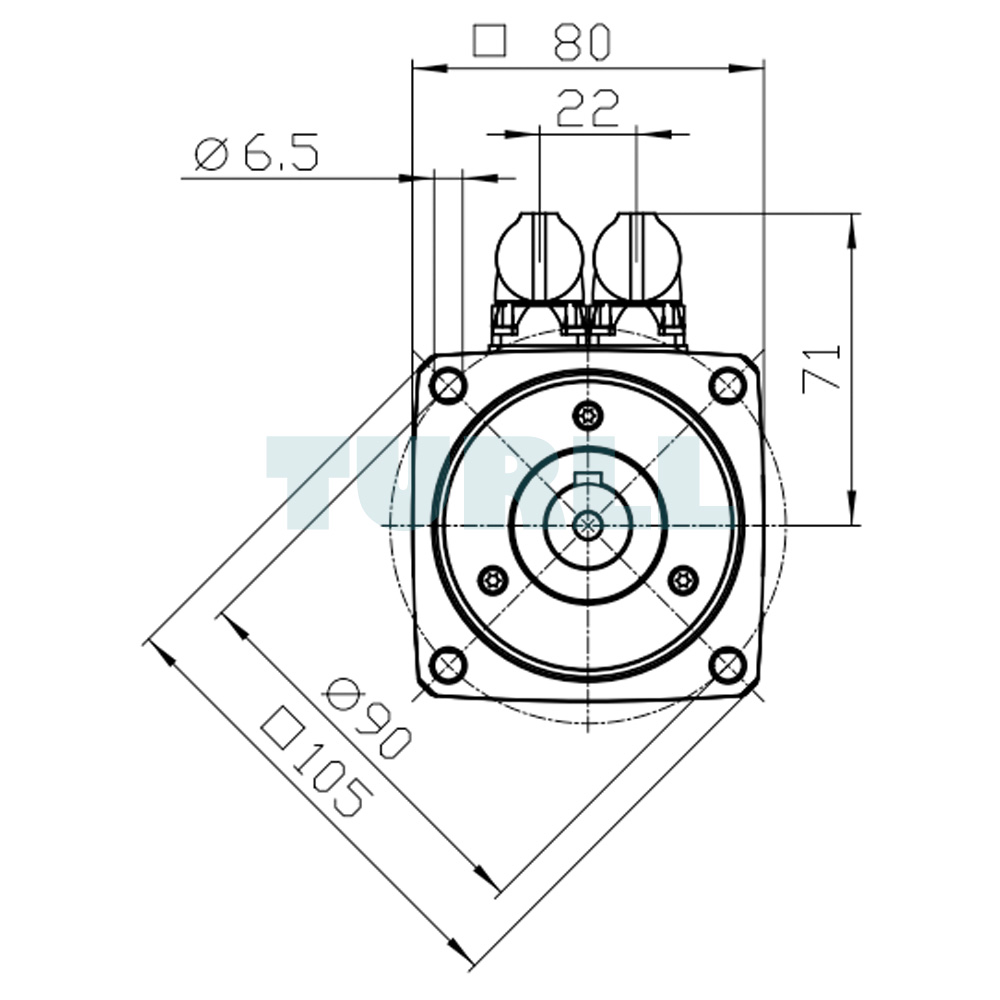

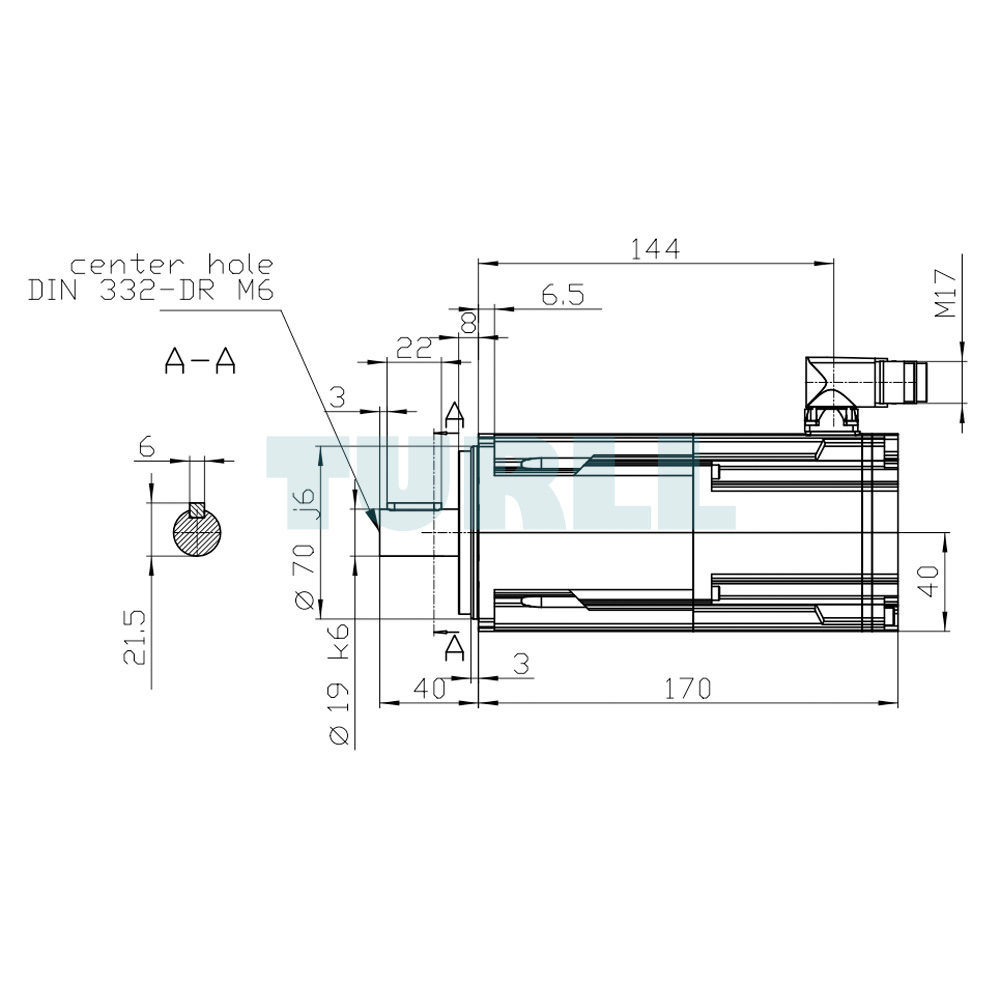

This model features a holding brake, IP65 degree of protection, and a robust shaft D19x40 mm with feather key. It is equipped with a high-resolution absolute encoder (22-bit + 12-bit multiturn, AM22DQC), a DRIVE-CLiQ plug (M17), and a power connector size M17, guaranteeing seamless integration into automation systems. Designed for compatibility with the SINAMICS S210 servo drive system, it ensures efficient, reliable, and long-term operation.

Overview

The SIMOTICS S-1FK2 servo motors are compact, highly dynamic synchronous motors developed for industrial use where high efficiency and adaptability are essential. Known for their superior power density, robust overload capability, and protective design, they excel in demanding automation environments. Their standardized design and limited but versatile range of options simplify selection and installation, saving valuable engineering time.

For applications requiring broader variations, the SIMOTICS 1FT2 range extends the performance spectrum, offering additional torque levels, finely graded speeds, and solutions for environments with higher demands. Together, the S-1FK2 and 1FT2 portfolios provide comprehensive coverage for servo drive technology, from compact precision control to heavy-duty dynamic tasks.

SIMOTICS S-1FK2 Motor Variants

• High Dynamic Motors: Optimized for low inertia, delivering rapid acceleration and exceptional responsiveness in highly dynamic applications.
• Compact Motors: Designed for medium to high masses with stable, precise control and a balanced inertia ratio.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AF11-1MB0
