1FK2204-5AK11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-5AK11-1SA0 is a highly efficient and versatile drive solution for industrial automation. This compact synchronous motor is engineered for applications that demand precise performance, high dynamics, and reliable operation in challenging environments. Offering continuous torque of 2.4 Nm and rated power of 0.57 kW at 6000 rpm with 380–480 V, as well as 0.75 kW at 3000 rpm with 200–240 V, the motor is designed to deliver stable power output under varying load conditions.

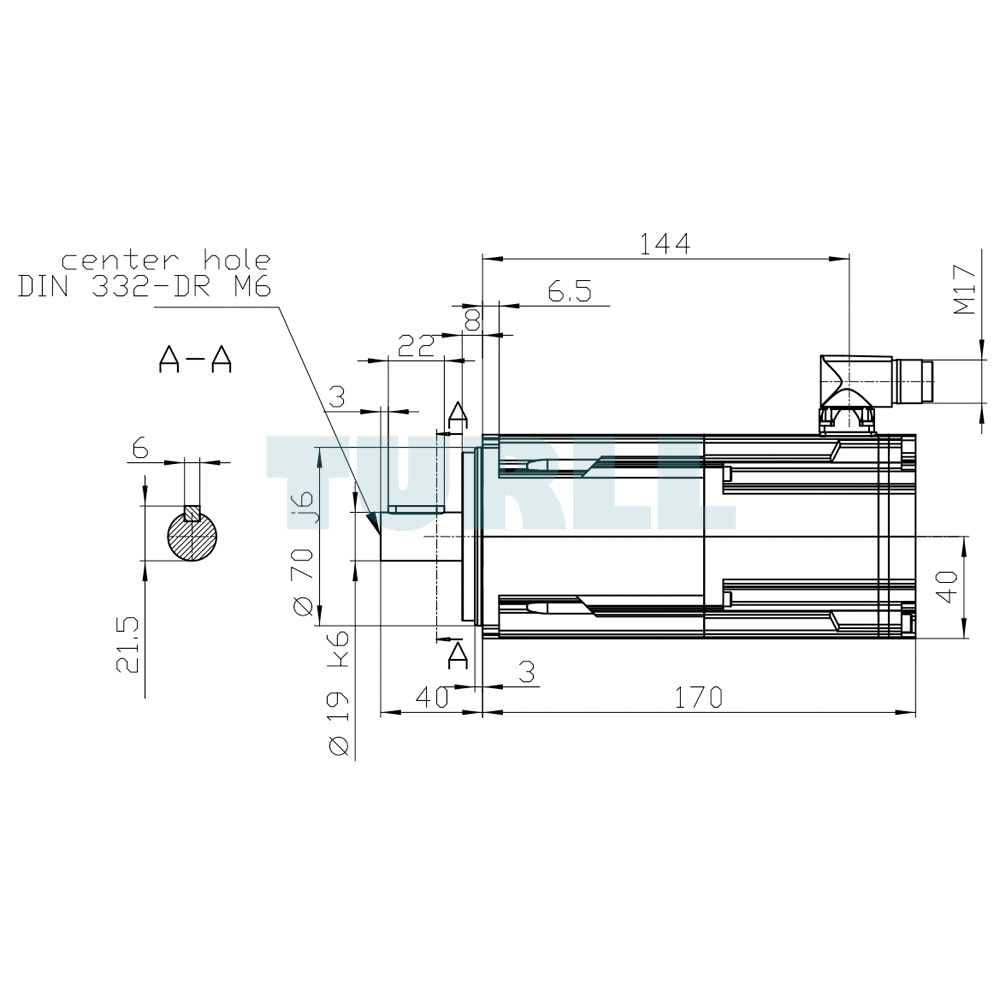

Equipped with a holding brake and featuring degree of protection IP65, the SIMOTICS S-1FK2 CT motor ensures secure operation even in demanding industrial settings. The shaft measures D19x40 mm with a feather key for reliable mechanical connection. Its absolute single-turn 22-bit encoder (AS22DQC) with OCC interface ensures accurate feedback and smooth control. The flexible plug size M17 with a rotatable design enhances installation convenience and adaptability.

This servo motor is part of the renowned SIMOTICS S-1FK2 family, known for compact dimensions, high overload capacity, and robust design. By integrating seamlessly into SINAMICS S210 drive systems, it supports optimized servo drive performance across multiple industries such as packaging, printing, handling equipment, and automation solutions where both accuracy and speed are essential.

Overview

The SIMOTICS S-1FK2 series offers a balanced combination of compact design and high performance. With high power density and overload capability, these synchronous motors are ideally suited to meet diverse requirements in servo drive technology. The standardized options reduce complexity in selection while ensuring reliable performance across applications.

In addition, the extended SIMOTICS S-1FT2 motor range builds upon the 1FK2 platform, offering finer speed gradations, higher torque levels, and broader customization options. This ensures that even demanding tasks or environments with greater challenges can be addressed efficiently.

SIMOTICS S-1FK2 Variants

• High Dynamic Motors: Designed with low inertia for applications requiring extremely fast response times with reduced moving mass.
• Compact Motors: Optimized for medium to high load masses, offering stability and precision with a medium moment of inertia.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK11-1SA0
