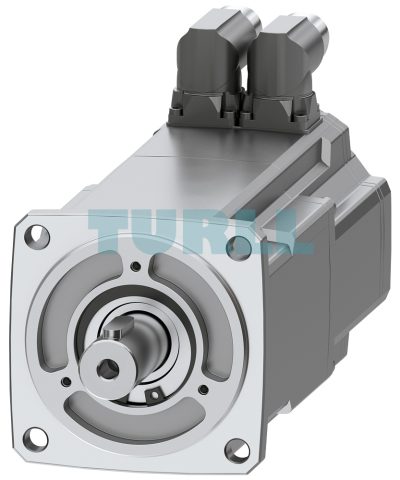

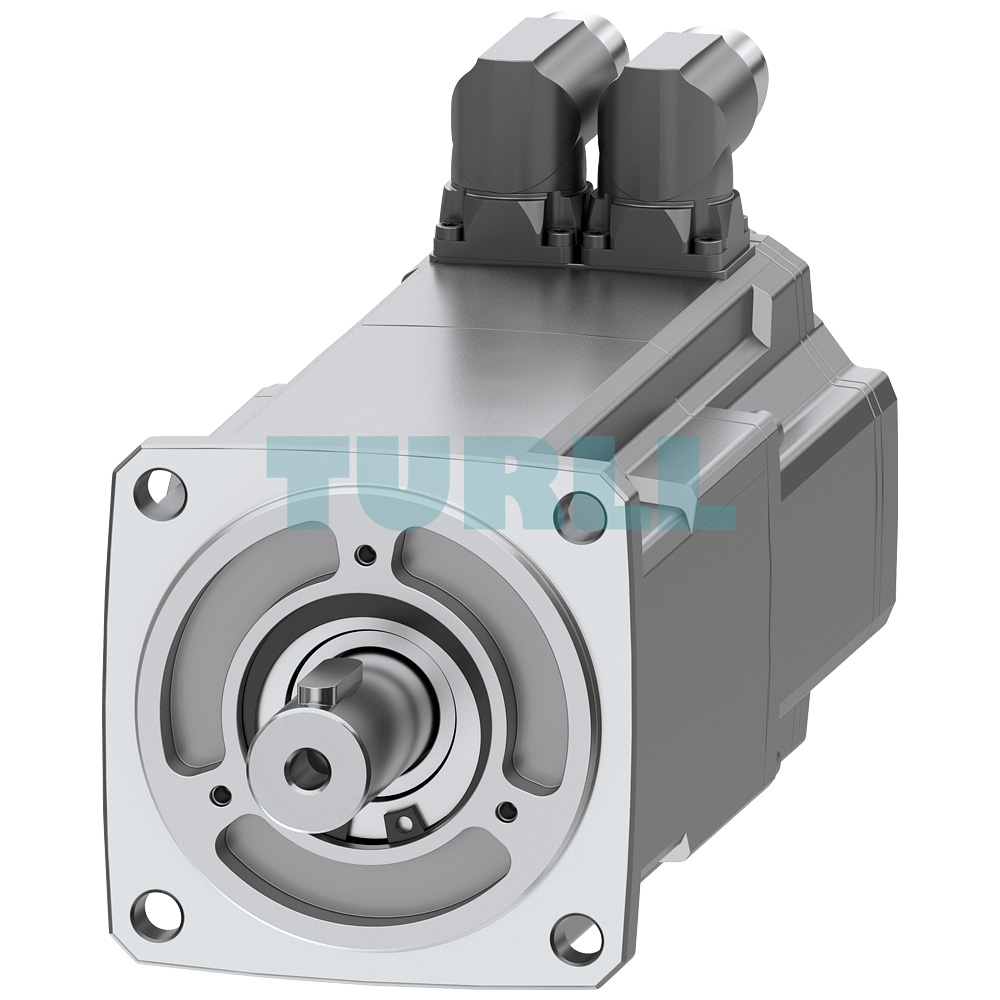

1FK2204-6AF11-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New
$966.85
The SIEMENS 1FK2204-6AF11-1MB0 SIMOTICS S-1FK2 CT servo motor combines compact design, high dynamic response, IP65 protection, and precise motion control for industrial automation.
1FK2204-6AF11-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New
The SIEMENS 1FK2204-6AF11-1MB0 SIMOTICS S-1FK2 CT is an advanced, high-performance servo motor designed for precision industrial applications. This compact yet highly dynamic synchronous motor delivers a maximum torque of 3.2 Nm and power ratings of 1 kW at 3000 rpm (380-480 V) and 0.5 kW at 1500 rpm (200-240 V). Engineered with an integrated holding brake, the unit features a robust D19x40 mm shaft with feather key, an absolute 22-bit + 12-bit multiturn encoder (AM22DQC), and DRIVE-CLiQ M17 plug with M17 power connector. With a protection class of IP65, this servo motor ensures reliable operation even in harsh industrial environments.
The SIMOTICS S-1FK2 series is known for its high power density and exceptional overload capability, making it an ideal choice for precision machinery and automation tasks. Its compact design supports both highly dynamic applications with low inertia requirements and stable control for medium to high masses. The motor’s architecture enables fast, precise positioning while maintaining energy efficiency and operational reliability.
Overview
These high dynamic servo motors are core components of the SINAMICS S210 drive system and offer a simplified selection process due to a limited number of variants. The 1FK2 motors provide excellent adaptability for standard industrial challenges, while the extended 1FT2 series addresses more complex requirements with finer torque and speed grading. Their versatility makes them suitable for applications ranging from automated assembly lines to precision robotics.
Designed for both compact and high dynamic requirements, the SIMOTICS S-1FK2 motors ensure precise and smooth motion control, even under varying loads. Their advanced feedback system and absolute multiturn encoder allow for accurate positioning, enhanced performance, and easy integration into existing automation setups.
Download
Product Code: 1FK2204-6AF11-1MB0
More Siemens products at Turll.com
| Weight | 4.35 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
