1FK7061-4CF71-1FH1-ZJ13 SIEMENS Exclusive SIMOTICS S-1FK7 Motor Original Brand New

1FK7061-4CF71-1FH1-ZJ13 SIEMENS Exclusive SIMOTICS S-1FK7 Motor Original Brand New

The SIEMENS 1FK7061-4CF71-1FH1-ZJ13 belongs to the SIMOTICS S-1FK7 High Dynamic series, engineered for precision, stability, and consistent motion control performance. This permanent-magnet synchronous motor provides a rated mechanical output of 1.7 kW and is designed for demanding motion axis applications that require fast positioning, smooth operation, and long-term reliability. Operating from a 600 V DC link, the motor delivers a continuous torque of 6.4 Nm and a rated speed of 3000 rpm, making it suitable for a wide range of advanced automation environments. Its natural cooling design allows heat dissipation through the motor surface, ensuring efficient performance even under elevated loads.

This model is equipped with an AM22DQ DRIVE-CLiQ absolute encoder offering 22-bit single-turn resolution plus 12-bit multiturn capability, providing extremely accurate speed and position feedback. The rotatable power connector simplifies installation in limited-space enclosures, while the integrated holding brake offers additional safety during vertical or load-critical operations. The motor’s IP65 degree of protection ensures durability against dust and water jets, enabling use in harsh or contaminated industrial environments.

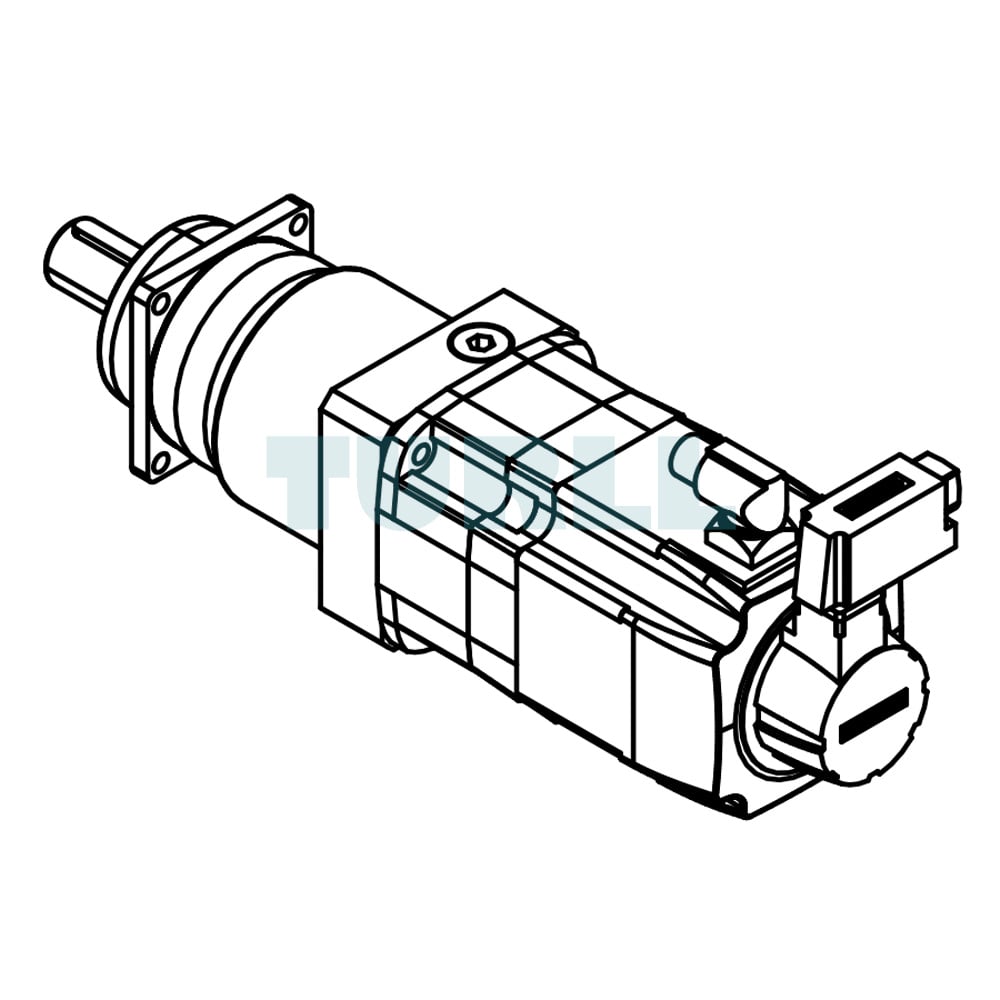

A key highlight of this configuration is the ZJ13 option package featuring the ALPHA SP+ SP 100S-MF2 precision planetary gearbox with a two-stage reduction (i=20) and feather-key output. This high-efficiency gear unit enables exceptional torque transmission, low backlash, and excellent rigidity, making the assembly well-suited for machine tools, material-handling systems, packaging machines, robotic modules, and motion axes requiring smooth and responsive movement.

Overview

SIMOTICS S-1FK7 motors are compact synchronous motors designed for universal automation applications. Their modular structure, extended range of power classes, and configurable options—including encoders, brakes, and gear units—allow seamless adaptation to modern machine concepts. When paired with SINAMICS S120 or S220 drive systems, these motors form a high-performance servo platform capable of precise control, fast acceleration, and stable operation over a wide range of load conditions.

• High power density for space-efficient installation
• Wide variety of motor versions and configuration options
• Excellent dynamic response due to low inertia
• Stable closed-loop performance under varying load conditions
• Reduced commissioning effort and lower tuning requirements

Download

Data Sheet (PDF)

Product Code: 1FK7061-4CF71-1FH1-ZJ13 —
View Siemens Product Page
