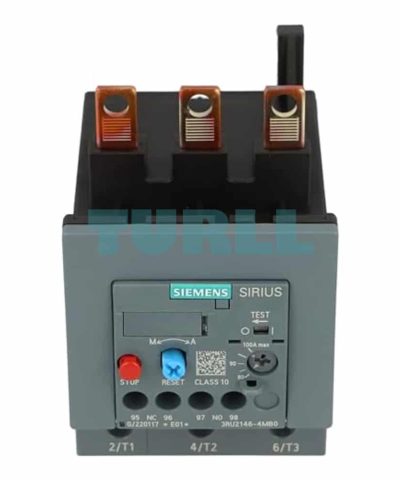

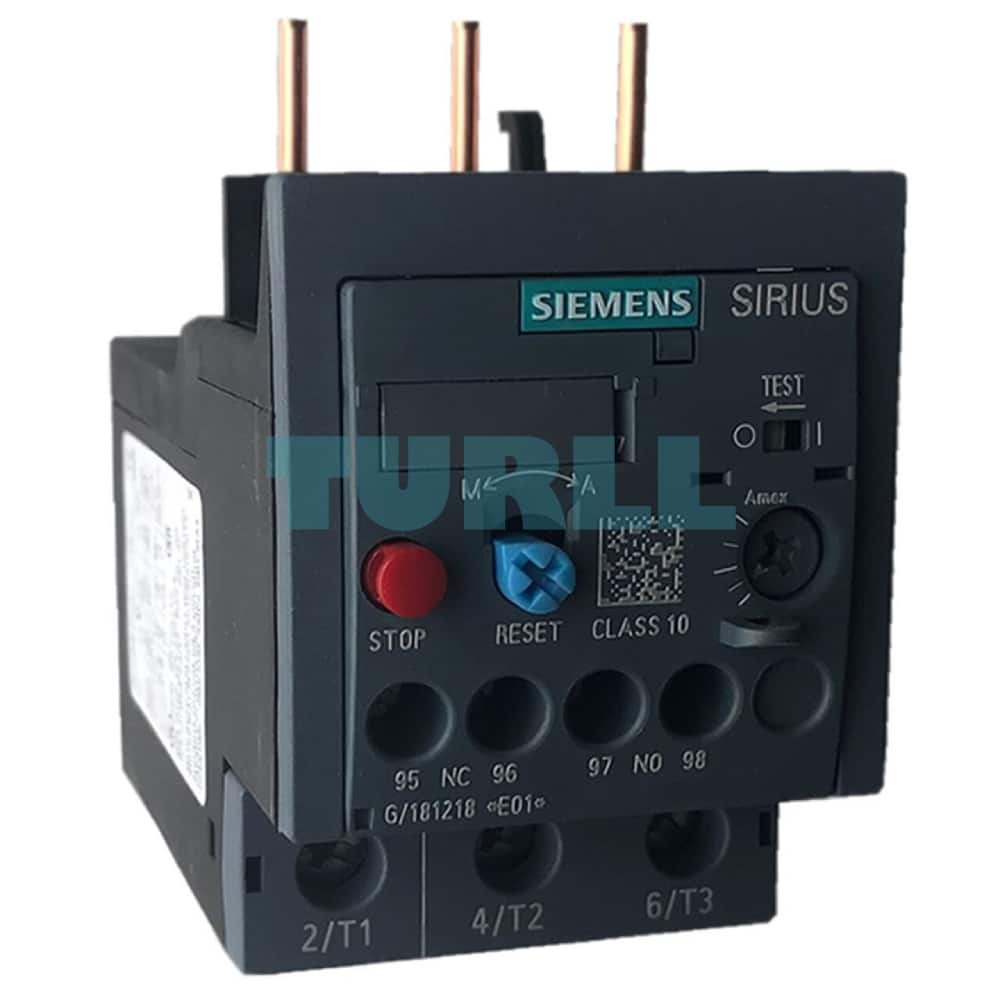

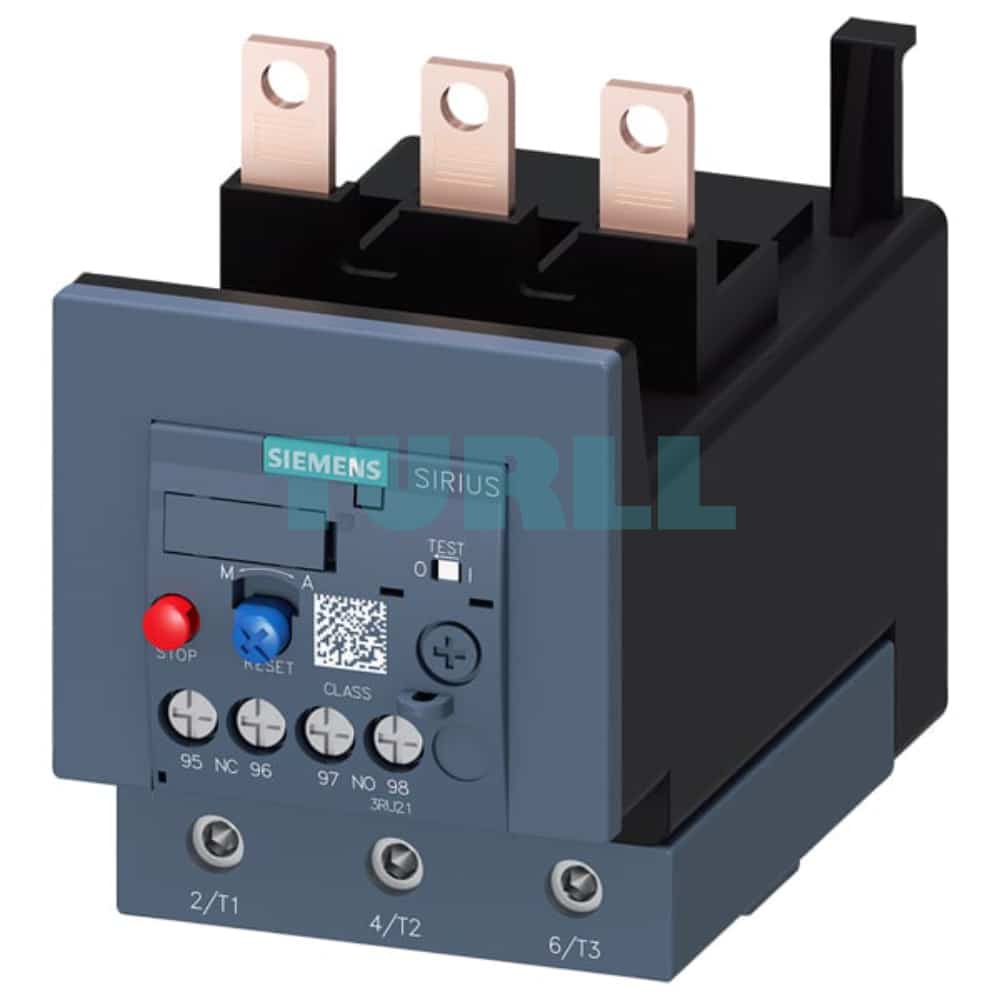

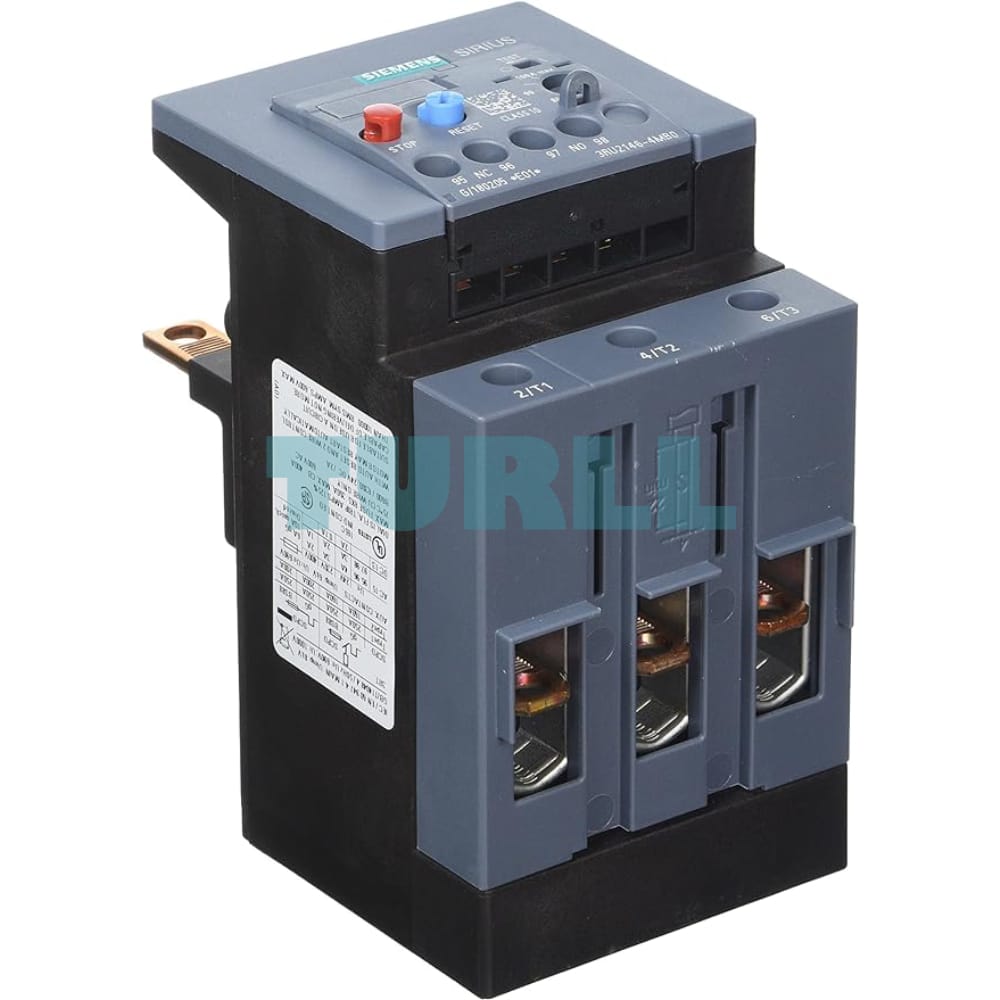

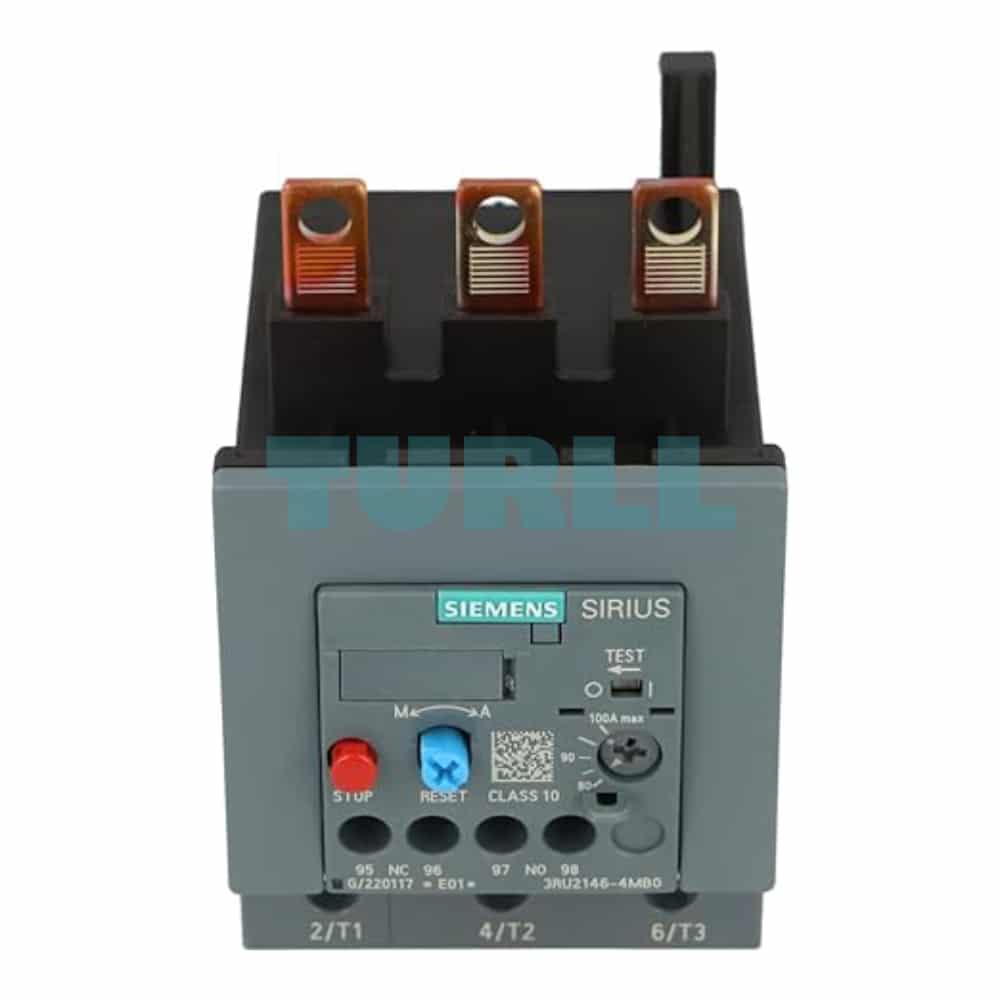

3RU2146-4MB0 Siemens SIRIUS 3RU2 Thermal Overload Relay Original Brand New
$145.68
3RU2146-4MB0
Siemens Overload relay 80…100 A Thermal For motor protection Size S3, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
[ez-toc]
Overview
3RU2 thermal overload relays up to 100 A have been designed to provide inverse-time delayed protection for loads with normal starting against impermissibly high temperature rises due to overload or phase failure.
An overload or phase failure results in an increase of the motor current beyond the set rated motor current. Via heating elements, this current rise heats up the bimetal strips inside the device which then bend and as a result trigger the auxiliary contacts by means of a tripping mechanism. The auxiliary contacts then switch off the load by means of a contactor. The break time depends on the ratio between the tripping current and the current setting Ie and is stored in the form of a long-term stable tripping characteristic curve, see Characteristics.
The “tripped” status is signaled by means of a switch position indicator. The relay is reset manually or automatically after a recovery time has elapsed.
The 3RU2 thermal overload relays are suitable for operation with frequency converters.
The devices are manufactured in accordance with environmental guidelines and contain environmentally friendly and reusable materials. They comply with all important worldwide standards and approvals.
Use in hazardous areas
The 3RU2 overload relays are certified in accordance with both the European Explosion Protection Directive (ATEX) and the International Explosion Protection Standard (IECEx), see Certificates.
Benefits
The most important features and benefits of the 3RU2 thermal overload relays are listed in the overview table in the Overload relays node.
Application
Industries
The 3RU2 thermal overload relays are suitable for customers from all industries who want to guarantee optimum inverse-time delayed protection of their electrical loads (e.g. motors) under normal starting conditions (CLASS 10, 10A).
Application
The 3RU2 thermal overload relays have been designed for the protection of three-phase and single-phase AC and DC motors.
If single-phase AC or DC loads are to be protected by the 3RU2 thermal overload relays, all three bimetal strips must be heated. For this purpose, all main conducting paths of the relay must be connected in series.
Ambient conditions
3RU2 thermal overload relays compensate temperature in the temperature range from -40 °C to +60 °C according to IEC 60947‑4‑1. At temperatures from +60 °C to +70 °C, the upper set value of the setting range has to be reduced by a specific factor.
3RU2146-4MB0
Siemens Overload relay 80…100 A Thermal For motor protection Size S3, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
Visit 3RU2146-4MB0
For more our products visit turll.com
| Weight | 0.620 kg |
|---|---|
| Dimensions | 78.00 × 113.00 × 132.00 mm |
