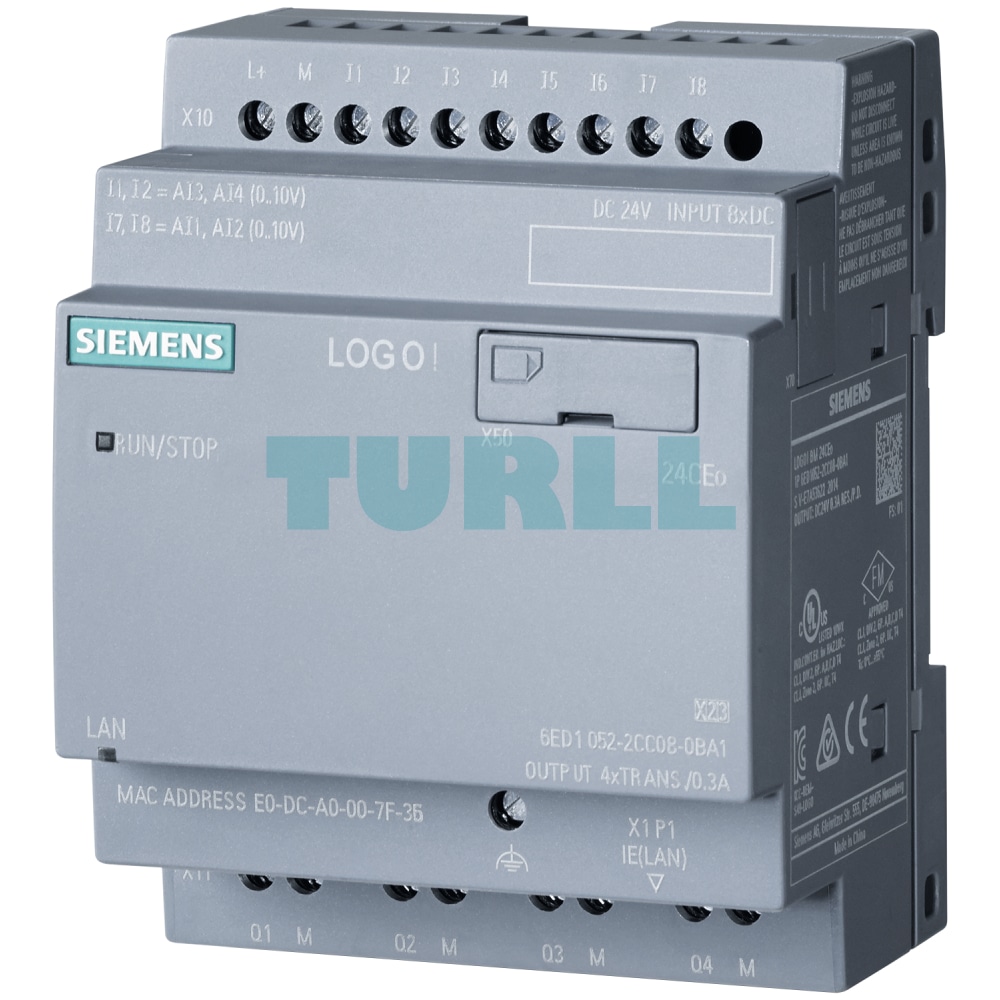

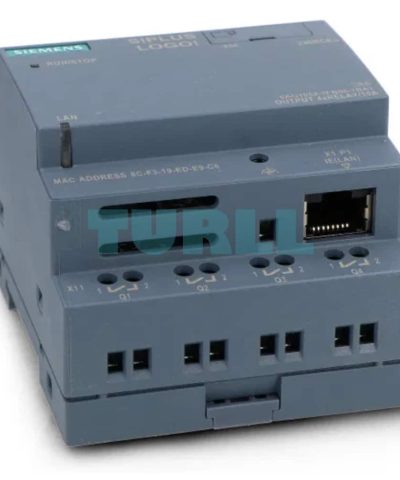

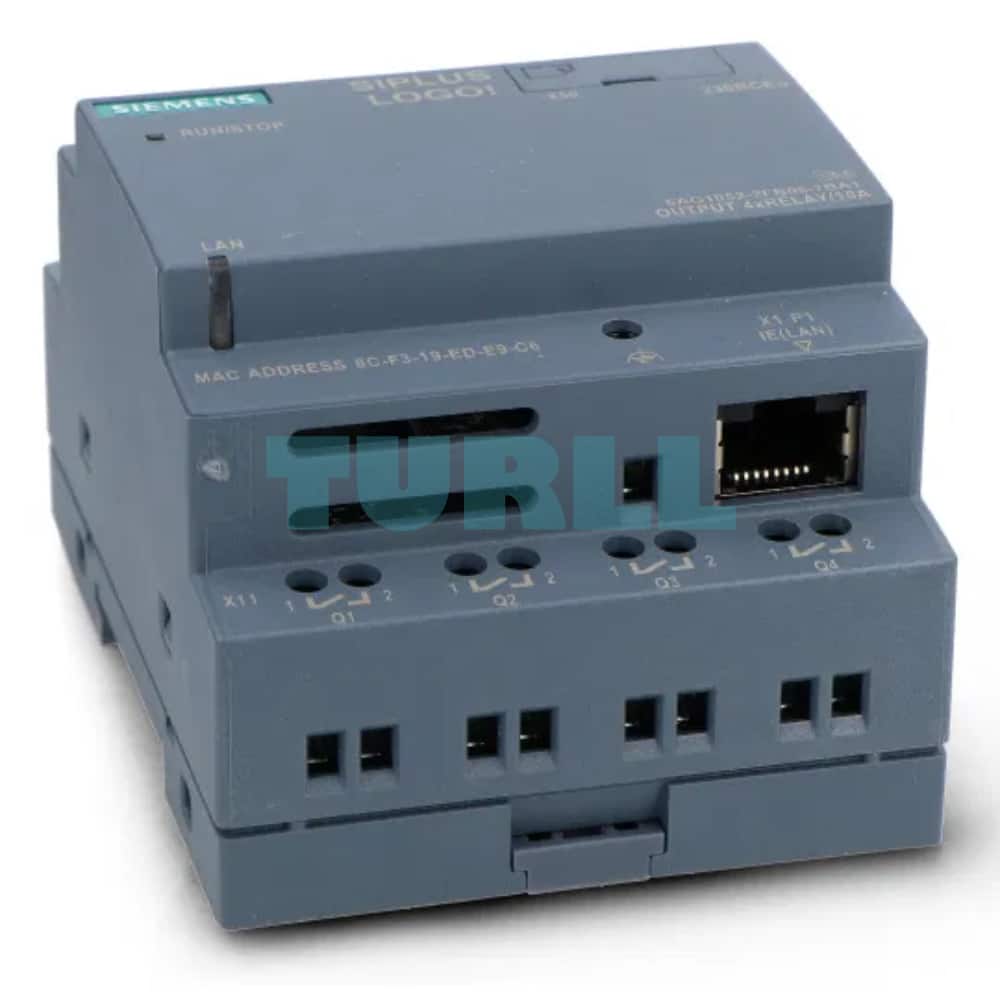

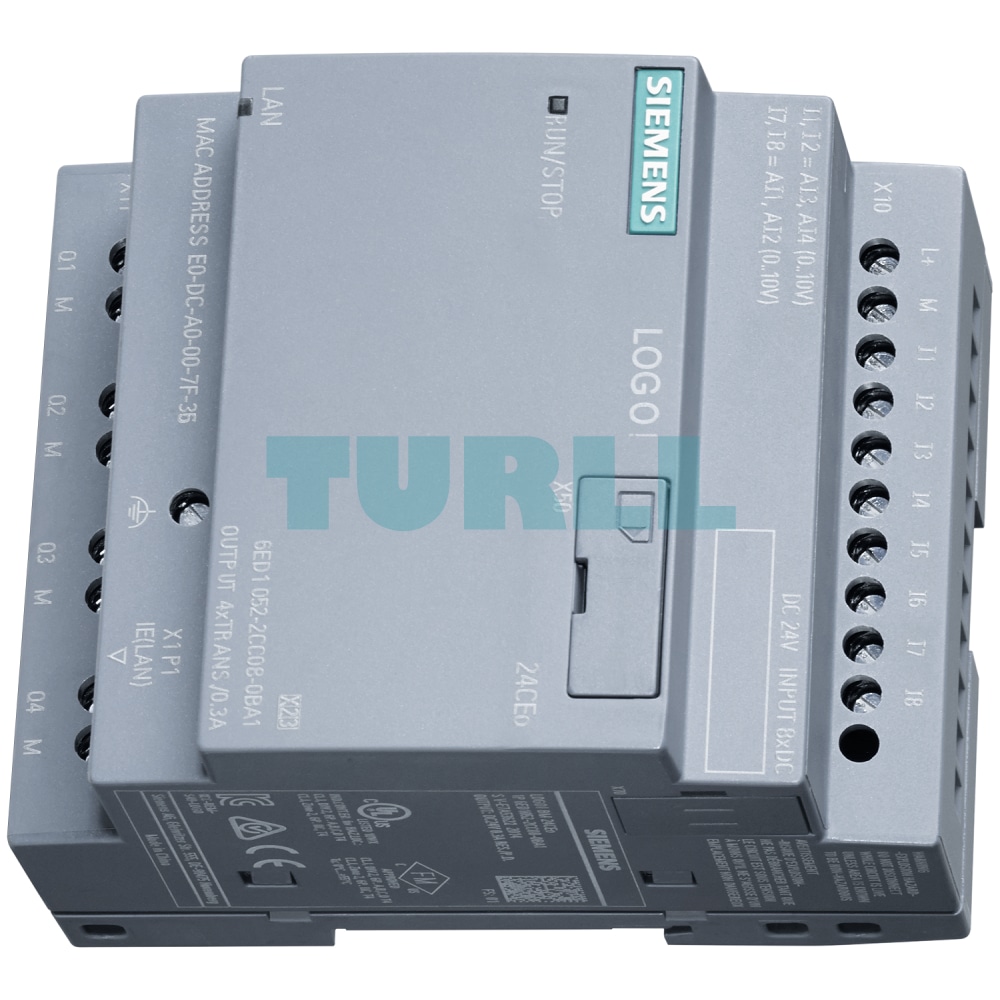

6AG1052-2CC08-7BA1 Siemens SIPLUS LOGO! 24CEO Original Brand New
$568.64
6AG1052-2CC08-7BA1
Siemens SIPLUS LOGO! 24CEO based on 6ED1052-2CC08-0BA1 with conformal coating, -40…+70 °C, start up -25 °C, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DQ, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher older projects executable, cloud connection in all LOGO! 8.3 basic units
[ez-toc]
Overview
- The space-saving basic versions
- Interface for connecting expansion modules, up to 24 digital inputs, 20 (16) digital outputs, 8 analog inputs and 8 (2) analog outputs can be addressed
- All basic devices with integrated web server for TD-based web pages and/or user-defined web pages
- Enclosure width 72 mm (4 U)
- All basic units with Ethernet interface for communication with LOGO! 8, LOGO! TDE, SIMATIC Controllers, SIMATIC Panels and PCs
- Use of standard micro SD cards
Note:
SIPLUS LOGO! 6/7 versions are not compatible with SIPLUS LOGO! 8.
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Design
- Ethernet port
- Relay outputs with max. 10 A output current
- Integrated display field with parameterizable backlight (6 x 16 characters, 3 background colors).
- Integrated operator control panel.
- Integrated EEPROM memory for control program and setpoint values.
- Optional standard micro SD cards
- Integral real-time clock with automatic summer/winter time switchover.
- Backup of the integrated real-time clock for 20 days.
- 8 digital inputs, 4 digital outputs.
- 4 inputs as analog inputs in 12/24 V DC variants (0 to 10 V); inputs can also be used digitally.
- 4 inputs can be used for high-speed counting up to 5 kHz (DC versions only).
- Interface for the connection of expansion modules, up to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs can be addressed.
- Connection of the LOGO! TDE text display via Ethernet.
Function
- Integrated basic and special functions:
- Basic logic functions:
AND, OR, NOT, NAND, NOR, XOR, positive/negative pulse edge evaluation. - Special functions:
Timer:
ON delay, OFF delay, ON/OFF delay, latching ON delay, interval relay/pulse output, interval relay/edge-triggered, incremental encoder, random generator, staircase light switch, comfort switch, weekly timer, annual timer, astronomical clock, stopwatch.
Counter:
up/down counter, operating hours counter, threshold switch.
Analog function blocks:
arithmetic instruction, analog comparator, analog threshold switch, analog amplifier, analog value monitoring, analog differential threshold switch, analog MUX, analog ramp, PI controller, PWM, analog filter, max/min. mean value.
Other:
latching relay, current impulse relay, message text, software switch, sliding/full converter, full/sliding converter, datalog.
- Basic logic functions:
- 400 function blocks can be interlinked
- Up to 64 bit memories
(including restart bit memory, bit memory for controlling the backlight of the integral display and the LOGO! TDE text display, bit memory for switching between 2 parameterizable character sets in the message text). - Integrated retentivity.
- Password protection.
- Additional know-how protection with the optional micro SD card.
- Data logging to internal memory or micro SD card (up to 20 000 records)
- Macros (user-defined functions) for LOGO! Soft Comfort
- 64 open terminals
- 4 8-bit shift registers
- Extended diagnostic functions
6AG1052-2CC08-7BA1
Siemens SIPLUS LOGO! 24CEO based on 6ED1052-2CC08-0BA1 with conformal coating, -40…+70 °C, start up -25 °C, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DQ, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher older projects executable, cloud connection in all LOGO! 8.3 basic units
Visit 6AG1052-2CC08-7BA1
For more our products visit turll.com
| Weight | 0.211 kg |
|---|---|
| Dimensions | 84.00 × 103.00 × 76.00 mm |
