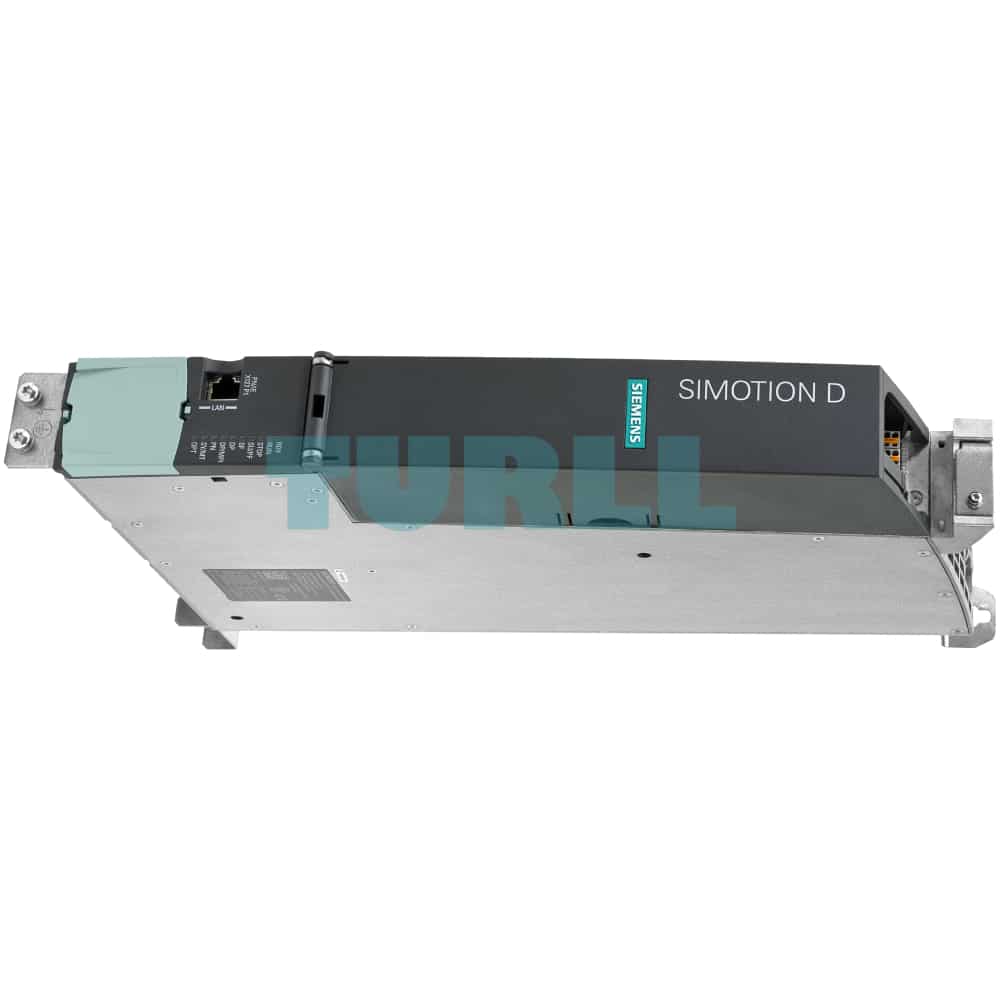

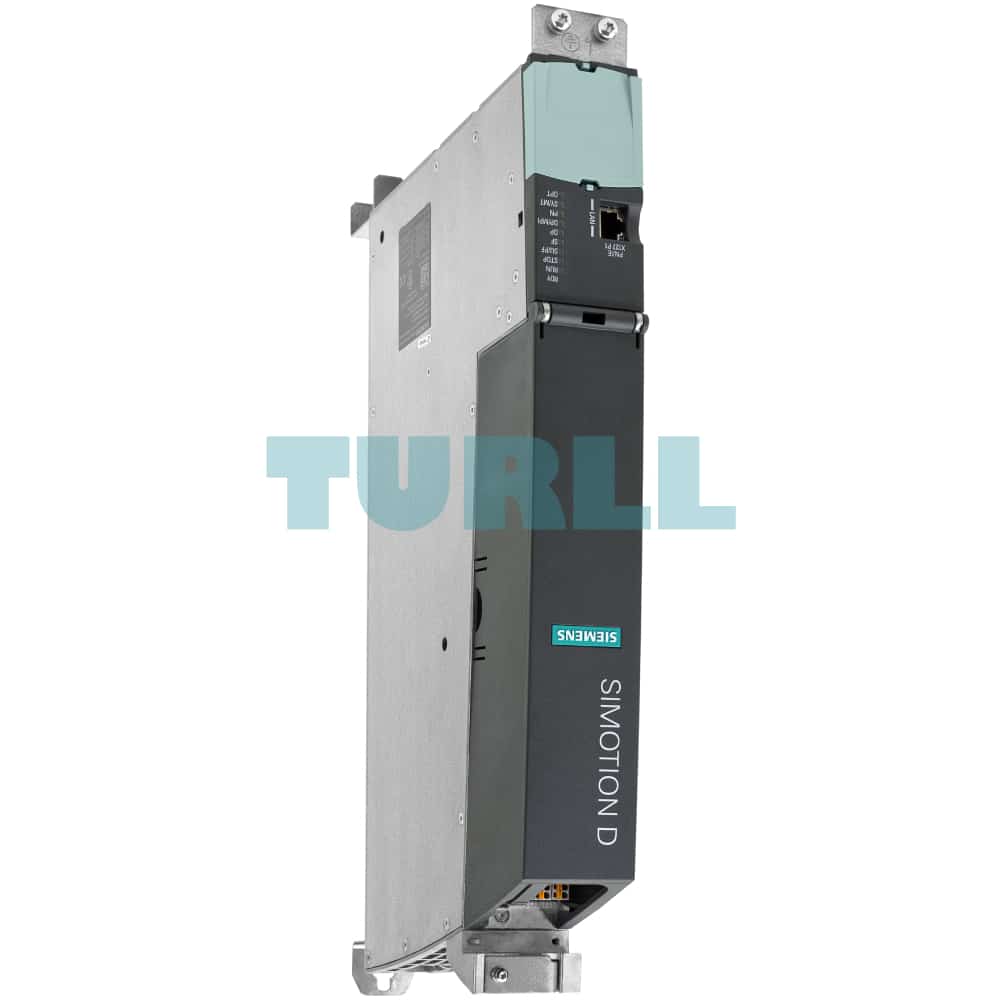

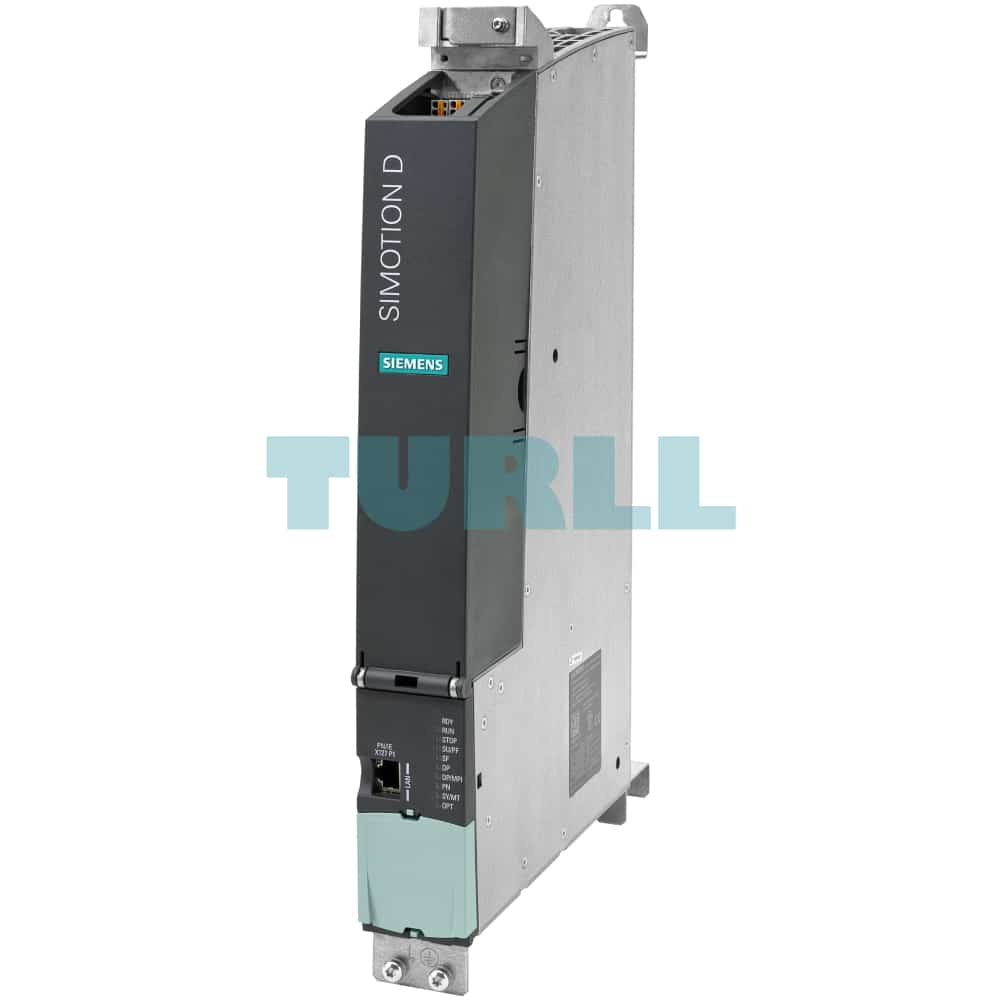

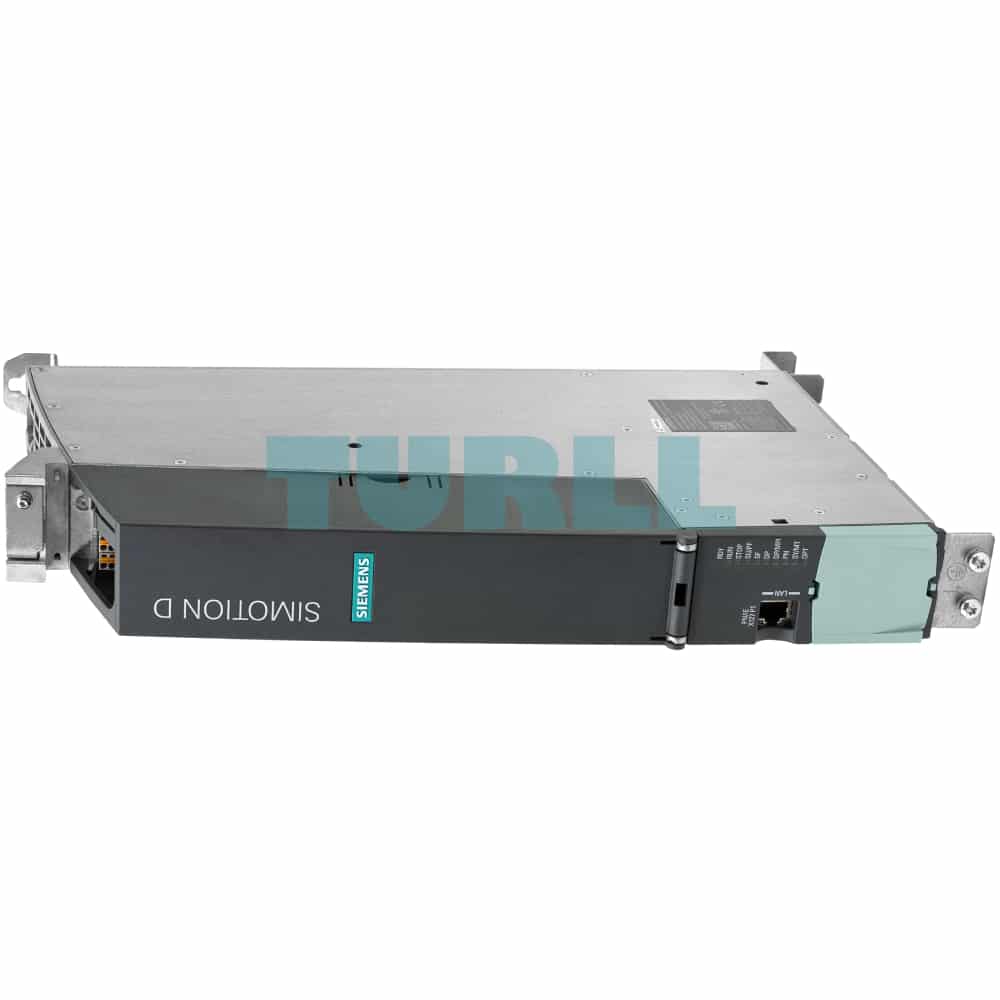

6AG1435-2AD00-4AA0 SIEMENS SIPLUS D435-2 DP/PN Original Brand New

Interfaces

Display and diagnostics

• LEDs for displaying operating states and errors
• 3 measuring sockets
• Service and operating mode switches
• Diagnostics button

Onboard I/O

• 12 digital inputs
• 16 digital inputs/outputs (max. 16 as high-speed measuring inputs, max. 8 as high-speed output cam outputs)

Communication

• 6 x DRIVE-CLiQ (4 × DRIVE-CLiQ for D425-2)
• 2 x Industrial Ethernet (3 × Industrial Ethernet for D4x5-2 DP), of which one interface easily accessible on the module front
• 2 x PROFIBUS DP
• 1 x PROFINET IO (1 interface with 3 ports, with D4x5-2 DP/PN only)
• 2 x USB

Data backup

• 1 x slot for SIMOTION CompactFlash card

Other interfaces

• Terminals for 24 V electronic power supply

Option modules

With the TB30 Terminal Board, the SIMOTION D4x5-2 Control Units can be extended with 4 digital inputs, 4 digital outputs, 2 analog inputs and 2 analog outputs. The TB30 Terminal Board is plugged into the option slot on the Control Unit.

Using the CBE30-2 Communication Board for PROFINET IO, it is possible to equip the SIMOTION D4x5-2 DP/PN Control Units with a second PROFINET interface with 4 ports.

Applications for a second PROFINET interface:

• 2 separate networks (e.g. one local and one higher-level network)
• Address space can be doubled to 2 x 4 KB
• Maximum number of connectable devices can be doubled to 2 x 64
• Separation into a high-speed and a slow bus system/execution system in order to make efficient use of the controller capacity (applies only to SIMOTION D435-2 DP/PN, D445-2 DP/PN and D455-2 DP/PN)
  • PROFINET onboard: SERVO_Fast and IPO_Fast
  • PROFINET via CBE30-2: SERVO / IPO / IPO2

Note:

The CBE30-2 cannot be used in SIMOTION D4x5-2 DP Control Units. If the CBE30-2 is used without SERVO_Fast and IPO_Fast, then both PROFINET interfaces are assigned to SERVO / IPO / IPO2.

Installation

The SIMOTION D4x5-2 Control Units can be mounted in the control cabinet in one of three ways:

• Mounting with spacers
• Mounting without spacers (D425-2 and D435-2 only)
• Mounting without spacers (external cooling, D445-2 and D455-2 only)

With external air cooling, the cooling fins of the D445-2/D455-2 Control Unit are outside of the control cabinet. A seal (option) is required so that the Control Unit can be hermetically mounted in the rear cabinet panel.

The SIMOTION D4x5-2 Control Units are supplied with pre-assembled spacers. These can be removed if necessary.

Data storage/data backup

The SIMOTION D4x5-2 Control Units store the retentive process data permanently in a manner that is maintenance-free (refer to technical specifications for memory size).

The real-time clock is backed up for several days via a SuperCap. The buffer time can be extended via a battery in the double fan/battery module.

The double fan/battery module incl. battery is included in the scope of supply of the SIMOTION D4x5-2.

The runtime software, user data and user programs are stored retentively on the CompactFlash card (CF). The retentive process data of the Control Unit can also be stored on this CompactFlash Card via system command, e.g. if spare parts are required.

Extended execution system (SERVO_Fast / IPO_Fast)

The SIMOTION D435-2 DP/PN, D445-2 DP/PN and D455-2 DP/PN Control Units have (in addition to SERVO, IPO and IPO2) an additional second runtime level (SERVO_Fast and IPO_Fast).

The additional runtime level allows the distribution of electric and/or hydraulic axes with different dynamic responses on a slow and a fast bus system so that the performance of the controller can be used more efficiently.

It also enables particularly fast I/O processing in conjunction with high-speed PROFINET IO modules.

Thanks to the extended execution system, electrical positioning drives can be controlled with cycle times in the millisecond range, which requires fewer resources. At the same time the pressure-controlled axes of a hydraulic press can be controlled with a high dynamic response and short cycle times.
