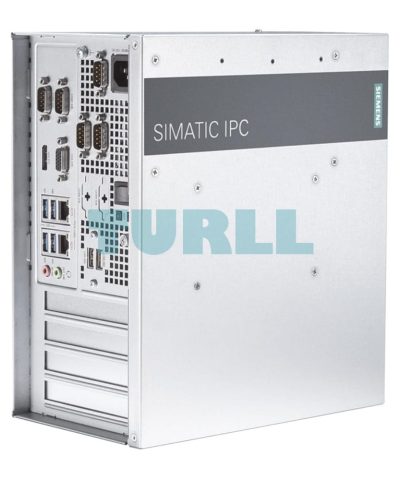

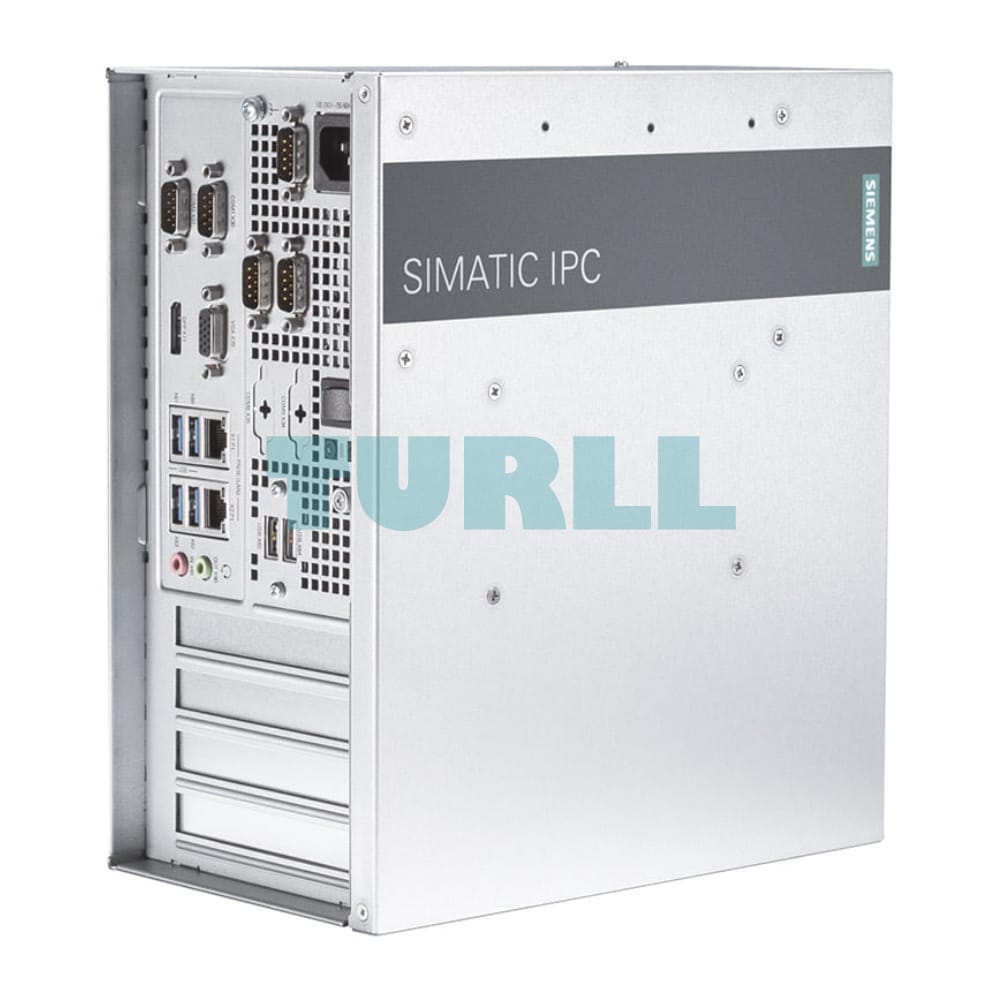

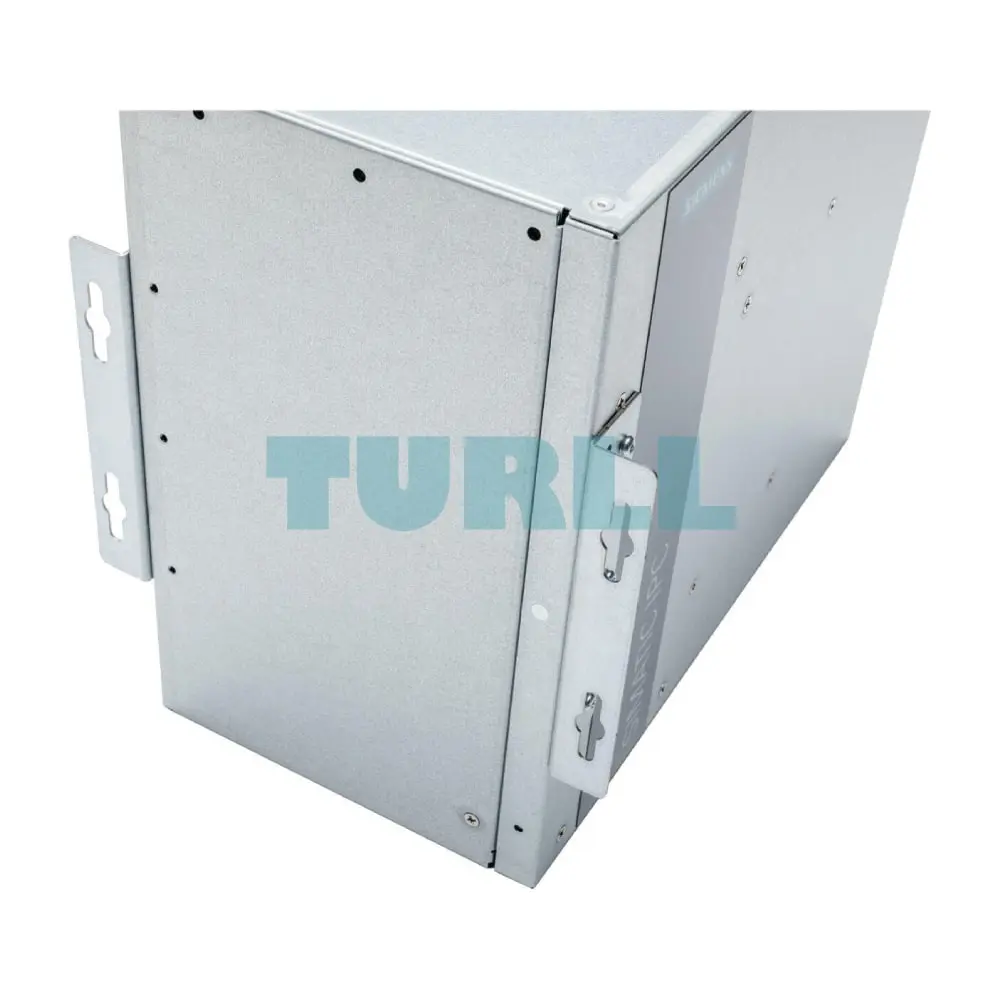

6AG4025-0CF30-3AA0 Siemens SIMATIC IPC527G Box PC Original Brand New

The SIMATIC IPC527G Box PC is a new product in the SIMATIC Industrial PC portfolio, which is characterized by high performance and flexibility at an extremely attractive price.

Powerful processors (Intel Core i Desktop CPUs), numerous interfaces, and the support of existing systems make the SIMATIC IPC527G a robust and low-cost platform for a wide range of industrial applications.

High system performance with compact dimensions

• Intel® desktop processors: Core i7, Core i5, and Pentium
• Work memory up to 32 GB supported
• PCI Express technology (PCIe x16)
• Compact device design for space-saving installation

Protection of investment thanks to support of existing systems

• Preinstalled Windows 10 & Windows 7 available
• Legacy interfaces: PCI, VGA, serial interfaces
• 1 x internal USB, e.g. for software dongle

Numerous interfaces and expansion options

• Up to 4 PCI/PCIe slots: 2 x PCIe and 2 x PCI, basic configuration 1 x PCIe
• 2 x COM (2 x RS232/RS485/RS422) in basic configuration and option for additionally 2 x RS232
• 4 x USB 3.0, optionally 2 x USB 2.0 in addition
• Up to 3 x Intel Gigabit Ethernet, basic configuration 2 x Intel Gigabit Ethernet
• 1 x DisplayPort & 1 x VGA

Made for industry & SIMATIC quality

• High computing performance at up to 45 °C ambient temperature
• Flexible mounting options (portrait, wall and desktop mounting)
• Run-in tested for fast and trouble-free commissioning
• Certificates for worldwide use
• Worldwide service and support

Economic solutions and fast availability

• Ideal platform for cost-optimized applications in the industrial environment
• Specific variants are available directly from stock
• Attractive packages with SIMATIC HMI software

The SIMATIC IPC527G offers an ideal platform for series machine manufacturers in particular due to its attractive price and high performance capability. Application examples are:

• Industrial image processing
• Complex visualization applications
• Measuring/open-loop and closed-loop control tasks, particularly with third-party software

Basic design and configuration

Basic design

• All-metal enclosure for high electromagnetic compatibility and mechanical ruggedness

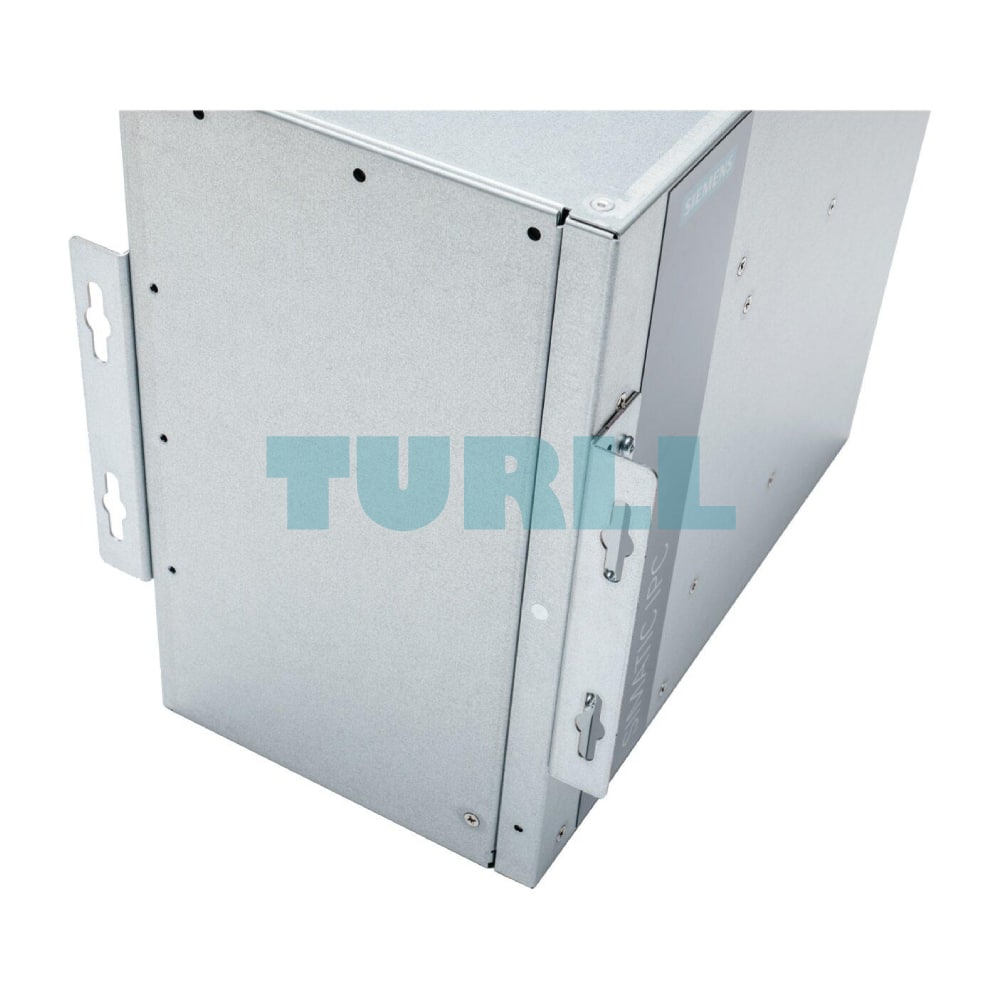

• Flexible installation: desktop, wall, portrait, tower mounting

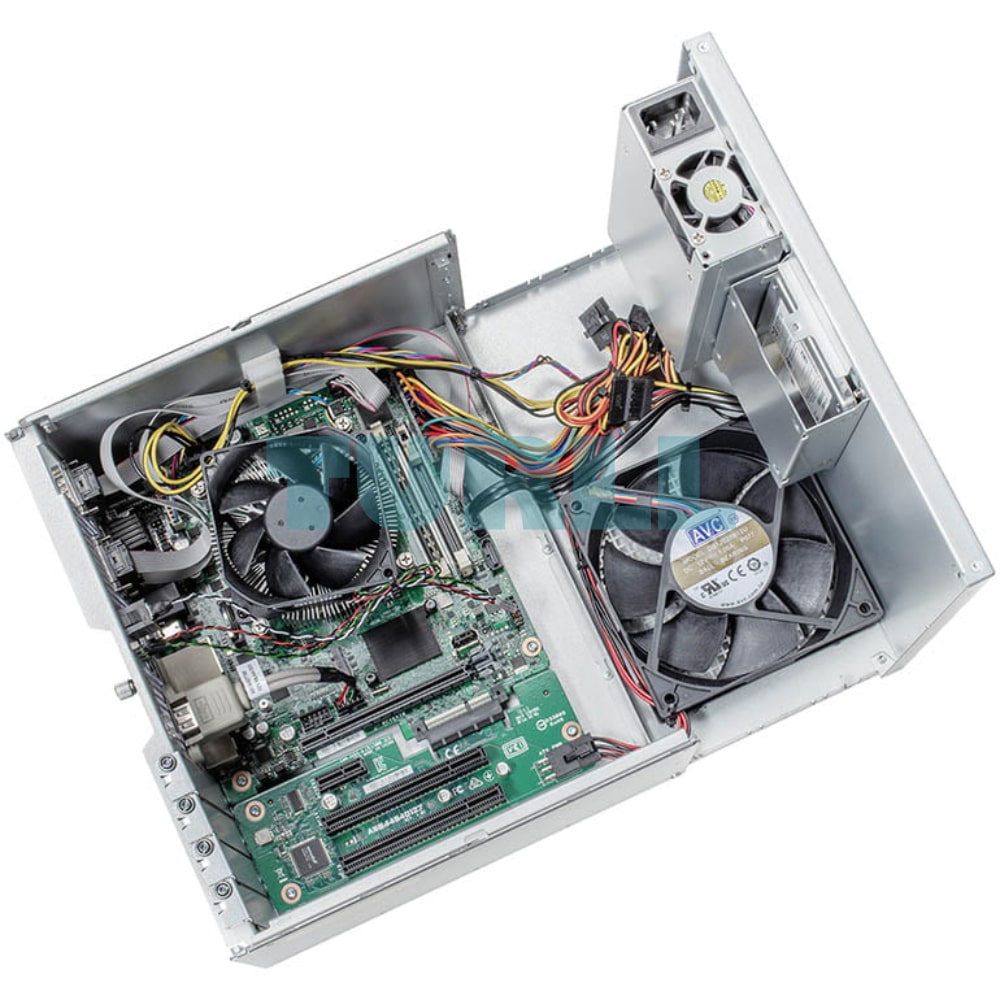

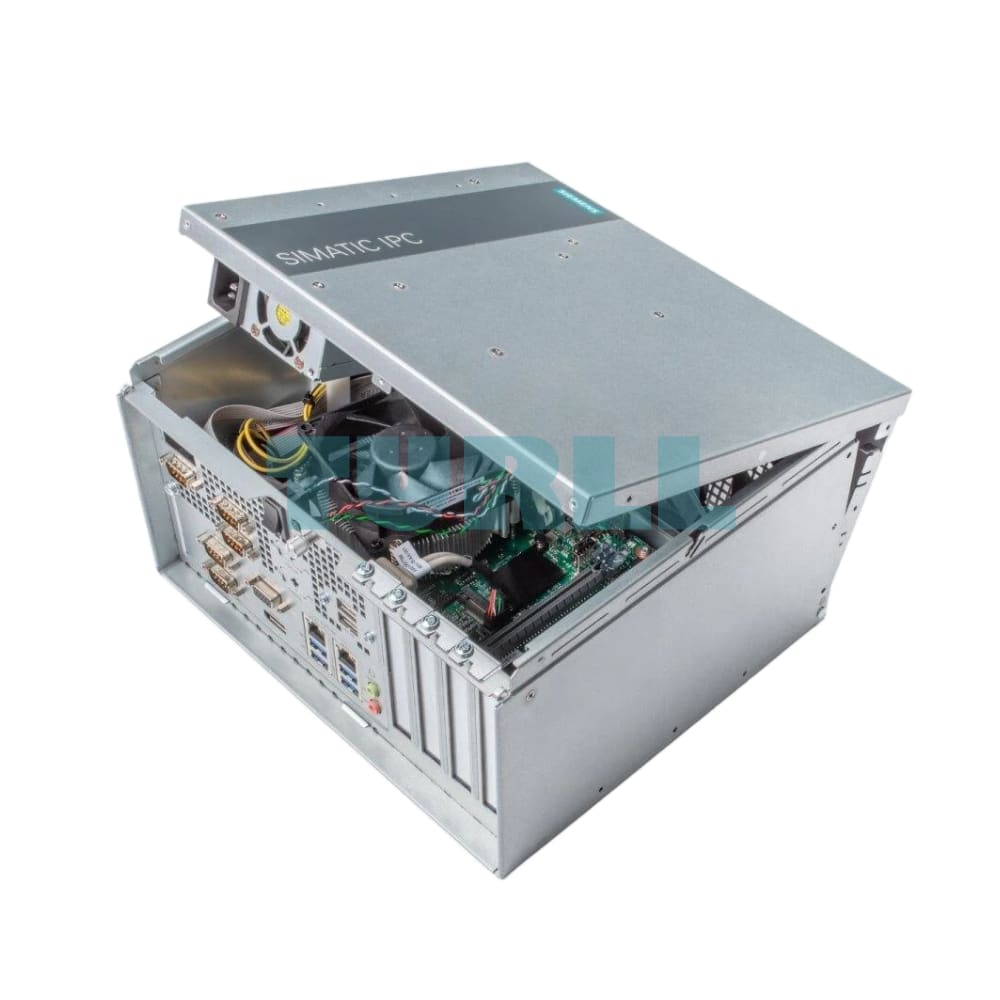

• Opening of the enclosure cover for expansion and replacement of PC components (e.g. PC cards or HDD) without a tool
• Dust protection through overpressure ventilation
• Status front LEDs: POWER, HDD,
• Mainboard with Intel® H110 chipset
• Graphics on-board, Intel® HD 530/510 integrated in the processor, up to 4096 x 2304 pixels, 60 Hz, 32-bit colors
• Interfaces:
  • 1 x DisplayPort V1.2, 1 x VGA
  • 2 x Intel Gbit Ethernet (RJ45, teaming-capable)
  • 4 x USB 3.0
  • 1 x USB 2.0 internally, e.g. for software dongle
  • 2 x RS232/485/422 selectable in BIOS
  • Audio: 1 x In / 1 x Out

Equipment variants

• Processor:
  • Core i7-6700 (4C/4T, 3.4 (4.0) GHz, 8 MB cache)
  • Core i5-6500 (4C/4T, 3.2 (3.6) GHz, 6 MB cache)
  • Pentium G4400 (2C/2T, 3.3 GHz, 3 MB cache)
• Main memory:
  • 4 GB (DDR4 2666 SODIMM)
  • 8 GB (DDR4 2666 SODIMM)
  • 16 GB (DDR4 2666 SODIMM)
• Drives:
  • 1 TB HDD 2.5″ SATA
  • 256 GB SSD 2.5″ SATA
  • 512 GB SSD 2.5″ SATA
  • Without drive, prepared for 1 x 2.5″ SATA
• Free slots for expansions (full height, half length):
  • 1 x PCIe x16
  • 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
  • 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1
• Specific expansions:
  • 2 x RS232, 2 x USB 2.0 additionally
  • 1 x Gbit LAN additionally (1 PCIe slot occupied)
  • 1 x Gbit LAN (1 PCIe slot occupied) & 2 x RS232; 2 x USB 2.0 additionally
  • Without specific expansion
• Preinstalled operating systems:
  • Windows 7 Ultimate 32/64-bit, multi-language
  • Windows 10 Enterprise 2016 LTSB, multi-language
  • Windows 10 Enterprise 2019 LTSC, multi-language
  • Without operating system
