6DR4004-8J SIEMENS Exclusive SIPART PS2 Analog Output Module Original Brand New

6DR4004-8J SIEMENS Exclusive SIPART PS2 Analog Output Module Original Brand New

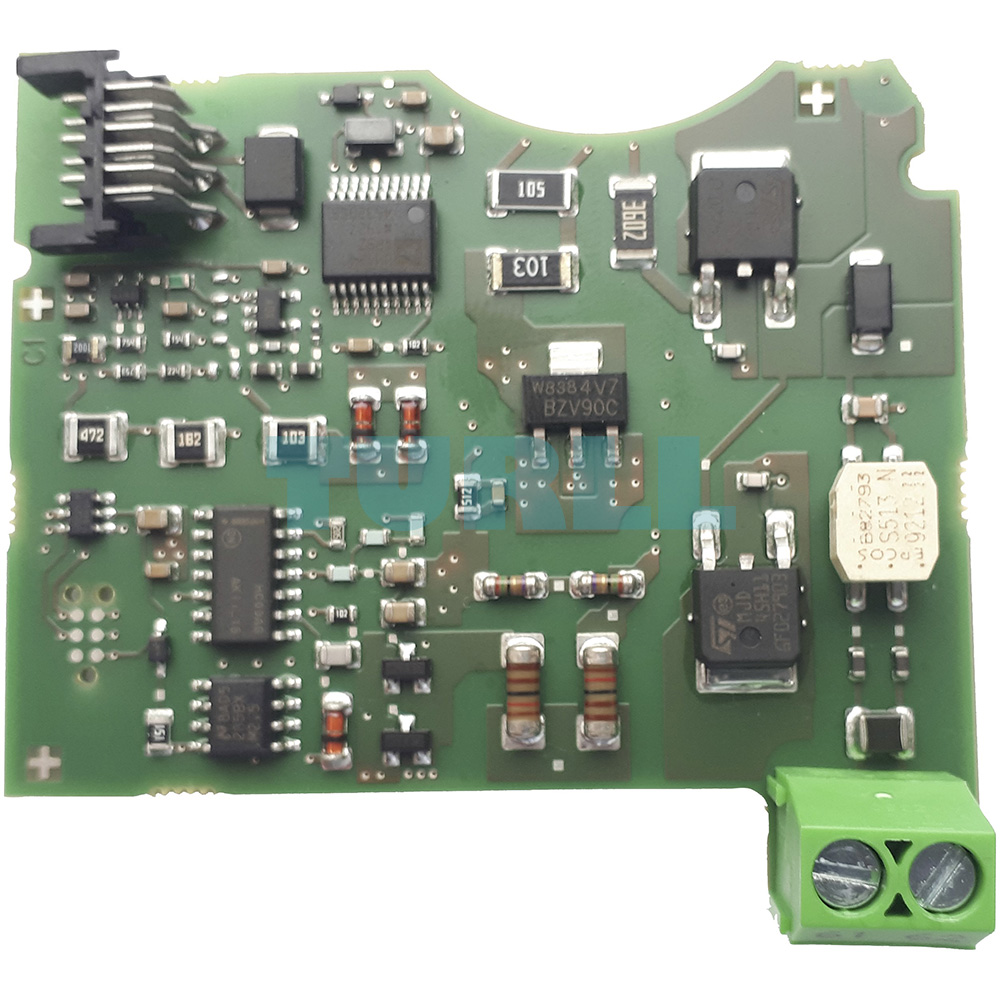

The 6DR4004-8J SIEMENS analog output module is a high-quality plug-in expansion designed for the SIPART PS2 electropneumatic positioner. This original brand-new module provides precise analog current output (4–20 mA) for position feedback. Easy to retrofit and electrically isolated, it enables accurate monitoring of valve position in real-time without the need for explosion-proof housing.

Engineered to fit seamlessly into existing SIPART PS2 systems, the 6DR4004-8J enhances automation reliability and flexibility. It plays a critical role in transmitting feedback signals from the actuator to the controller, supporting optimized valve operation in various industrial environments.

Overview

The SIPART PS2 positioners control pneumatic valves by adjusting the valve position according to the setpoint value. They offer extensive diagnostic capabilities, both online during operation and offline between batch processes. Optional pressure sensors can expand diagnostic functionality further.

Design

The SIPART PS2 system is modular and customizable. Key design features include:

• Electronics with screw-type terminals for 4–20 mA, HART, PROFIBUS PA, and FOUNDATION Fieldbus
• Feedback options: potentiometer or non-contact sensor
• Pneumatic block with configurable connections (e.g., gauge block, booster, safety solenoid valve)
• Mounting kits for linear or part-turn actuators

Optional modules supported:

• Analog Output Module (AOM): Feedback signal 4–20 mA
• Digital I/O Module (DIO): 3 digital outputs and 1 input for alarm and safety functions
• Inductive & Mechanical Limit Switches: NAMUR signal compliance and fault indicators

Additional benefit includes the ability to mount the positioner remotely for better protection in harsh environments. Electrical and pneumatic connections enable seamless integration.

Product Code: 6DR4004-8J
