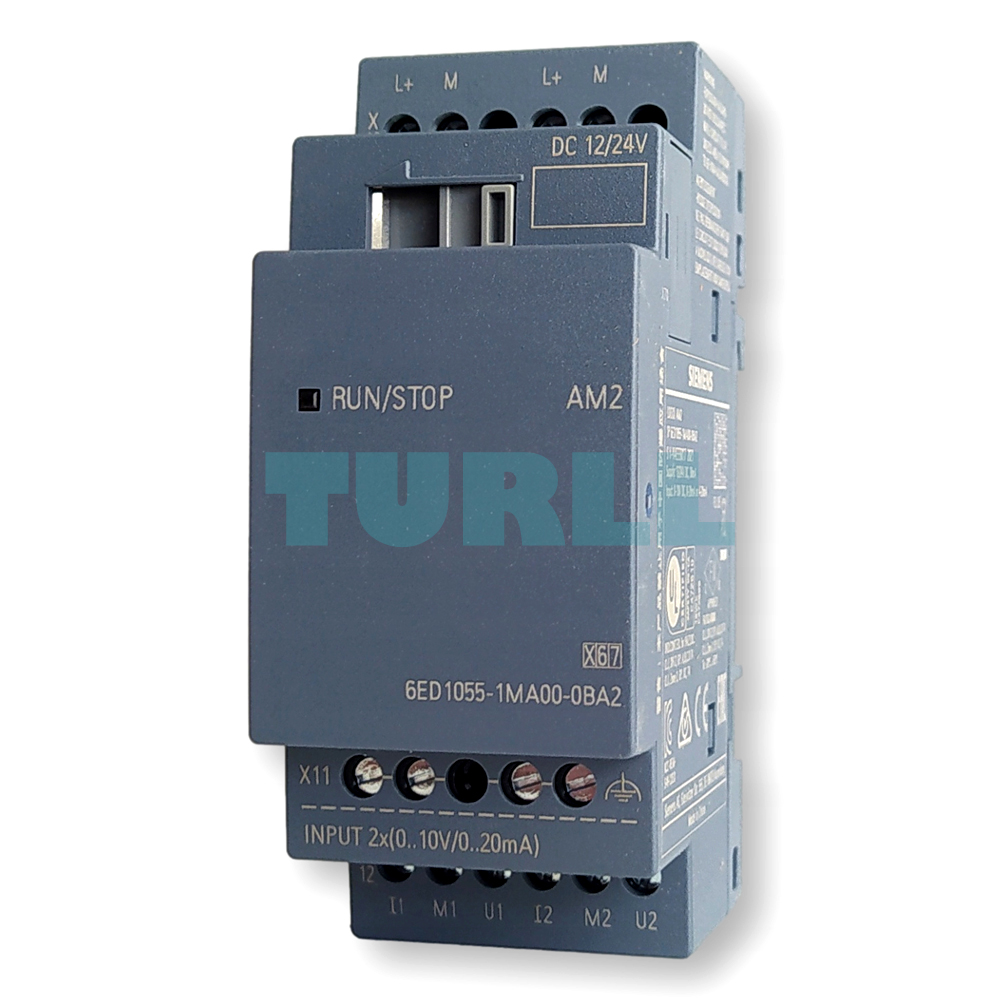

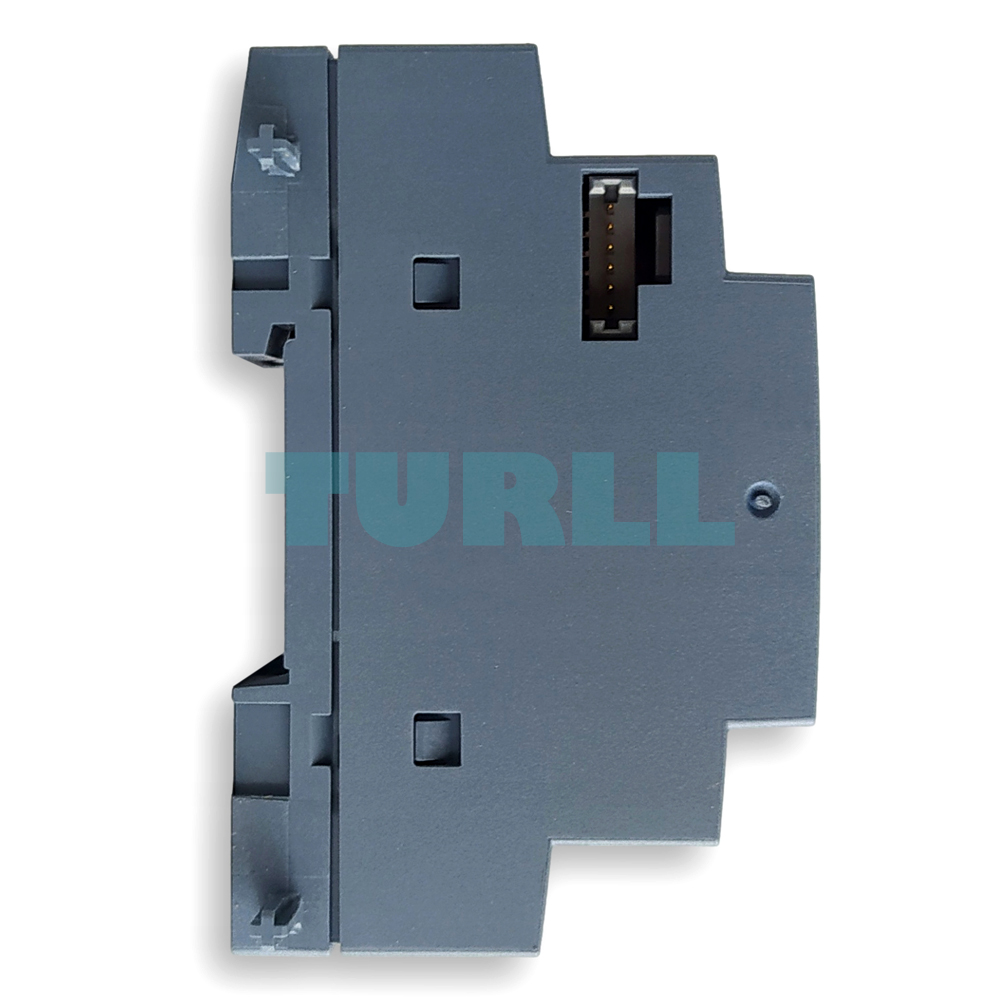

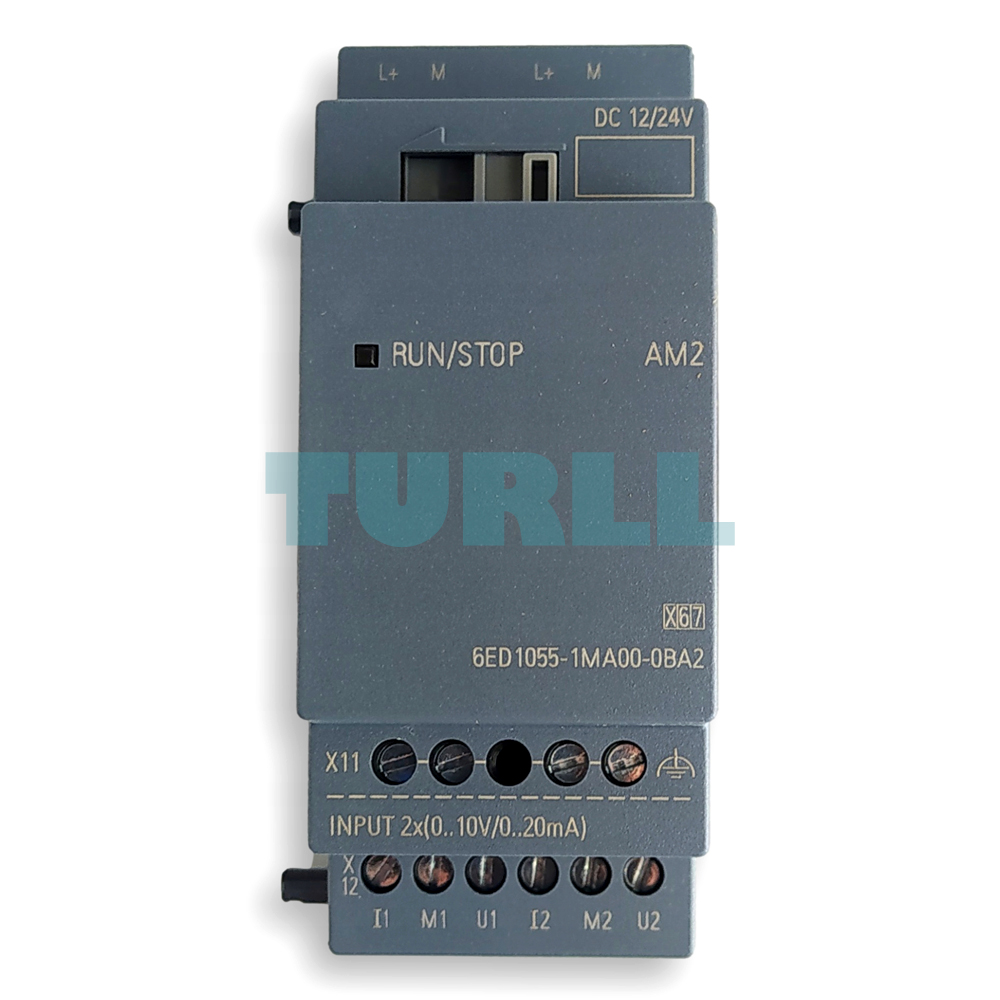

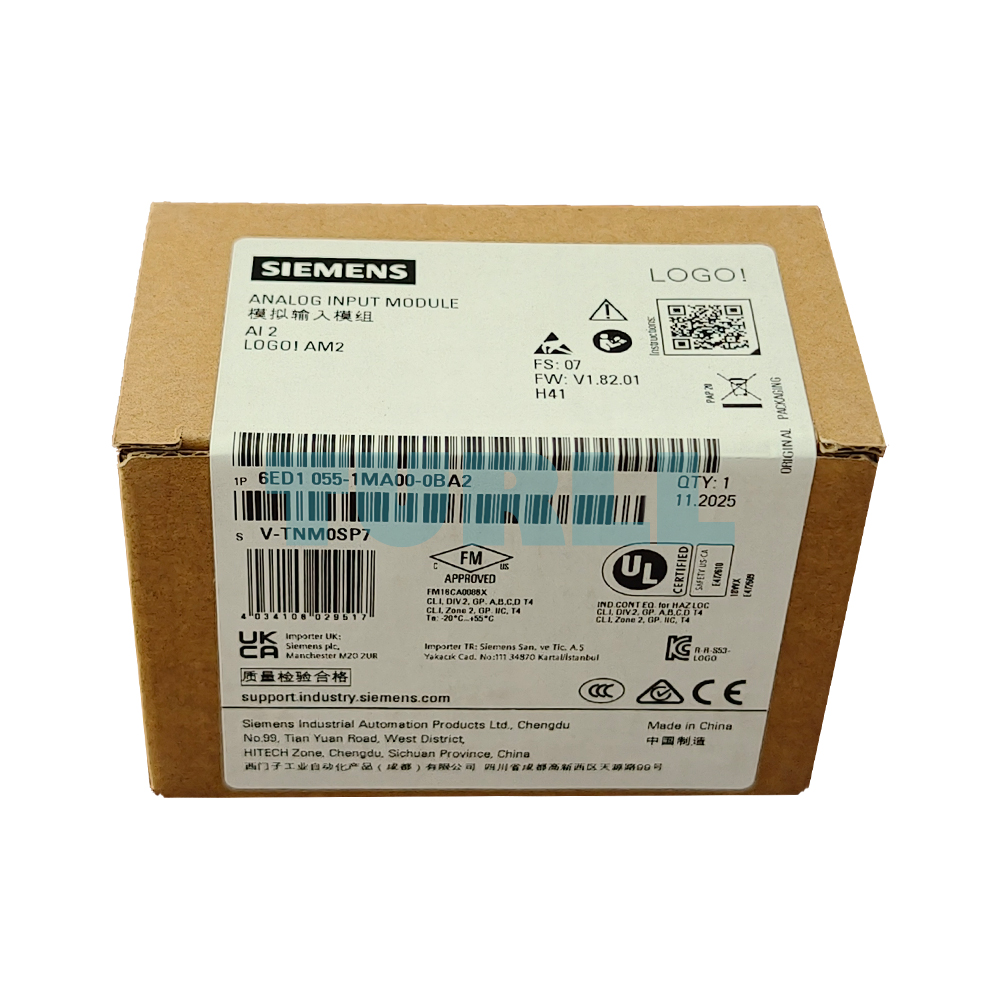

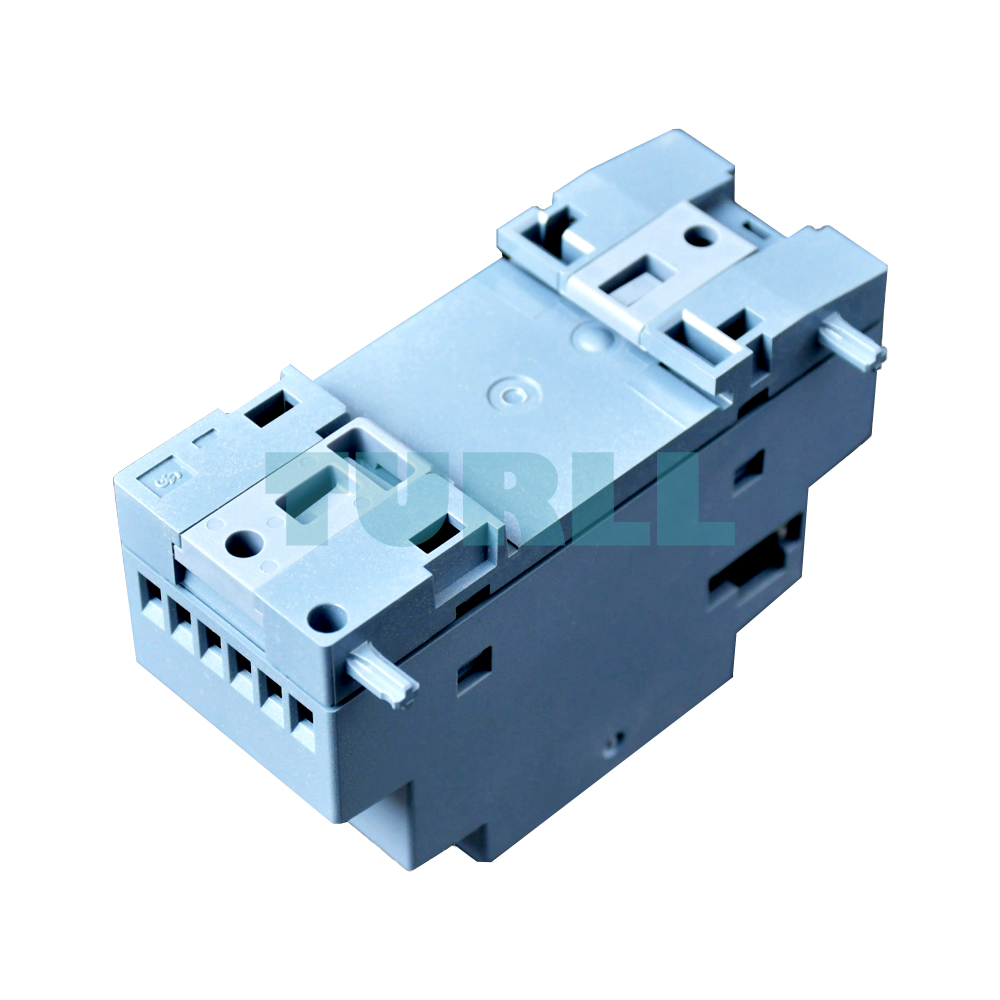

Siemens 6ED1055-1MA00-0BA2 LOGO! AM2 Expansion Module, 2 AI, 0-10V / 0/4-20mA, 12/24V DC Original Brand New
$67.17
A high-performance LOGO! AM2 expansion module designed for the LOGO! 8 logic controller series. It provides 2 additional analog inputs supporting 0-10V or 0/4-20mA signals, powered by a versatile 12/24V DC supply.
Availability: In stock
Overview
The Siemens LOGO! AM2 (6ED1055-1MA00-0BA2) is an essential expansion component for users looking to enhance the sensing capabilities of their LOGO! 8 automation systems. This module allows for the seamless integration of analog sensors—such as temperature, pressure, or flow meters—into your control logic. Its compact design and DIN rail mounting make it a space-saving solution for industrial and building automation.
Key Features
-
Seamless Integration: Specifically engineered for the LOGO! 8 generation.
-
Dual Analog Inputs: Supports 2 channels for flexible data acquisition.
-
Universal Signal Support: Easily switch between 0-10 V voltage signals or 0/4-20 mA current signals.
-
Industrial Grade: Built for reliability in harsh electrical environments with a wide 12/24V DC power range.
Function
-
Signal Conversion: Converts physical analog signals into digital data for the CPU.
-
Monitoring: Ideal for monitoring variable processes like fluid levels or motor speeds.
-
Scalability: Allows the base LOGO! unit to handle more complex automated tasks without upgrading to a full-scale PLC.
Benefit
-
Easy Integration: Quickly connects with LOGO! 8 modules for system expansion.
-
Versatile Measurement: Supports multiple analog signal types for diverse applications.
-
Reliable Operation: Siemens quality ensures long-term, stable performance.
-
Enhanced Automation: Enables more precise control and monitoring in industrial processes.
Download
Visit 6ED1055-1MA00-0BA2 for more detail info
For more our products visit turll
| Weight | 0.137 kg |
|---|---|
| Dimensions | 5.70 × 9.60 × 7.10 mm |
| Brand | SIEMENS |
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| Rated value (DC) | – |
| ● 12 V DC | Yes; 10.8 V DC to 28.8 V DC |
| ● 24 V DC | Yes; 10.8 V DC to 28.8 V DC |
| Current consumption, typ. | 30 mA |
| Number of analog inputs | 2 |
| ● Voltage | Yes |
| ● Current | Yes |
| ● Resistance thermometer | No |
| ● 0 to +10 V | Yes |
| ● 0 to 20 mA | Yes; 0 mA or 4 mA to 20 mA |
| ● Pt 100 | No |
| ● Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| ● min. | 0 °C; ES03 and higher: -20 °C |
| ● max. | 55 °C |
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
| last modified: | 3/12/2021 |
