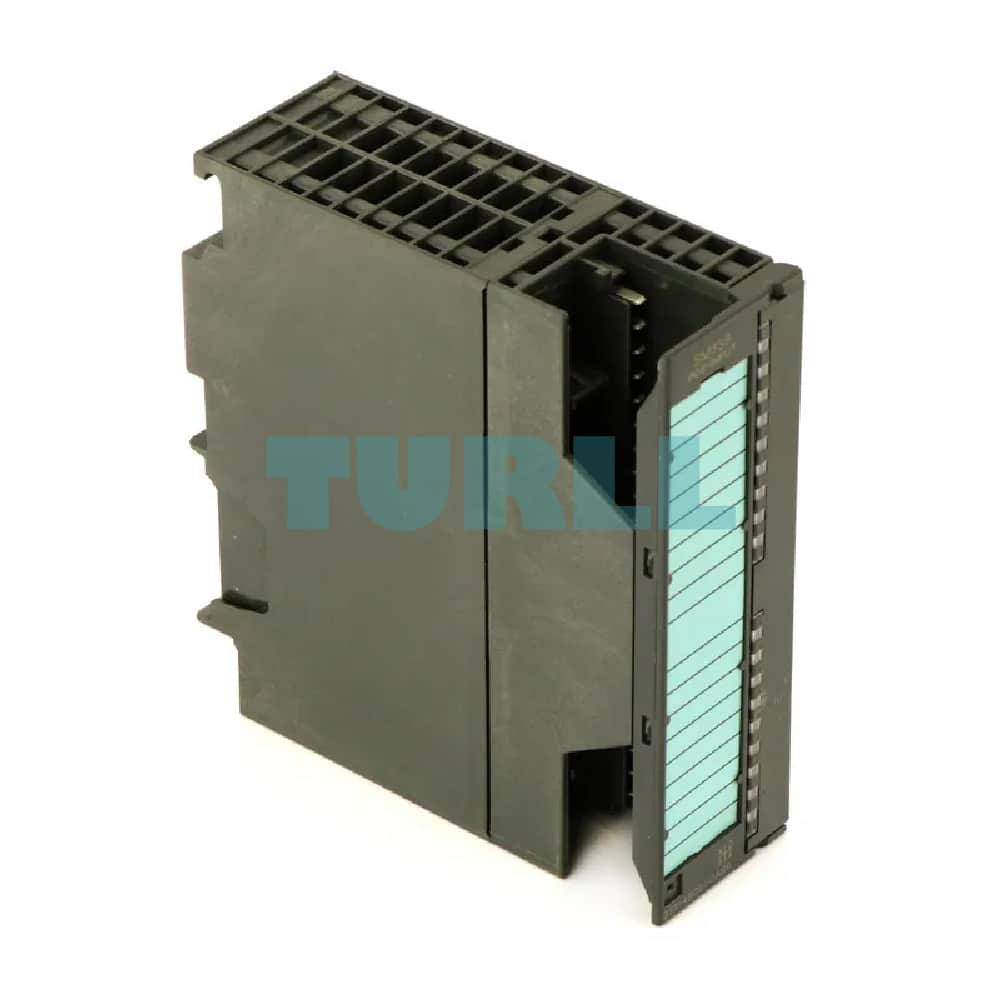

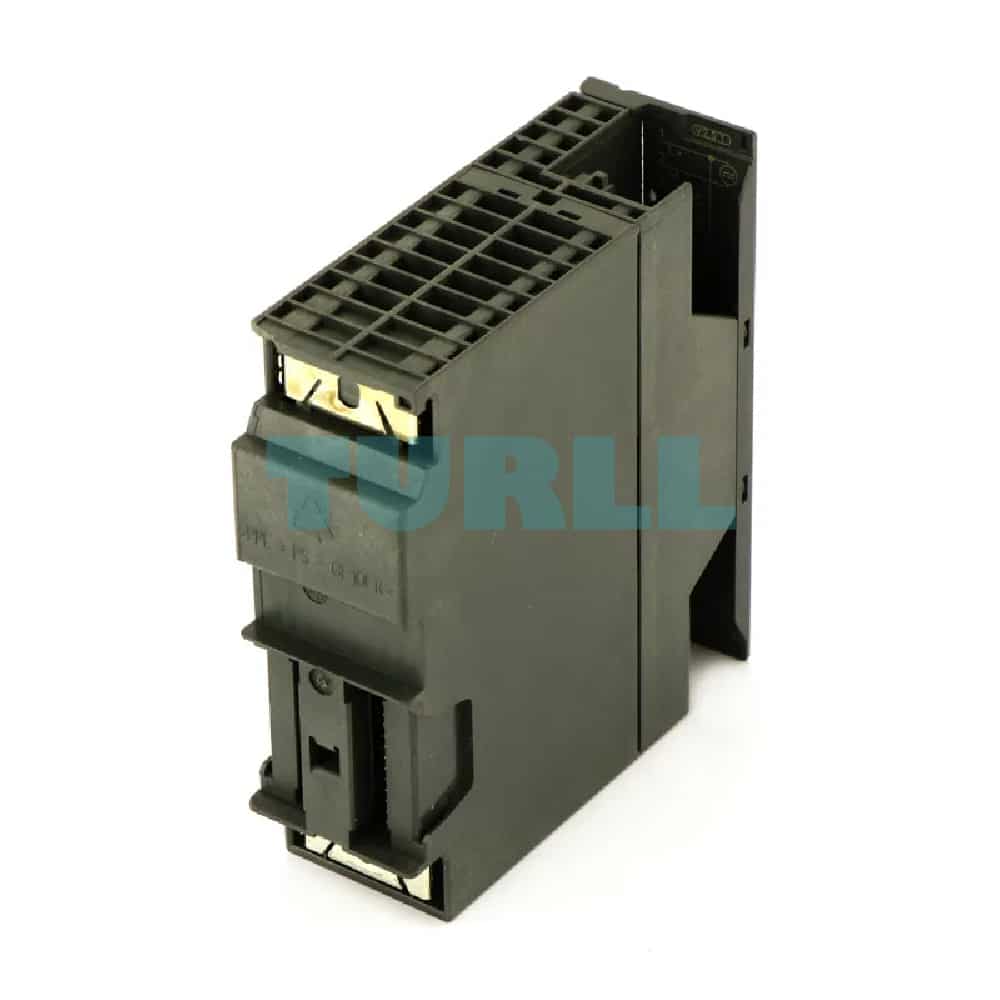

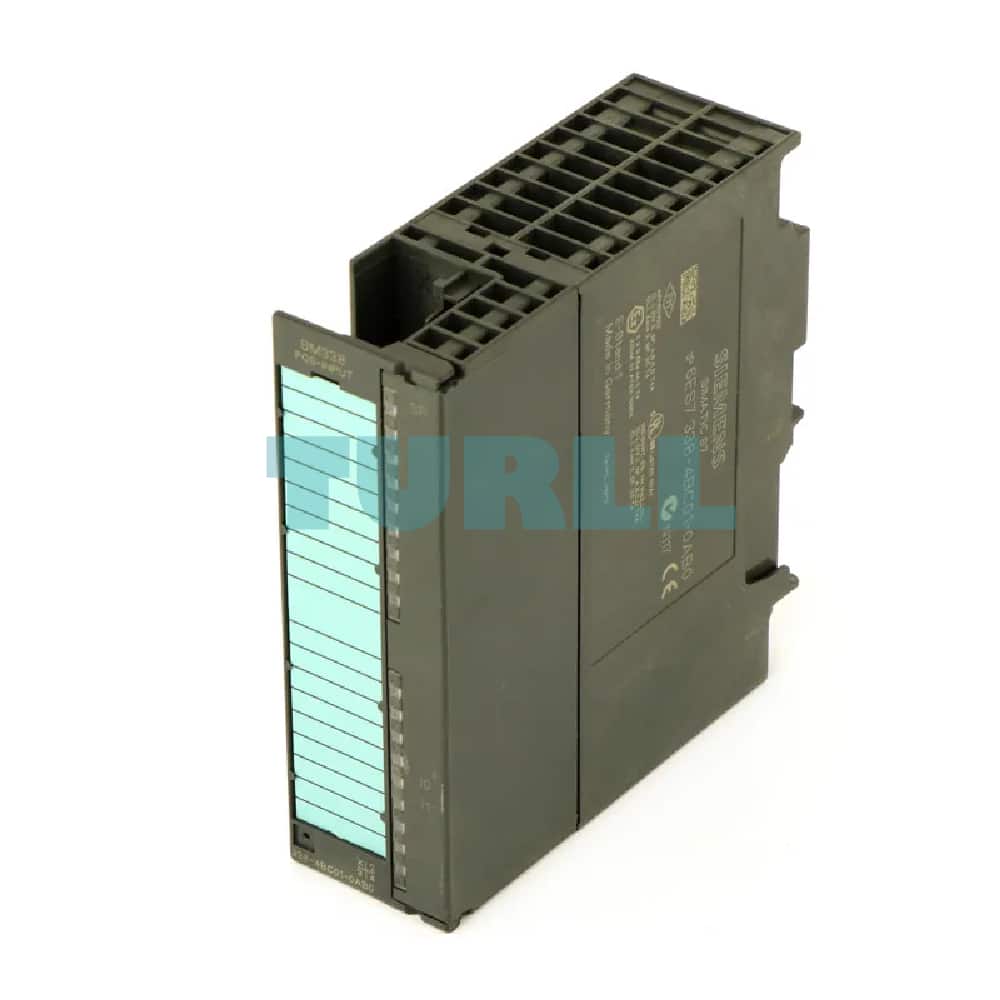

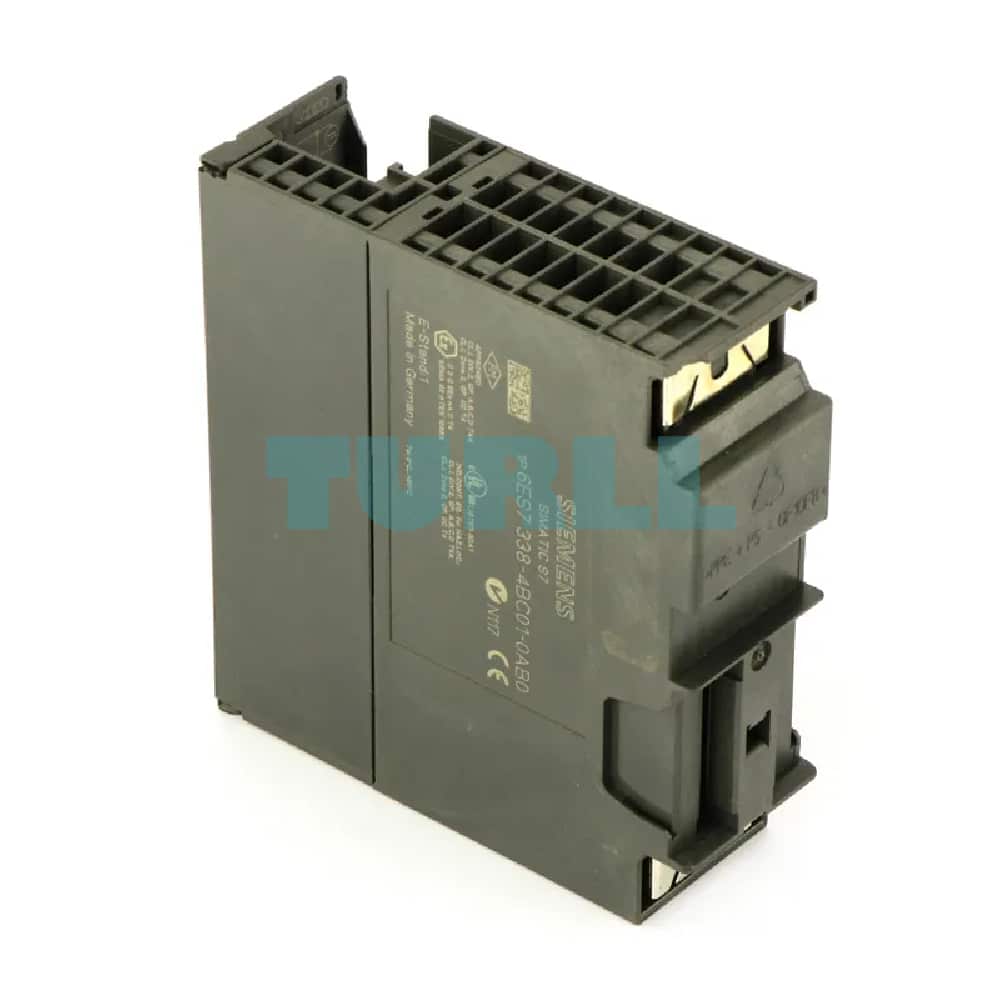

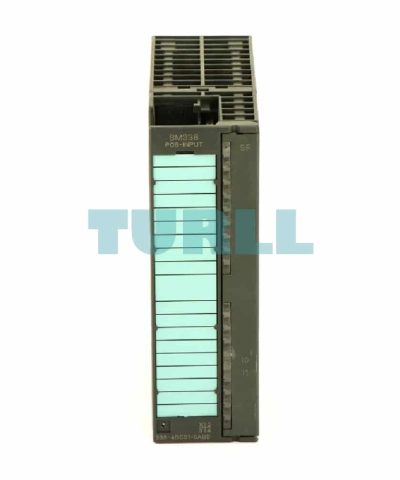

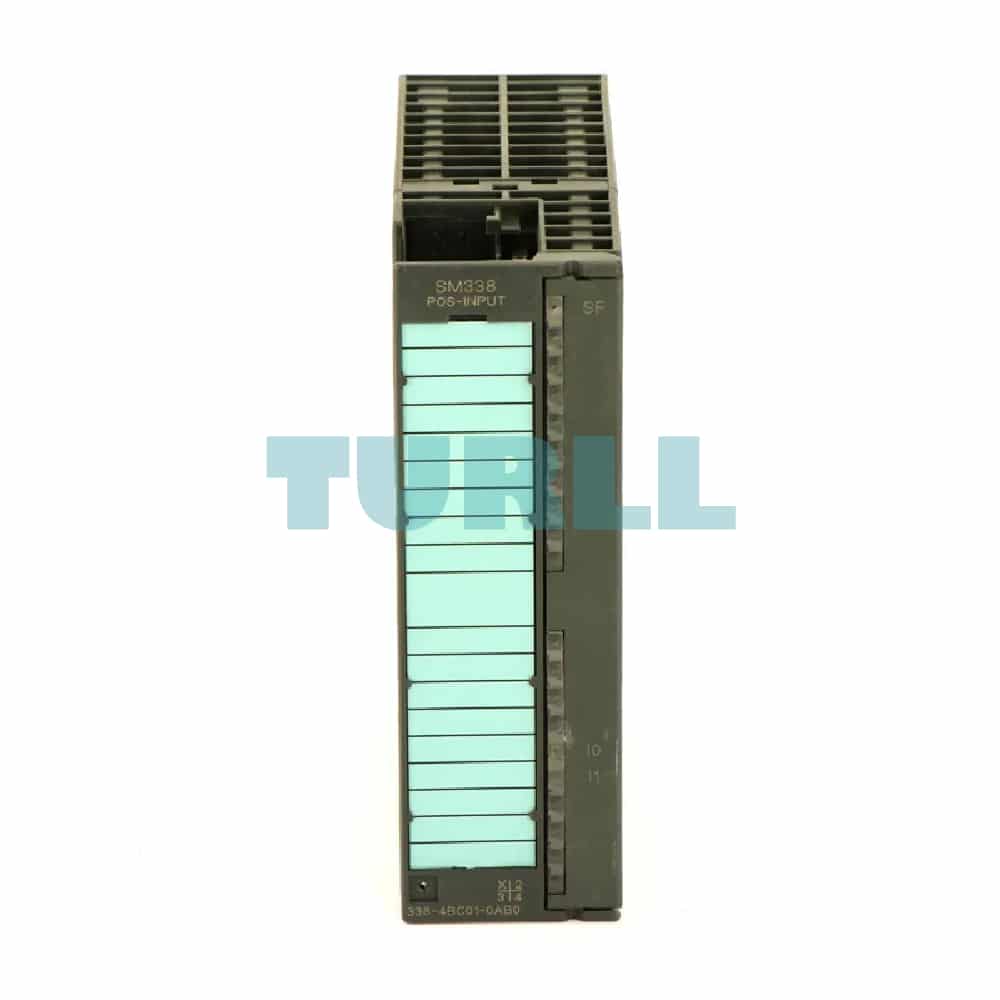

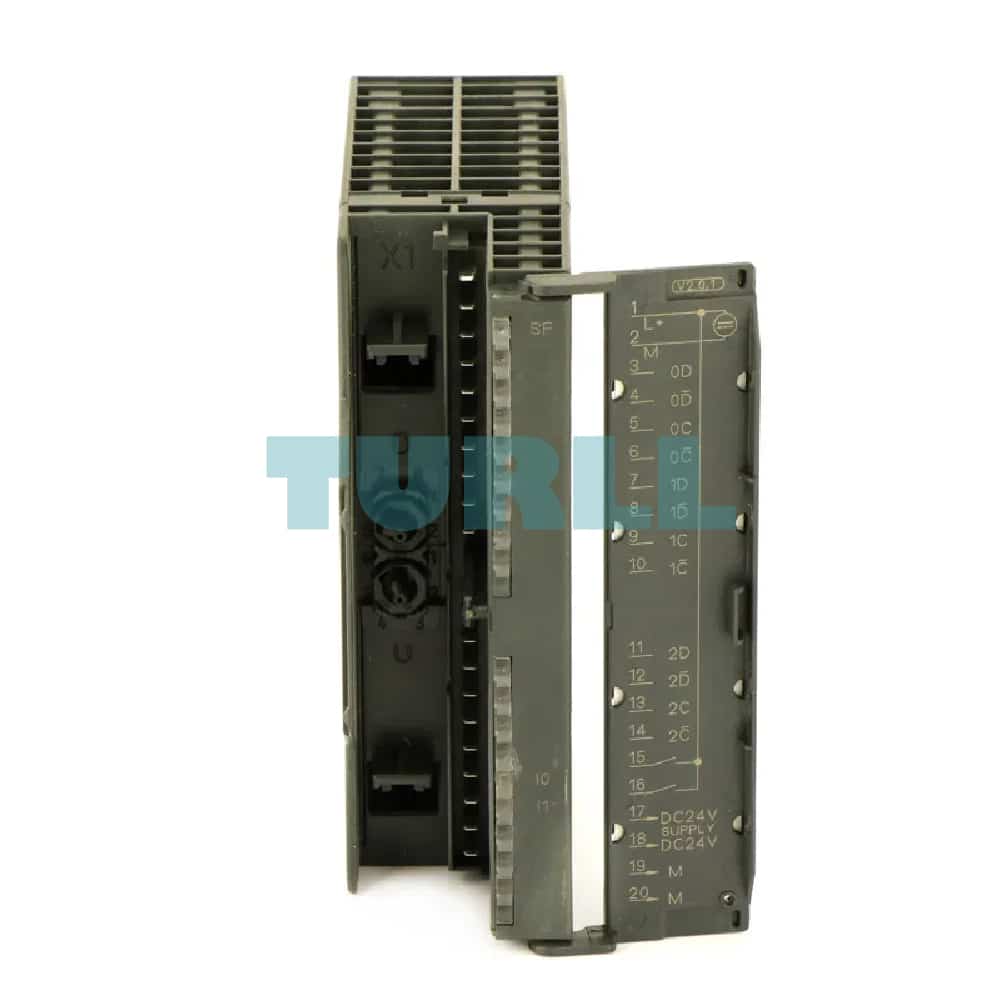

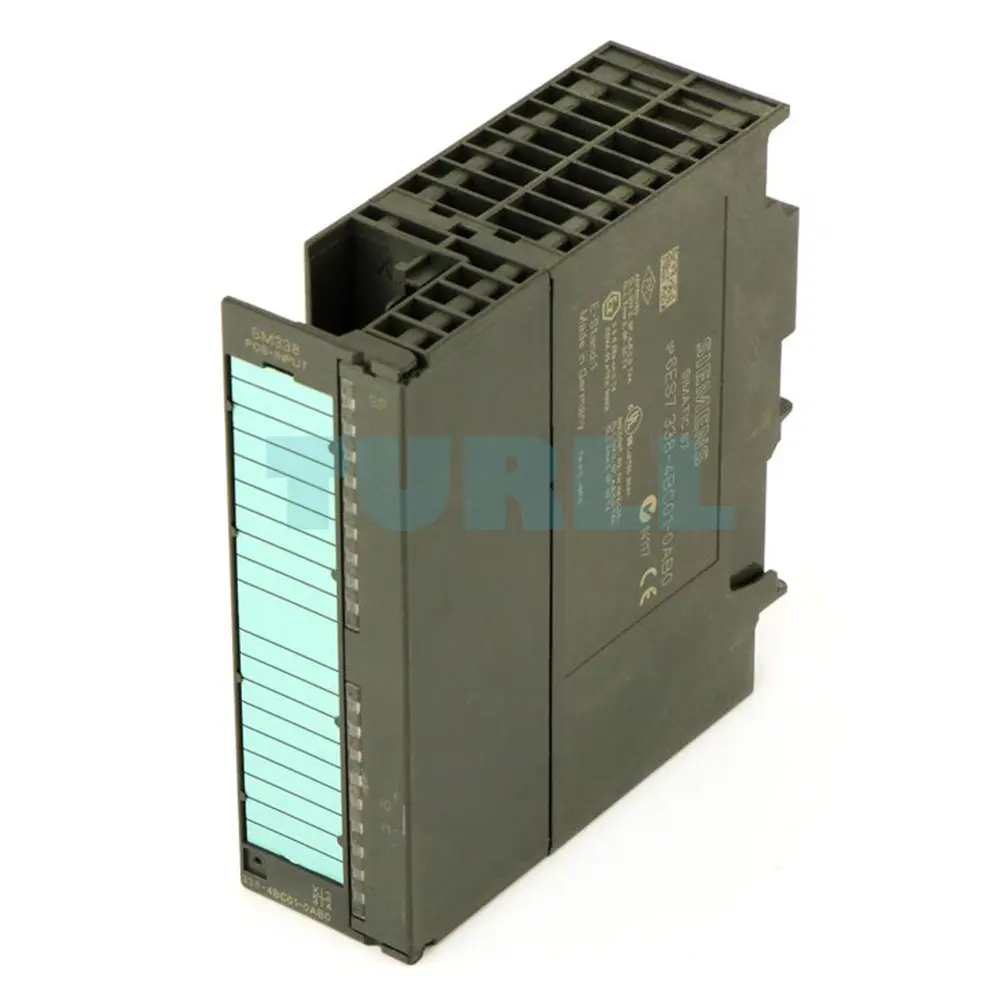

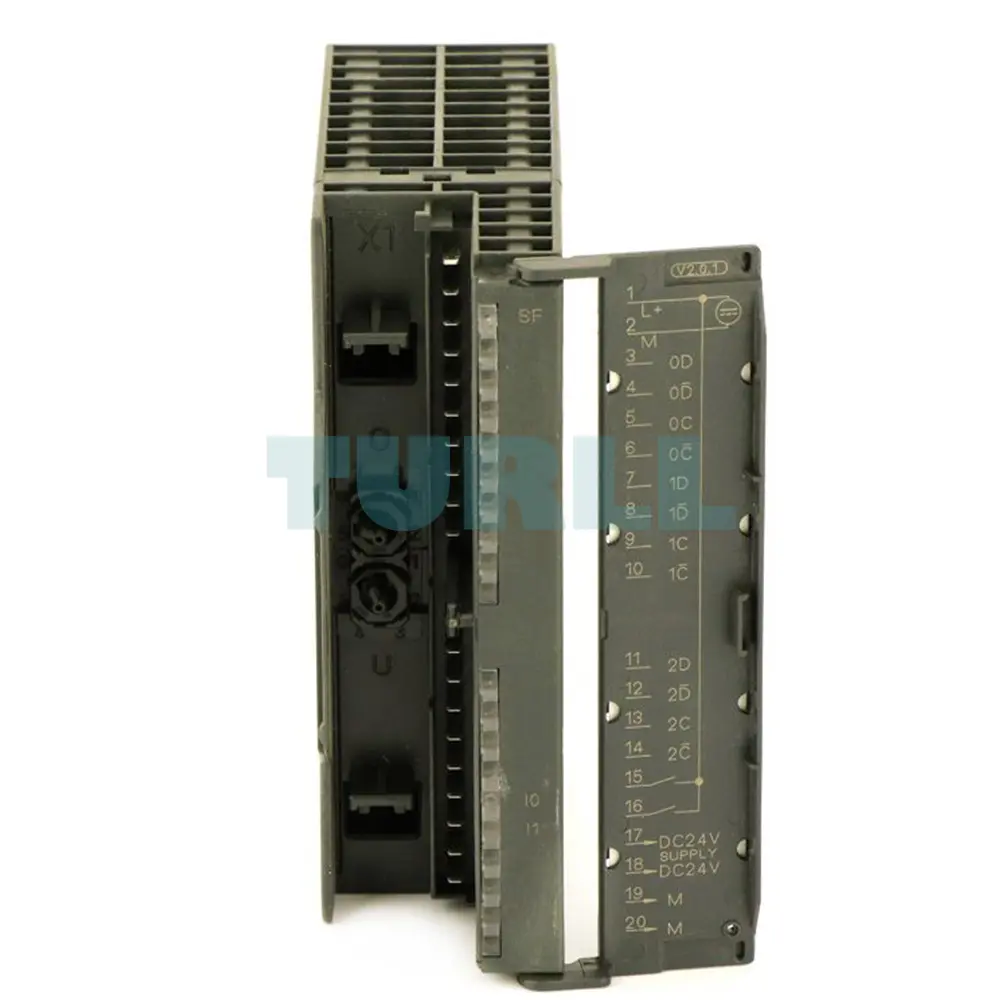

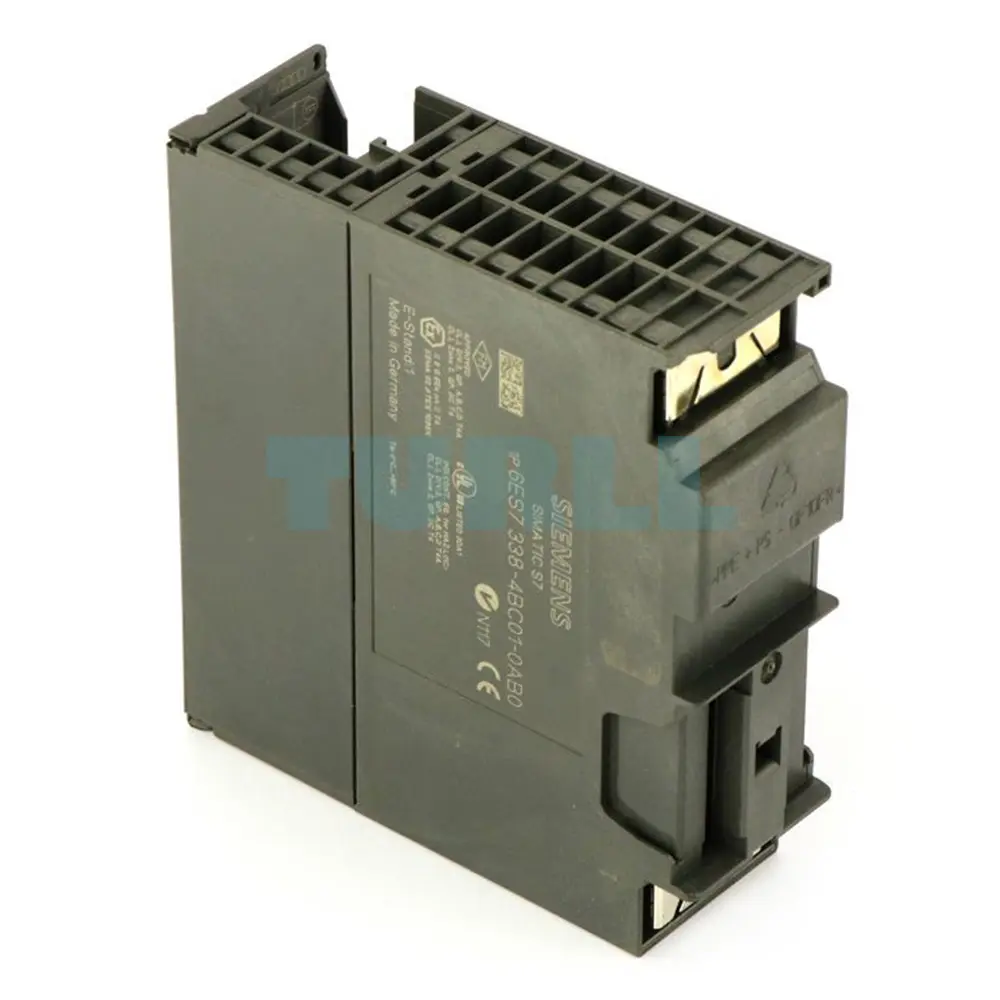

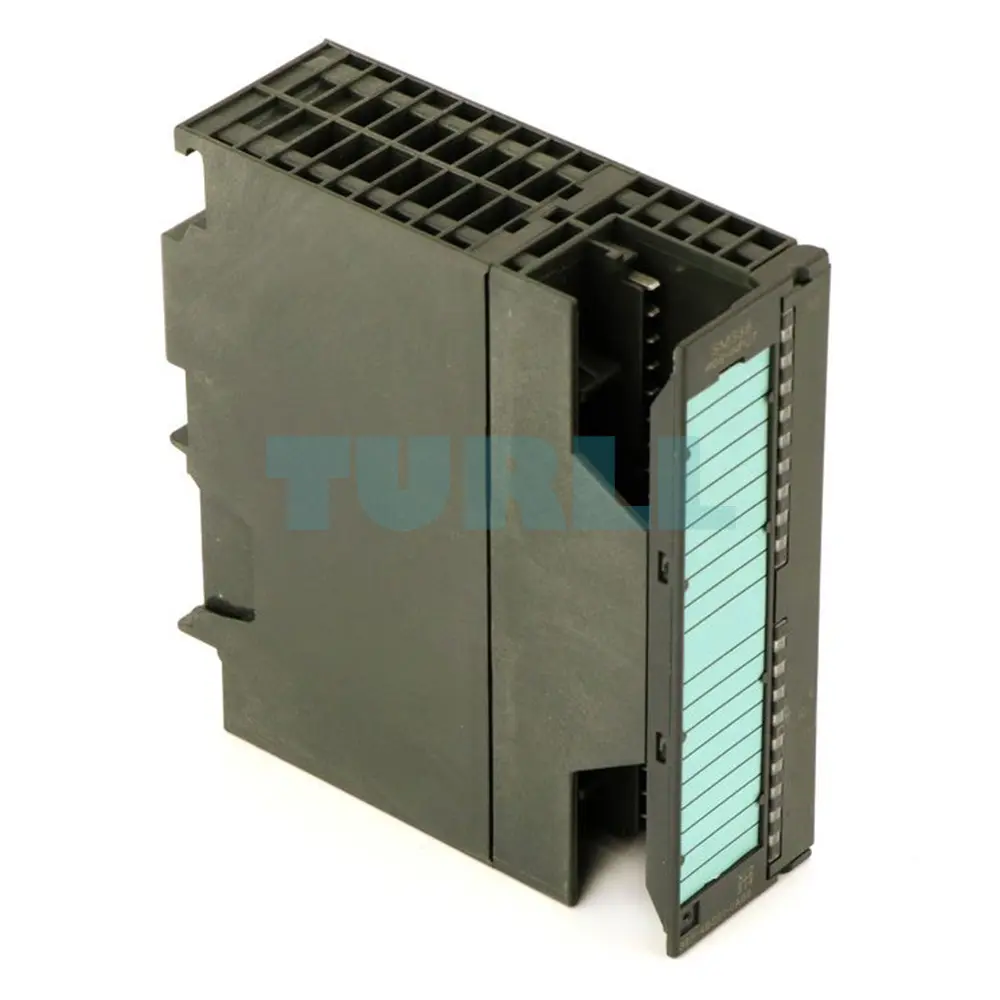

Siemens SIMATIC S7-300, Signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole Supports isochronous mode
Backorder available · Factory lead time 2–3 weeks.
Siemens SIMATIC S7-300, Signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole Supports isochronous mode
Note:
We offer position measuring systems and preassembled connecting cables for counting and positioning functions under SIMODRIVE Sensor or Motion Connect 500, see under this link.
The SM 338 POS input module can be used as an interface between up to 3 absolute encoders and the S7-300 CPU. It makes position-encoder values available for subsequent processing in the control and provides the conditions for the control to respond directly to encoder values in systems under motion.
The POS input module is equipped with:
The POS input module converts SSI encoder signals from the process into digital values for S7-300.
A selection can be made between:
or
The detected values can be processed directly in the STEP 7 program, allowing a direct response to encoder values in moving systems.
In addition, SSI encoder statuses can be picked up via two internal digital inputs in the module. This in turn allows further time-critical applications in position feedback.
Visit 6ES7338-4BC01-0AB0
For more our products visit turll.com
| SKU / Model | 6ES7338-4BC01-0AB0 |
|---|---|
| Weight | 0.248 kg |
| Dimensions | 128 × 152 × 50 mm |
