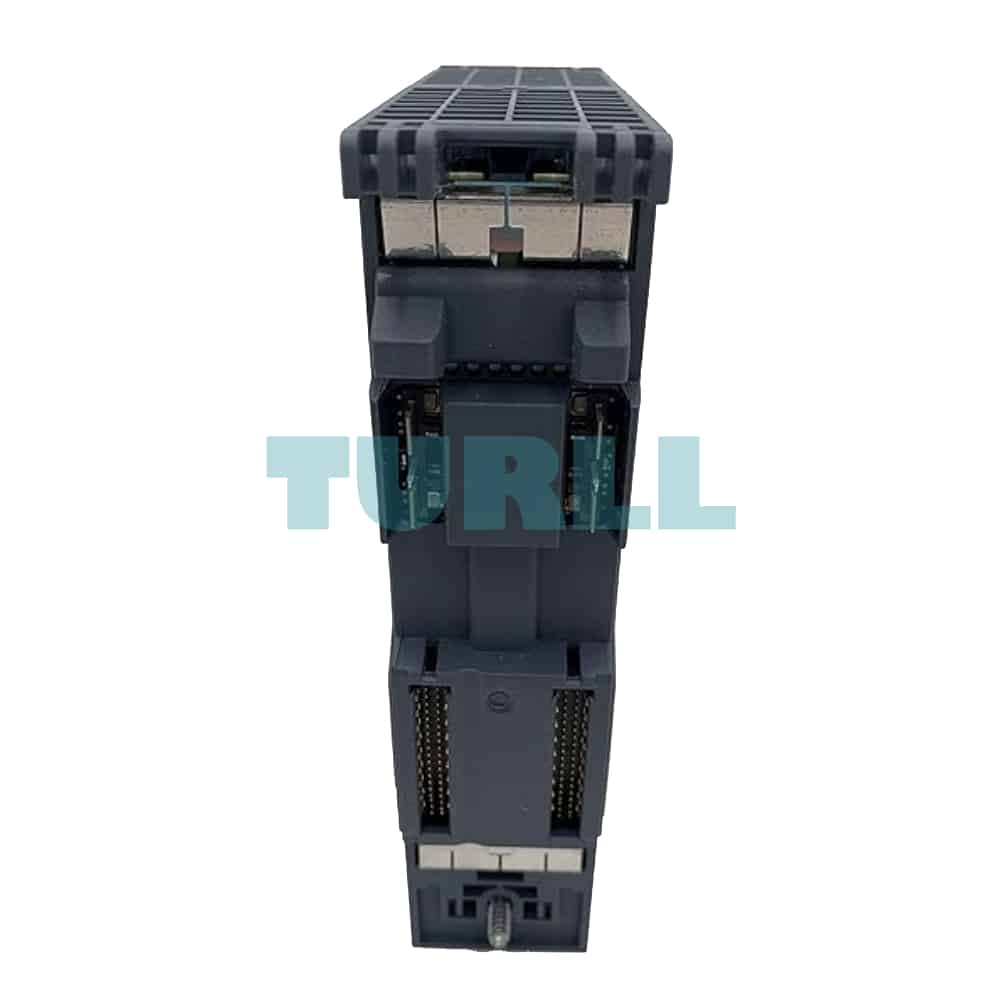

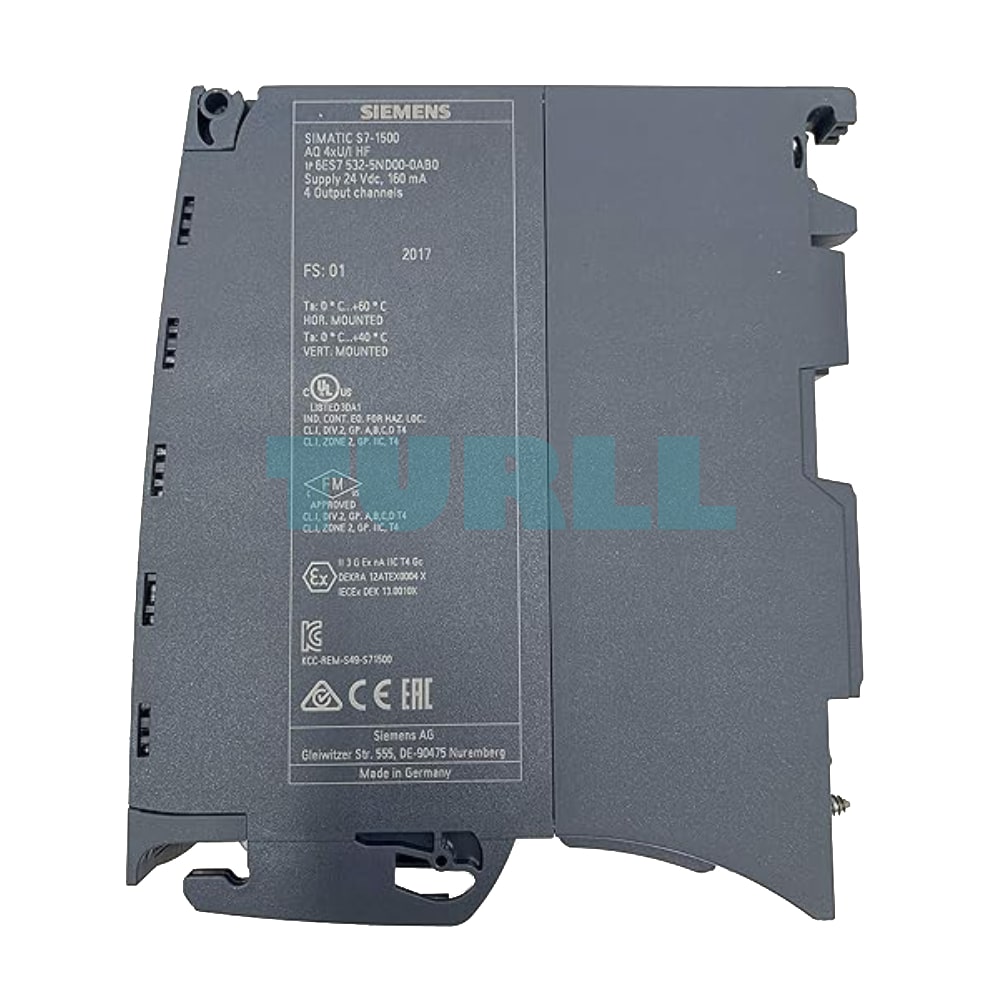

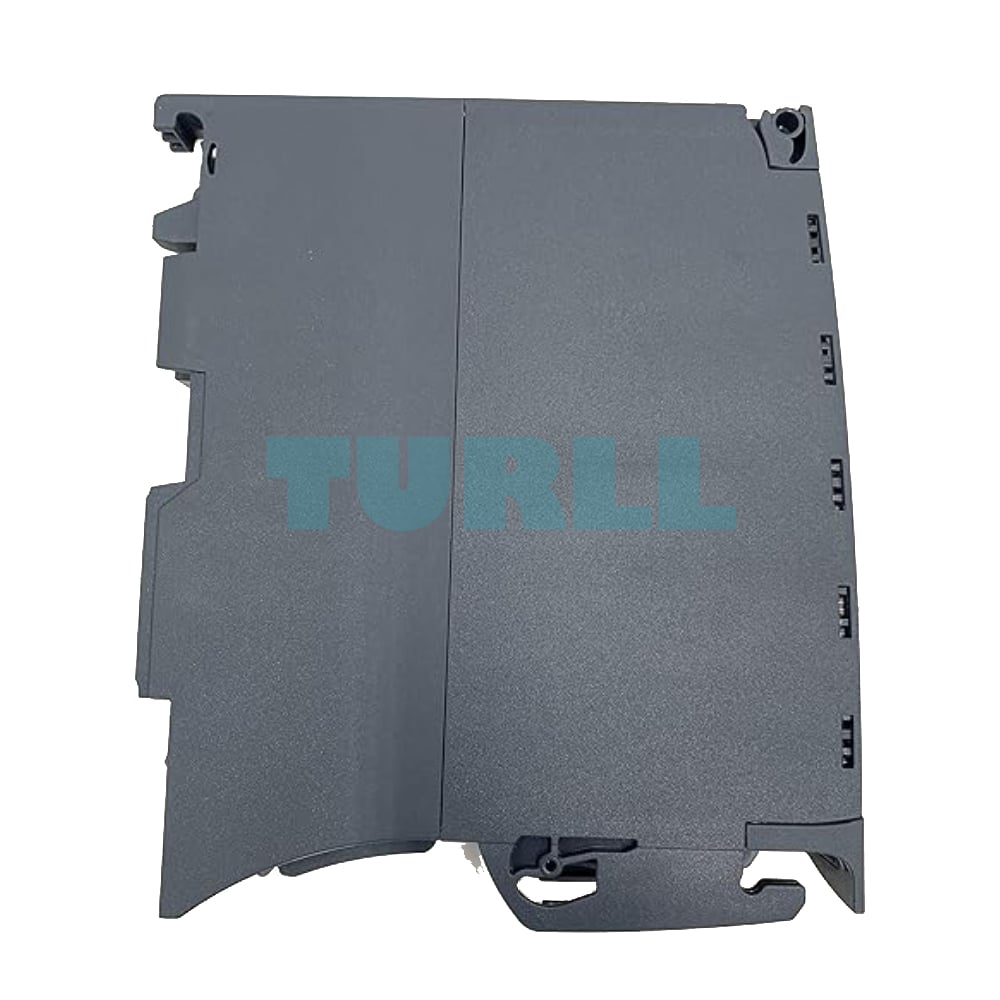

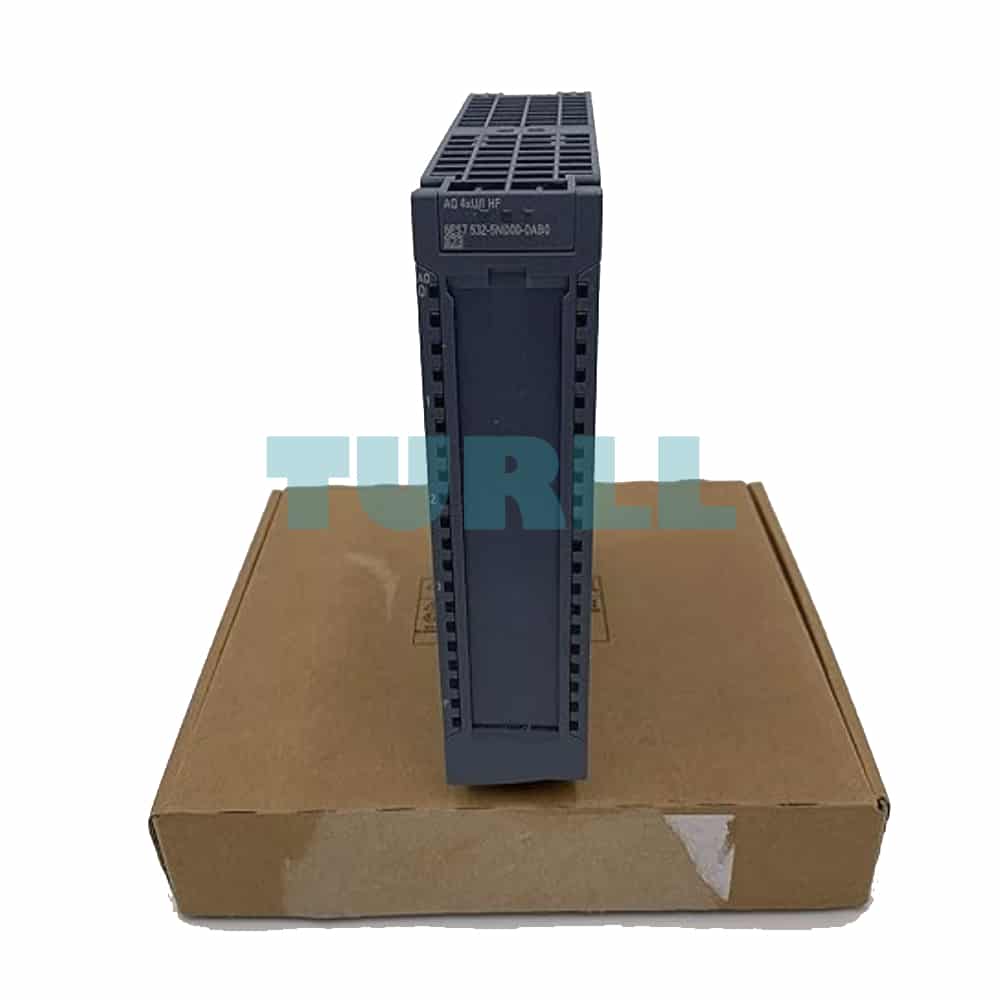

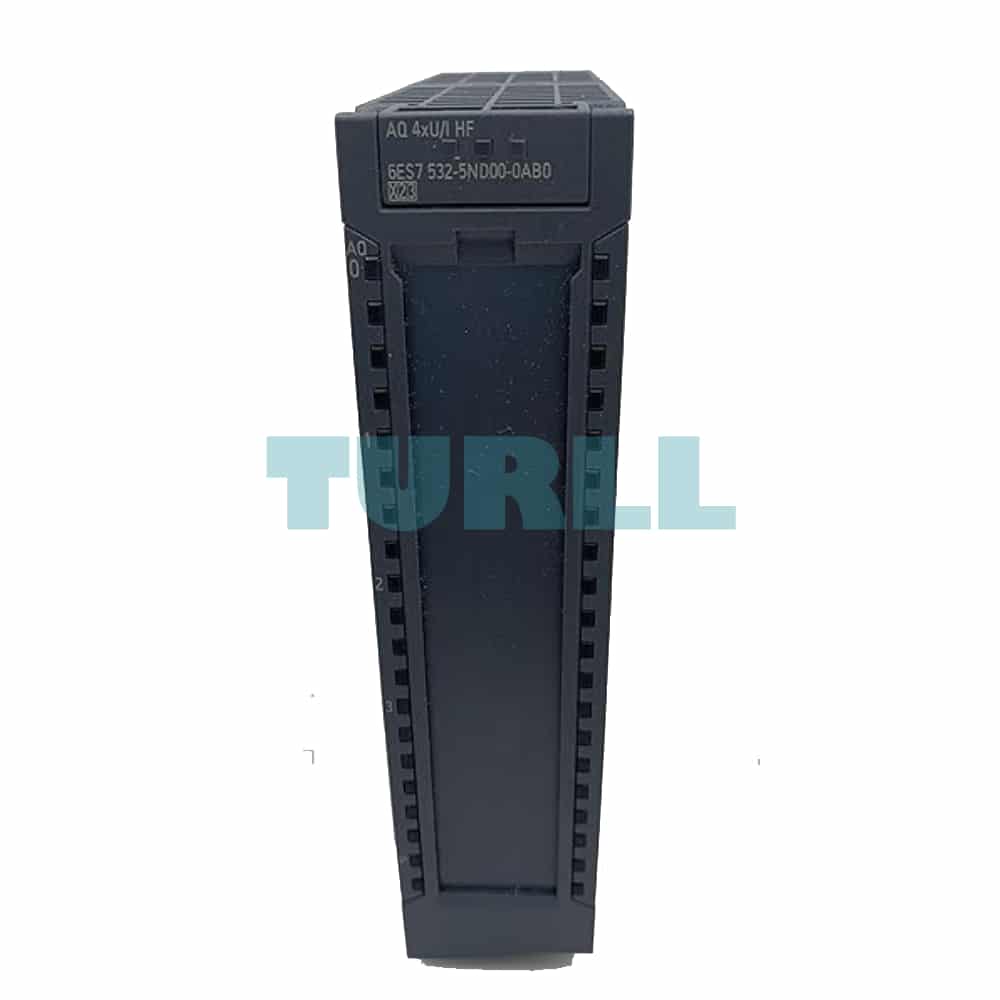

6ES7532-5ND00-0AB0 Siemens SIMATIC S7-1500 Analog Output Original Brand New
$1,362.66
6ES7532-5ND00-0AB0
Siemens SIMATIC S7-1500, analog output module AQ 4xU/I HF, 16-bit resolution accuracy 0.1%, 4 channels in groups of 1, common mode voltage: 30 V AC/60 V DC, diagnostics; substitute value, isochronous mode; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery including infeed element, shielding bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately
[ez-toc]
Overview
- 2, 4 and 8-channel analog output modules
- Optionally with extremely short conversion times
- For connecting analog actuators without additional amplifiers
- Even solves more complex automation tasks
Application
Analog output modules convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable, for example, for controlling proportional valves or small servo drives.
The following analog output modules are available:
- AQ 2xU/I ST;
analog output module with 2 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; calibration during runtime.
Module width 25 mm - AQ 4xU/I ST;
analog output module with 4 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; calibration during runtime.
Module width 35 mm - AQ 8xU/I HS;
analog output module with 8 channels; 16-bit resolution; accuracy +/-0.3%; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; high speed with 8 channels in 125 µs; isochronous mode; calibration during runtime.
Module width 35 mm - AQ 4xU/I HF;
analog output module with 4 channels; 16 bit resolution; accuracy +/- 0.1 %; one potential group; parameterizable diagnostics; parameterizable substitute values for the outputs; calibration during runtime.
Module width 35 mm - AQ 8xHART HF;
analog output module AQ 8xHART HF, 16-bit resolution, accuracy 0.2%, 8 channels in groups of 8; diagnostics, substitute values, delivery including infeed element, shielding bracket and shield terminal;
Order front connectors (screw terminals or push-in) separately
Design
- Mounting on the S7-1500 mounting rail using one single screw
- 35 mm modules: Standardized 40-pin front connector using screw terminal or push-in technology (cannot be used for 25 mm modules)
- 25 mm modules: Standardized 40-pin front connector using push-in technology (cannot be used for 35 mm modules)
- Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16), regardless of the front connector used
- Prewiring position of the front connector
- Front flap with expandable cable compartment, even if fully wired
- Integrated shielding concept
- Unambiguous labeling on the front of module:
- Module type
- Article number
- Hardware and firmware version
- Channel numbers labeling
- Cabling diagram
Included in the scope of delivery:
- Power supply element, shield bracket, and shield terminal
- One labeling strip for manual labeling
- One U connector
- Printed front door
Function
- Uniform display and diagnostics concept:
- Module status display for ERROR (red LED) and RUN (green LED)
- Channel status display (channel activated or deactivated, green LED) or diagnostics display (red LED)
- Display for monitoring the 24 V DC supply voltage (green LED)
- Supported functions:
- Consistently high resolution of 16 bits
- Identification and maintenance data IM0 to IM3
- Firmware update
- Channel-specific parameter assignment
- Channel-granular diagnostics (depends on measurement type/measuring range)
- Substitute values can be parameterized for the outputs
- Calibration during runtime
- Isochronous mode (dependent on the module)
6ES7532-5ND00-0AB0
Siemens SIMATIC S7-1500, analog output module AQ 4xU/I HF, 16-bit resolution accuracy 0.1%, 4 channels in groups of 1, common mode voltage: 30 V AC/60 V DC, diagnostics; substitute value, isochronous mode; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. delivery including infeed element, shielding bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately.
Visit 6ES7532-5ND00-0AB0
For more our products visit turll.com
| Weight | 0.412 kg |
|---|---|
| Dimensions | 161.00 × 193.00 × 50.00 mm |
