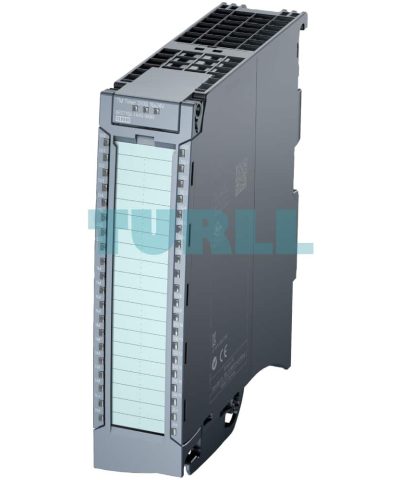

6ES7552-1AA00-0AB0 Siemens SIMATIC S7-1500 TM Timer DIDQ Original Brand New

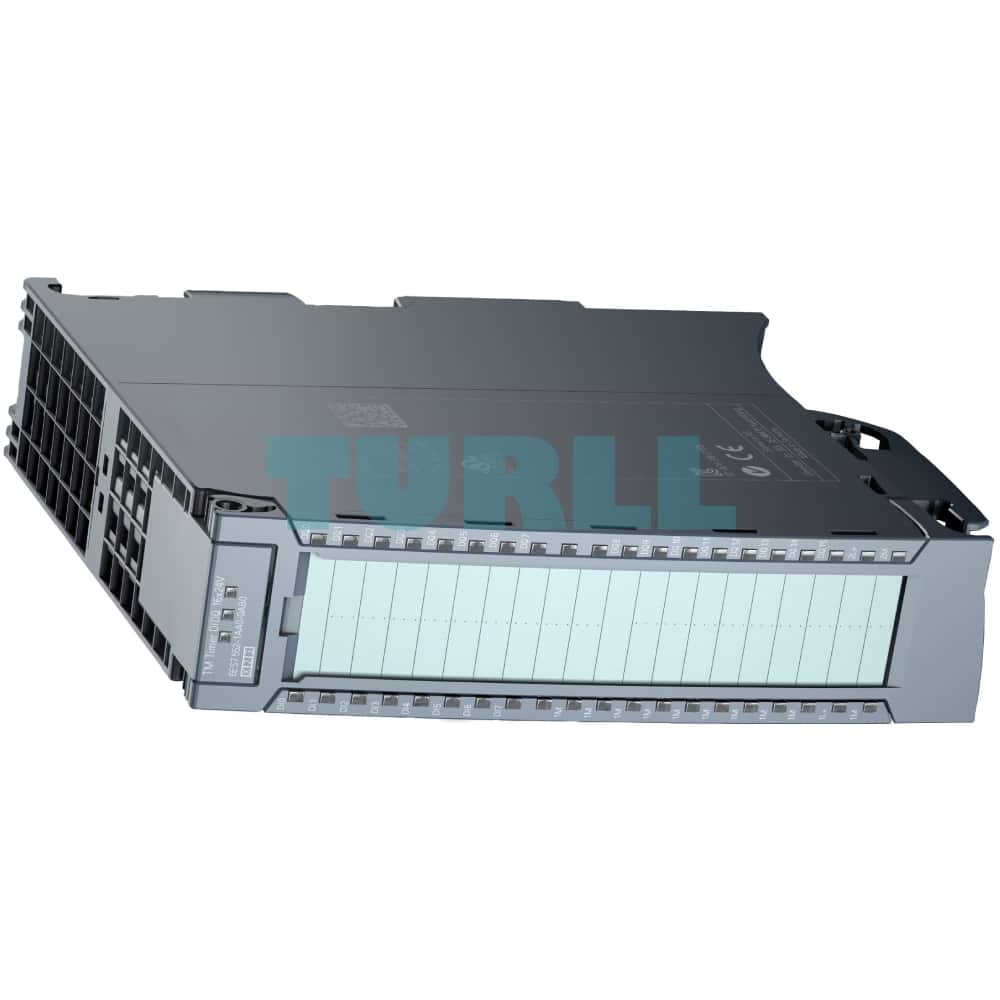

6ES7552-1AA00-0AB0 Siemens SIMATIC S7-1500 TM Timer DIDQ Original Brand New - Image 2

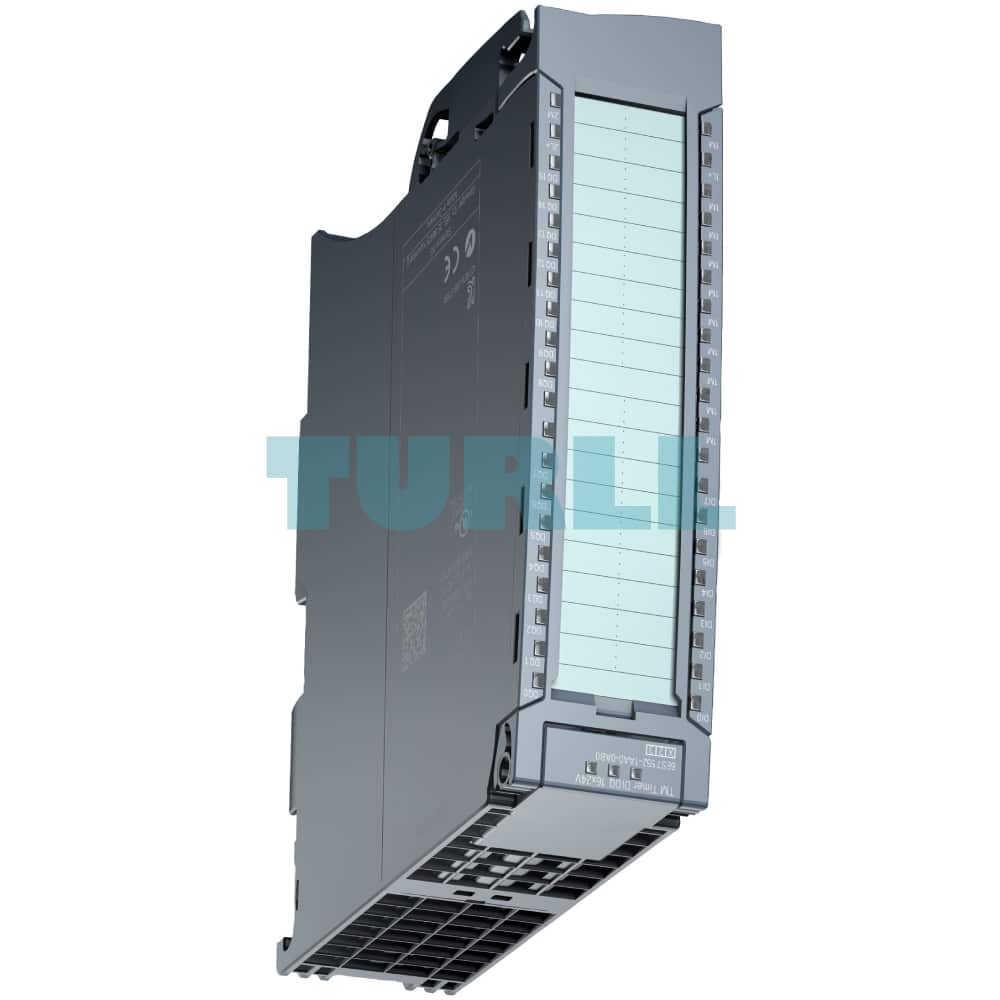

6ES7552-1AA00-0AB0 Siemens SIMATIC S7-1500 TM Timer DIDQ Original Brand New - Image 3

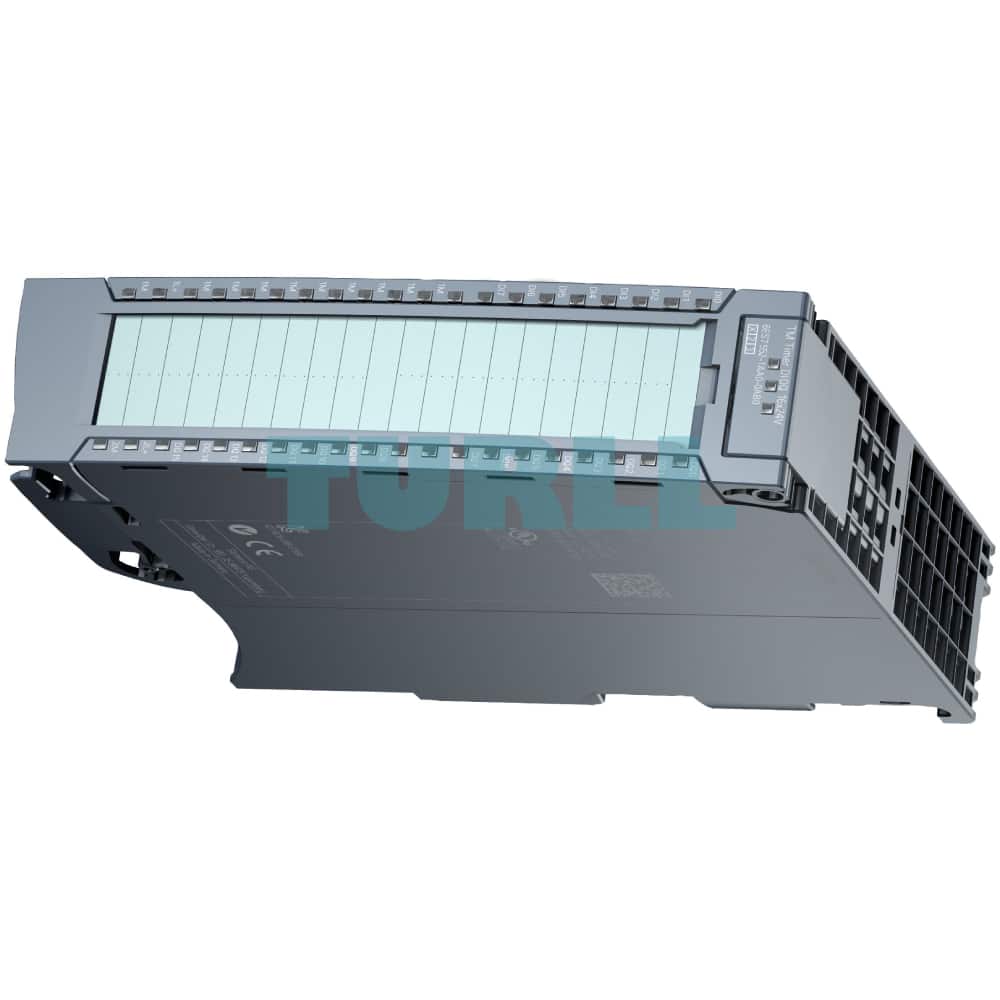

6ES7552-1AA00-0AB0 Siemens SIMATIC S7-1500 TM Timer DIDQ Original Brand New - Image 4

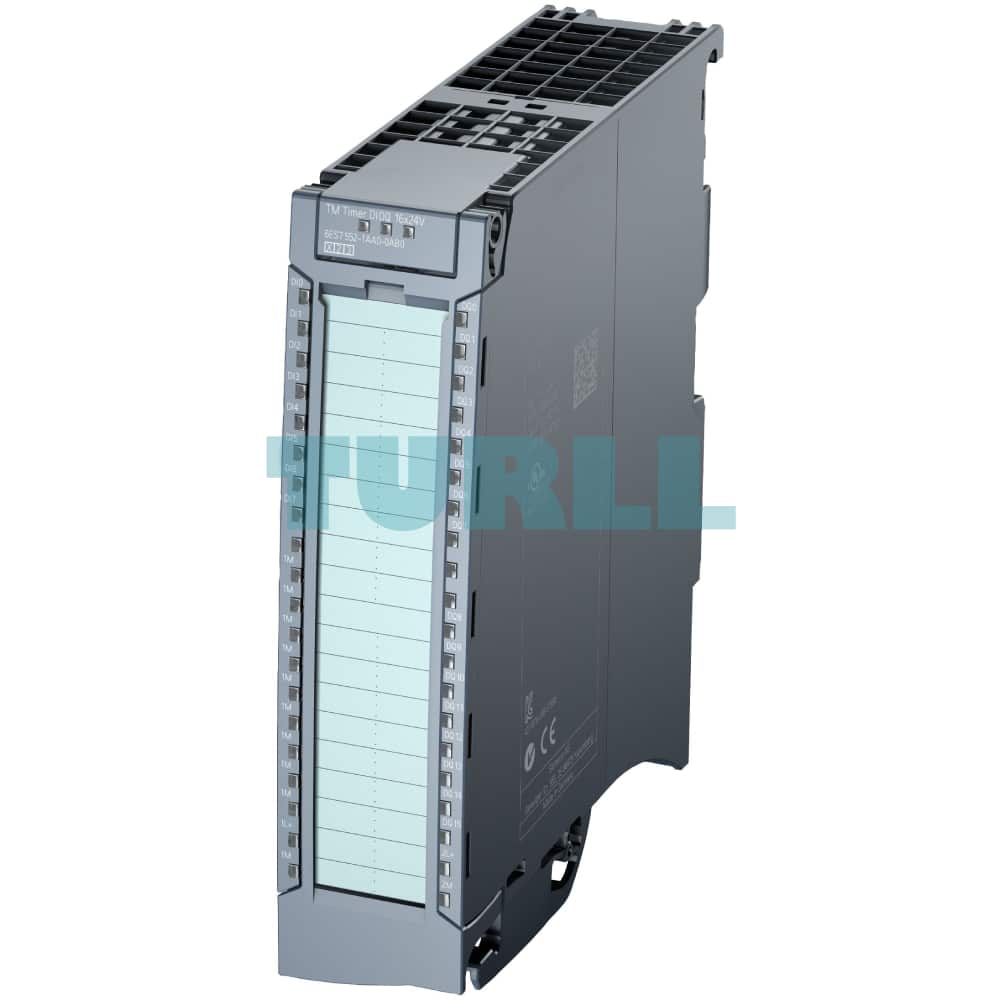

6ES7552-1AA00-0AB0 Siemens SIMATIC S7-1500 TM Timer DIDQ Original Brand New

Model / SKU6ES7552-1AA00-0AB0

6ES7552-1AA00-0AB0 Siemens

SIMATIC S7-1500, TM Timer DIDQ 16x 24 V time-controlled digital inputs and outputs max. 8 DI, 16 DQ of which max. 16 with time stamp, Count, PWM, oversampling

Original price was: $1,152.96.Current price is: $837.89.
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

  • 8 digital inputs, 16 digital outputs,
    of which up to 16 can be used in different configurations as technological, time-controlled channels
  • Inputs for detecting the input edges with µs accuracy
  • Outputs for outputting switching signals with µs accuracy
  • 32x oversampling
  • PWM output
  • Counter function
  • Outputs can be switched between 0.5 A standard and especially fast 0.1 A high-speed operation

Application

Time-based IO modules read in switching edges at digital inputs with a high time resolution, and supply time information, as well as the status, to the CPU.

For the digital outputs, switching commands with additional time information are transferred from the CPU. The outputs switch at a pre-defined time.

The modules can be used for diverse applications requiring accuracy below the resolution of the PLC or bus cycle. This requires no more than storage of the relevant instructions in the controller.

The following time-based I/O modules are available:

  • Timer DIDQ 16x24V
    Time-controlled timer module with 8 inputs and 16 outputs, of which up to 16 with time stamp function; counter function up to 50 kHz, oversampling, pulse width modulation;
    requires isochronous mode

Design

  • Installation on the S7-1500 DIN rail using one single screw
  • Standardized 40-pin front connector
  • Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16)
  • Prewiring position of the front connector
  • Front flap with expandable cable compartment, even if fully wired
  • Integrated shielding concept

Included in the scope of delivery:

  • One labeling strip for manual labeling
  • One U connector
  • Printed front door
  • Shielding bracket and shield terminal

Function

  • Uniform display and diagnostics concept:
    • Module status display for ERROR (red LED) and RUN (green LED)
    • Channel status indicator for signal state log. "0" and log. "1" (green LED) or diagnostics display (red LED)
    • Display for monitoring the 24 V DC supply voltage (green LED)
  • Supported functions:
    • Inputs with time tagging (requires isochronous mode)
    • Outputs with time tagging (requires isochronous mode)
    • 32x oversampling of the inputs (requires isochronous mode)
    • 32x oversampling of the outputs (requires isochronous mode)
    • Counter for 1 track or 2 tracks with 90° phase-shifted signal (does not require isochronous mode)
    • Pulse width modulation (does not require isochronous mode)
    • Inputs can be used as an enabler for inputs or outputs
    • Isochronous mode
  • Uniform system functions of SIMATIC S7-1500 and ET 200MP:
    • Identification and maintenance data IM0
    • Firmware update
    • Unambiguous labeling on front of module
    • Uniform front connector

6ES7552-1AA00-0AB0 Siemens

SIMATIC S7-1500, TM Timer DIDQ 16x 24 V time-controlled digital inputs and outputs max. 8 DI, 16 DQ of which max. 16 with time stamp, Count, PWM, oversampling

Specifications

SKU / Model6ES7552-1AA00-0AB0
Weight0.436 kg
Dimensions161 × 192 × 42 mm
