SIEMENS SINAMICS G120 PM230 Power Module with integrated Class A filter, IP20 protection, 7.5 kW capacity, and compatibility with CU240B/E-2 and CU230P-2 units.

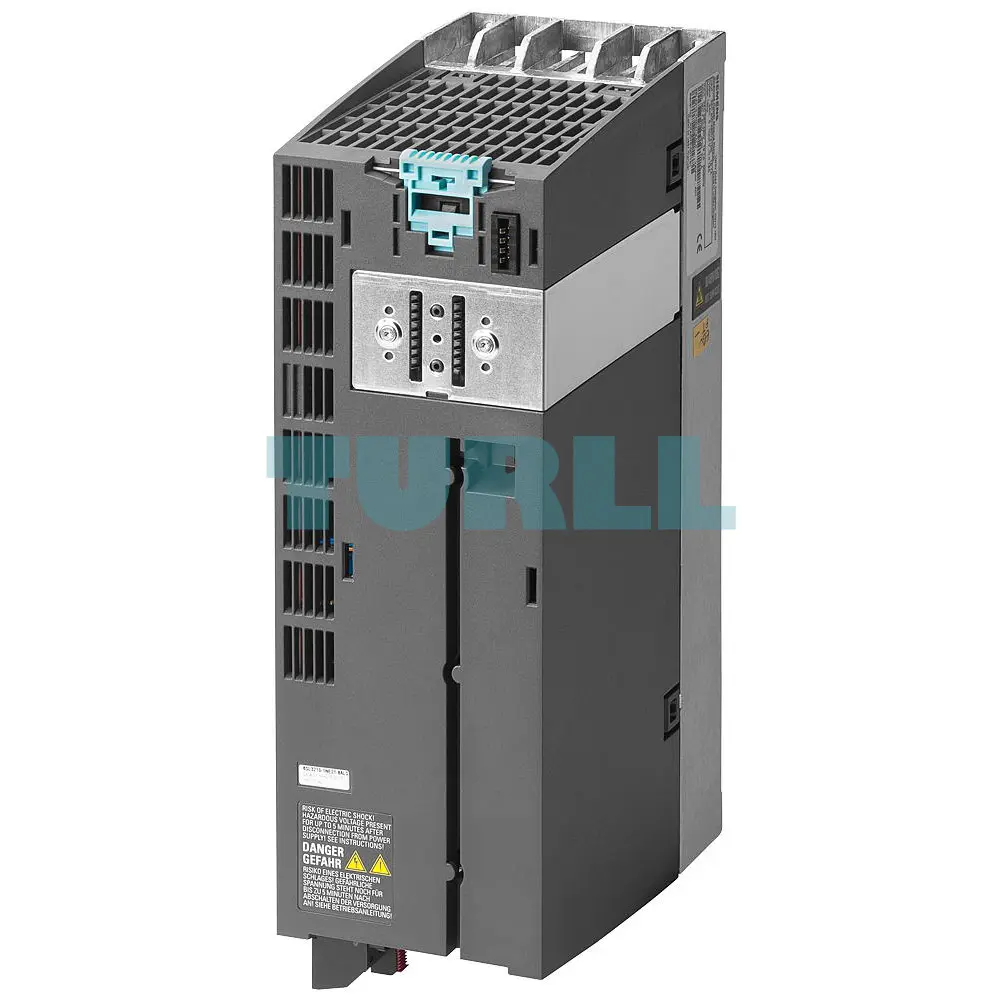

The SIEMENS 6SL3210-1NE21-8AG1 is a premium SINAMICS G120 Power Module PM230 designed for efficient and reliable motor control in demanding industrial environments. Engineered with an integrated Class A filter, this unit offers enhanced electromagnetic compatibility and ensures stable operation under diverse load conditions. With a protection rating of IP20, it is ideally suited for installation in control cabinets where compactness, durability, and performance are required. Its robust design is backed by SIEMENS quality, making it an excellent choice for applications that demand long-term operational stability.

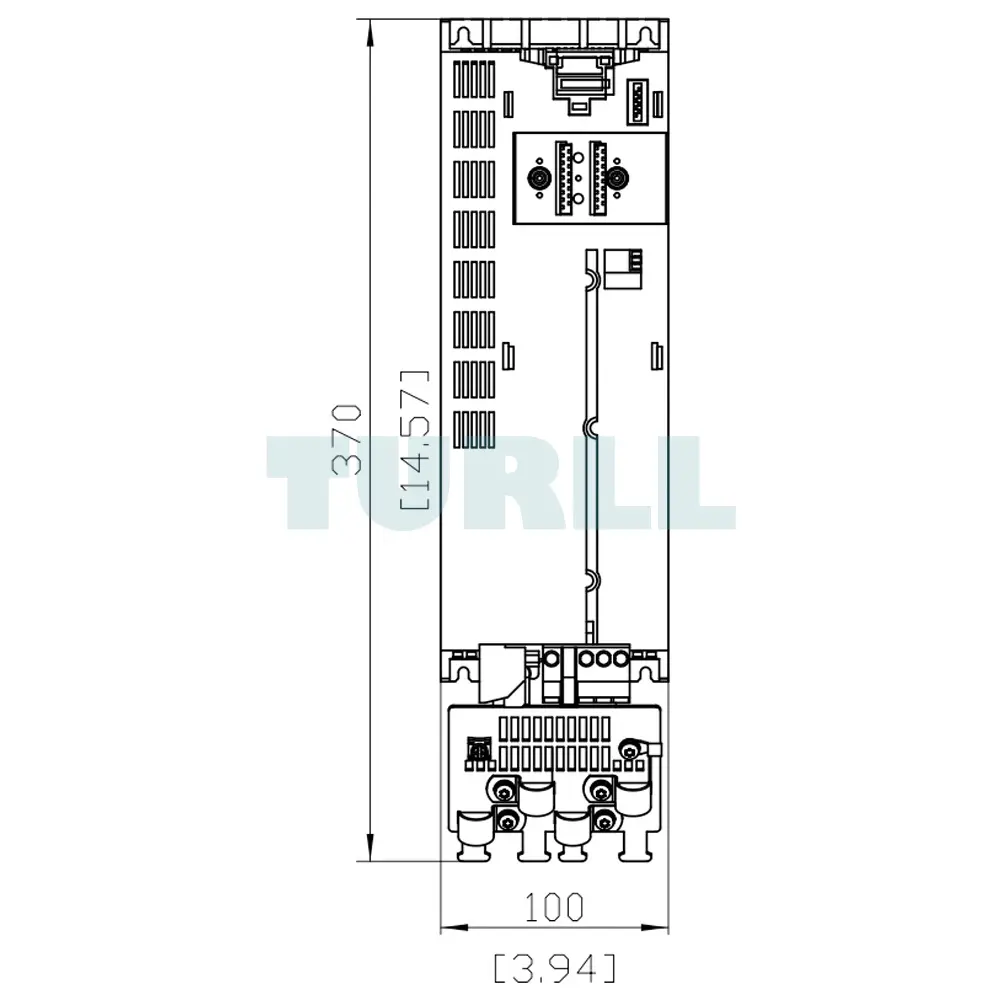

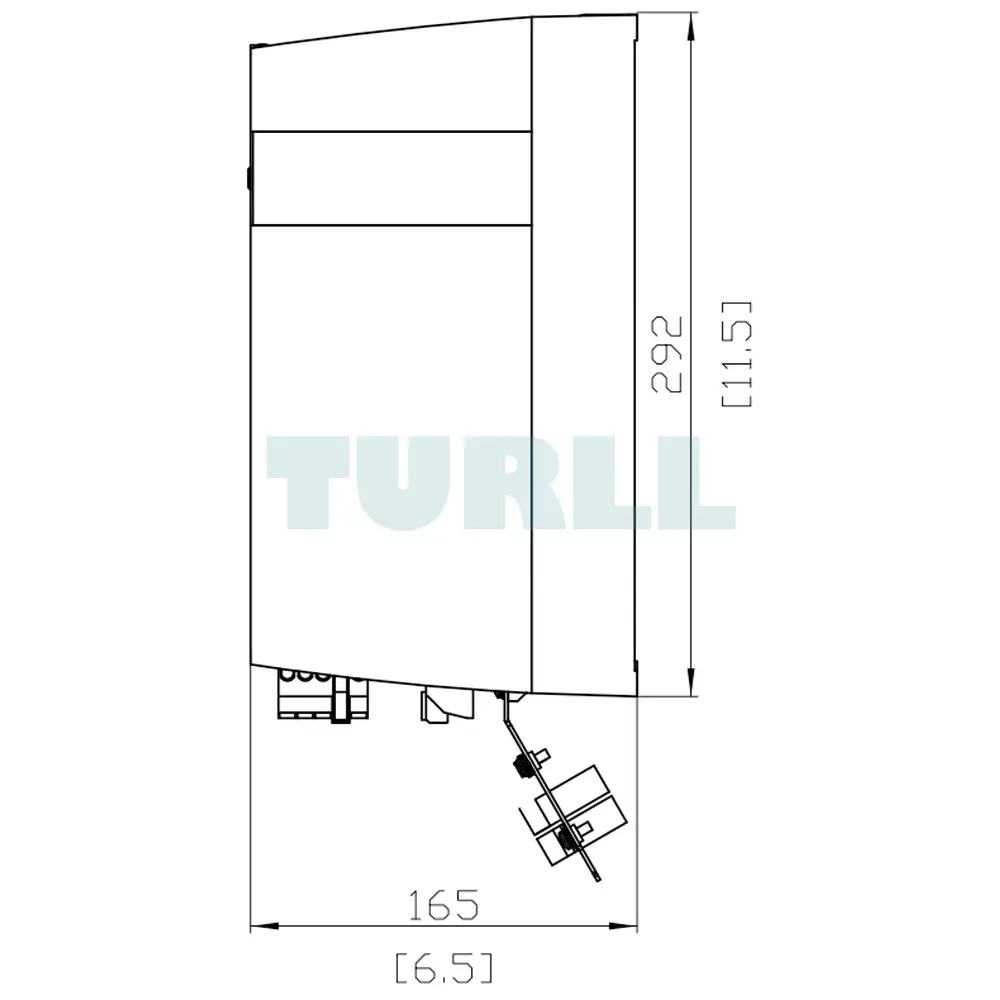

The PM230 module supports a wide voltage range of 380–480 V three-phase AC, with a frequency tolerance between 47–63 Hz. Delivering low overload power performance of 7.5 kW, it provides 150% overload capability for 3 seconds, 110% for 57 seconds, and 100% for up to 240 seconds. This makes it highly adaptable to sudden load fluctuations, ensuring continuous and efficient operation. Measuring 292 mm in height, 100 mm in width, and 165 mm in depth, the compact structure is optimized for space-saving integration.

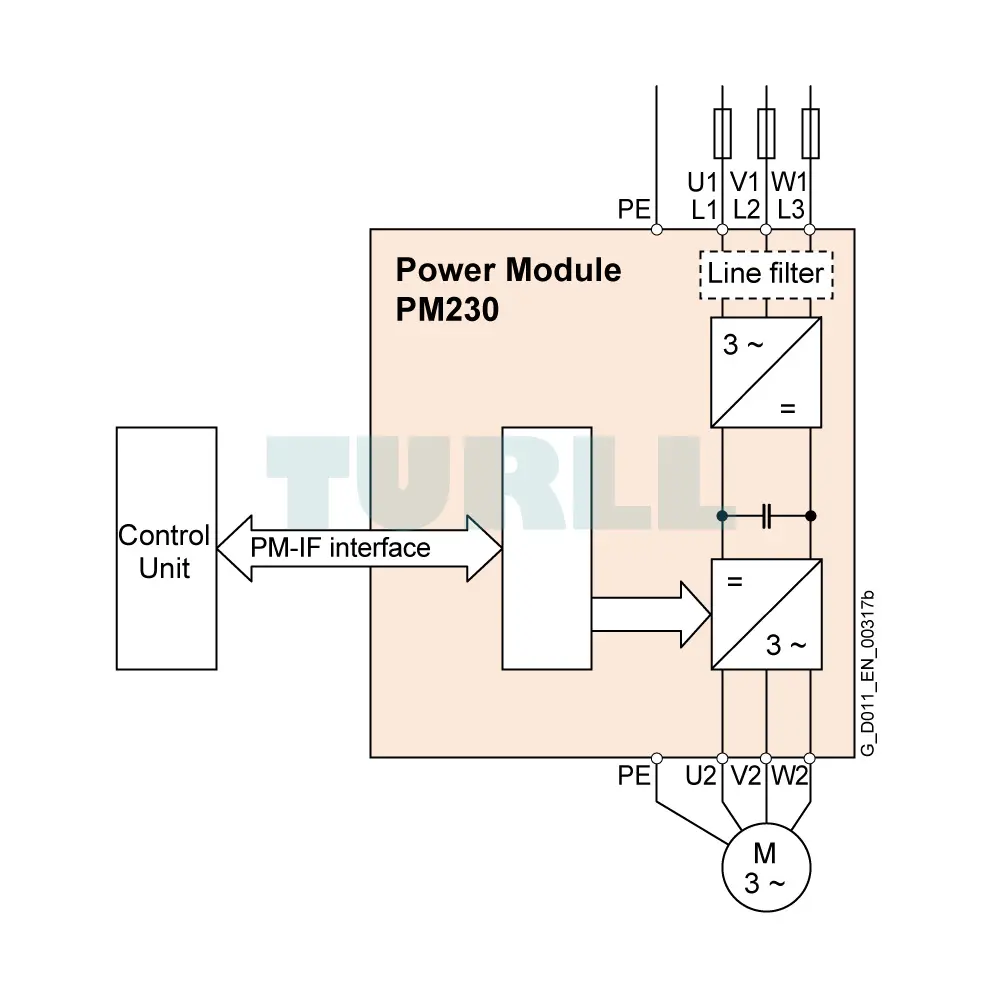

This PM230 variant is designed for use with CU240B/E-2 and CU230P-2 control units, enabling flexible configuration for a wide range of drive solutions. It is fully compatible with firmware version V4.4 or higher, providing support for the latest SINAMICS functionalities. The module has been developed for environments with an ambient operating temperature range from 0 °C to +40 °C under low overload conditions. These characteristics ensure reliable performance in both light-duty and continuous applications.
As part of the SINAMICS G120 modular drive system, the 6SL3210-1NE21-8AG1 PM230 offers a streamlined design without a built-in control or operating unit, allowing users to tailor their setup with separate compatible modules. Its integrated Class A filter reduces interference, contributing to smooth operation across connected equipment. The rugged housing provides durability in industrial use, while the efficient cooling concept ensures sustained performance even under demanding workloads. With its balance of compact size, overload capacity, and modern firmware support, this module is a reliable solution for industrial automation and energy-efficient motor control.
Product Code: 6SL3210-1NE21-8AG1
More Siemens products at Turll.com
| SKU / Model | 6SL3210-1NE21-8AG1 |
|---|---|
| Weight | 3 kg |
| Dimensions | 185 × 114 × 365 mm |
