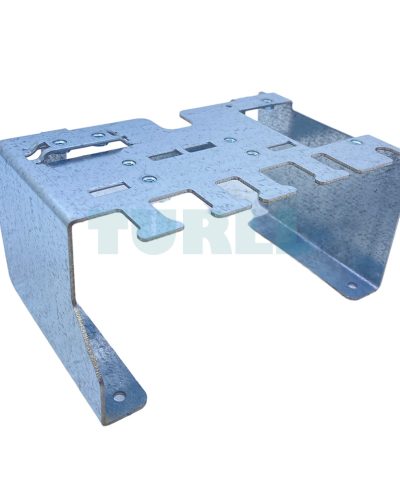

6SL3262-1AD00-0DA0 SIEMENS Exclusive Shield Connection Kit Original Brand New

6SL3262-1AD00-0DA0 SIEMENS Exclusive Shield Connection Kit Original Brand New

The 6SL3262-1AD00-0DA0 SIEMENS shield connection kit is engineered to support reliable installation and stable performance in advanced SINAMICS drive systems. Designed specifically for Power Module FSD and FSE sizes within the PM230, PM240, and PM250 series, this kit provides an efficient method for securing shielded supply and control cables. Its purpose-built design contributes to dependable system operation by improving cable integrity and helping maintain electromagnetic compatibility within demanding industrial environments.

One of the primary advantages of this shield connection kit is its ability to simplify cable handling while ensuring proper strain relief. The included components provide a stable mechanical interface for shielded wiring, reducing the risk of cable stress or vibration-related wear. By guiding cable shielding into a controlled and secured position, the kit supports consistent EMC behavior, which is essential for installations operating near sensitive electronic equipment or within high-noise industrial areas.

The 6SL3262-1AD00-0DA0 also incorporates a mounting location for a Brake Relay, offering additional flexibility for users who require braking functions in their drive configuration. Frame sizes FSD to FSG benefit from this integrated mounting provision. For PM240-2 Power Modules in frame sizes FSA to FSC, a shield connection kit is already included as standard, while larger frame sizes require this specific accessory to ensure proper shielding performance.

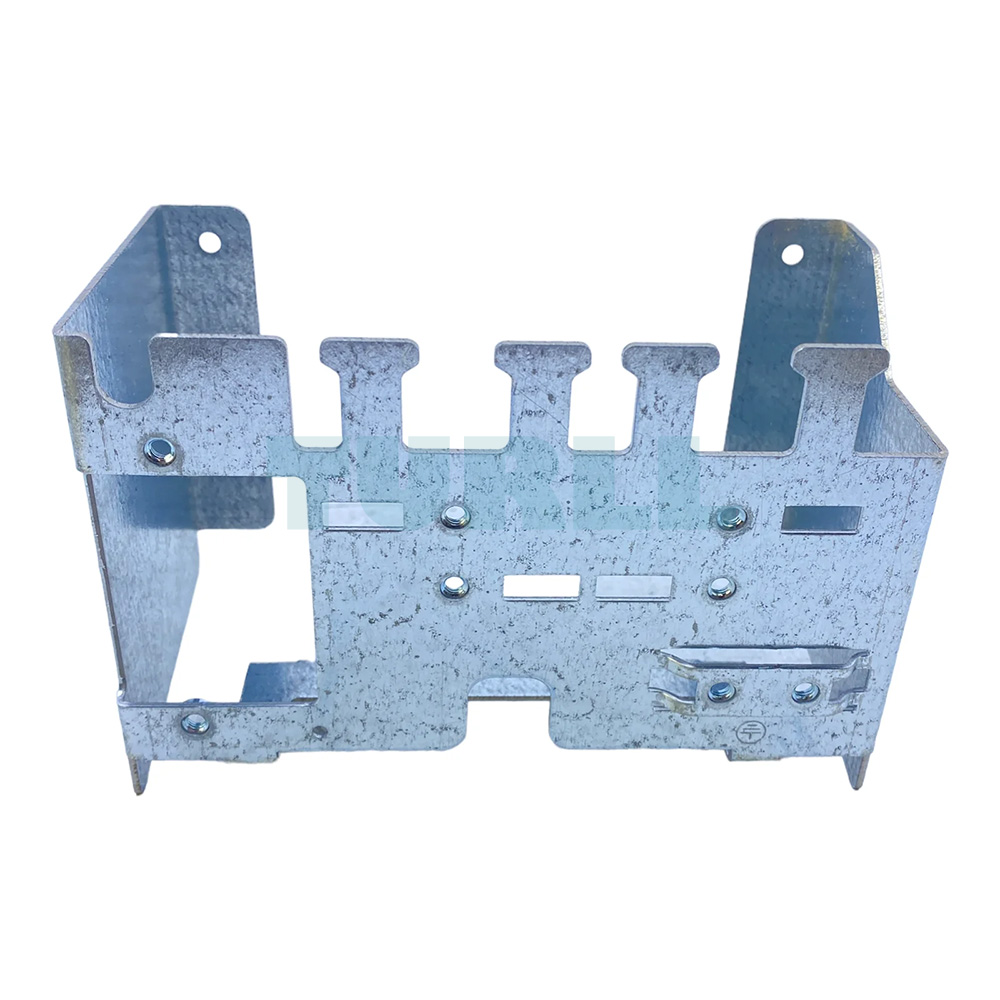

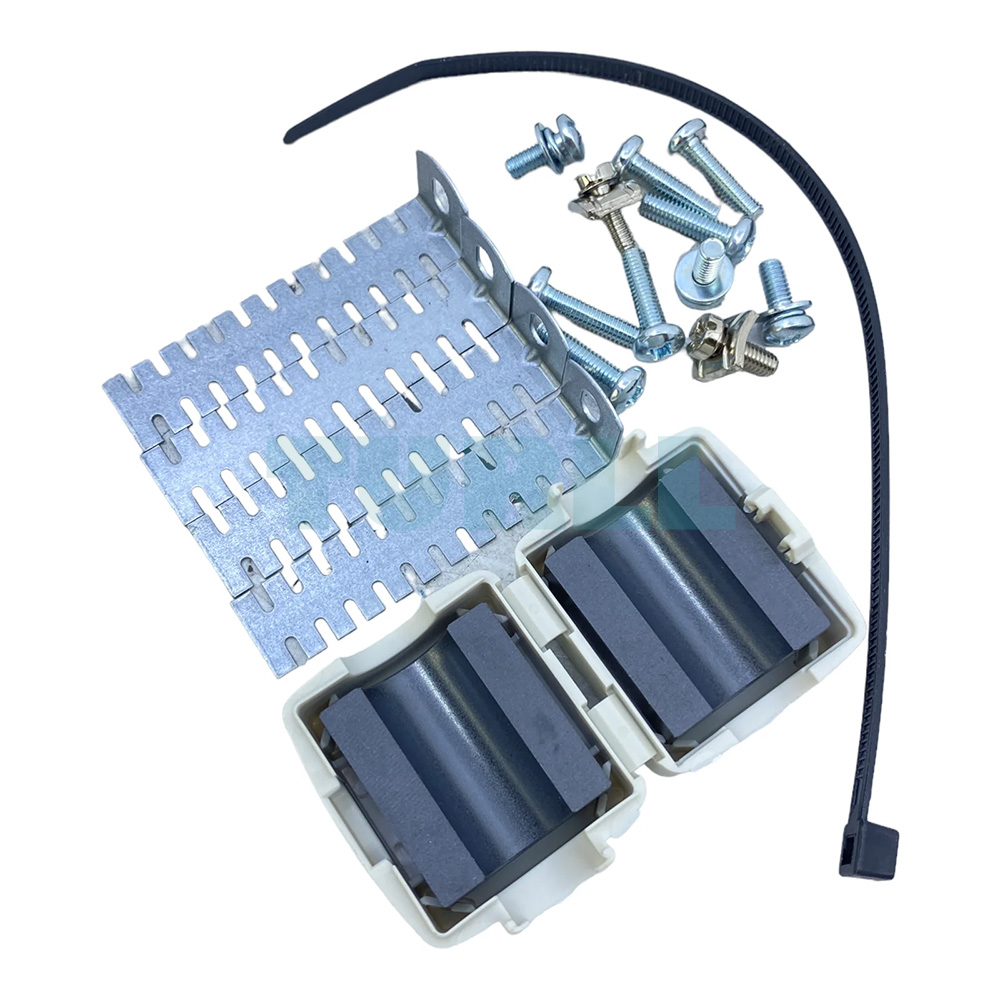

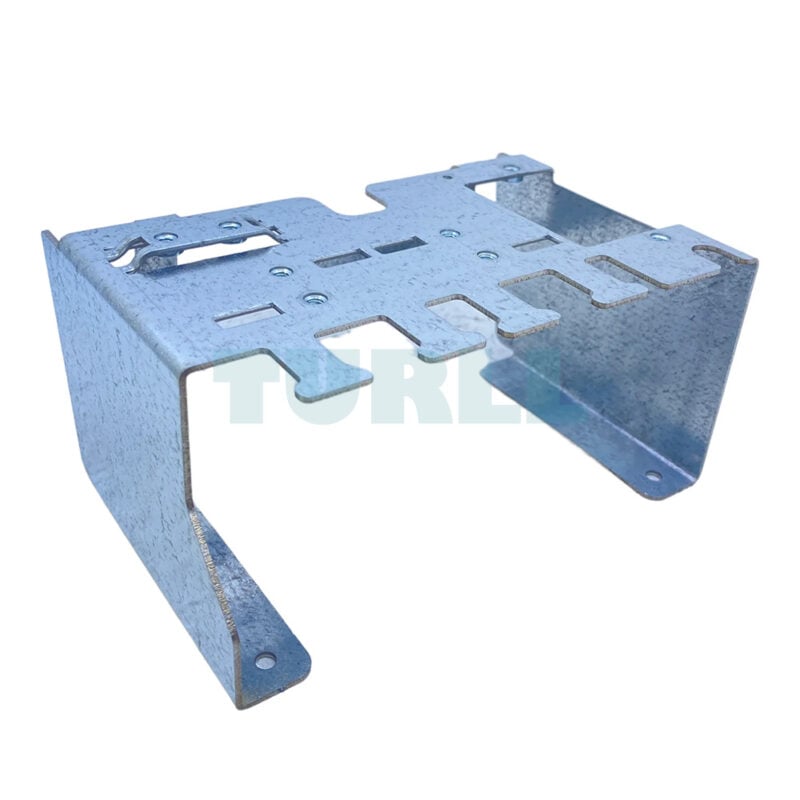

Each kit contains a shield plate tailored to the appropriate Power Module frame size, as well as clamps and fastening elements for straightforward installation. These components help achieve a consistent and secure electrical connection across motor and signal cables, contributing to a more stable and noise-resistant system architecture. For braking resistor connections requiring EMC compliance, this shield kit is also the recommended accessory.

Overview

• Simplifies shielded cable connection and routing
• Provides mechanical strain relief for supply and control lines
• Ensures stable EMC characteristics
• Includes mounting point for Brake Relay (FSD to FSG)
• Supplied as standard with PM240-2 Power Modules (FSA to FSC)
• Includes shield plates, clamps, and connection elements

Product Code: 6SL3262-1AD00-0DA0
