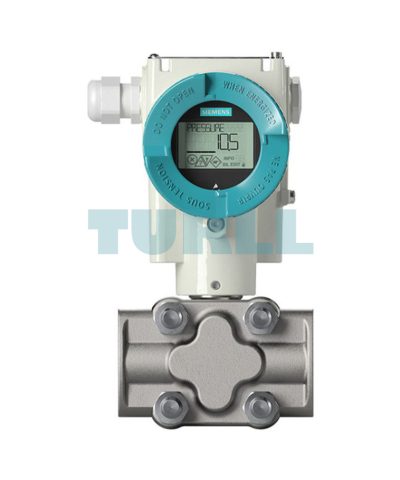

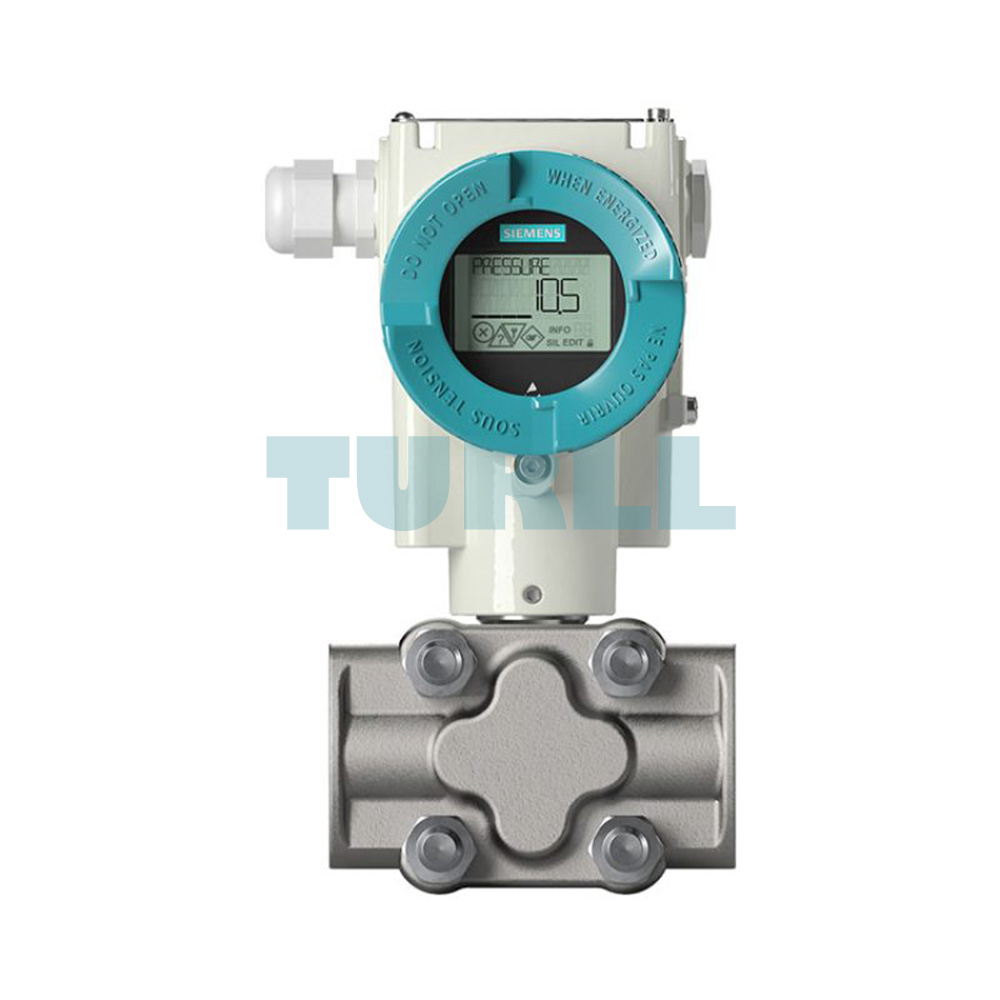

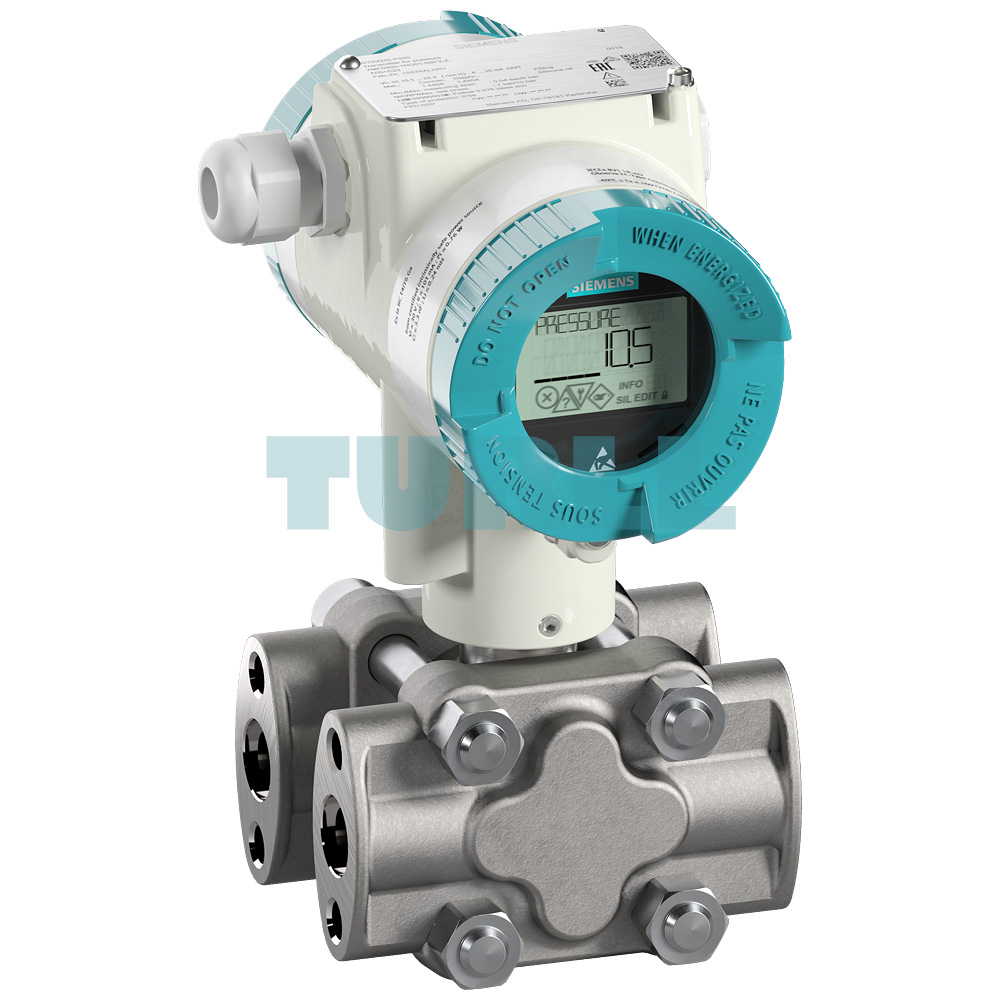

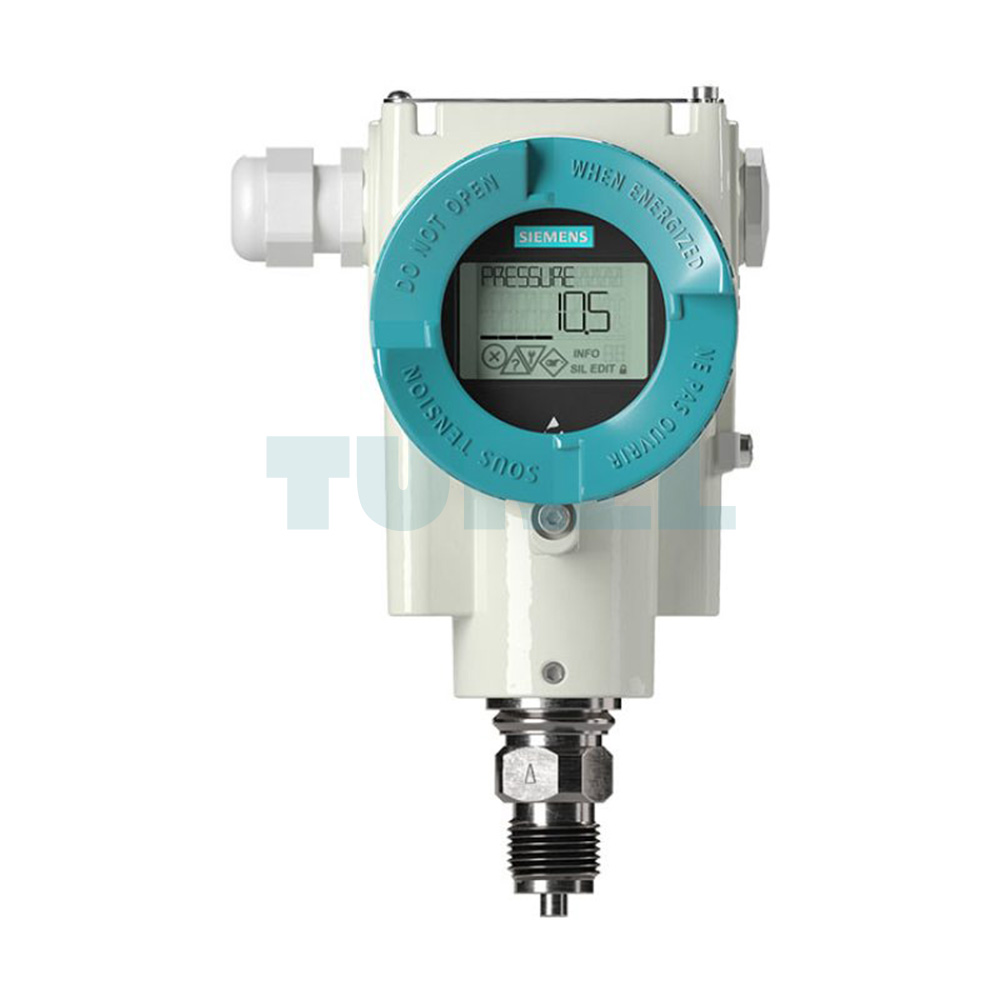

7MF0350-1MM01-5AF2-ZA00B35E00H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New
$2,325.26
SIEMENS SITRANS P320 differential pressure transmitter with stainless steel construction, HART communication, and wide measuring span for industrial applications.
7MF0350-1MM01-5AF2-ZA00B35E00H01Y01Y15 SIEMENS Exclusive SITRANS P320 Pressure Transmitter Original Brand New
The SIEMENS 7MF0350-1MM01-5AF2-ZA00B35E00H01Y01Y15 is part of the SITRANS P320 family, a high-performance differential pressure and flow transmitter designed for precise industrial measurement. Built with robust materials and engineered for accuracy, this transmitter ensures stable operation even under demanding conditions. It features a measuring span of up to 1600 mbar (643 inH²O), with flexible configuration options for various applications in process automation. This versatility makes it a trusted solution in industries such as energy, chemical processing, water treatment, and manufacturing.
The transmitter integrates HART communication with a reliable 4–20 mA output signal, ensuring seamless integration into both modern and legacy systems. With a die-cast aluminum housing and dual-chamber design, it offers superior protection against environmental influences while simplifying installation and maintenance. A clear display with a glass window lid provides instant access to measurement data and device status, contributing to user-friendly operation.
Overview
Engineered for safety and efficiency, the SITRANS P320 transmitter comes with stainless steel 316L/1.4404 process connections and seal diaphragms, delivering long-lasting durability. The device is designed with global compliance, including CE, UKCA, and RCM approvals, and is suitable for worldwide use in general applications without Ex protection. The included mounting bracket in electrogalvanized steel provides reliable installation flexibility, ensuring stability in a wide range of mounting scenarios.
Design
The mechanical configuration of this pressure transmitter includes an oval flange with fastening threads M10 (PN160) and M12 (PN420). It also comes with pre-attached cable glands and sealing plugs for fast deployment. Integrated device parameters allow flexible range settings, enabling precise adjustments for lower and upper range values as well as selectable engineering units such as mbar, bar, kPa, MPa, and psi. The option of stainless steel tag plates provides easy identification in complex installations, while the modular design makes the unit adaptable for evolving requirements.
Product Code: 7MF0350-1MM01-5AF2-ZA00B35E00H01Y01Y15
More Siemens products at Turll.com
| Weight | 2.775 kg |
|---|
