7ML1118-0CA30 SIEMENS Exclusive EchoMax XPS-15 Ultrasonic Level Transducer Original Brand New

7ML1118-0CA30 SIEMENS Exclusive EchoMax XPS-15 Ultrasonic Level Transducer Original Brand New

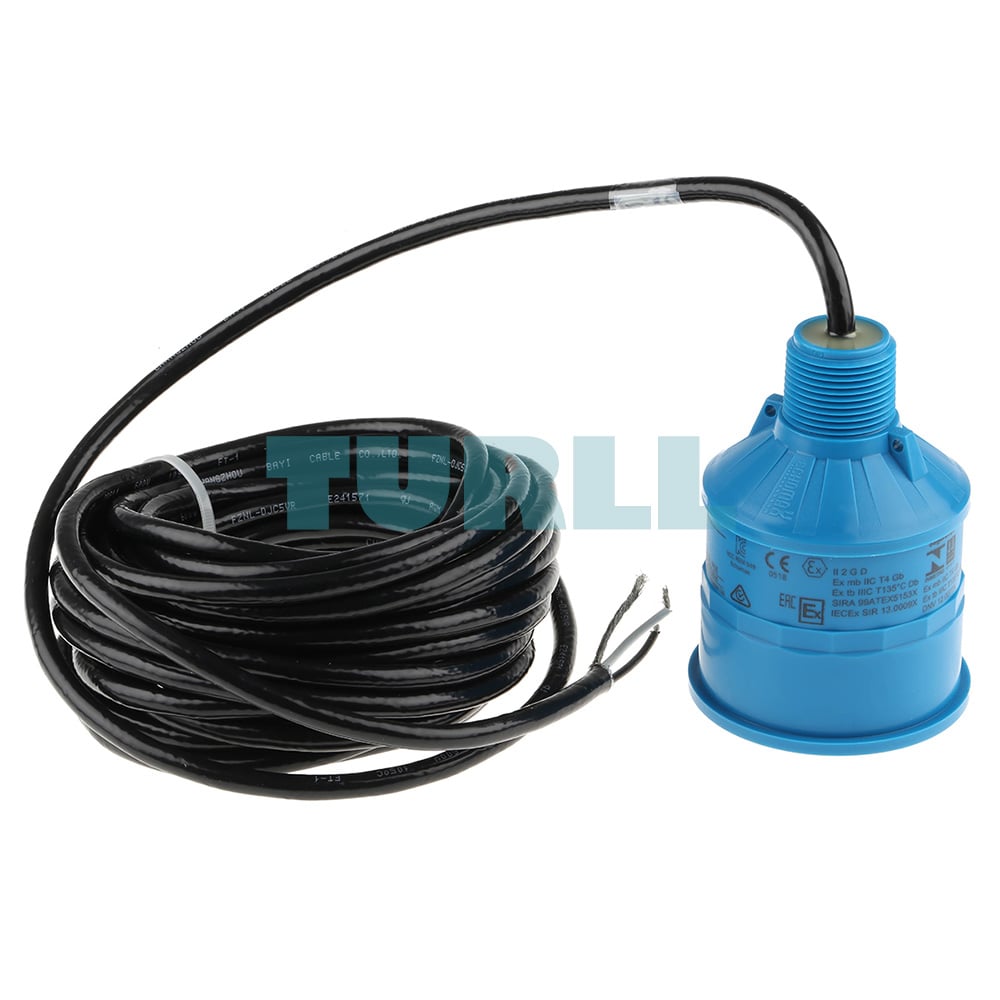

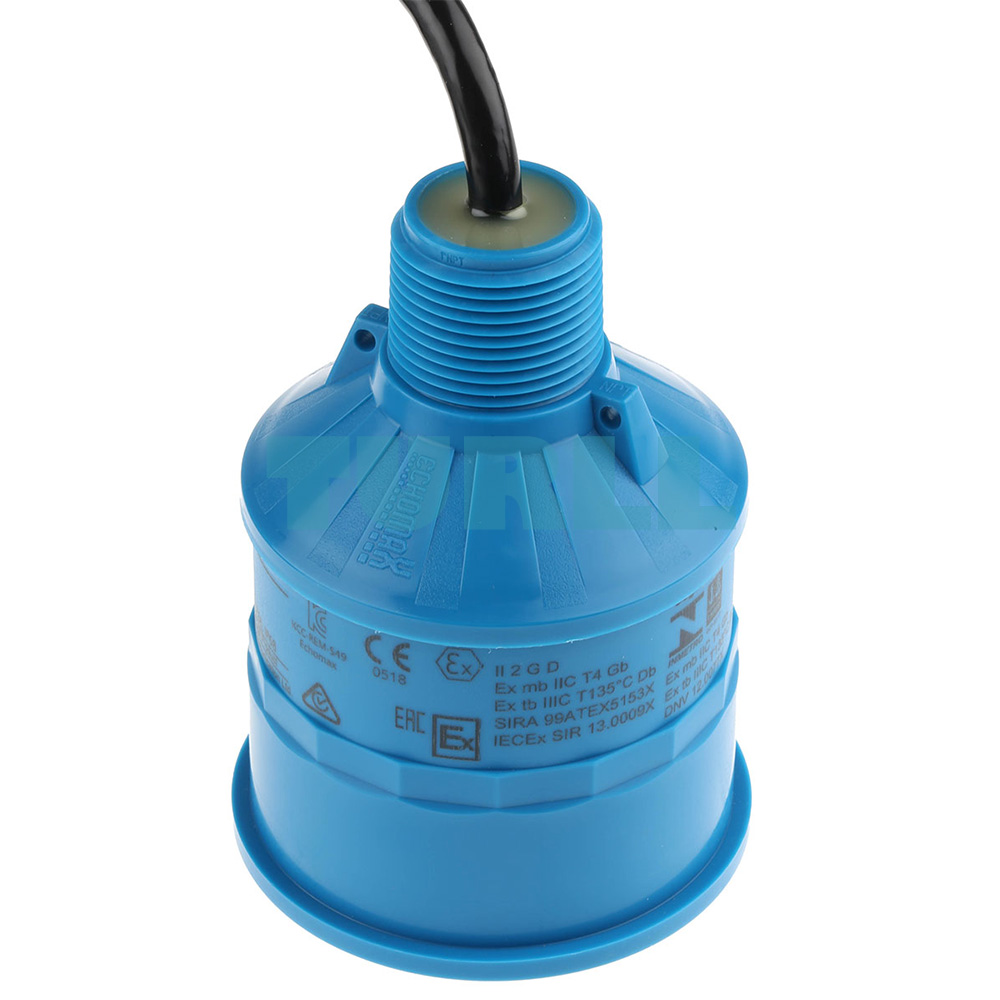

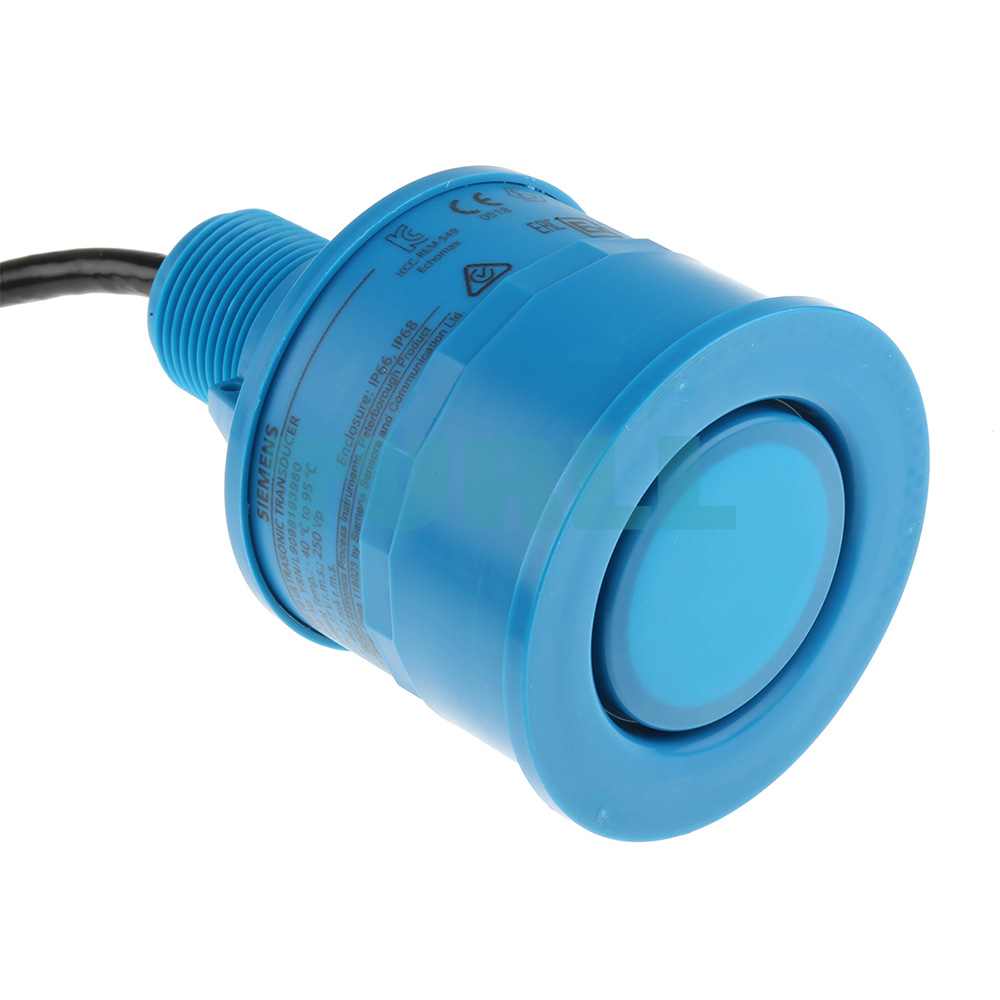

The 7ML1118-0CA30 EchoMax XPS-15 is a high-performance ultrasonic level transducer engineered for continuous, non-contact measurement in a wide range of industrial applications. Designed by SIEMENS for reliability and precision, it is capable of measuring distances up to 15 meters (49.21 ft) in both liquid and solid materials. With its robust construction and advanced sensing technology, this device is built to provide dependable readings even in challenging environments.

Equipped with integral temperature compensation, the transducer ensures consistent measurement accuracy despite fluctuations in ambient conditions. Its low ringing effect minimizes blanking distance, allowing for precise detection in close proximity to the sensor. For environments with dust or particulate matter, an optional foam-facing configuration enhances performance. Its hermetically sealed housing provides superior chemical resistance, reducing the need for maintenance and ensuring long service life.

Overview

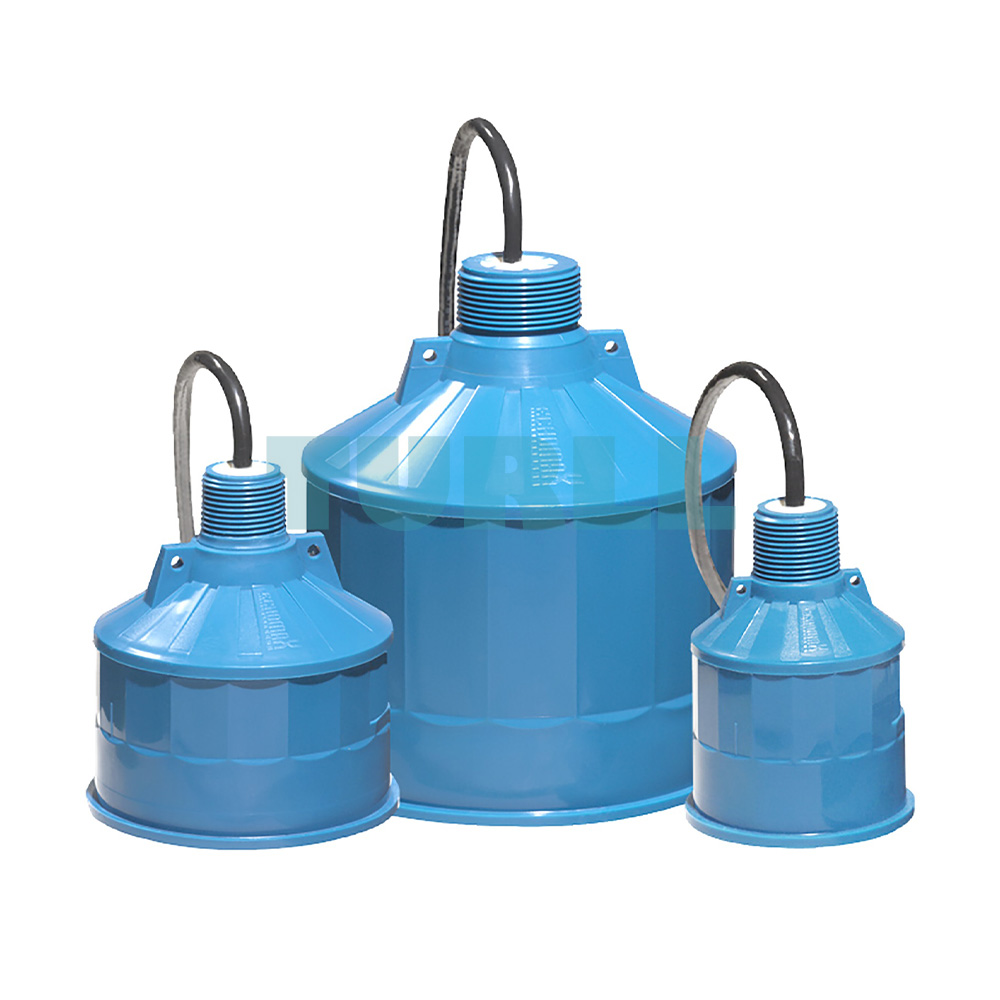

The EchoMax XPS series utilizes advanced ultrasonic technology to emit acoustic pulses in a narrow beam. By measuring the propagation time between pulse emission and echo reception, the system calculates the exact distance to the target surface. This non-contact method reduces wear and tear, making it ideal for demanding process conditions. Models are available for measuring ranges up to 30 m (100 ft) and temperatures up to 95 °C (203 °F).

Benefits

• Self-cleaning design for minimal maintenance
• Fully immersible and resistant to steam and corrosive chemicals
• No flange mounting required for installation flexibility
• Complies with ATEX, UKEX, IECEx, and FM approvals for hazardous areas

Application

Whether in water treatment facilities, chemical processing plants, or bulk material handling operations, this ultrasonic transducer delivers stable, accurate results. It is suitable for continuous monitoring of tank levels, silos, and open channels, even under harsh conditions.

Product Code: 7ML1118-0CA30
