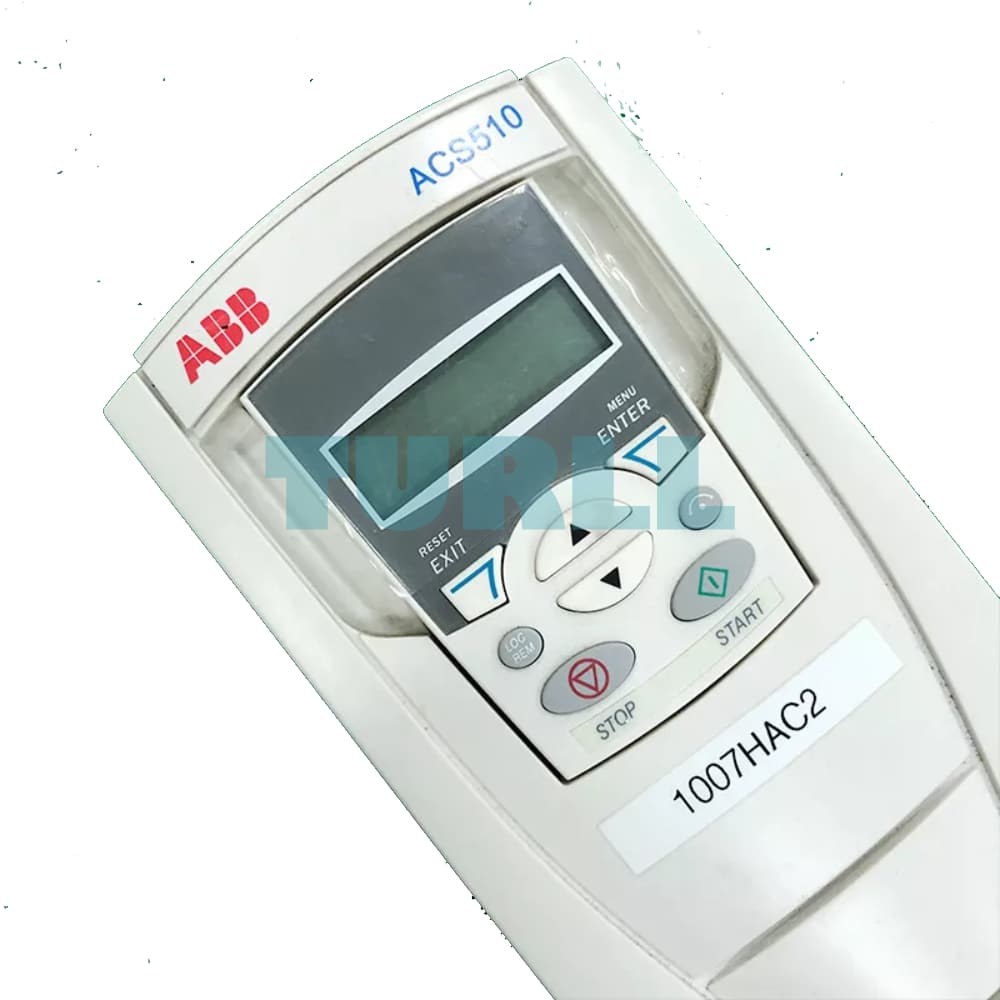

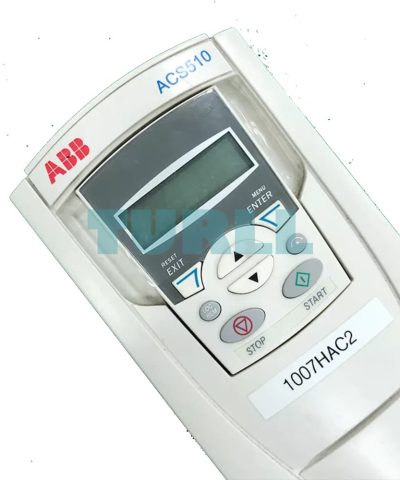

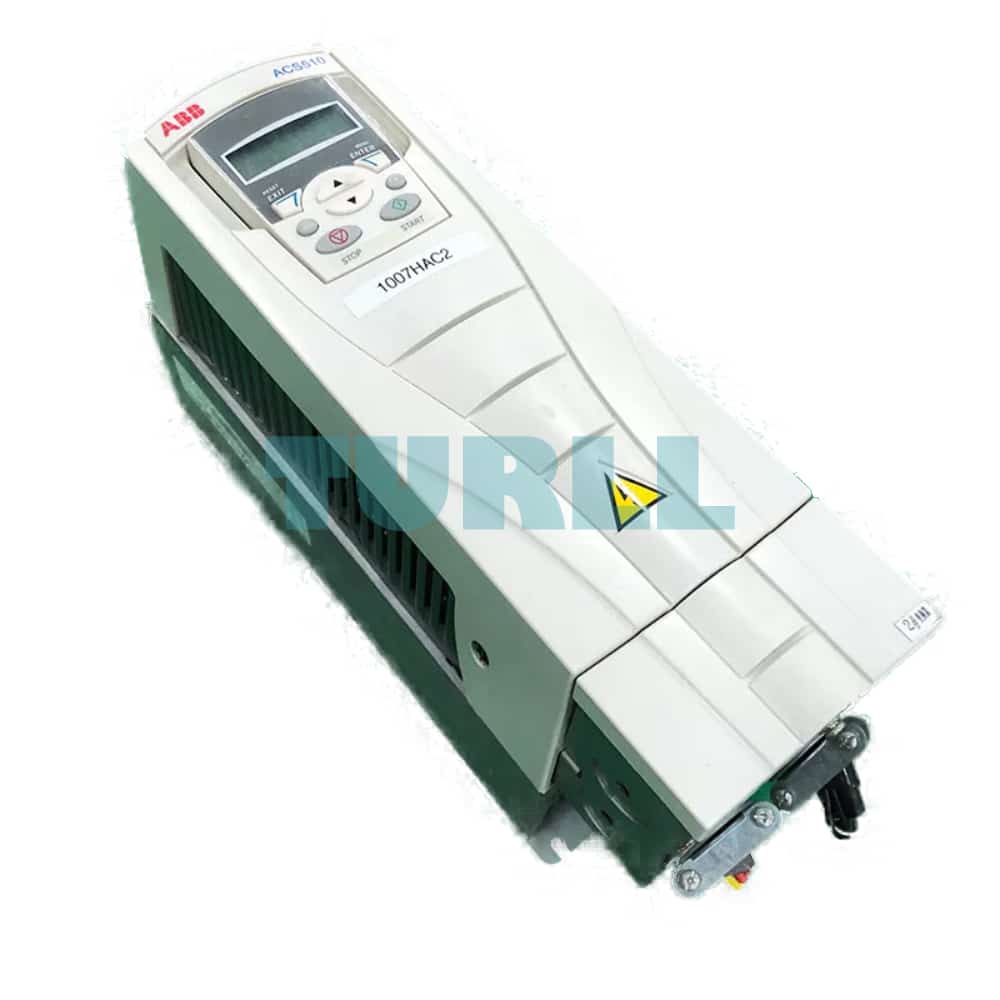

ACS510-01-012A-4
ACS510-01-012A-4
ACS510-01-012A-4

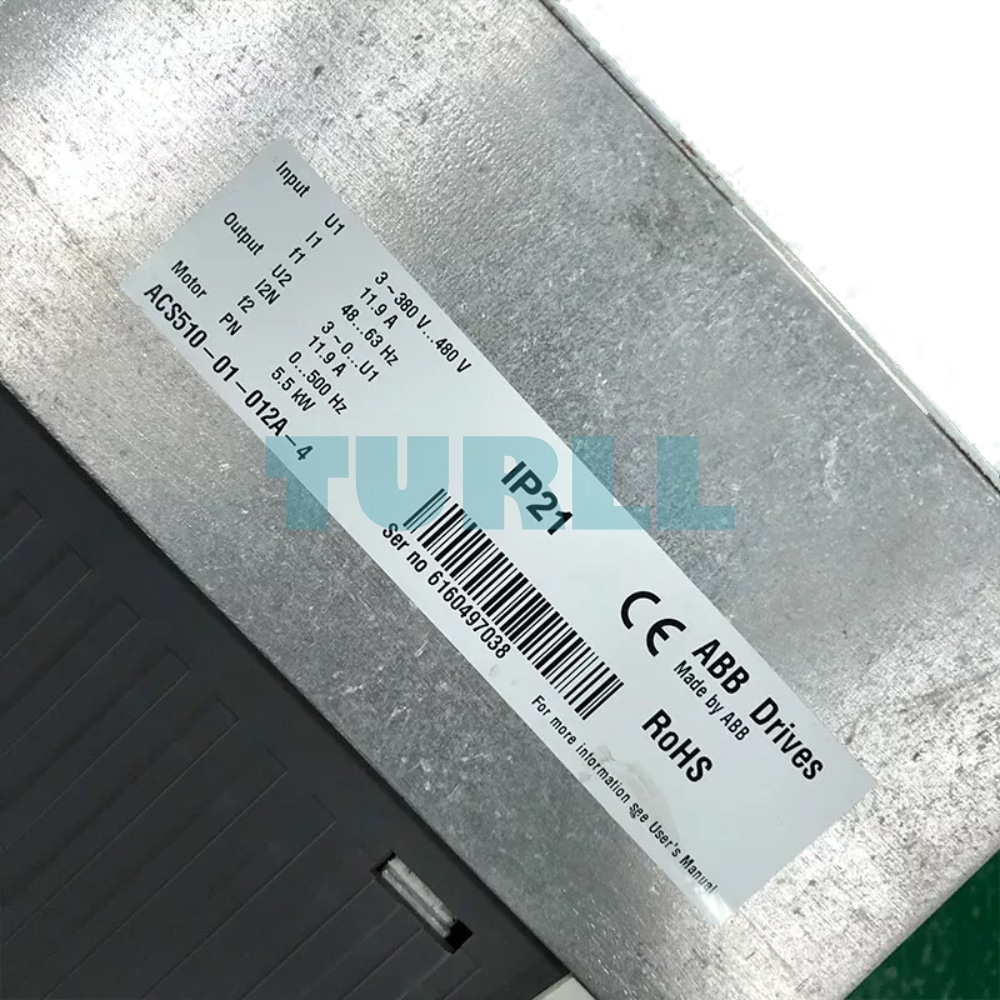

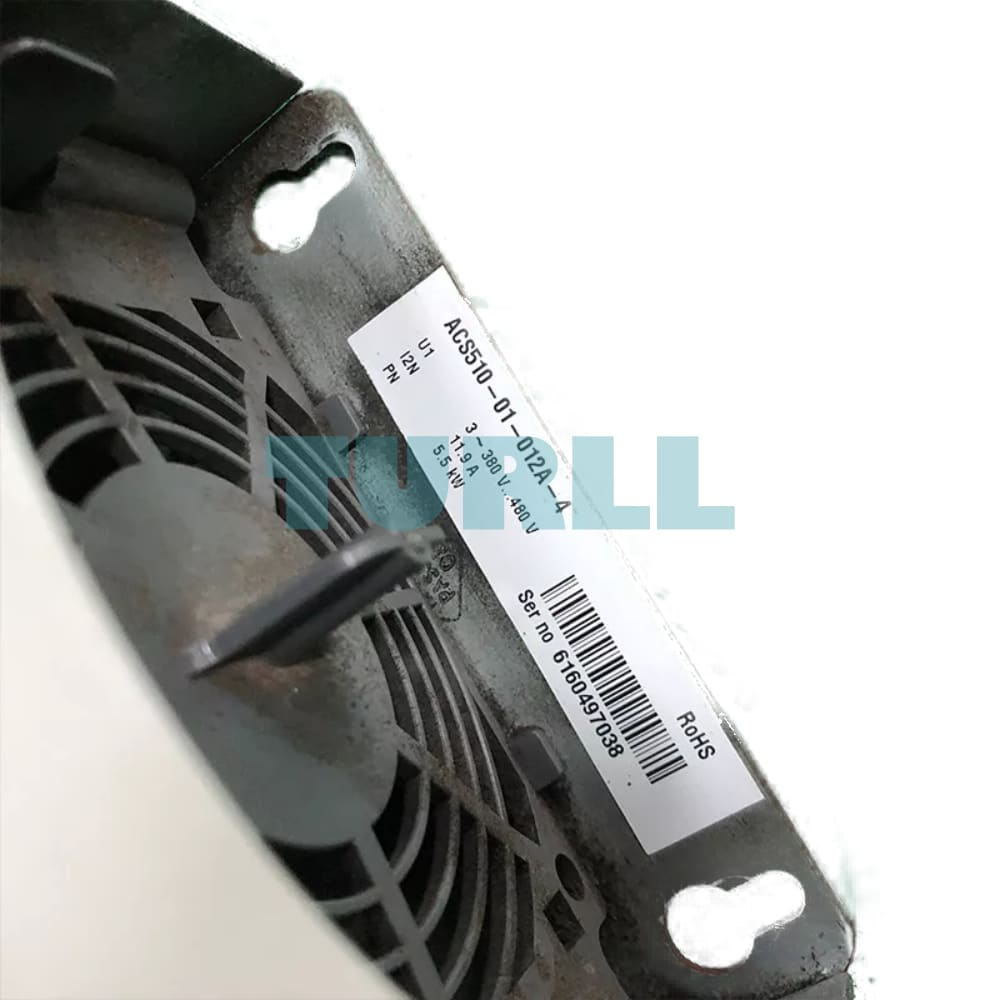

ACS510-01-012A-4 PN: 5.5 kW, IN: 11.9 A 3ABD00015746-D Brand New Original - Image 4

ACS510-01-012A-4 PN: 5.5 kW, IN: 11.9 A 3ABD00015746-D Brand New Original

Model / SKUACS510-01-012A-4

ACS510-01-012A-4

ACS510-01-012A-4,11.9A,380V,IP21

$263.19
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

General Information

Global Commercial Alias: ACS510-01-012A-4
Product ID: 3ABD00015746-D
ABB Type Designation: ACS510-01-012A-4
Catalog Description: ACS510-01-012A-4,11.9A,380V,IP21

Long Description: ACS510-01-012A-4,11.9A,380V,IP21

Ordering

Country of Origin: China (CN)
Customs Tariff Number: 85044099
Invoice Description: ACS510-01-012A-4,11.9A,380V,IP21
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 6.1 kg
Product Net Depth / Length: 465 mm
Product Net Height: 365 mm
Product Net Width: 225 mm
Package Level 1 Depth / Length: 490 mm
Package Level 1 Height: 400 mm
Package Level 1 Width: 240 mm
Package Level 1 Units: 1 carton

Technical

Number of Phases: 3
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Frequency (f): 47.5 ... 63 Hz
Frame Size: R1
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted_NO UNIT$
Output Current, Normal Use (In): 11.9 A
Output Power, Normal Use (Pn): 5.5 kW
Apparent Power Output: 8.3 kV·A
Efficiency Level: IE2
Standby Loss: 12 W

Complete Drive Module Efficiency (61800-9-2):

Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %
66 W
0.8 %
87 %
0 / 50 %
81 W
1 %
91.3 %
0 / 100 %
132 W
1.6 %
92.8 %
50 / 25 %
71 W
0.9 %
92.8 %
50 / 50 %
90 W
1.1 %
95.2 %
50 / 100 %
153 W
1.8 %
95.9 %
90 / 50 %
99 W
1.2 %
97 %
90 / 100 %
181 W
2.2 %
97.2 %
Temperature Rating: 40 °C

Classifications

UNSPSC: 39122001

Environmental

WEEE Category: Product Not in WEEE Scope

Additional Information

Product Name: Frequency Converter

Specifications

SKU / ModelACS510-01-012A-4
Weight6.1 kg
Dimensions490 × 400 × 240 mm
