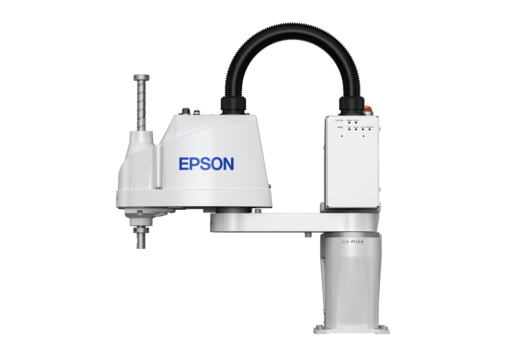

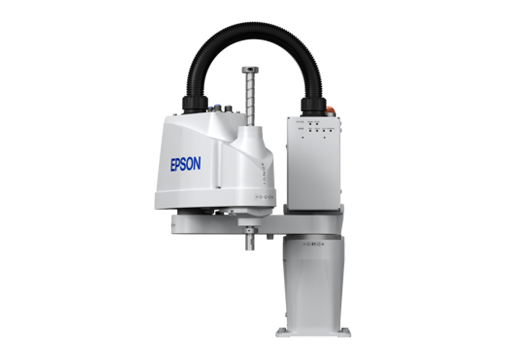

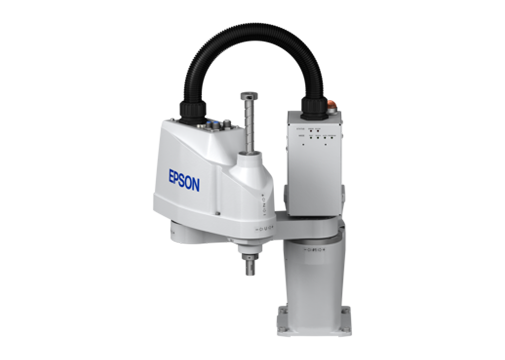

EPSON SCARA T3-401S, Simplified to the key elements, this versatile robot provides a cost-effective, entry-level solution for production lines. With 3Kg payload, 400mm arm reach and a repeatability of 0,02 mm, the compact T3-robot is ideal for simple pick-and-place applications.

Highlights
Arm reach: 400 mm
Maximum payload: 3 kg
Repeatability: ± 0.02 mm
Stroke: 150 mm

$8,169.88
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Compact and affordable

Simplified to the key elements, this versatile robot provides a cost-effective, entry-level solution for production lines

EPSON SCARA T3-401S WITH BUILT-IN CONTROLLER

The entry-level model in our comprehensive SCARA product range, the compact and versatile T3-Series is ideal for simple pick-and-place applications and in areas where linear systems were previously used.

Compact high performance

A powerful four-axis robot with integrated controller and diverse connection possibilities, capable of payloads up to 3kg and a standard cycle time of 0.54 seconds. The Epson T3 series also supports image-processing, integration of external software and the option to design a custom user interface.

Accuracy you can count on

T3-Series robots offer a repeatability of just 0.02 mm, making them ideal for simple pick-and-place applications, part feeding, positioning and inspection tasks, assembly tasks, including those supported by the Epson Vision System, as well as material coating at moderate speed.

Outstanding versatility

SCARA T3-Series robots are used in a huge range of industries, from assembling automotive components, mobile phones and computer parts, to creating medical equipment and packaging medications, not to mention lab automation and scientific analysis.

Key Features

  • Affordable SCARA robot: Great value for money without compromising on performance
  • Excellent accuracy: Repeatability of 0.02mm, ideal for pick-and-place tasks
  • High customisability: Supports image-processing, external software and custom user interface
  • Fully integrated: Complete Epson solution including robot, controller and software
  • Versatile and flexible: An ideal solution for applications from automotive to pharmaceutical



General Specifications

Part number PR-EP-001-0073
Weight 16 kg
Dimensions 142 x 629 x 545 mm
Design Author Epson Robots

Technical Specifications

Repeatability 0.02 mm
Certification CE
Max Payload 3 Kg

Specifications

Development EnvironmentEPSON RC+ 7.0
Programming LanguageEpson SPEL+ (multitasking possible)
DesignSCARA (4 axis robot)
Hardware OptionsFieldbus I/O master (DeviceNet, Profi bus, Ethernet/IP, 1 additional card each possible), Teach pendant, operator pendant
Software OptionsCode Reading (OCR recognition), External Control Point Motion (ECP), GUI Builder 7.0, RC+ API 7.0, Vision Guide 7.0
Payloadnom. 1 kg, max. 3 kg
Reach horizontal400 mm
Reach VerticalJ3: 150 mm
Reach OrientationJ4: +/- 360 °
Repeatability Horizontal+/- 0.02 mm
Repeatability VerticalJ3: +/- 0.02 mm
Repeatability OrientationJ4: +/- 0.02 °
Max. range of operationJ1: +/- 132 °, J2: +/- 141 °, J3: 150 mm, J4: +/- 360 °
Max. Operating SpeedJ1,J2: +/- 3,700 mm/s, J3: +/- 1,000 mm/s, J4: +/- 2,600 °/s
Moment of Inertianom. 0.003 kg*m², max. 0.001 kg*m²
User Wires Electric1x D-Sub 15 pin, 1x 9 pin round shape
User Wires Pneumatic3x (1x4mm Ø & 2x6mm Ø)
Z-axisØ Outside: 16 mm / Inside: 11 mm
Insertion force83 N
Product weight16 kg
ControllerController built in
Mounting optionPedestal
IP protection classIP20
Power and signal cable5m
What's in the boxConnector for standard I/O, Epson RC+ program CD including simulation software, Epson robot (Controller built in), Installation/safety manual, TP/OP bypass plug (installed before shipment), USB cable, User manual (CD)
InterfacesHi-Speed USB - compatible with USB 2.0 specification, USB 3.0, Wired Network, 18/12 Standard E/A Channels
Weight16 kg
Dimensions142 × 629 × 545 mm
