Siemens 3NA3805 LV HRC Fuse Link, NH000, 16A, gG, 500V AC/250V DC Original Brand New
$29.04
High-performance Siemens 3NA3805 LV HRC fuse element. Rated for 16A, NH000 size, with gG application category. Features a front indicator and live grip lugs for reliable circuit protection.
Availability: In stock
Overview
The Siemens 3NA3805 LV HRC Fuse Element is a high-performance low-voltage fuse designed to deliver reliable circuit protection in industrial and commercial electrical systems. Rated at 16A with gG utilization category, this NH000 fuse ensures safe and efficient protection against overloads and short circuits. It supports 500V AC and 250V DC applications and includes a front indicator for quick fault identification along with live grip lugs for safer handling during installation and replacement.
Benefit
-
Ensures reliable protection against overloads and short circuits
-
Front indicator allows fast and easy fault detection
-
Live grip lugs enhance safety during installation
-
Compact NH000 size saves space in electrical panels
-
Trusted Siemens quality for long-term performance
Function & Features
-
Product Type: LV HRC Fuse Element
-
Fuse Size: NH000
-
Rated Current (In): 16 A
-
Utilization Category: gG (full-range protection)
-
Rated Voltage AC: 500 V
-
Rated Voltage DC: 250 V
-

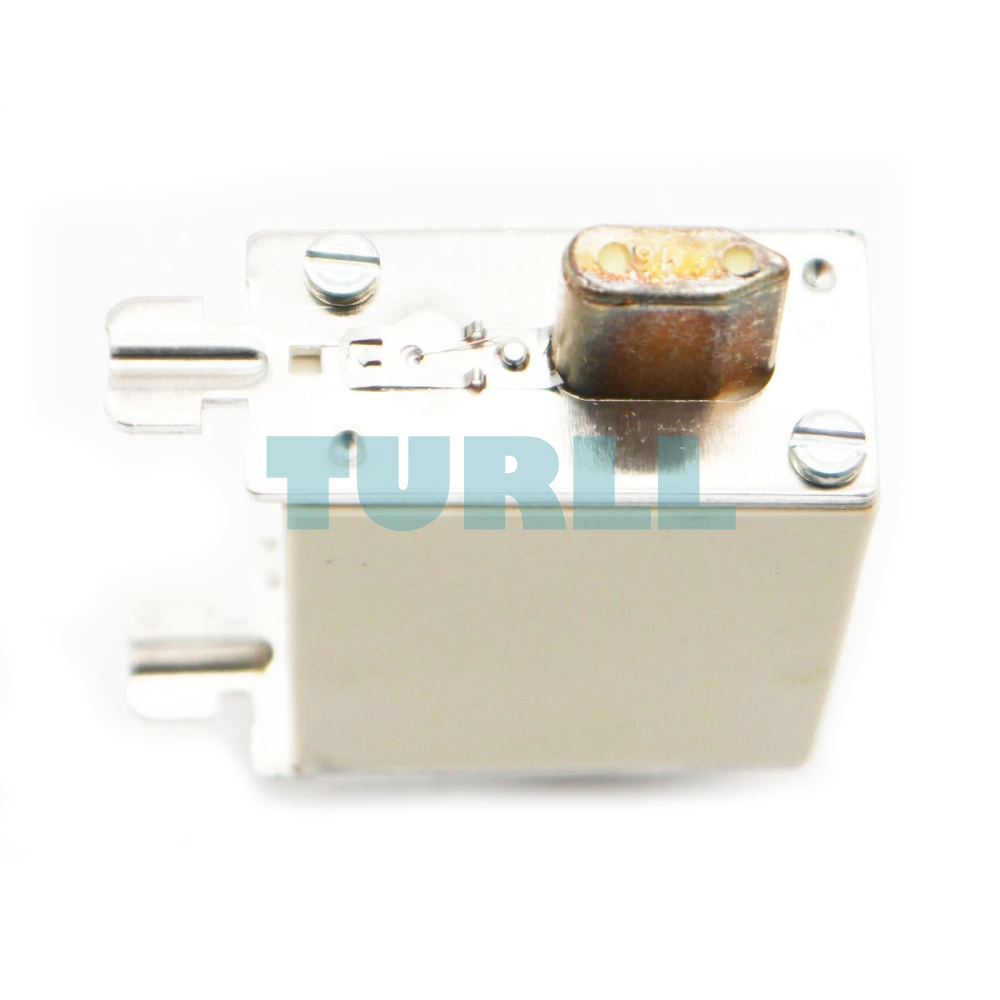

Indicator: Front-mounted status indicator
-
Connection Type: Live grip lugs
-
Application: Industrial and commercial power distribution systems
Visit 3NA3805 for more detail info
For more our products visit turll
Download
| Weight | 0.131 kg |
|---|---|

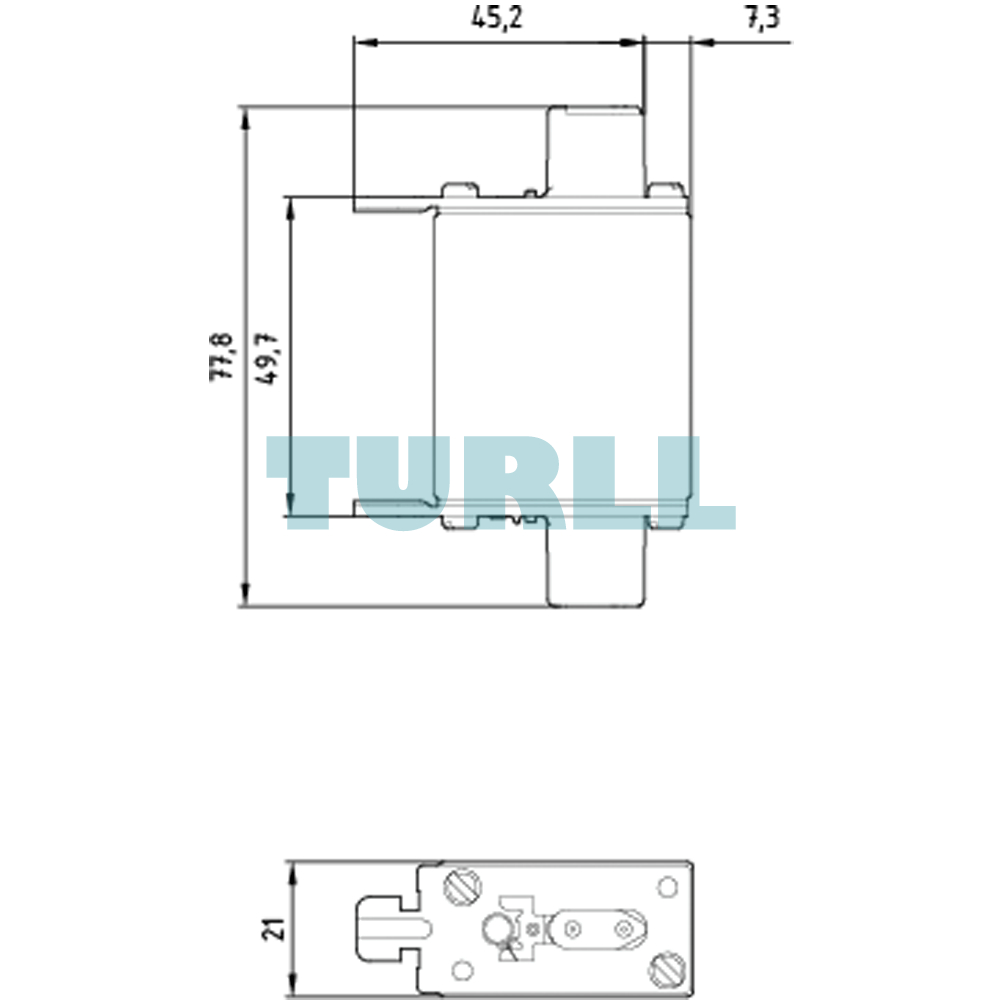

| Dimensions | 65.00 × 84.00 × 62.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | NH000 |
| operating class of the fuse link | gG |
| mounting type | non-insulated grip lugs |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 25 kA |
| ● acc. to IEC 60947-2 / rated value | 120 kA |
| power loss [W] | 1.7 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.7 W |
| operational current | – |
| ● at 30 °C / rated value | 15.68 A |
| ● at 40 °C / rated value | 15.2 A |
| ● at 45 °C / rated value | 14.72 A |
| ● at 50 °C / rated value | 14.4 A |
| ● at 55 °C / rated value | 14.08 A |
| ● at 60 °C / rated value | 13.76 A |
| ● at AC / rated value | 16 A |
| width / of the enclosure | 21 mm |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -5 °C |
| ● maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category / during storage | 90% at 20°C |
