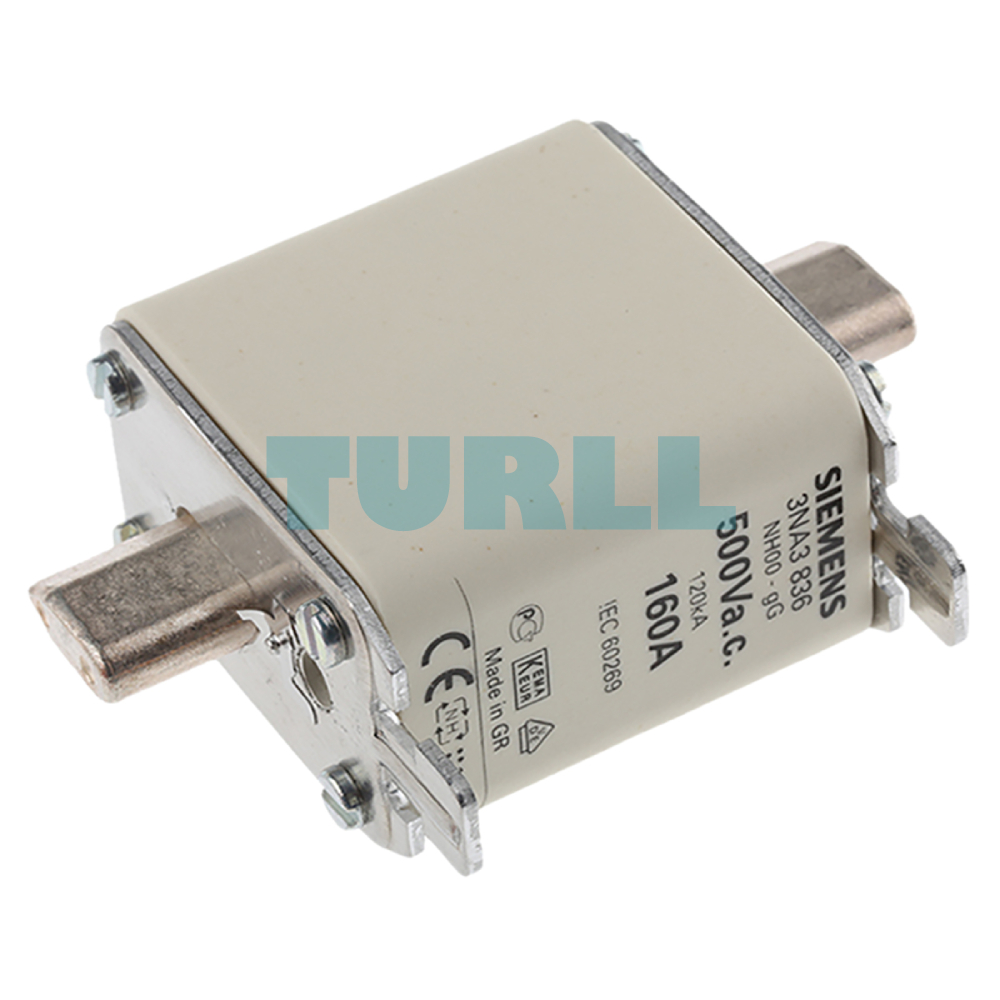

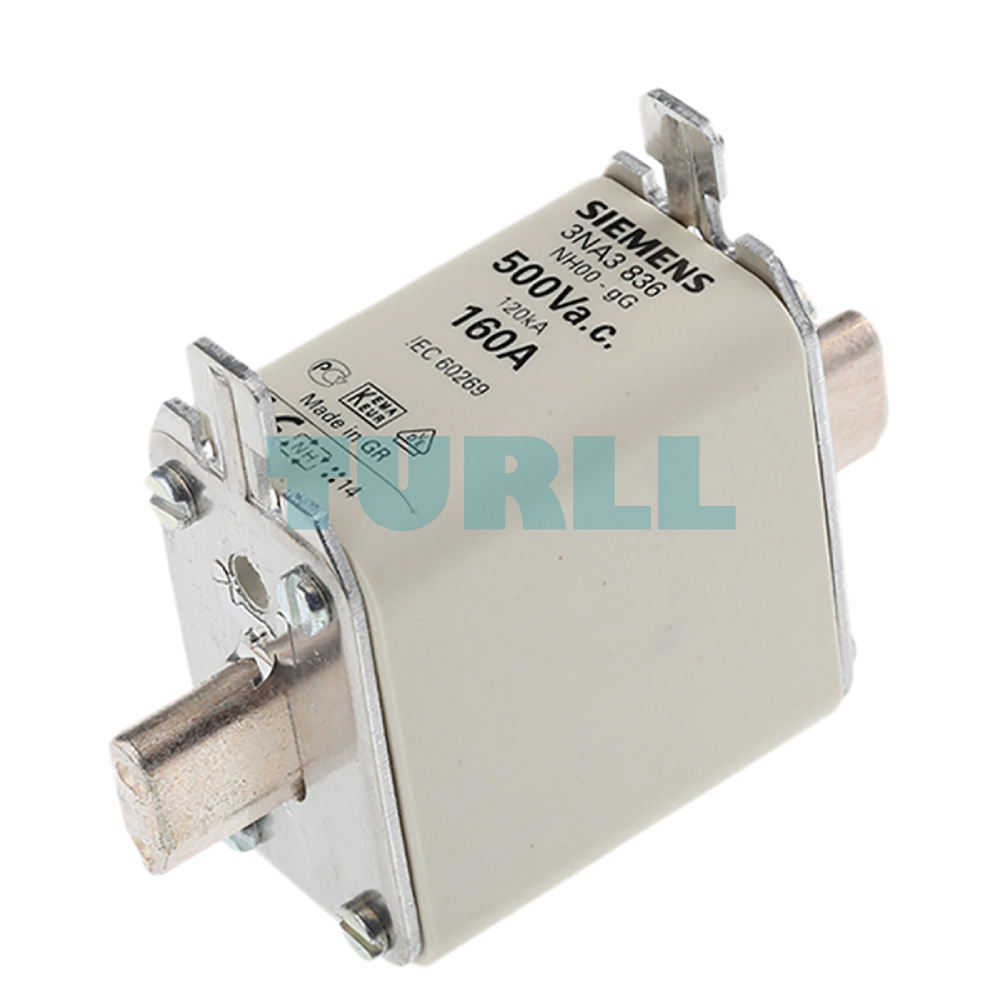

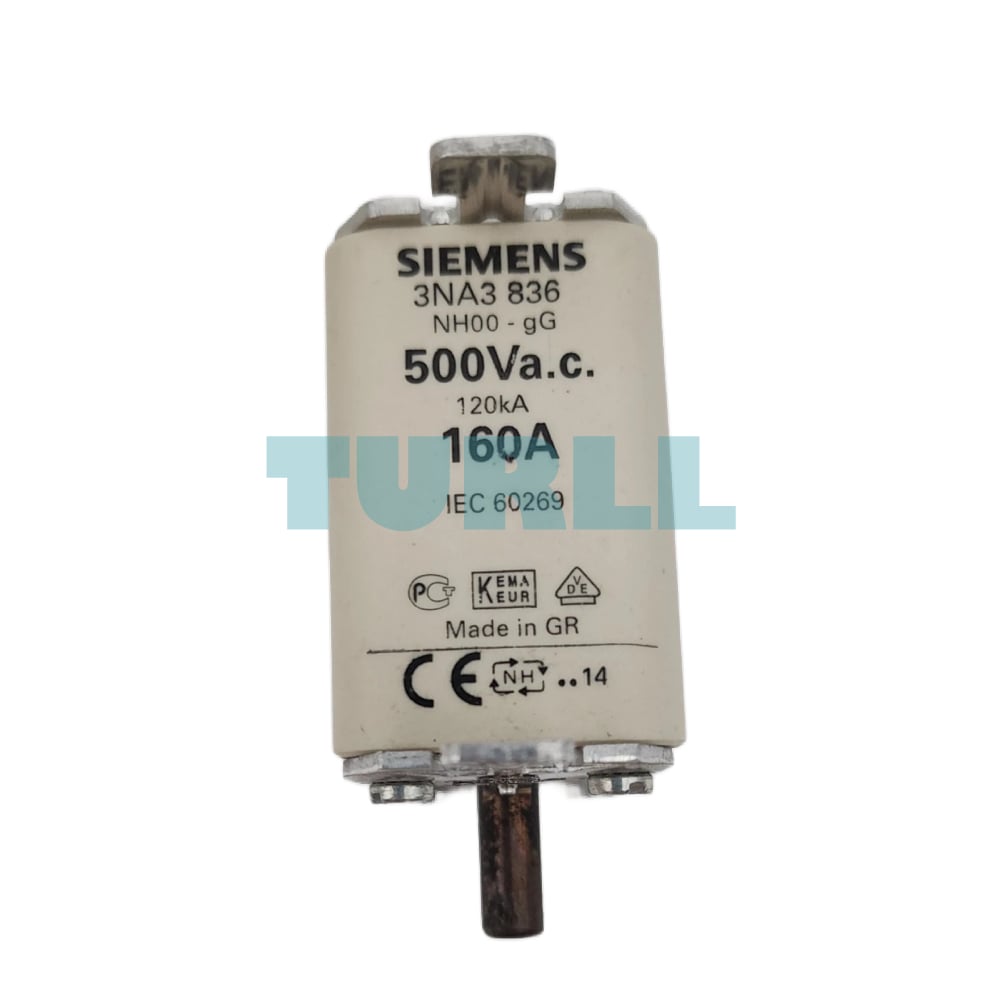

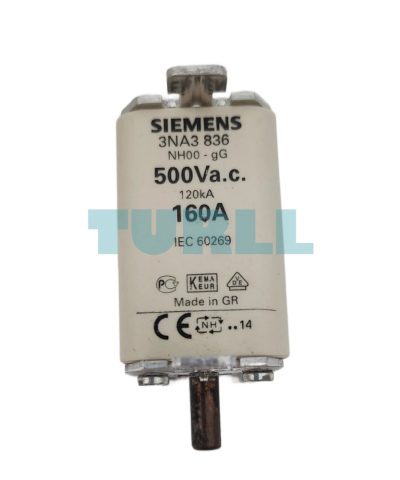

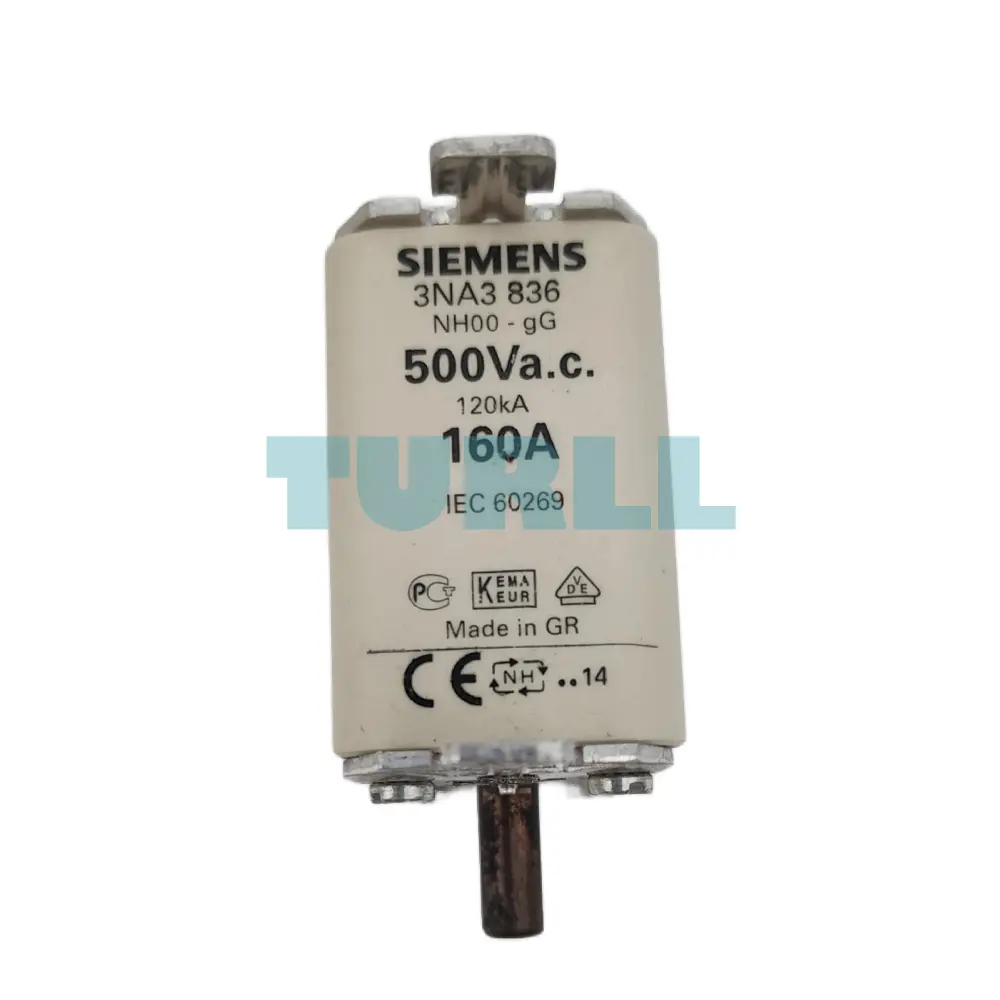

Siemens 3NA3836 LV HRC Fuse Link, Size NH00, 160A, gG, 500V AC / 250V DC Original Brand New
$33.84
High-capacity LV HRC (Low Voltage High Rupturing Capacity) fuse link designed for reliable cable and line protection. Featuring a size NH00 form factor, 160A rated current, and gG operating characteristics, it ensures maximum safety for industrial electrical systems.
Availability: In stock
Overview
The Siemens 3NA3836 belongs to the trusted 3NA series of LV HRC fuse systems. These fuses are engineered to provide superior protection against short circuits and overloads in power distribution systems. With a robust design and precise tripping characteristics, the 3NA3836 is a critical component for safeguarding sensitive electrical infrastructure.
Key Benefit
-
Enhanced Safety: Equipped with live grip lugs for secure handling and installation.
-
Visual Monitoring: Features a front indicator (combi-indicator) for immediate visual identification of a blown fuse, reducing downtime.
-
Versatile Application: Dual-rated for both 500V AC and 250V DC applications.
-
Long-Term Reliability: Silver-plated copper contact blades ensure low power loss and prevent aging of the fuse element.
Technical Function
-
Operating Class gG: Provides full-range breaking capacity, protecting against both overload and short-circuit conditions.
-
High Breaking Capacity: Capable of safely interrupting high fault currents to prevent equipment damage.
-
Standardized Design: Complies with NH00 dimensions, making it compatible with standard fuse holders and switch disconnectors.
Technical Specification
-
Fuse Type: LV HRC Fuse Element
-
Size: NH00
-
Rated Current (In): 160 A
-
Utilization Category: gG
-
Rated Voltage AC: 500 V
-
Rated Voltage DC: 250 V
-
Indicator: Front indicator
-
Connection Type: Live grip lugs
-
Manufacturer: Siemens
Visit 3NA3836 for more detail info
For more our products visit turll
Download
| Weight | 0.200 kg |
|---|---|

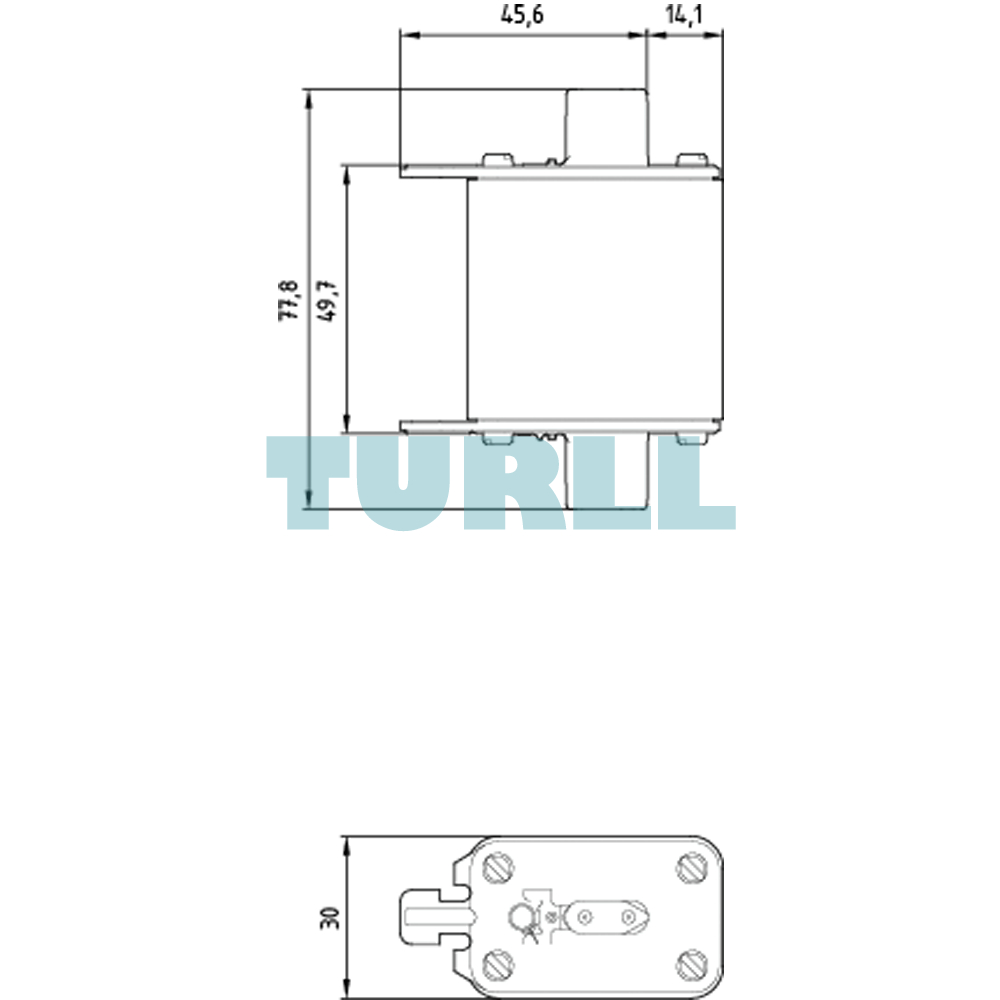

| Dimensions | 83.00 × 95.00 × 67.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | NH00 |
| operating class of the fuse link | gG |
| mounting type | non-insulated grip lugs |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 25 kA |
| ● acc. to IEC 60947-2 / rated value | 120 kA |
| power loss [W] | 10.5 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 10.5 W |
| operational current | – |
| ● at 30 °C / rated value | 156.8 A |
| ● at 40 °C / rated value | 152 A |
| ● at 45 °C / rated value | 147.2 A |
| ● at 50 °C / rated value | 144 A |
| ● at 55 °C / rated value | 140.8 A |
| ● at 60 °C / rated value | 137.6 A |
| ● at AC / rated value | 160 A |
| width / of the enclosure | 30 mm |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -5 °C |
| ● maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category / during storage | 90% at 20°C |
