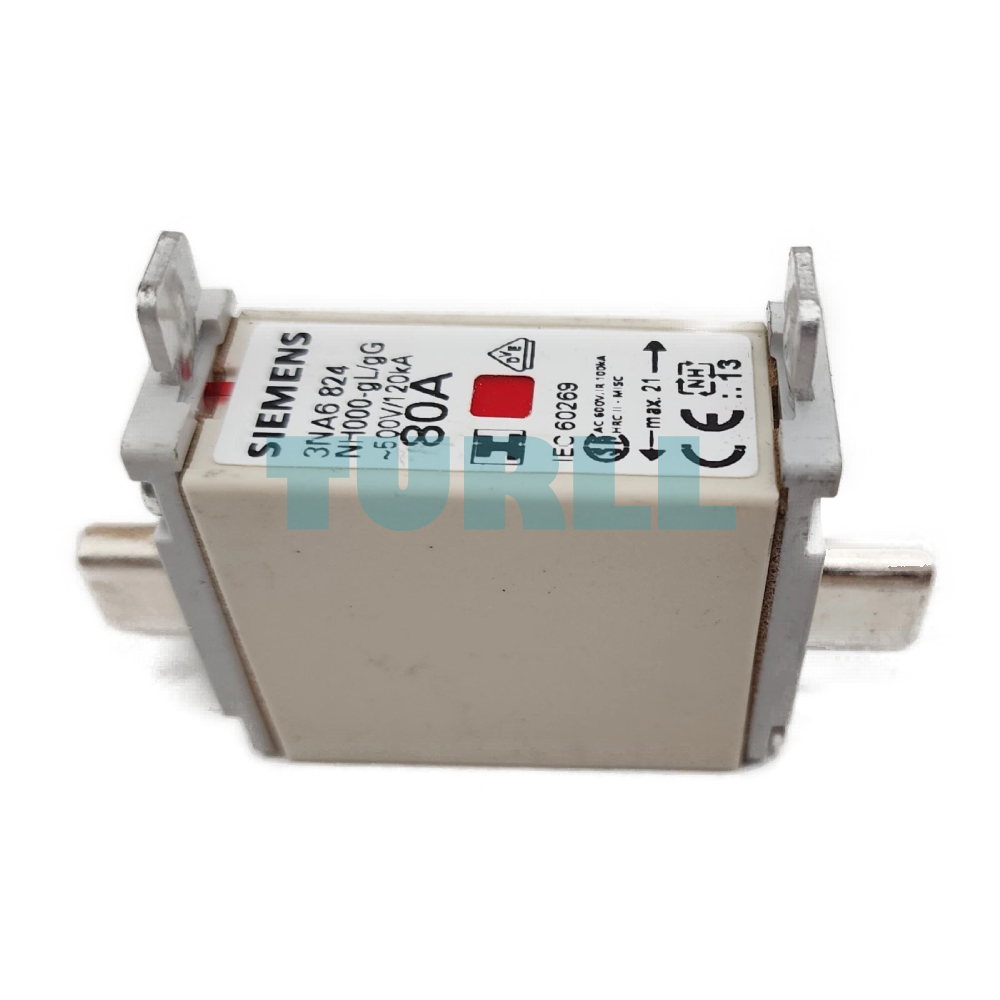

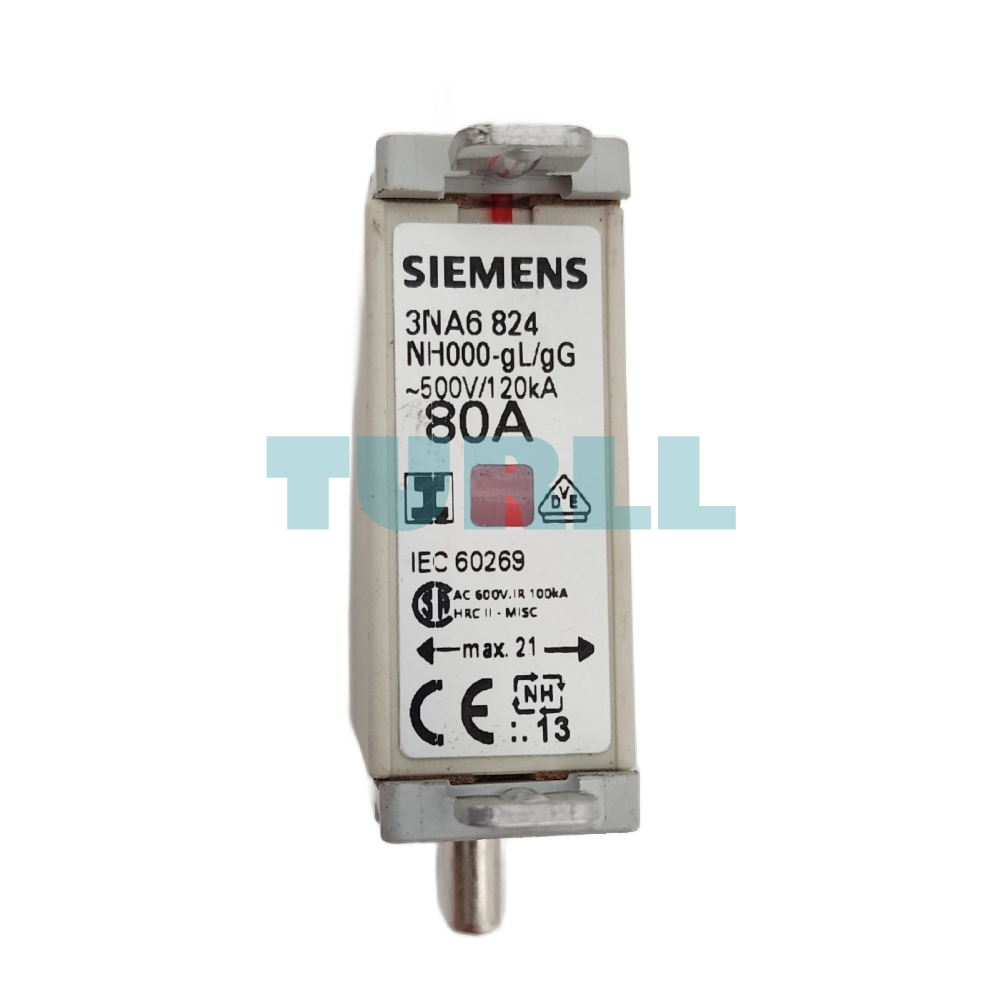

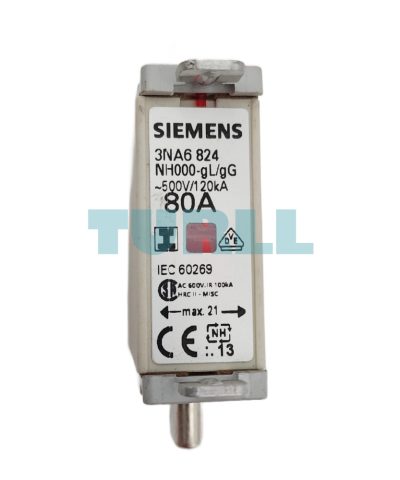

Siemens 3NA6824 LV HRC Fuse Element NH000 80A gG 500V AC / 250V DC with Indicator Original Brand New
$26.99
High-performance LV HRC (Low Voltage High Rupturing Capacity) fuse link designed for industrial circuit protection. Featuring a compact NH000 size and an 80A current rating, this gG-class fuse provides reliable full-range protection for cables and lines against short circuits and overloads.
Availability: In stock
Overview
The Siemens 3NA6824 LV HRC Fuse Element is a high-performance low-voltage protection device designed for industrial and commercial electrical systems. Built in NH000 size, this fuse provides reliable protection against overloads and short circuits, ensuring safety and system stability. With a rated current of 80A, gG utilization category, and support for both AC and DC applications, it is ideal for a wide range of electrical installations.
Features & Function
-
Rated Current: 80 A
-
Fuse Size: NH000
-
Utilization Category: gG (full-range protection)
-
Rated Voltage:
-
AC: 500 V
-
DC: 250 V
-
-
Combined Indicator: Enables quick visual status checking
-
Insulated Grip Lugs: Safe and easy handling during installation and replacement
-
High Breaking Capacity: Reliable protection against short circuits
-
Siemens Quality: Long service life and consistent performance
Benefit
-
Enhances electrical system safety by preventing overload and short-circuit damage
-
Quick fault identification with the integrated combined indicator
-
Reduced maintenance time due to easy handling with insulated grip lugs
-
Suitable for industrial control panels, switchgear, and distribution boards
-
Ensures stable and reliable operation in demanding environments
Application
-
Low-voltage distribution systems
-
Industrial machinery and automation panels
-
Power supply protection
-
Commercial and industrial electrical installations
Visit 3NA6824 for more detail info
For more our products visit turll
Download
| Weight | 0.131 kg |
|---|---|

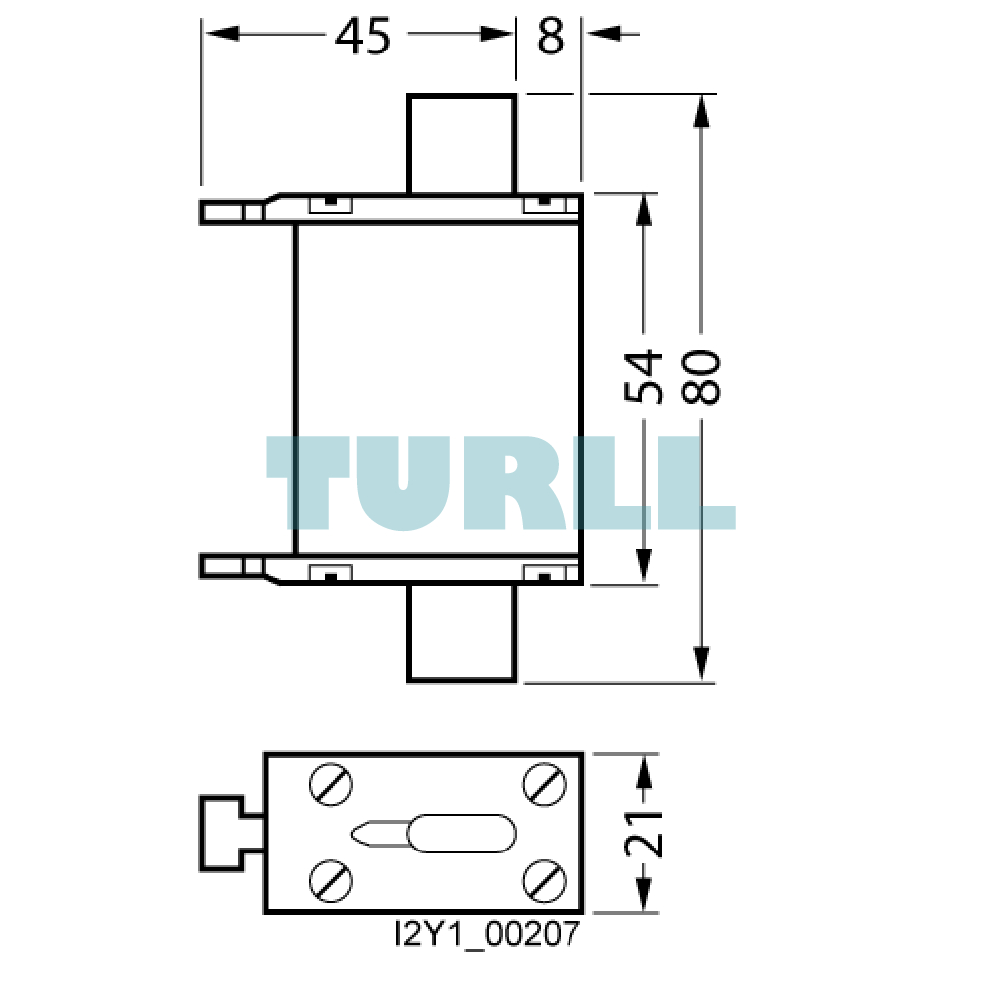

| Dimensions | 65.00 × 84.00 × 62.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Combination alarms |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | NH00 |
| operating class of the fuse link | gG |
| mounting type | insulated grip lugs |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 25 kA |
| ● acc. to IEC 60947-2 / rated value | 120 kA |
| power loss [W] | 6.94 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 6.94 W |
| operational current | – |
| ● at 30 °C / rated value | 78.4 A |
| ● at 40 °C / rated value | 76 A |
| ● at 45 °C / rated value | 73.6 A |
| ● at 50 °C / rated value | 72 A |
| ● at 55 °C / rated value | 70.4 A |
| ● at 60 °C / rated value | 68.8 A |
| ● at AC / rated value | 80 A |
| width / of the enclosure | 30 mm |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -5 °C |
| ● maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category / during storage | 90% at 20°C |
| Miscellaneous | Miscellaneous |
