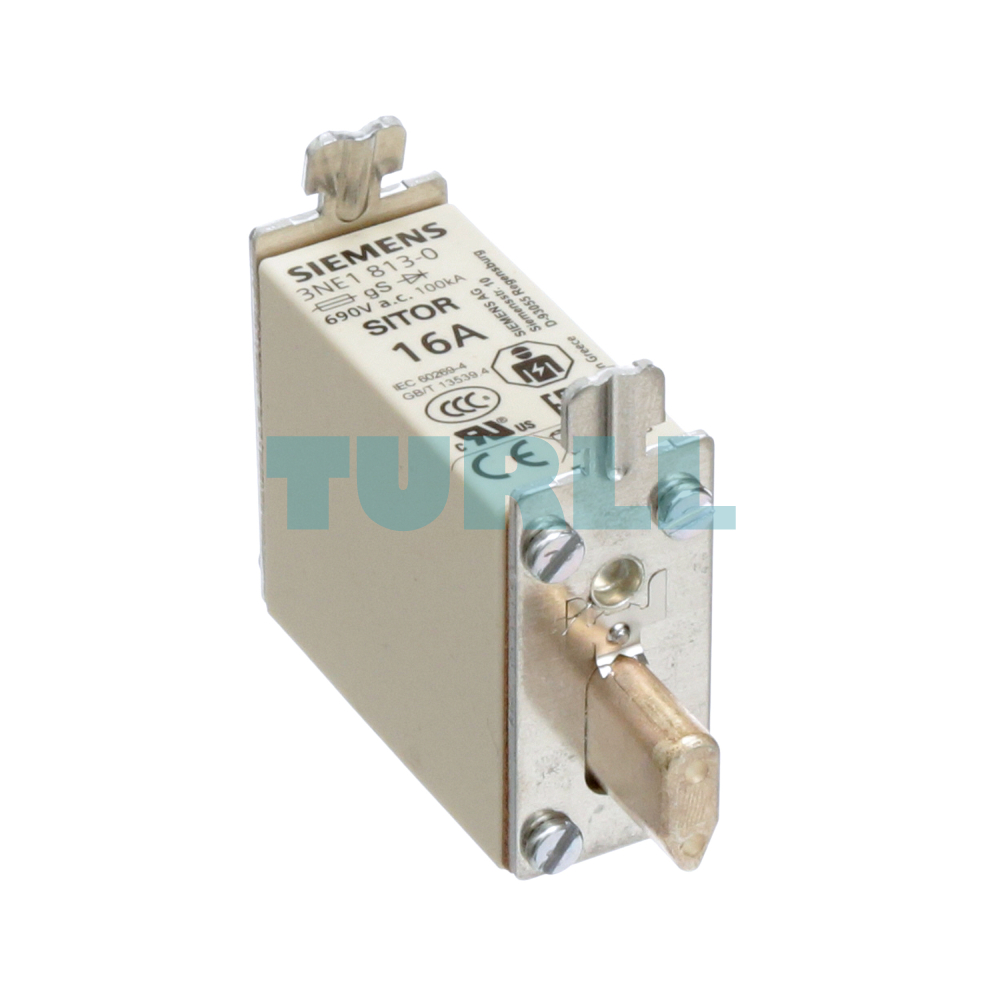

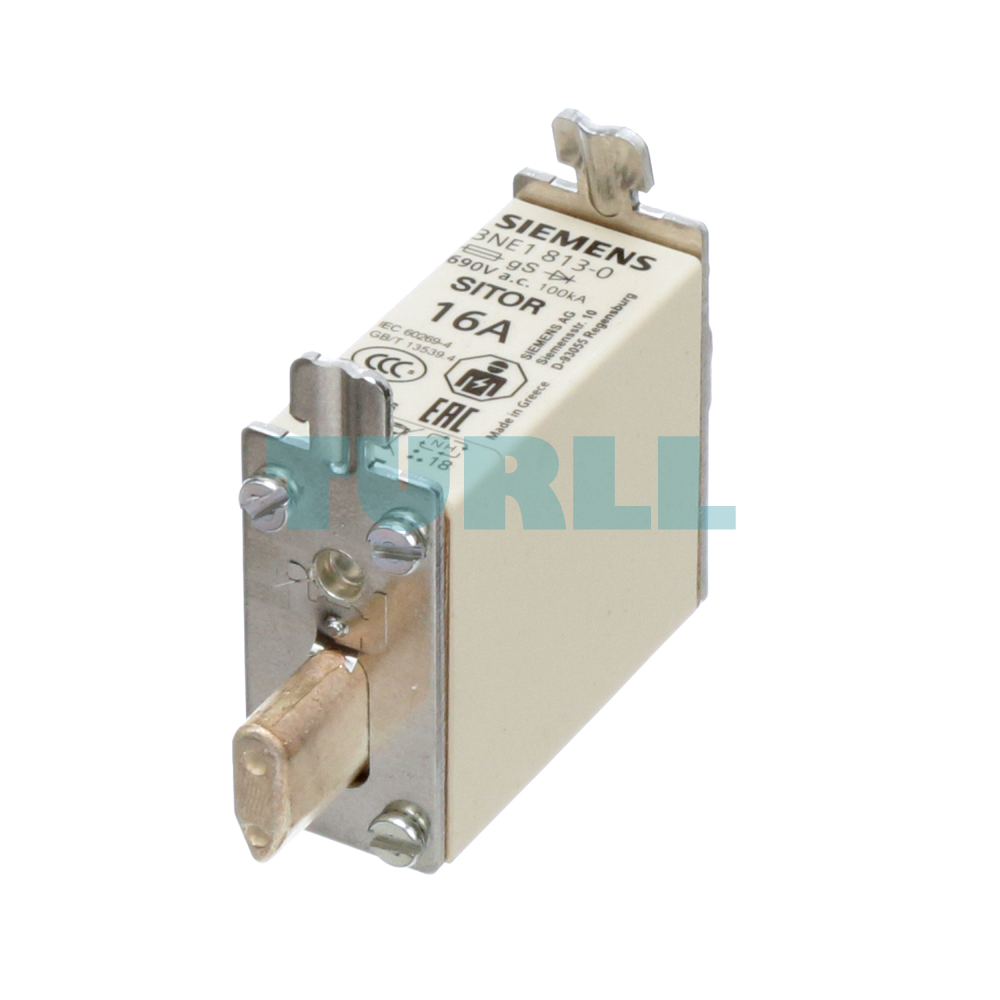

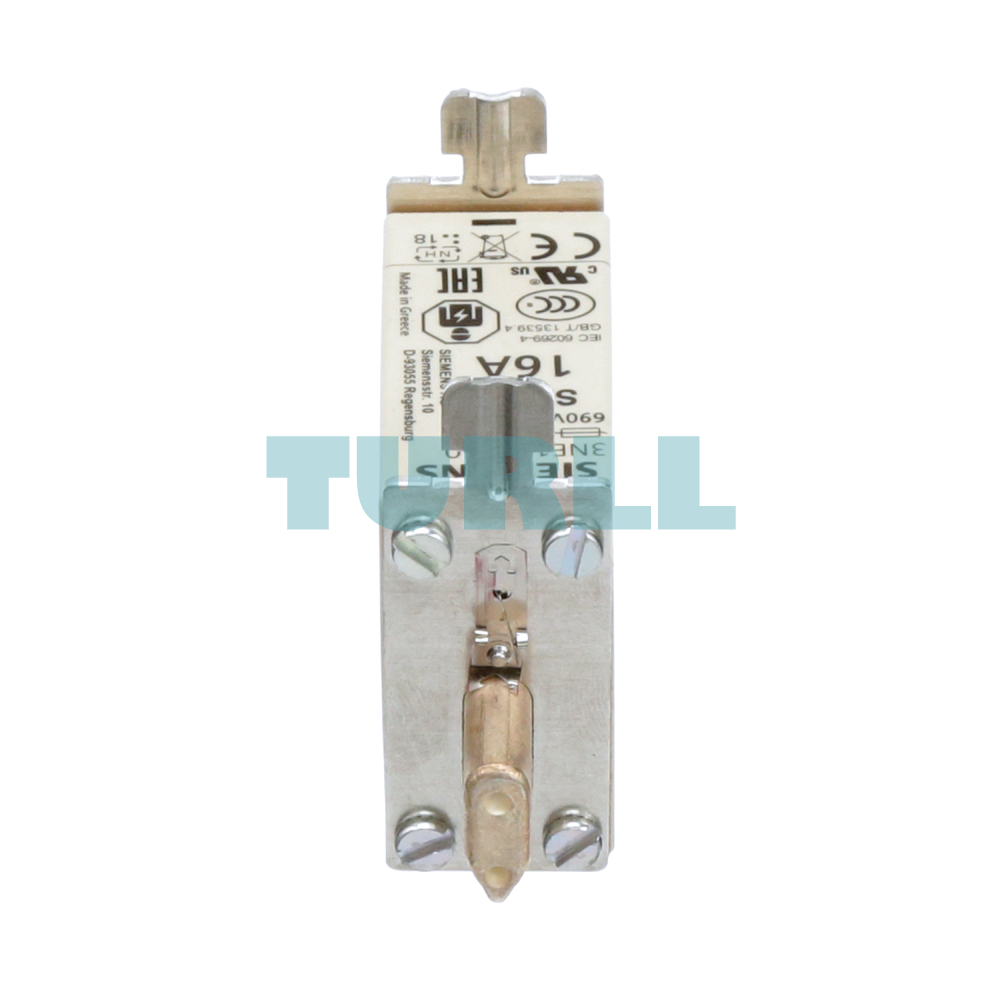

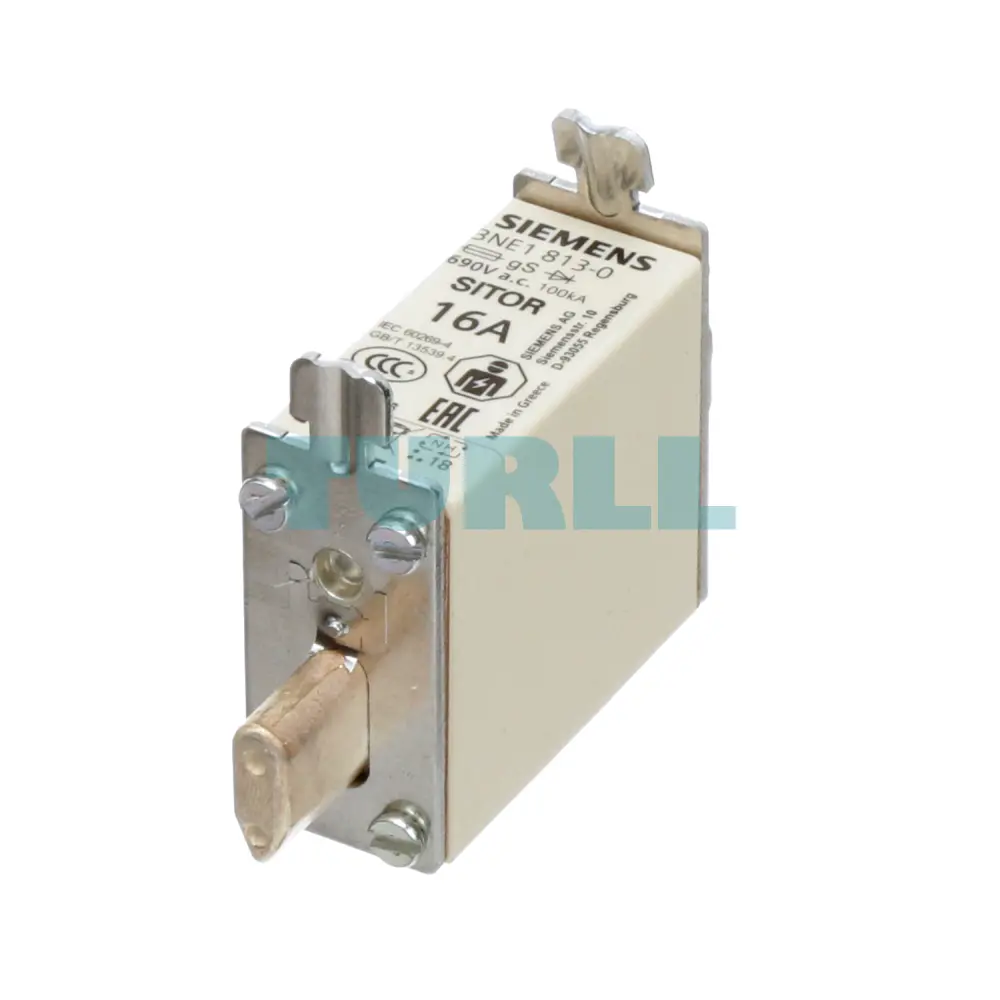

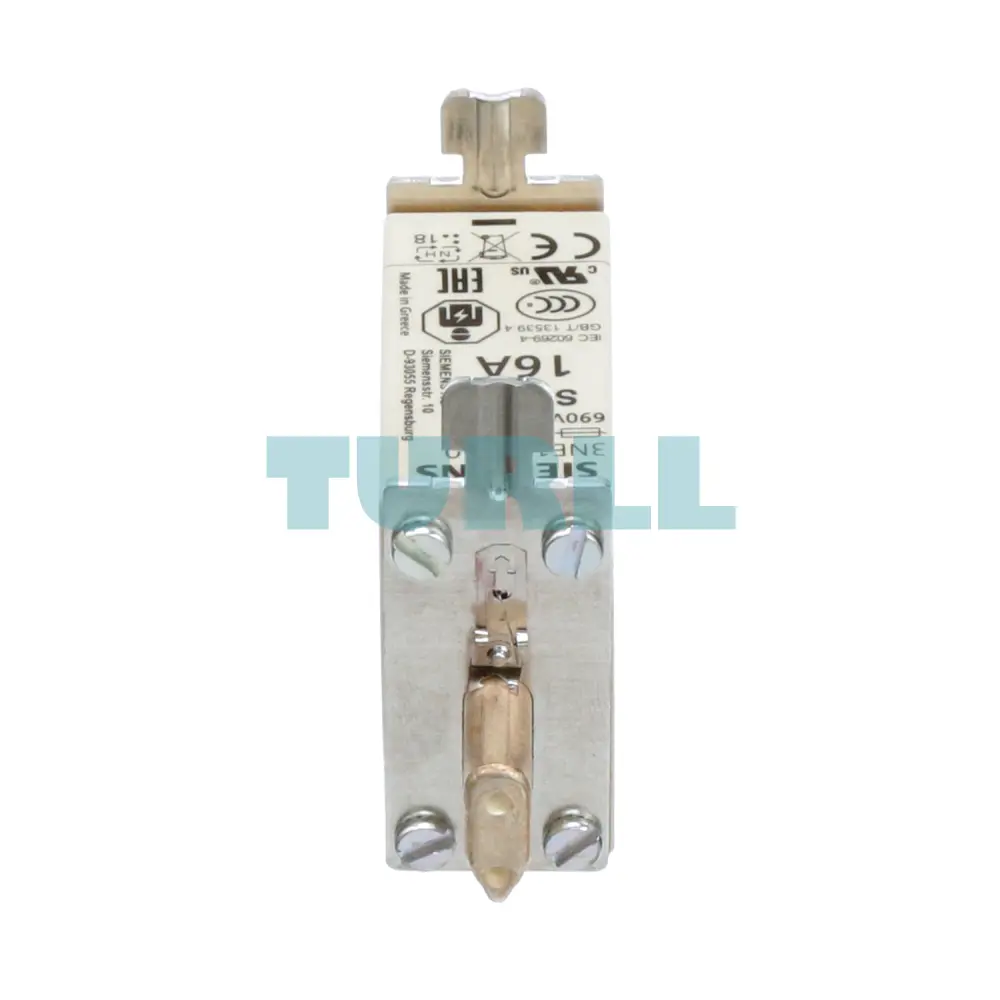

Siemens 3NE1813-0 SITOR Fuse Link with Blade Contacts, NH000, 16A, 690V AC, 250V DC Original Brand New
$95.98
High-performance SITOR semiconductor fuse link designed for superior circuit protection. Featuring a compact NH000 design with blade contacts, this 16A fuse operates with a gS utilization category, making it ideal for protecting power semiconductors against short circuits and overloads.
Availability: In stock
Overview
The Siemens 3NE1813-0 SITOR Fuse Link is a high-performance fuse designed to provide reliable overcurrent protection in industrial electrical systems. Featuring blade contacts and an NH000 format, this fuse link is rated for 16A current and offers compatibility with 690V AC and 250V DC systems. The gS breaking capacity and front indicator make it ideal for ensuring protection in various applications.
Benefit
-
Reliable Overcurrent Protection: Prevents damage to electrical circuits by disconnecting the supply in case of overloads or short circuits.
-
High Voltage Compatibility: Designed for use in systems up to 690V AC and 250V DC, making it versatile across different electrical setups.
-
Clear Indicator: Equipped with a front indicator to easily identify fuse status, ensuring quick troubleshooting and system maintenance.
-
Durable and Long-Lasting: The SITOR fuse link is engineered to deliver continuous protection with long-lasting performance, even in challenging industrial environments.
-
Compact and Efficient Design: The NH000 format ensures ease of installation in standard fuse holders, offering a compact and effective solution for electrical protection.
Function
-
The Siemens 3NE1813-0 SITOR Fuse Link is primarily designed to protect electrical circuits by interrupting the current flow during an overload or short circuit.
-
It uses blade contacts to securely attach to fuse holders and can be easily replaced or maintained.
-
Ideal for use in high-voltage systems where reliability is critical, it helps prevent equipment damage and minimizes the risk of fire hazards.
Visit 3NE1813-0 for more detail info
For more our products visit turll
Download
| Weight | 0.134 kg |
|---|---|

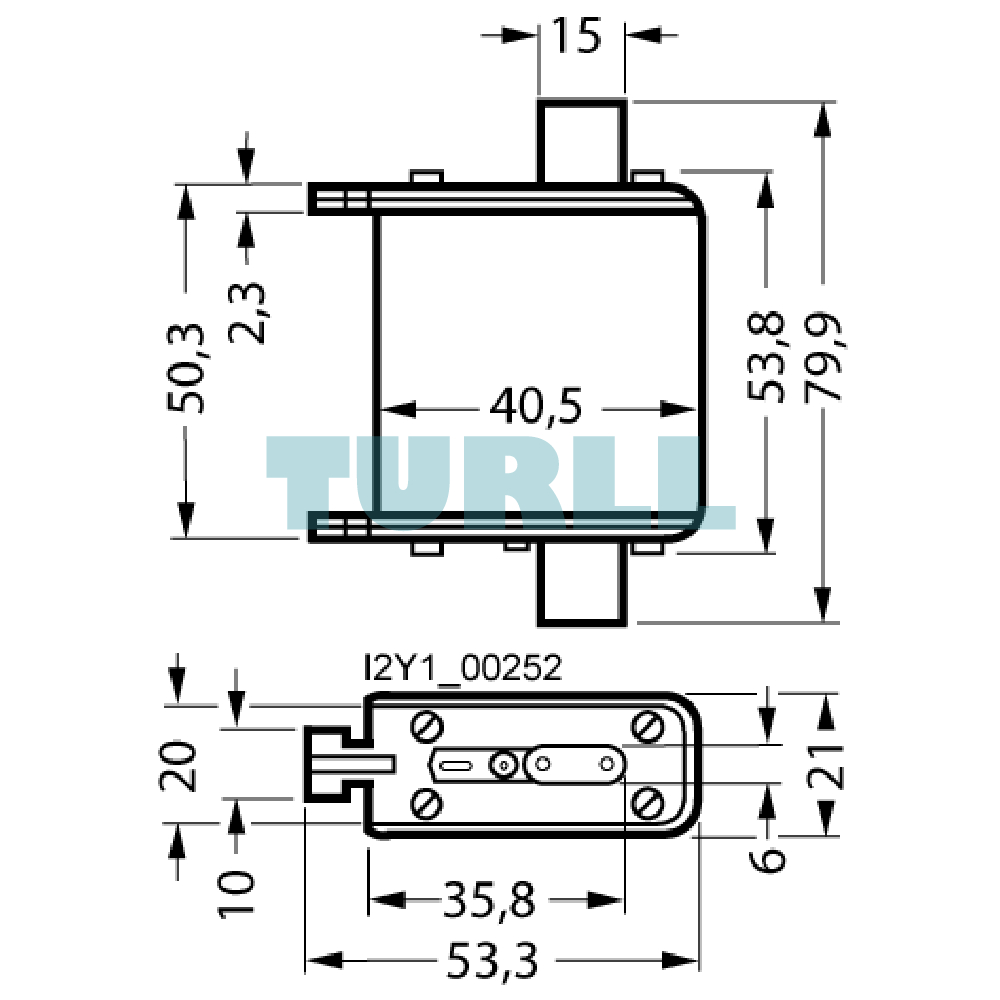

| Dimensions | 65.00 × 83.00 × 62.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | SITOR fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | front indicator |
| design of the switching contact | With blade contacts, silver-plated |
| design of the fuse link | SITOR, LV HRC design |
| size of fuse system / acc. to DIN EN 60269-1 | NH000 |
| operating class of the fuse link | gS |
| varying load factor (WL) | 1 |
| type of voltage / of the operating voltage | AC/DC |
| supply voltage | – |
| ● at DC | 250 V |
| switching capacity current | – |
| ● acc. to IEC 60947-2 / rated value | 100 kA |
| power loss [W] | – |
| ● for rated value of the current / at AC / in hot operating state / per pole | 3 W |
| operational current | – |
| ● at 30 °C / rated value | 16 A |
| ● at 40 °C / rated value | 16 A |
| ● at 45 °C / rated value | 16 A |
| ● at 50 °C / rated value | 15.84 A |
| ● at 55 °C / rated value | 15.68 A |
| ● at 60 °C / rated value | 15.52 A |
| ● at AC / rated value | 16 A |
| product description | Not non-interchangeable |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | -20 °C |
| ● maximum | 50 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| Miscellaneous | Miscellaneous |
