Overview

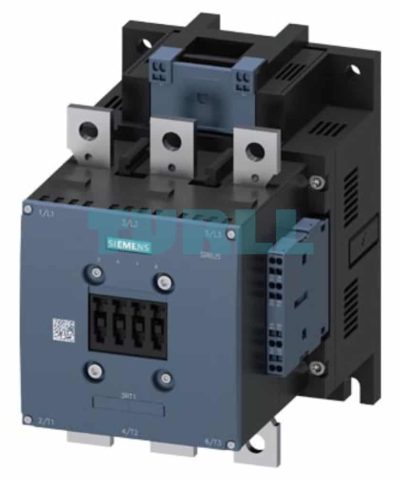

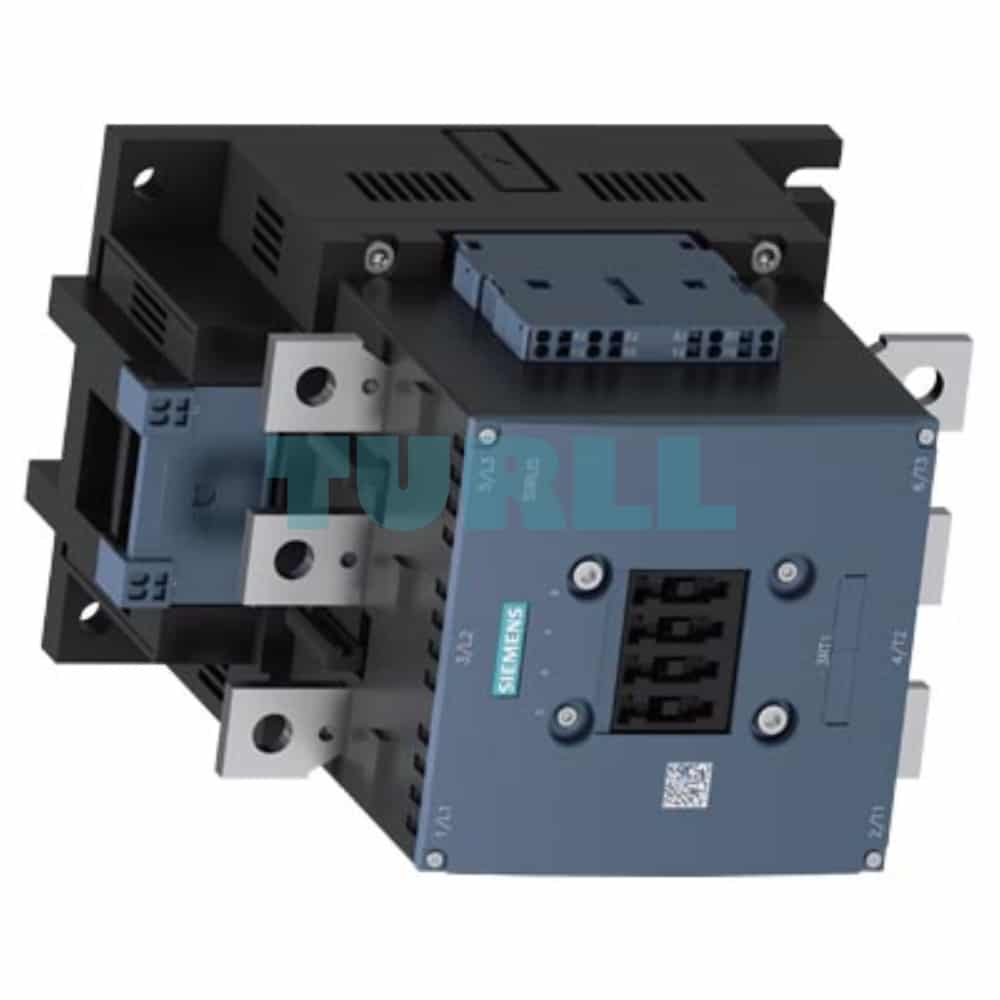

The Siemens 3RT1064-2AT36 is a robust and high-performance SIRIUS 3RT10 series power contactor designed for switching motors and non-inductive loads up to 110 kW at 400 V (AC-3e/AC-3). As a Size S10 contactor, it is engineered for demanding industrial applications requiring reliable operation and high current capacity.
This model features a conventional operating mechanism compatible with both AC and DC control voltages in the 575-600 V range. It includes 3 main poles and 2 NO + 2 NC integrated auxiliary contacts for versatile control circuit integration. The main circuit utilizes busbar connection for high-power distribution, while the control and auxiliary circuits use spring-loaded terminals for fast, vibration-proof wiring.
Technical Specifications
- Product Type: Power Contactor (SIRIUS 3RT10)
- Size: S10
- Rated Operational Current (Ie): 225 A (AC-3e/AC-3 at 400 V)
- Rated Operational Power (Pe): 110 kW (at 400 V)
- Control Supply Voltage (Uc): 575 - 600 V AC (50/60 Hz) / DC (AC/DC Conventional Drive)
- Poles: 3-pole
- Auxiliary Contacts: 2 Normally Open (NO) + 2 Normally Closed (NC)
- Main Circuit Connection: Busbar
- Control/Auxiliary Circuit Connection: Spring-Loaded Terminal
Benefits & Features
- High Performance: Capable of safely switching high currents for large motors up to 110 kW, ensuring reliable motor control.
- IE3/IE4 Motor Ready: Compliant with the new efficiency standards (AC-3e utilization category) for modern, energy-efficient motors.
- Flexible Control: Conventional AC/DC drive for the coil accepts a wide control voltage range of 575-600V, offering flexibility in high-voltage industrial panels.
- Integrated Auxiliary Contacts: The built-in 2 NO + 2 NC contacts simplify wiring and panel design.
- Durable & Reliable: Part of the established Siemens SIRIUS family, known for its long mechanical and electrical service life in harsh industrial environments.
- Efficient Wiring: Spring-loaded terminals for the control and auxiliary circuits provide fast, secure, and maintenance-free connections.
- Easy Integration: Busbar connection on the main circuit ensures secure, high-capacity power connections in switchgear.
