3RT1065-6AM36

Description

Overview

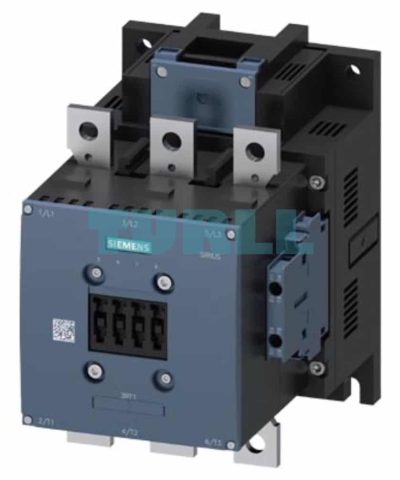

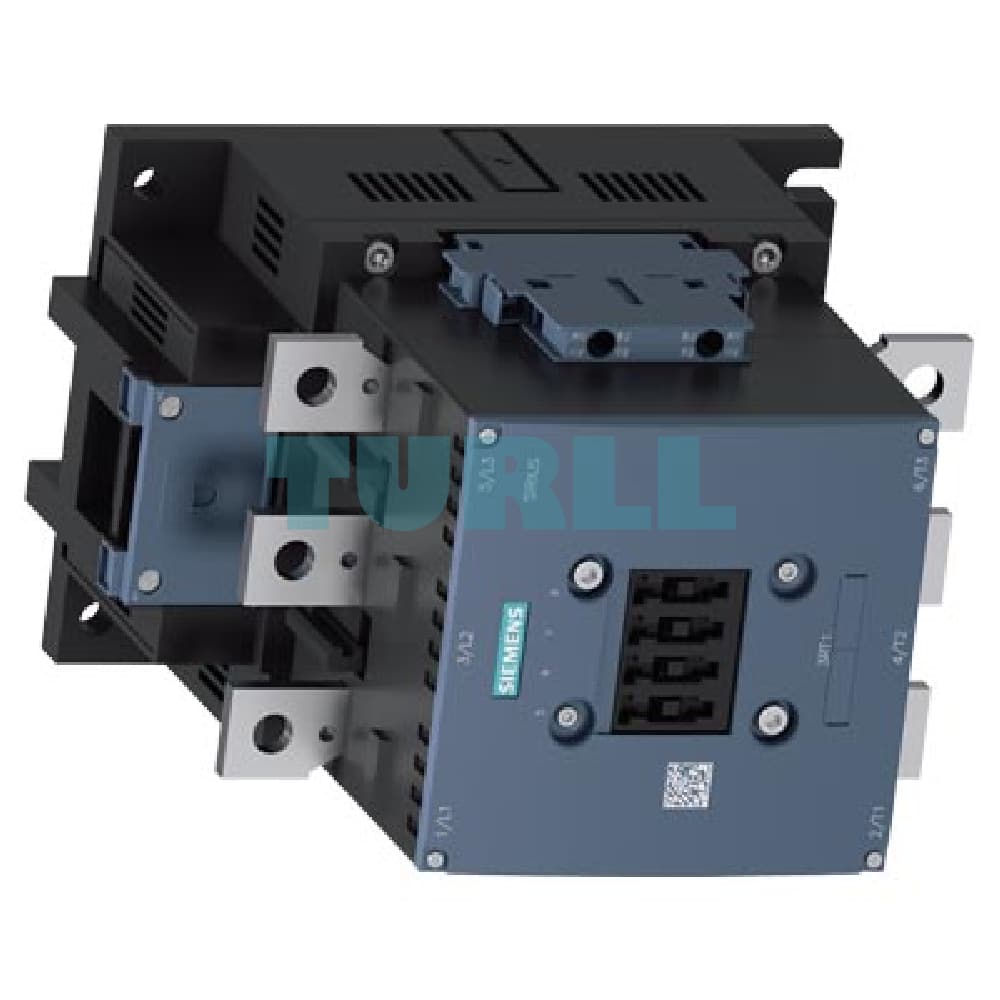

The Siemens 3RT1065-6AM36 is a robust and reliable power contactor designed for high-demand industrial applications. Engineered to handle AC-3e/AC-3 loads up to 265 A, this 3-pole contactor delivers efficient switching for motors and other high-power electrical devices. Its versatile control options support 400 V AC (50-60 Hz) and DC 200-220 V, making it suitable for a wide range of industrial setups.

Built with 2 NO + 2 NC auxiliary contacts, the device ensures safe and precise monitoring of operational status. The main circuit features busbar connections, and the auxiliary/control circuit uses screw terminals, allowing for secure installation and ease of maintenance.

Key Benefit

• High Capacity: Supports up to 265 A and 132 kW, suitable for demanding industrial motors.

• Versatile Operation: AC and DC voltage control for flexible integration.

• Reliable Switching: 3-pole design ensures stable operation under heavy loads.

• Auxiliary Contacts: 2 NO + 2 NC for enhanced monitoring and control options.

• Durable Design: Conventional drive and secure screw terminals for long-lasting performance.

• Easy Installation: Busbar main circuit and screw terminal auxiliary circuit enable straightforward wiring.

Function / Features

• Type: Power Contactor, Siemens 3RT1065-6AM36

• Current Rating: AC-3e/AC-3 265 A

• Power Rating: 132 kW / 400 V AC (50-60 Hz)

• Control Voltage: DC Uc: 200-220 V

• Poles: 3-pole configuration

• Auxiliary Contacts: 2 NO + 2 NC

• Drive Type: Conventional

• Main Circuit Connection: Busbar

• Control and Auxiliary Circuit: Screw terminals

• Applications: Industrial motor control, high-power electrical switching, automation systems

Application

The 3RT1065-6AM36 is ideal for switching high-powered loads in:

• Large motor control systems (pumps, compressors, ventilation).
• Heating/HVAC systems.
• Switching resistive loads (AC-1) in heavy industry.
• Use in main distribution boards and control panels requiring high current capacity.
