3SU1060-0JB50-0AA0

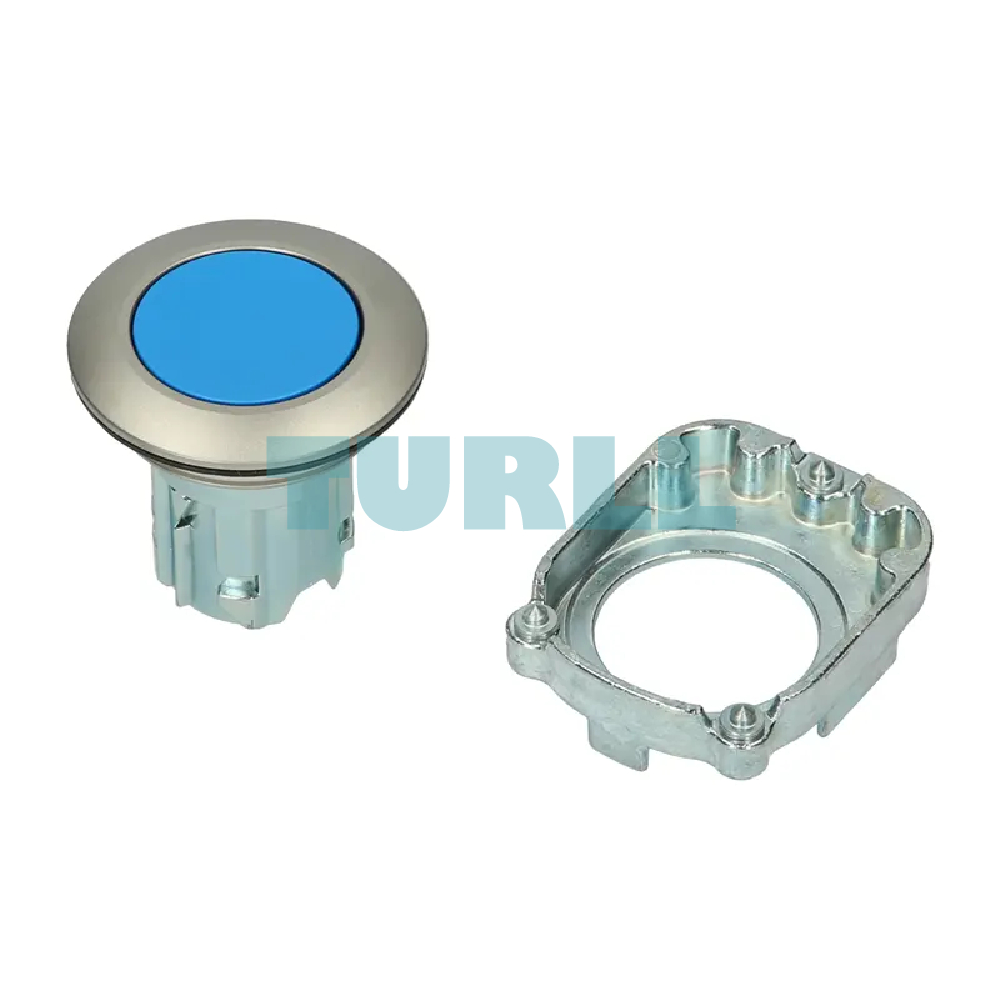

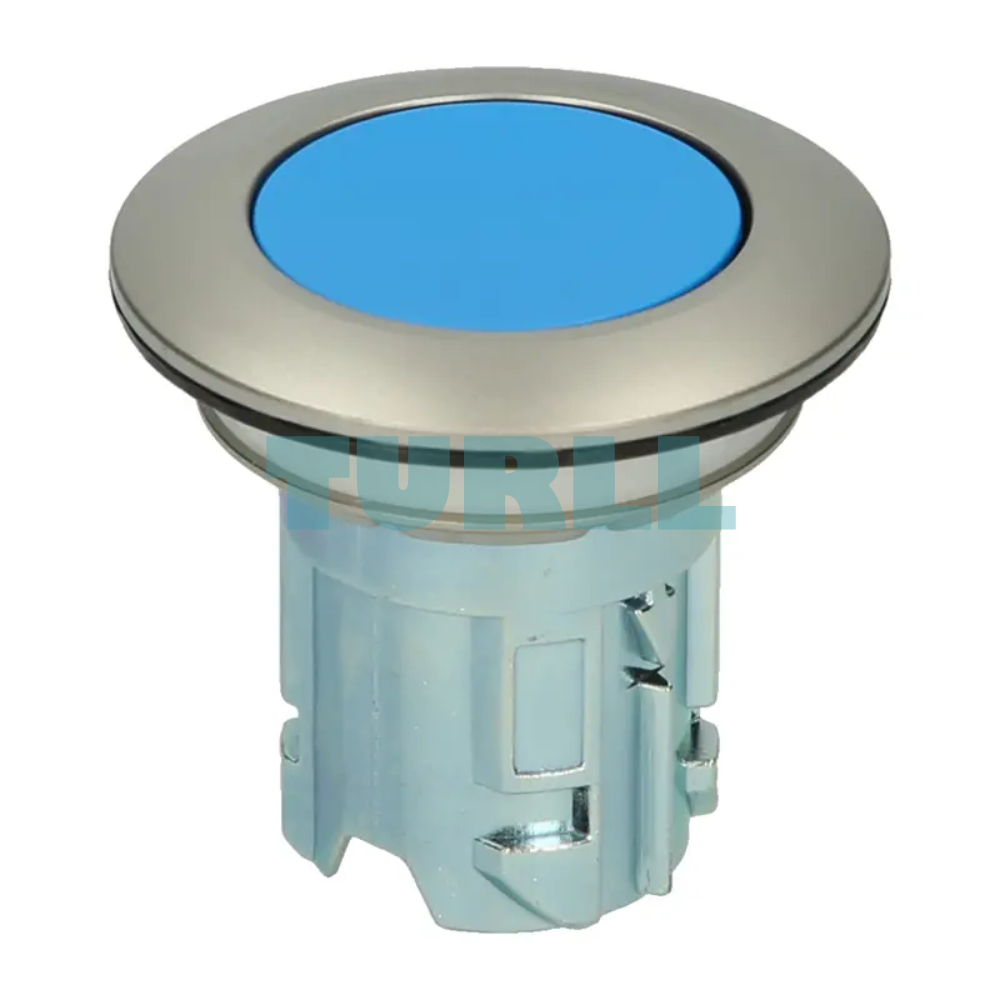

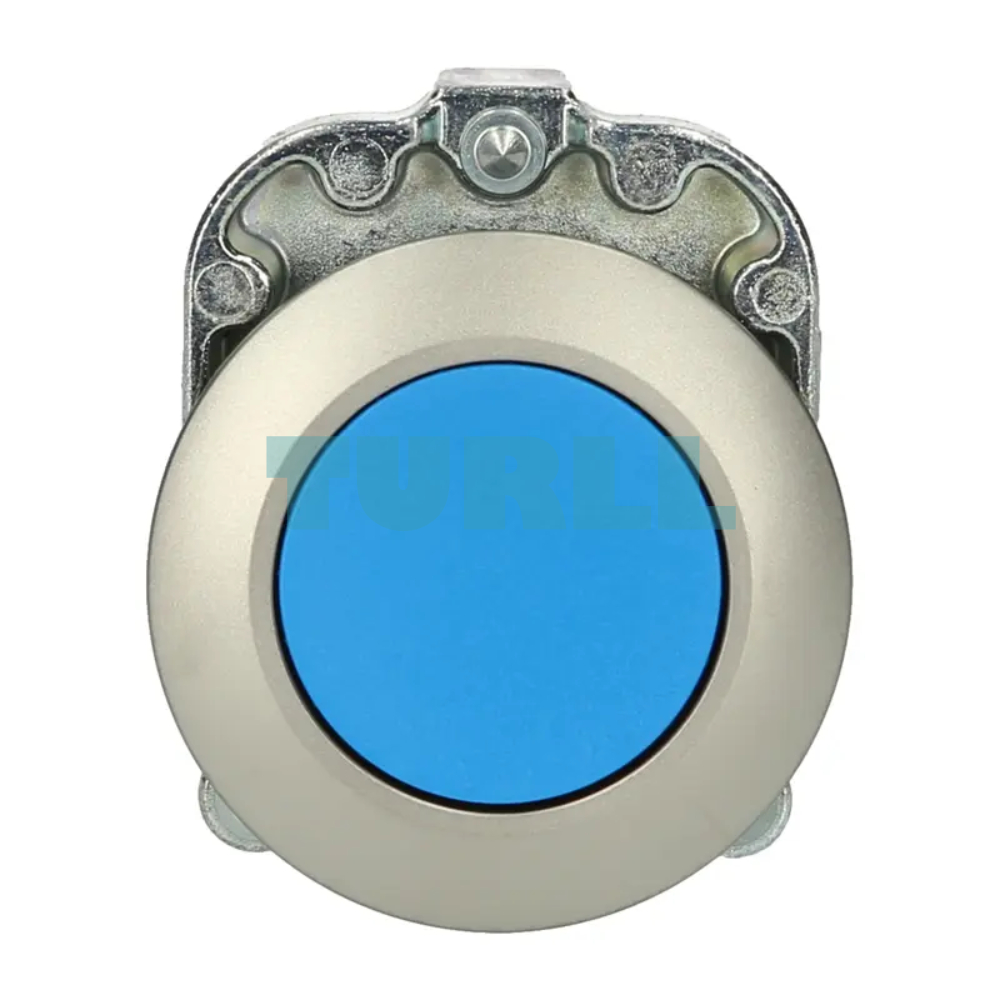

Siemens 3SU1060-0JB50-0AA0 Blue Metal Pushbutton, 30 mm, Round, Momentary, Flush-Mount Design Original Brand New
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1060-0JB50-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | - |
| ● light source | No |
| ● contact module | Yes |
| color of the actuating element | blue |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| marking of the actuating element | Customized labeling, text in lower case letters |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 10 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.075 kg |
| Dimensions for shipping | 40.00 × 40.00 × 30.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens 3SU1060-0JB50-0AA0 pushbutton is a premium-quality control device designed for industrial applications requiring high durability, precision switching, and modern visual design. Featuring a 30 mm round metal actuator, a matte blue finish, and a flush front ring for seamless installation, this momentary pushbutton offers reliable operation for machinery, automation systems, and operator control panels. With its robust construction and ergonomic feel, it ensures dependable performance in demanding environments.
Benefit
- High Durability – Crafted with a solid metal body designed to withstand heavy industrial use.
- Enhanced Visibility – Matte blue actuator offers clear visibility and intuitive operation.
- Flush-Mounted Design – Provides a clean, modern look for advanced control panel layouts.
- Reliable Momentary Action – Ensures precise control and immediate return to the default position.
- Easy Integration – Compatible with Siemens SIRIUS ACT components for simplified setup.
- Ergonomic & Safe – Smooth operation enhances user comfort and reduces error risk.
Features / Functionality
-
30 mm round pushbutton for easy operation
-
Metal construction for long service life
-
Matte blue actuator for quick identification
-
Front ring designed for flush installation creating a sleek panel appearance
-
Momentary contact type for temporary and controlled switching
-
Suitable for industrial control panels, automation equipment, and machine interfaces
-
Part of the Siemens SIRIUS ACT product family
