3RT1467-6AF36

Description

Overview

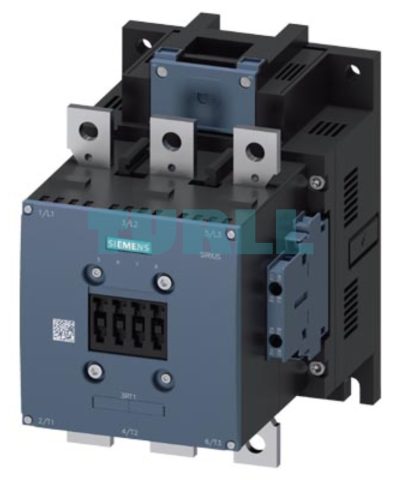

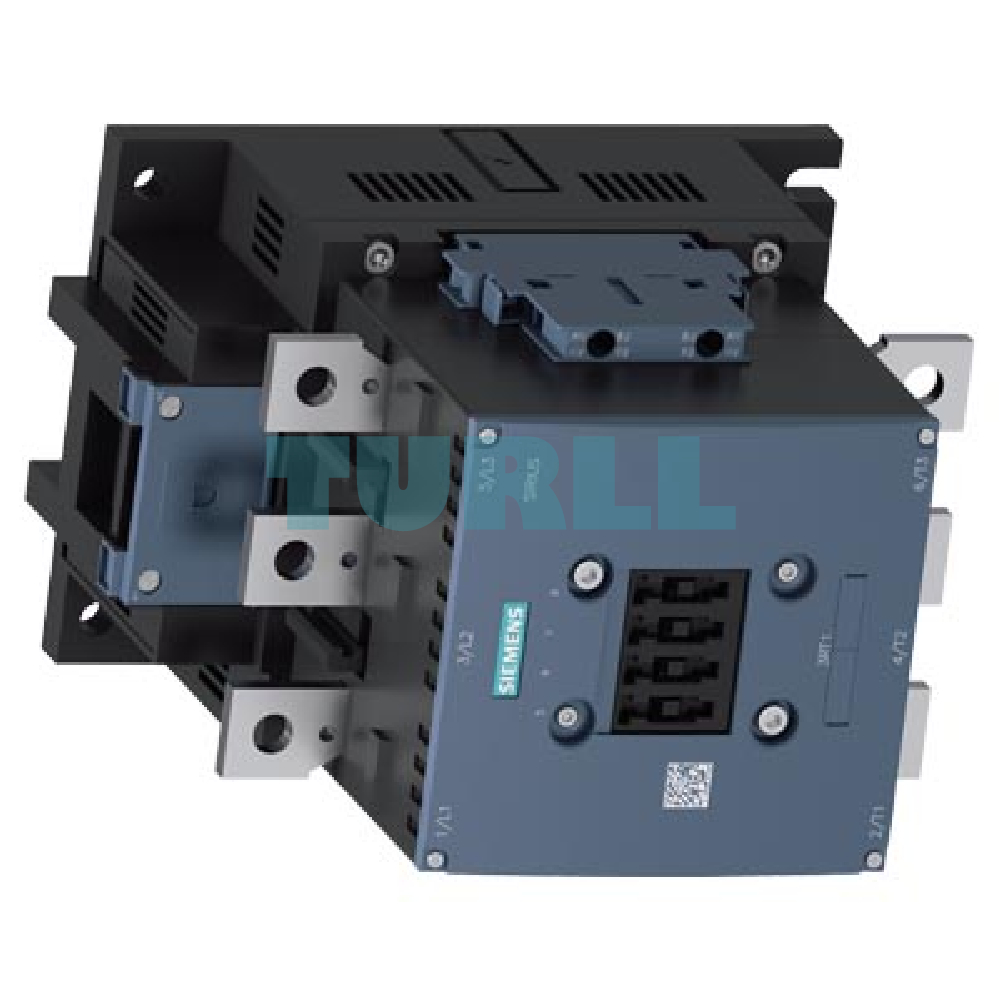

The Siemens 3RT1467-6AF36 is a premium-grade power contactor designed for heavy-duty electrical applications. Built to operate reliably in demanding industrial environments, this 3-pole contactor supports AC-1 currents up to 500 A at 690 V and is engineered to withstand temperatures up to 40 °C. Equipped with conventional auxiliary contacts (2 NO + 2 NC), this device ensures efficient control and monitoring in both AC and DC circuits. Its busbar main circuit and screw terminal connections provide flexibility and robust electrical performance.

Benefit

• High Load Capacity: Handles up to 500 A at 690 V AC, suitable for heavy industrial loads.

• Reliable Operation: 3-pole design ensures stable switching performance and longevity.

• Flexible Control Options: Conventional auxiliary contacts (2 NO + 2 NC) allow for precise system integration.

• Durable Design: Rated for operation at 40 °C, providing reliability in harsh environments.

• Easy Installation: Main circuit busbar connection and screw terminal auxiliary connections simplify wiring.

• Versatile Compatibility: Works with AC and DC drives (Uc: 110-127 V AC, 50-60 Hz), offering broad application potential.

Function

• Main circuit switching for industrial motors and heavy electrical loads.

• Auxiliary contact control for signaling and interlocking.

• Compatible with busbar connections for streamlined power distribution.

• Screw terminal auxiliary connections for secure and reliable wiring.

Technical Specification

• Product Number: 3RT1467-6AF36

• Type: Power Contactor

• AC-1 Rated Current: 500 A

• Voltage Rating: 690 V AC

• Poles: 3-pole

• Ambient Temperature: 40 °C

• Control Voltage (Uc): 110-127 V AC (50-60 Hz) / DC drive

• Auxiliary Contacts: 2 NO + 2 NC

• Main Circuit Connection: Busbar

• Auxiliary Circuit Connection: Screw terminal
