3RT1467-6PF35

Description

Overview

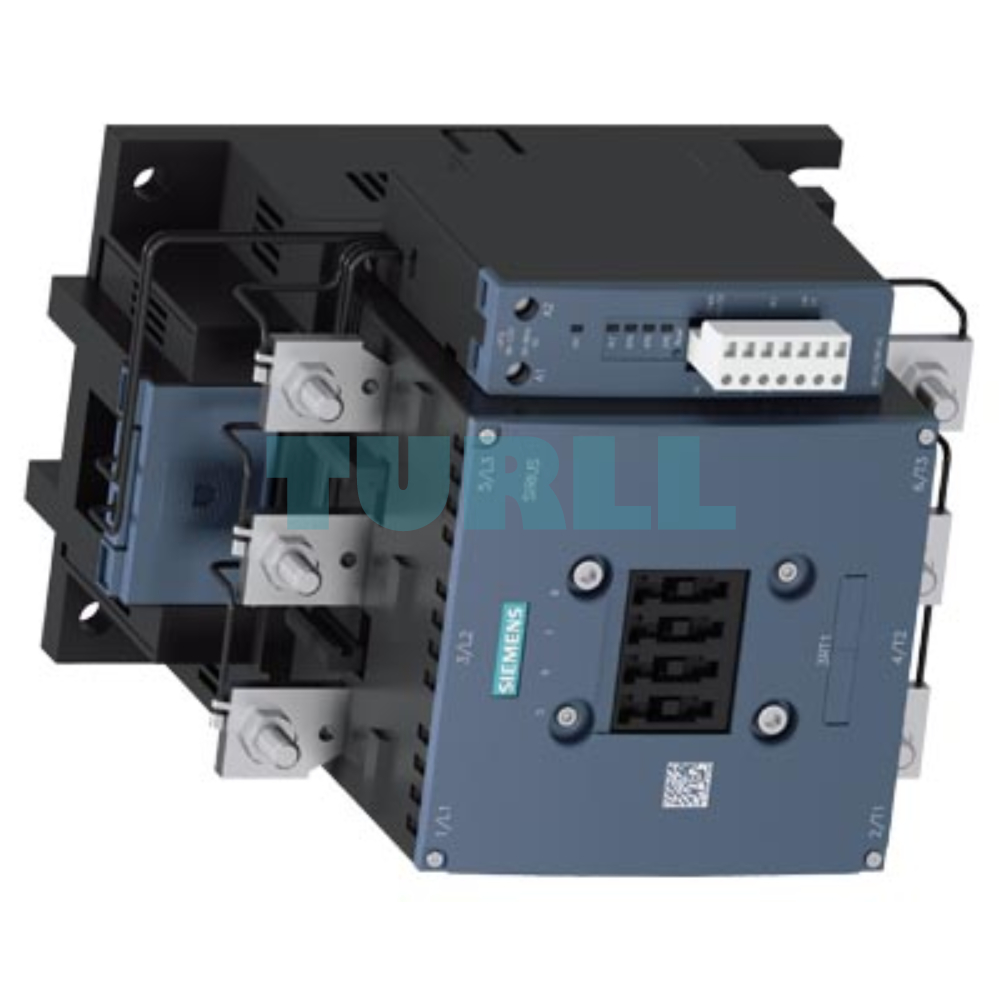

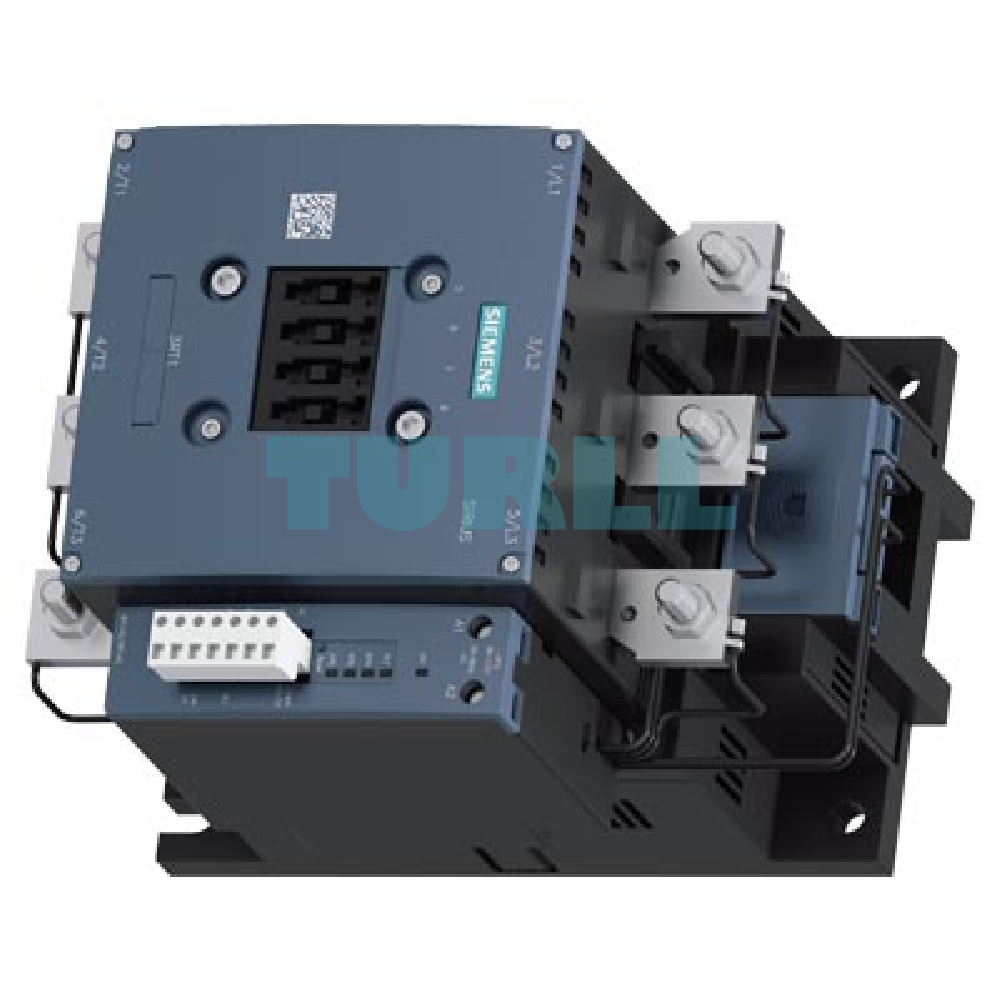

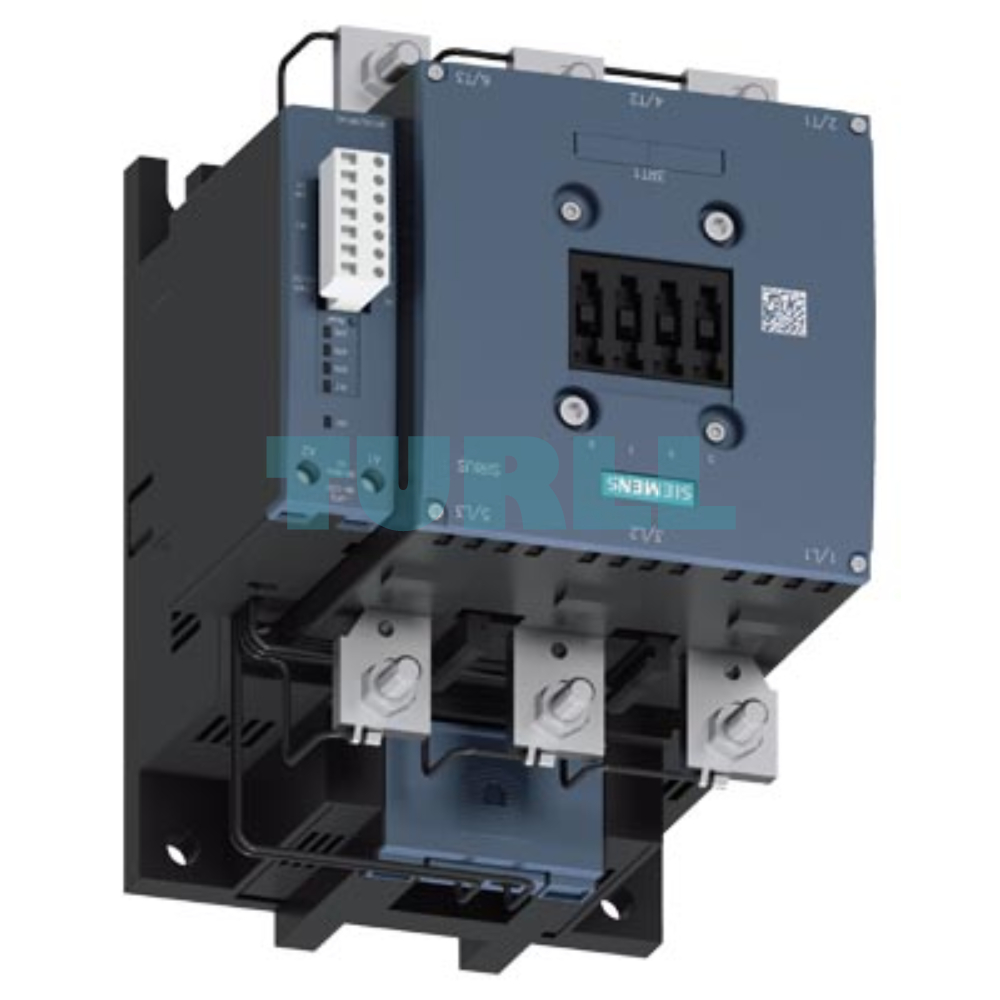

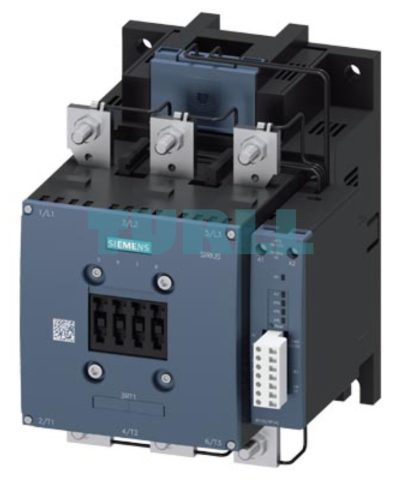

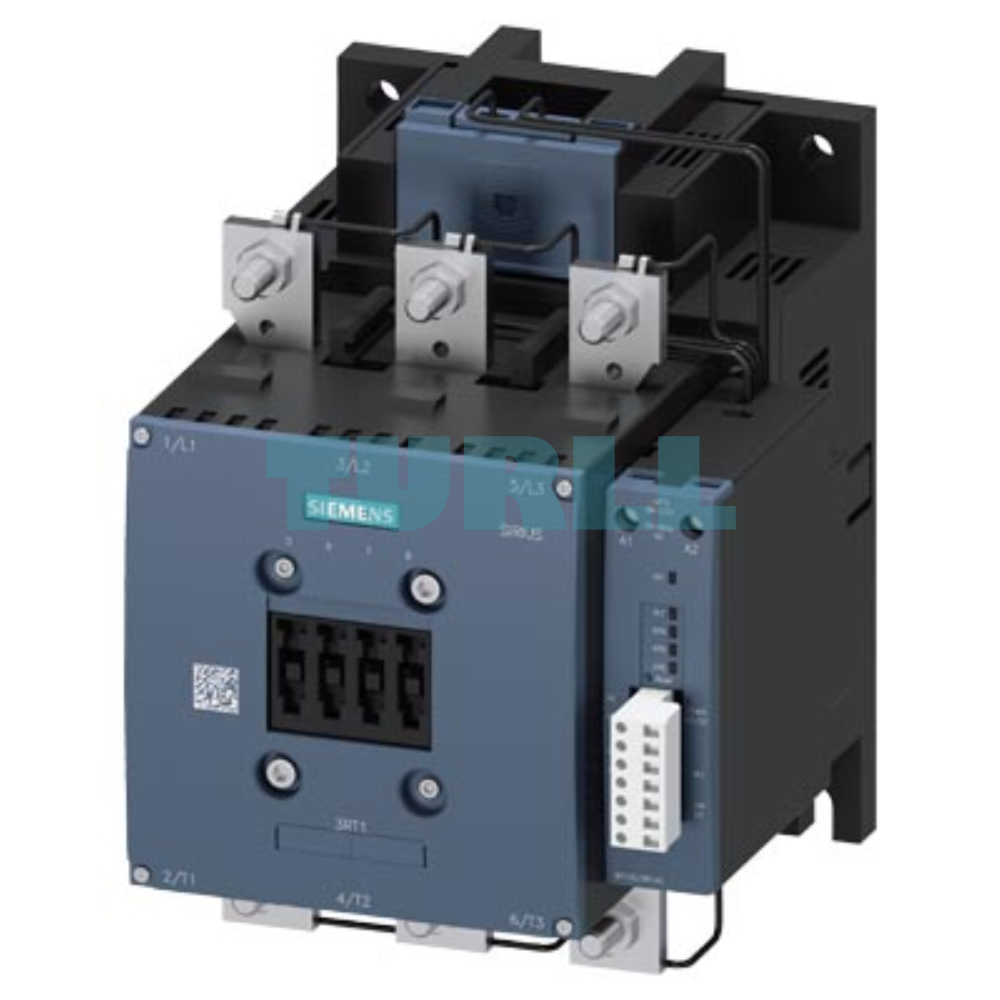

The Siemens 3RT1467-6PF35 is a robust, reliable power contactor designed for demanding AC-1 industrial applications. It ensures safe and efficient control of high-current electrical circuits up to 500 A and 690 V. Its compact 3-pole design, combined with intelligent electronic auxiliary contacts and lifetime monitoring, makes it perfect for modern automated systems.

Benefit

• High Capacity & Reliability: Supports AC-1 loads up to 500 A / 690 V for demanding industrial applications.

• Smart Monitoring: Remaining lifetime indicator enables predictive maintenance and reduces downtime.

• Flexible Control Options: PLC input 24 V DC and electronic auxiliary contacts (2 NO + 2 NC) provide precise control.

• Durable Design: Screw terminal connections and busbar main circuit ensure long-lasting operation.

• Enhanced Safety: Designed to handle high current loads safely under varying conditions up to 40 °C.

Function

• Switching and protection of heavy-duty AC-1 loads.

• Integration with PLC systems via 24 V DC input.

• Status monitoring through electronic auxiliary contacts.

• Maintenance planning with remaining lifetime indicator.

• Efficient connection through screw terminal control and auxiliary circuits.

Technical Specification

• Model Number: 3RT1467-6PF35

• Rated Current (AC-1): 500 A

• Rated Voltage: 690 V

• Poles: 3

• Operating Temperature: 40 °C

• Control Voltage: 96–127 V AC (50-60 Hz) / DC

• PLC Input: 24 V DC

• Auxiliary Contacts: 2 NO + 2 NC (electronic)

• Main Circuit Connection: Busbar

• Control & Auxiliary Circuit Connection: Screw terminal

• Special Features: Remaining lifetime indicator
