Know your model? Find your exact part.
SIEMENS

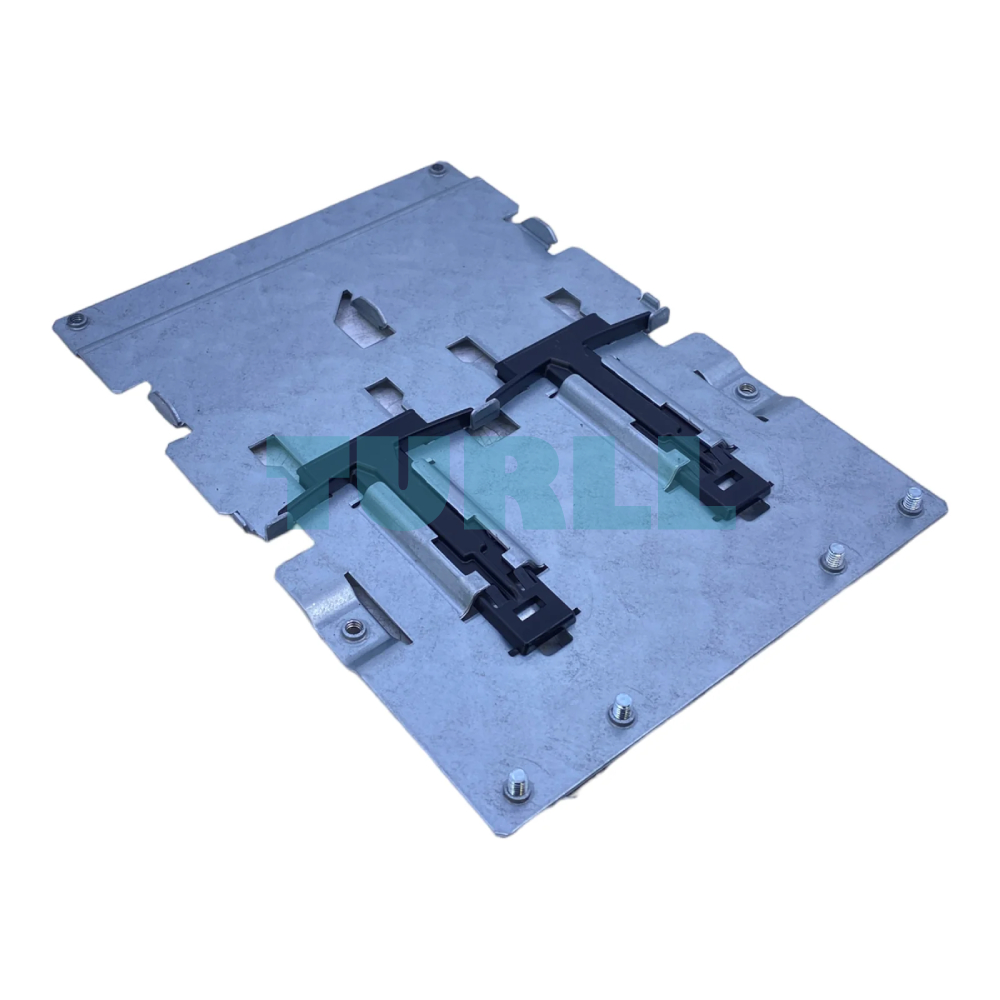

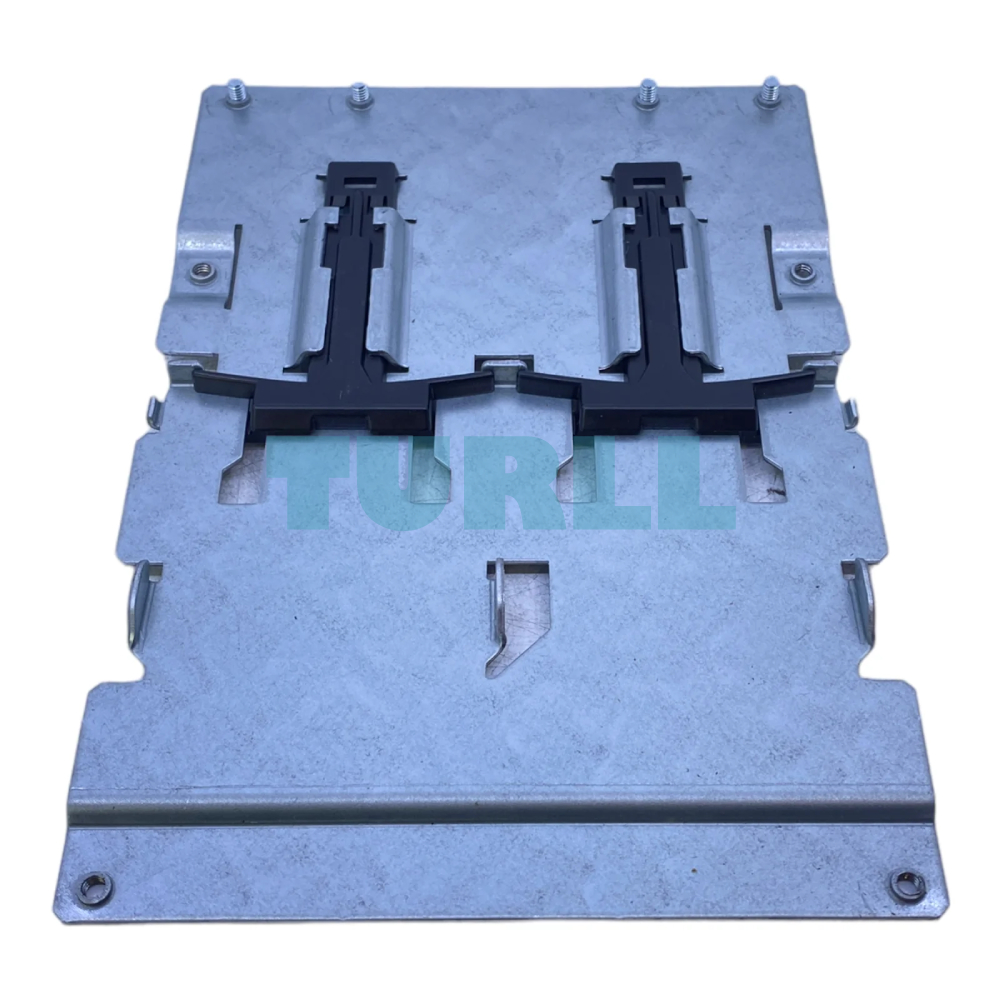

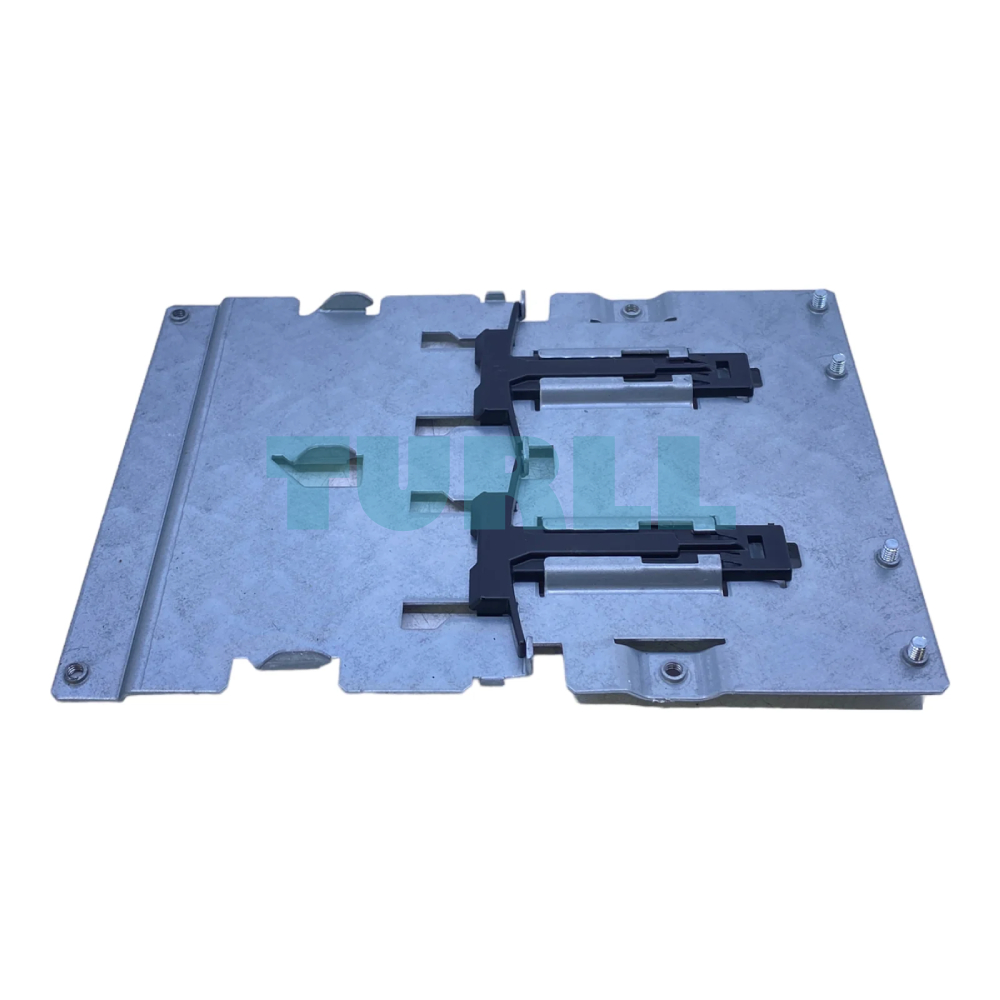

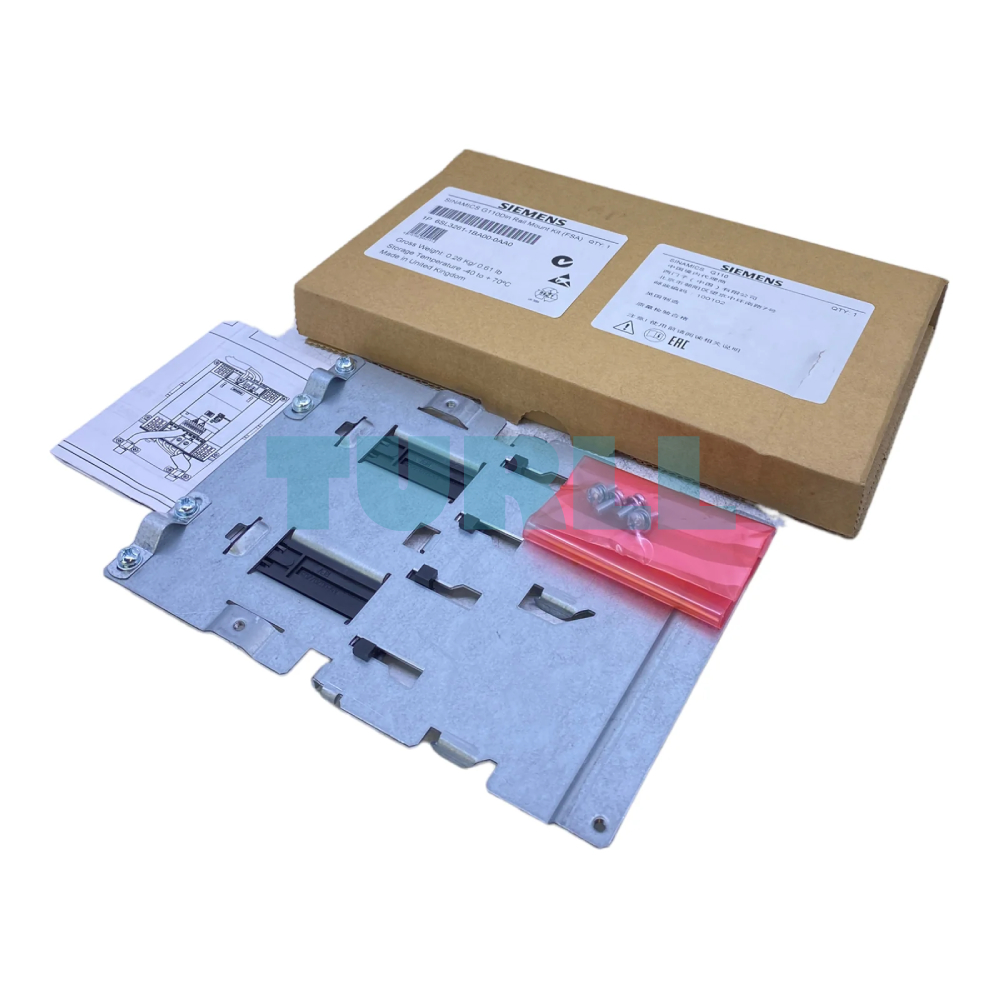

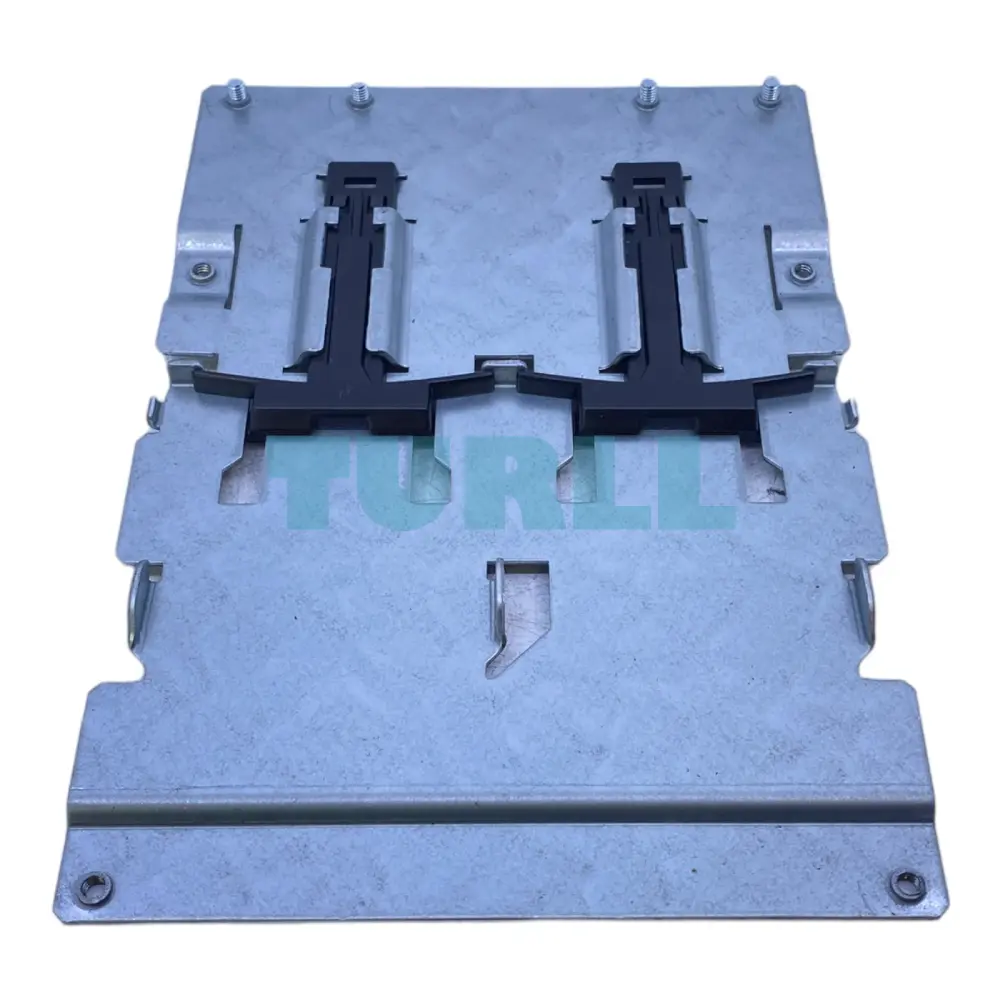

Siemens 6SL3261-1BA00-0AA0 SINAMICS DIN Rail Mounting Adapter, Size 1
Price on request
USDAvailability on request
Estimated 2–8 weeks; confirm by quote
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓
PayPalPRODUCT DATA
Check the full model number and every required specification.
| SKU / model | 6SL3261-1BA00-0AA0 |
|---|---|
| Brand | SIEMENS |
| Product role | DIN rail mounting adapter |
| Adapter size | Size 1 |
| Catalog frame-size designation | FS A |
| Catalog usage | SINAMICS G110; also used with SINAMICS V20 |
| V20 direct mounting frames | FSA / FSAC; Use the installation method for the exact converter |
| V20 FSAA / FSAB additional mounting part | 6SL3266-1ER00-0VA0; Used with this DIN rail adapter for the illustrated AA/AB mounting arrangement |
| V20 frame B alternative adapter | 6SL3261-1BB00-0AA0; A different mounting selection for FSB, not an interchangeable part for this adapter |
| Weight for shipping | 0.200 kg |
| Dimensions for shipping | 100.00 × 245.00 × 30.00 mm |
REFERENCE MATERIAL
Check the document’s model and revision before use.
6SL3261-1BA00-0AA0 is a Siemens size 1 DIN rail mounting adapter, catalogued for SINAMICS G110 and used in the documented SINAMICS V20 mounting arrangements. V20 frames FSA and FSAC use the direct arrangement; FSAA and FSAB also require migration mounting kit 6SL3266-1ER00-0VA0. Match the complete drive order number and frame before ordering.
6SL3261-1BA00-0AA0
6SL3261-1BB00-0AA0
6SL3266-1ER00-0VA0
For V20, distinguish direct FSA / FSAC mounting from the FSAA / FSAB arrangement that also requires 6SL3266-1ER00-0VA0. Use the converter data sheet and nameplate to identify the frame. FSA and FSAA are distinct designations; do not shorten or interchange them when matching mounting parts.
Section 3.5 of the V20 instructions distinguishes the converter-frame installation sequences. Check the kit orientation, fastening and space for the power and control conductors. Where a migration arrangement is involved, consult the separate migration-kit section rather than assuming that all mounting plates serve the same purpose.
FSA and FSAC use the documented direct mounting arrangement. For FSAA / FSAB, the illustrated arrangement combines this adapter with migration mounting kit 6SL3266-1ER00-0VA0. Check the two-part arrangement before ordering for those smaller frames.
View product →The manual specifies a protective-conductor connection for the DIN rail mounting kit. Use the full installation instructions for earthing and conductor sizing; mechanical attachment to a rail is not a substitute for checking the required electrical connection.
6SL3210-5BB12-5BV1 is listed as FSAA, 0.25 kW, in the V20 single-phase 230 V frame table. Review the complete DIN rail installation sequence for that frame.
View product →6SL3210-5BB21-1BV1 is listed as FSAC, 1.1 kW, in the V20 single-phase 230 V frame table. Review the complete DIN rail installation sequence for that frame.
View product →This order number identifies a mounting accessory. No converter bundle is established by this listing.
No. Select the converter using its own electrical data. The mounting kit addresses the specified mechanical installation.
No. Match the full drive order number to its frame and confirm the installation purpose. For V20, FSA / FSAC use the direct arrangement; FSAA / FSAB also need 6SL3266-1ER00-0VA0.
PLAN YOUR ORDER
Dispatch is the time before handover to the carrier. Review available shipping options and charges at checkout.
Read shipping & delivery →Check the item-specific condition and warranty above. Contact sales with your order number before arranging a return.
Read warranty & returns →Buy warehouse stock online. For multiple models, add each item to your cart and review the complete order.
Read ordering & payment →
