3RT1476-2XJ46-0LA2

Description

Overview

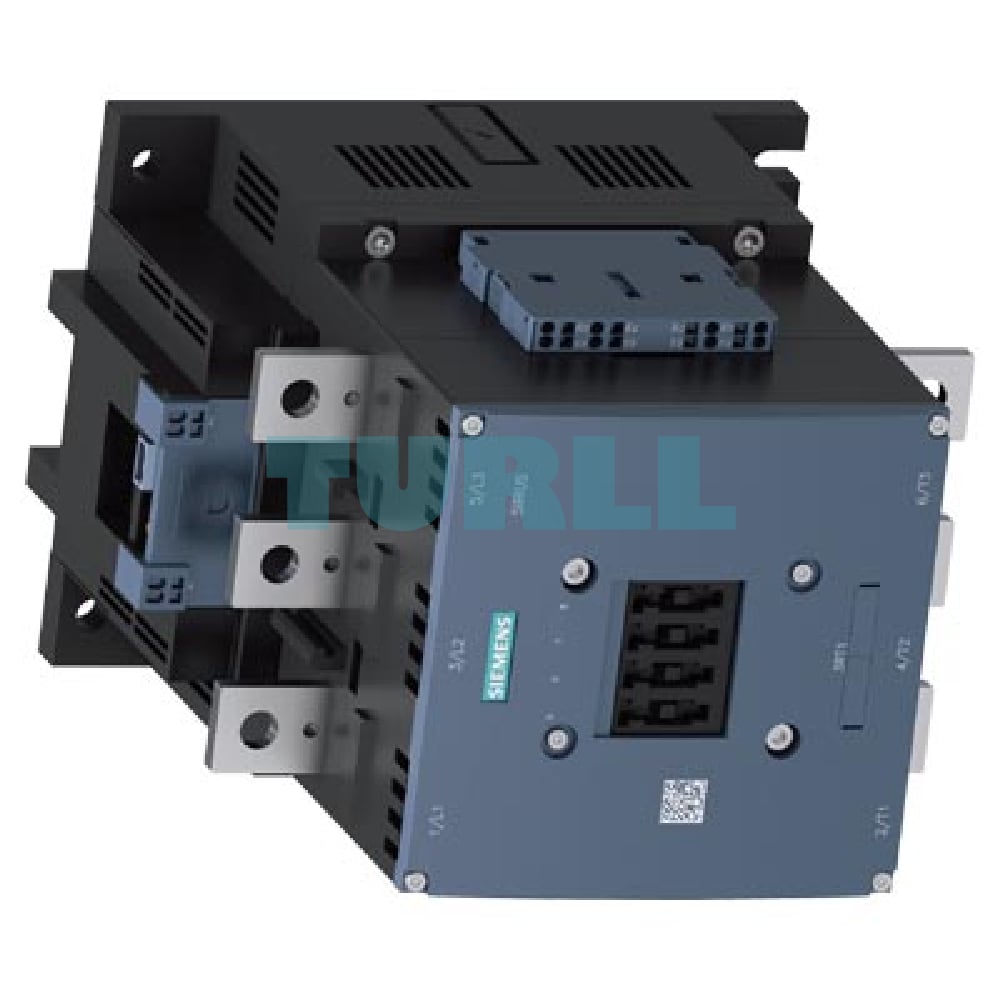

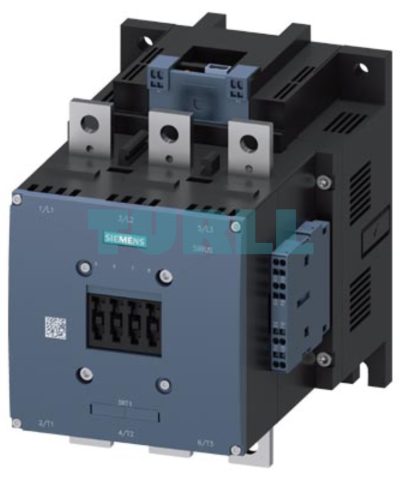

The Siemens 3RT1476-2XJ46-0LA2 is a robust power contactor engineered for industrial and railway applications. With a main circuit rated for AC-1 690 A / 690 V and a 3-pole configuration, this contactor ensures reliable switching and optimal control performance. It features electronic auxiliary contacts and spring-loaded terminals for secure connections, supporting PLC input voltages ranging from 24 to 110 V DC. Designed according to IEC 60077 standards, it guarantees long-lasting durability and safety under demanding conditions.

Benefit

• High Current Capacity: Supports AC-1 690 A / 690 V for heavy-duty applications.

• Versatile Control: PLC input voltage 24–110 V DC allows seamless integration with automated systems.

• Reliable Auxiliary Contacts: 2 NO + 2 NC electronic contacts for enhanced control flexibility.

• Secure Connections: Spring-loaded terminals for auxiliary and control circuits reduce maintenance needs.

• Industrial & Railway Ready: Extended rated conditions and IEC 60077 compliance ensure operational safety in harsh environments.

Function

• Main Circuit: Busbar connection for high current handling.

• Control Circuit: PLC input, electronic auxiliary contacts.

• Auxiliary Circuit: Spring-loaded terminals for secure and efficient connections.

• Safety Standards: Compliant with IEC 60077 for railway and industrial applications.

Technical Specification

• Product Number: 3RT1476-2XJ46-0LA2

• Type: Power Contactor

• AC-1 Rated Current: 690 A

• Voltage Rating: 690 V

• Poles: 3

• PLC Input: 24–110 V DC

• Auxiliary Contacts: 2 NO + 2 NC

• Control & Auxiliary Terminals: Spring-loaded

• Operating Temperature: 40°C

• Compliance: IEC 60077
