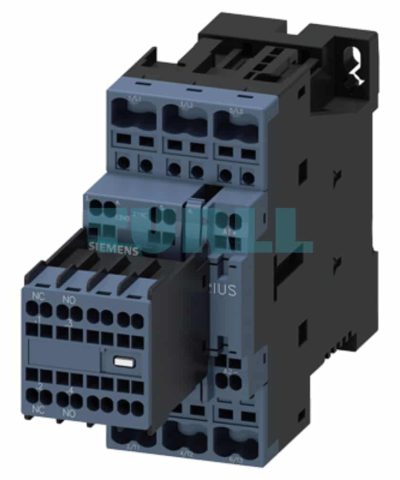

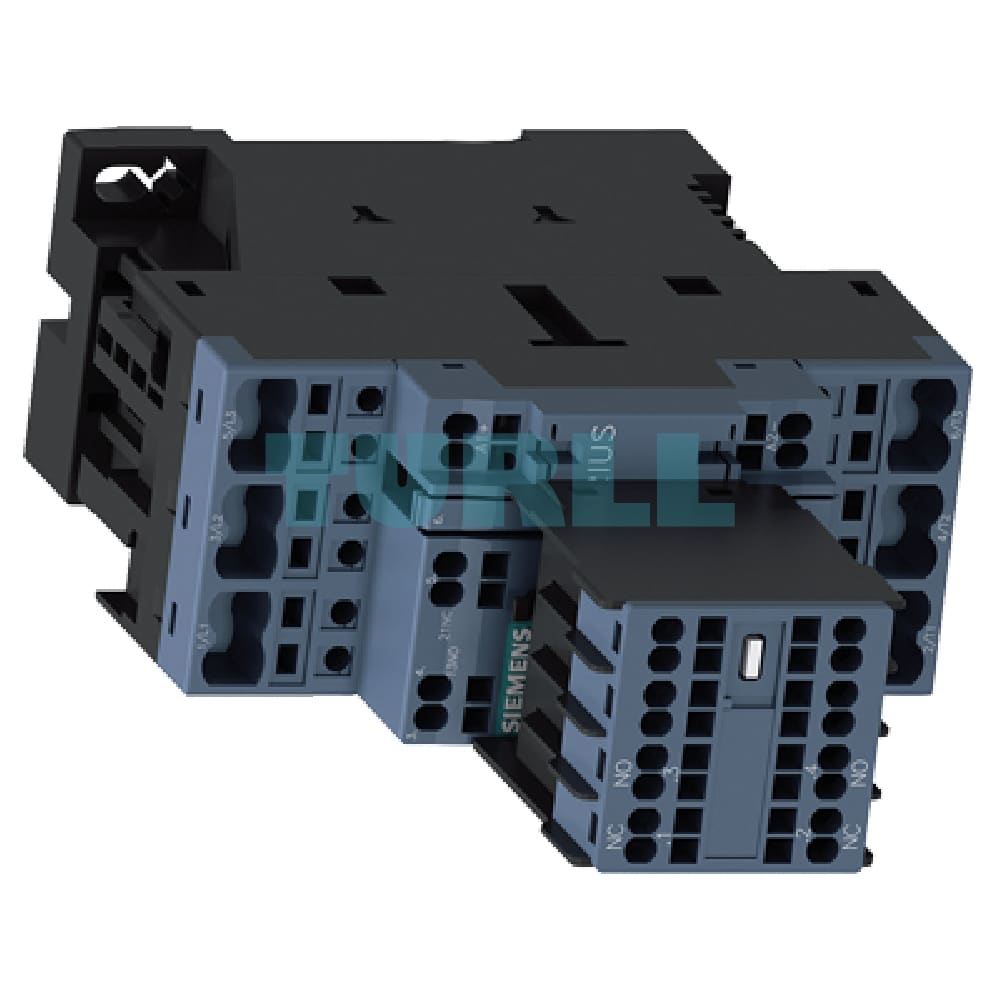

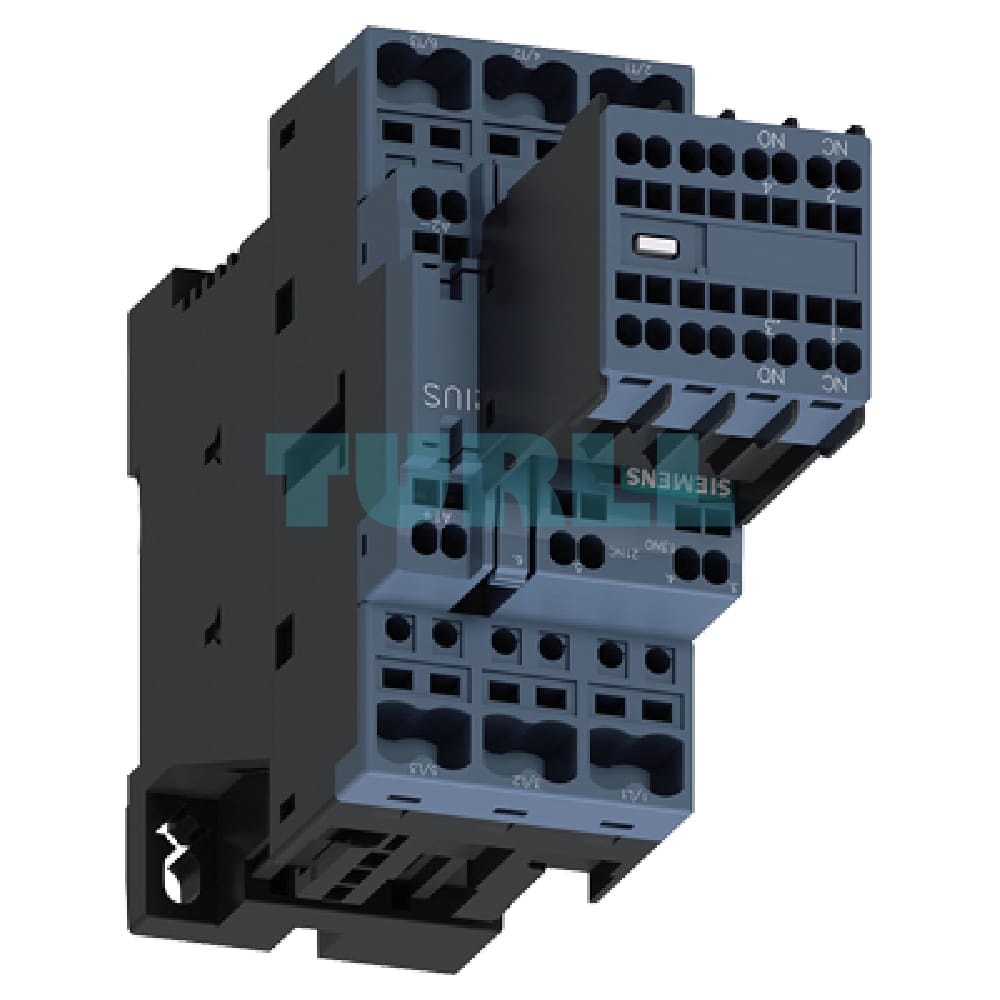

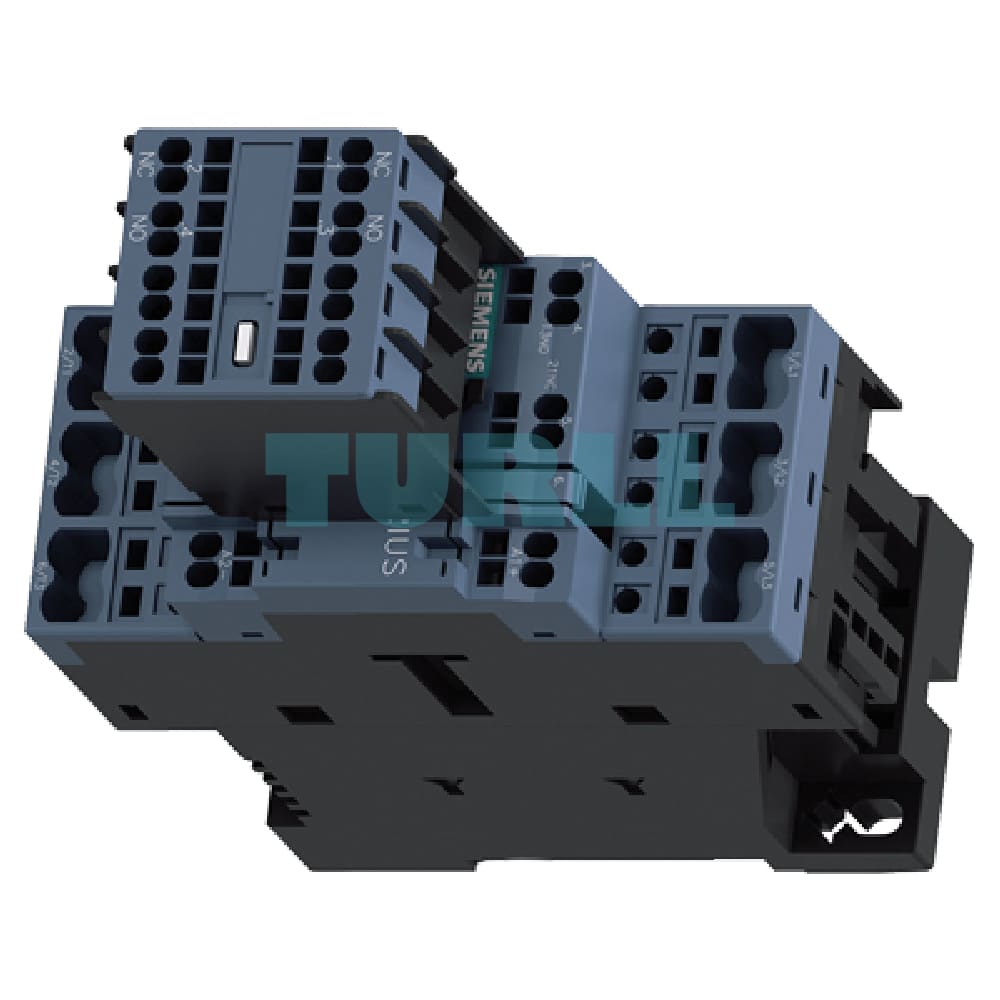

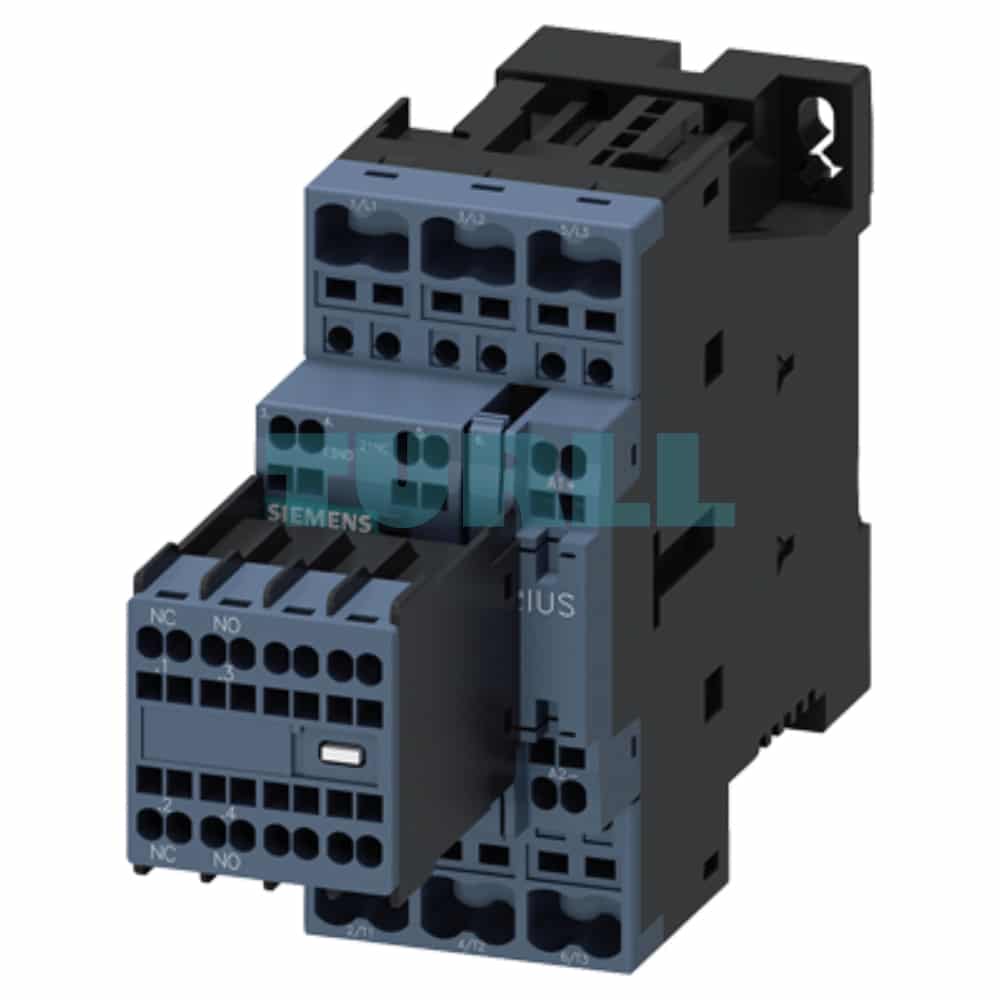

3RT2024-2BB44

Description

Overview

The Siemens 3RT2024-2BB44 power contactor is a reliable and efficient solution for switching AC motors and controlling electrical loads in industrial environments. Designed for AC-3e/AC-3 applications, this 3-pole contactor supports up to 12 A and 5.5 kW at 400 V, making it perfect for medium-duty motor control.

Built with a spring-loaded terminal system and a removable auxiliary switch, this contactor ensures secure connections, easy installation, and convenient maintenance. Its compact S0 size design optimizes panel space without compromising performance.

Benefit

• Reliable Motor Control: Supports AC-3/AC-3e switching for smooth motor operation.

• High Compatibility: Suitable for industrial automation systems with a 24 V DC coil.

• Durable and Safe: Includes 2 NO + 2 NC auxiliary contacts for flexible circuit design.

• Easy Installation & Maintenance: Spring-loaded terminals and removable auxiliary switch simplify wiring and service.

• Space-Saving Design: Compact S0 size fits in tight control panels.

Features

• Poles: 3-pole

• Rated Current: 12 A

• Power Rating: 5.5 kW / 400 V

• Coil Voltage: 24 V DC

• Auxiliary Contacts: 2 NO + 2 NC

• Terminal Type: Spring-loaded

• Size: S0

• Additional Feature: Removable auxiliary switch

• Applications: Motor starters, industrial automation, machinery control, and power distribution

Function

The 3RT2024-2BB44 functions as an electromechanically operated switch used to safely control electric motors or other power loads (like heating circuits). When the 24 V DC control voltage is applied to the coil, the main contacts close, supplying power to the load. The auxiliary contacts provide feedback (status) to a programmable logic controller (PLC) or are used for controlling other components in a circuit.
