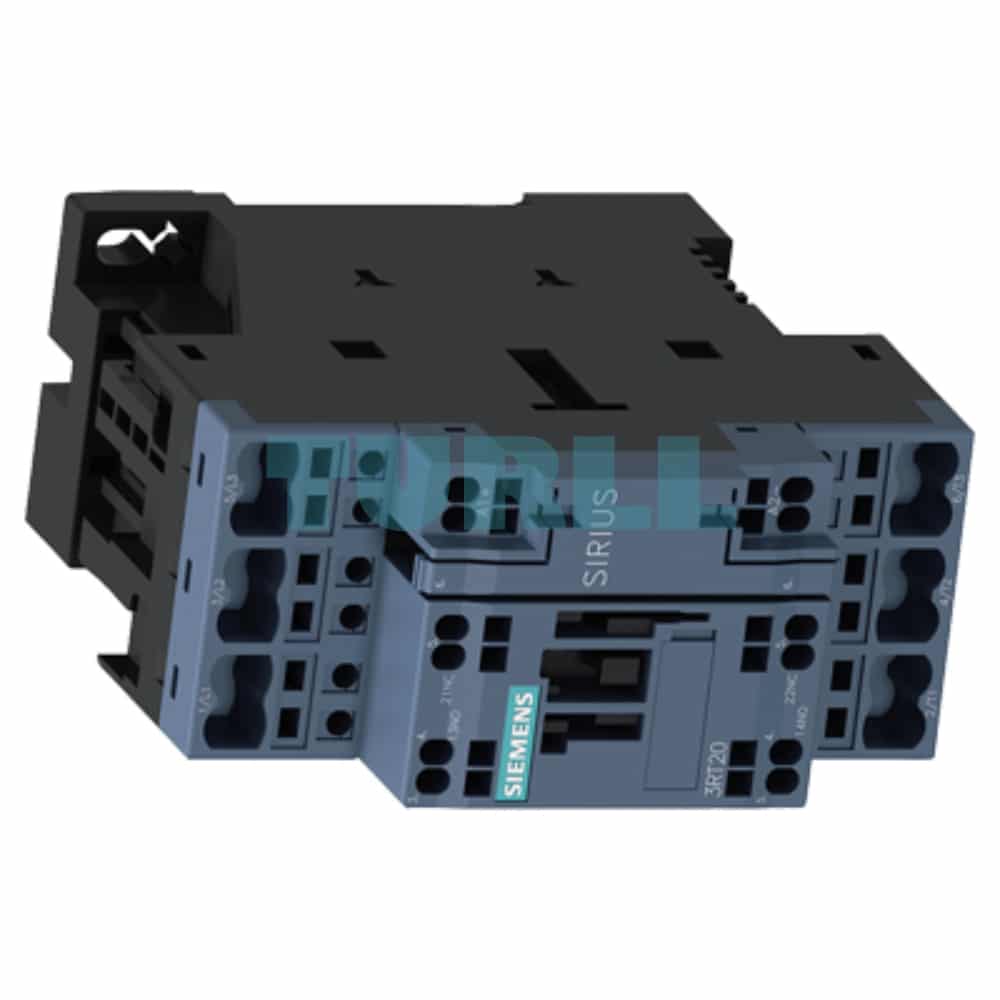

Siemens SIRIUS 3RT2027-2DB40 Power Contactor, 32A, 15kW, 24V DC Coil, Size S0, Spring-Loaded Terminal Original Brand New

Overview

The Siemens SIRIUS 3RT2027-2DB40 Power Contactor is a high-performance, 3-pole switching device from the SIRIUS 3RT2 series, designed for reliably controlling electric motors and other loads up to 15 kW at 400 V (AC-3e/AC-3). This robust contactor is rated for a continuous operational current of 32 A and features a low-power, integrated 24 V DC coil. The included, pre-installed plugged-in varistor provides crucial surge suppression, protecting the coil and control circuit components. Its compact Size S0 design and efficient spring-loaded terminals ensure quick, reliable, and vibration-proof wiring in industrial control panels.

Key Technical Specification

• Product Number: 3RT2027-2DB40
• Contactor Series: Siemens SIRIUS 3RT2
• Operational Current (AC-3e/AC-3, 400 V): 32 A
• Operational Power (AC-3e/AC-3, 400 V): 15 kW
• Number of Poles: 3-pole
• Coil Voltage: 24 V DC
• Surge Suppression: Integrated plugged-in varistor
• Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Connection Type: Spring-loaded terminal (Spring-type terminal)
• Contactor Size: S0 (Space-saving standard size)

Benefit

• Reliable Performance: High switching capacity and mechanical endurance characteristic of the Siemens SIRIUS range.
• Space-Saving Design: Compact Size S0 allows for efficient panel layout and component density.
• Quick Wiring: Innovative spring-loaded terminals significantly reduce wiring time and offer high contact reliability, especially in vibrating environments.
• Enhanced Circuit Protection: Built-in varistor surge suppression protects the sensitive DC control circuit from voltage peaks, extending the coil’s service life.
• Global Standard Compliance: Meets international standards for global application in industrial controls.

Function and Application

The 3RT2027-2DB40 Power Contactor is primarily used for switching AC motors (in AC-3 and AC-3e applications) but is also suitable for general load control (in AC-1 applications). It acts as the key interface between the control system (24 V DC) and the power circuit (up to 400 V / 15 kW).

• Motor Control: Switching 3-phase asynchronous motors in machinery, conveyor systems, pumps, and fans.
• Load Switching: Controlling resistive and inductive loads in industrial and commercial environments.
• Integration: Easily combined with the full range of SIRIUS 3RV thermal overload relays and other accessories to form complete motor starters.
