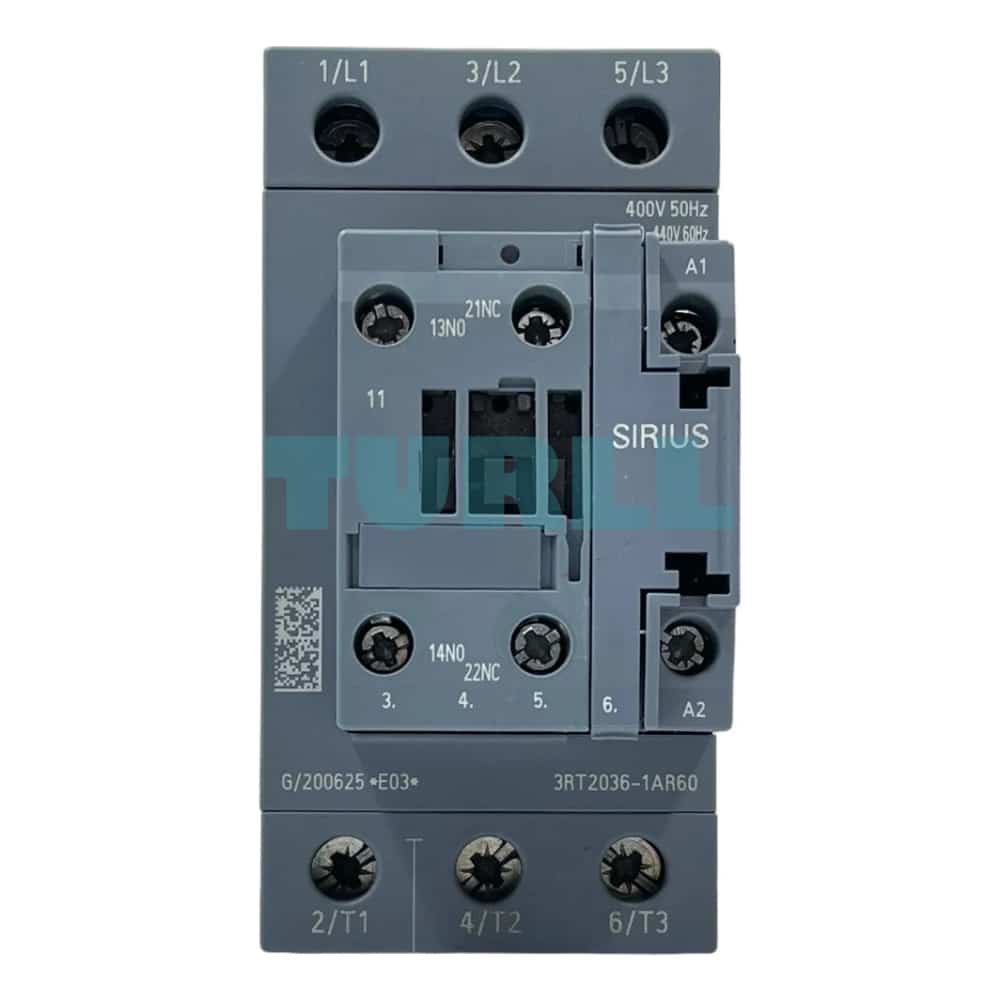

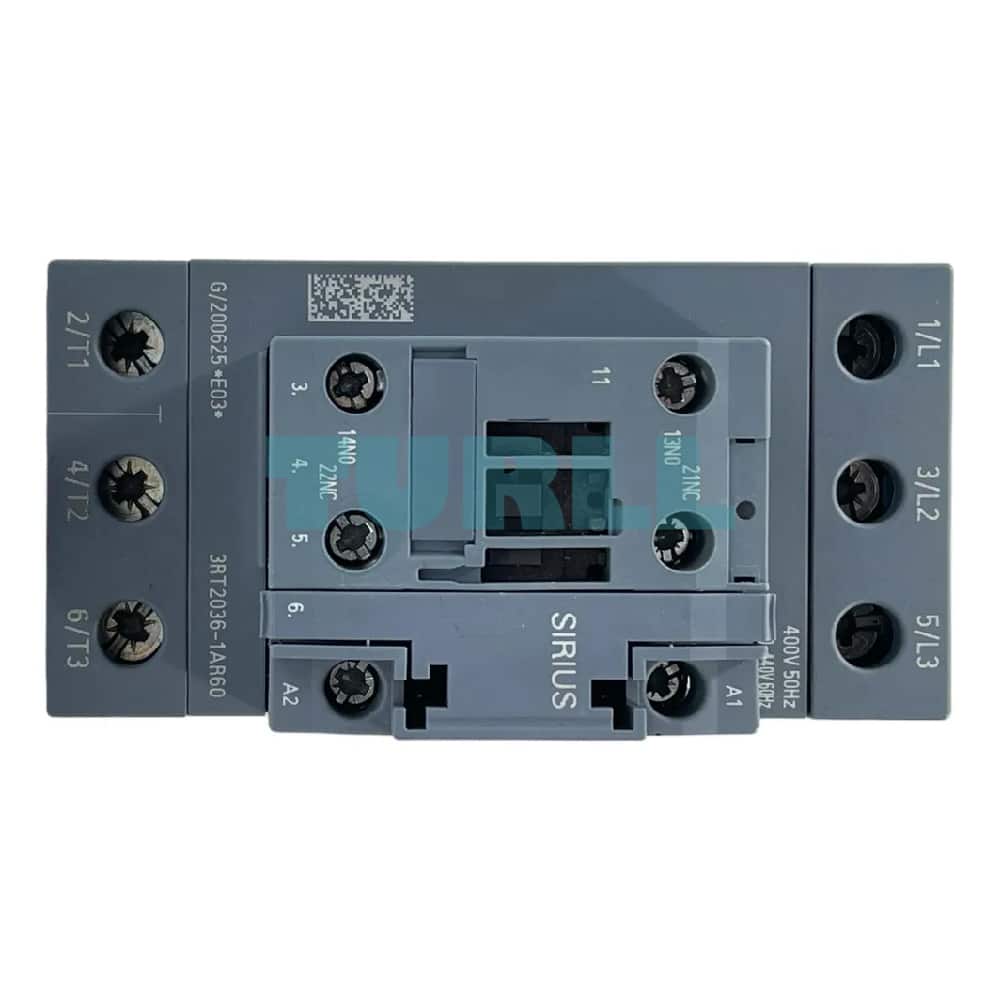

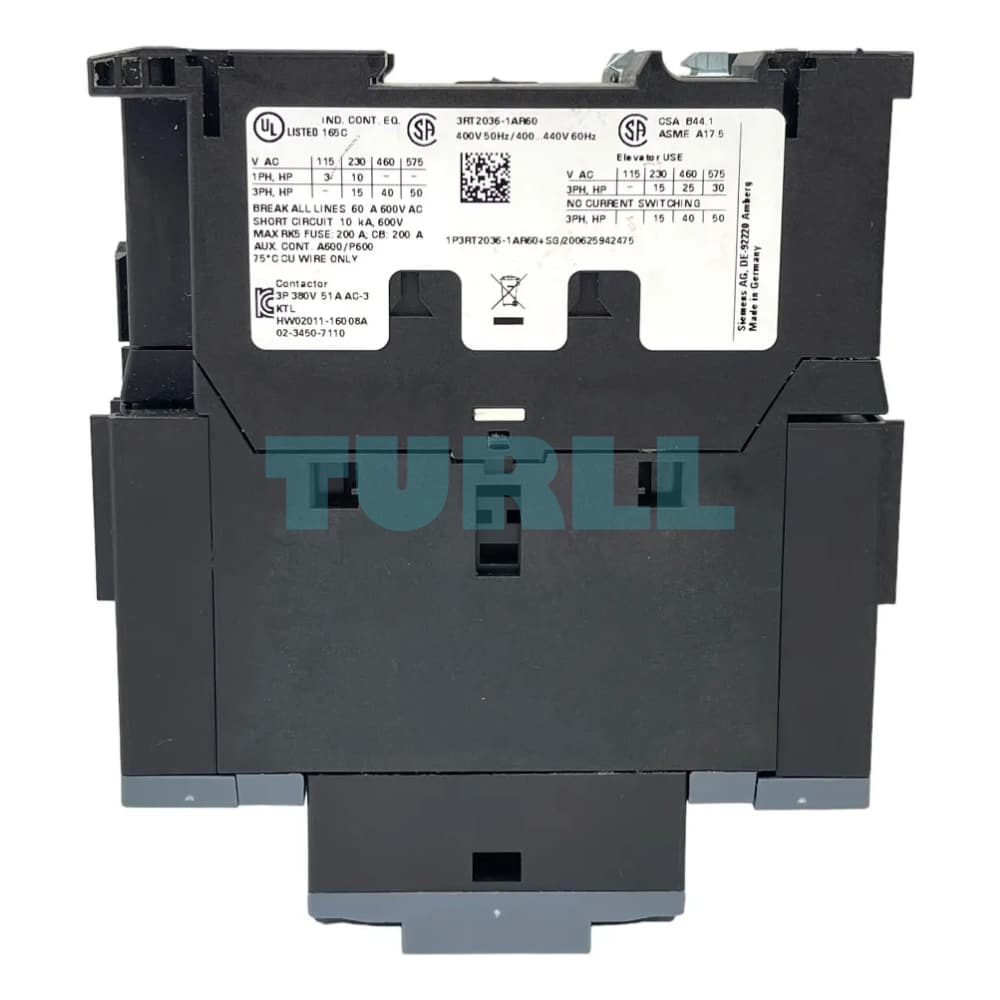

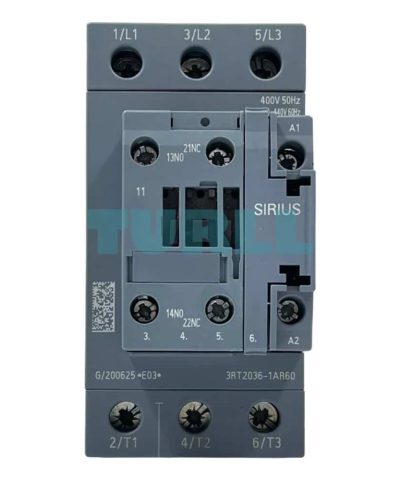

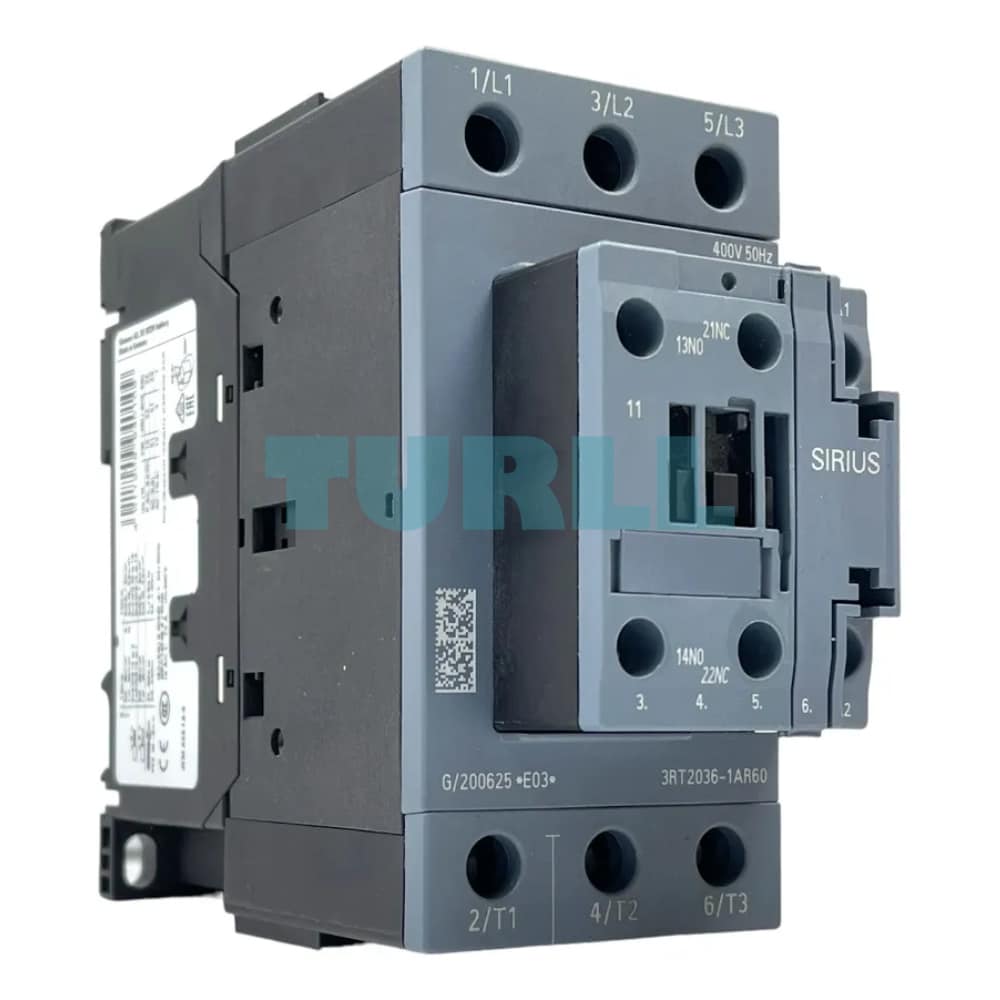

Siemens 3RT2036-1AR60 SIRIUS Power Contactor, 3-Pole, 51A, 22kW, AC-3e/AC-3, S2 Size Original Brand New

Overview

The Siemens 3RT2036-1AR60 is a high-performance SIRIUS power contactor designed for reliable and efficient switching of electric motors and other loads. This 3-pole contactor is rated for AC-3e/AC-3 operation, handling currents up to 51 A and power up to 22 kW at 400 V. Its robust design and high-quality construction ensure long service life and dependable operation in demanding industrial environments. The compact S2 size allows for space-saving installation in control panels.

Benefit

• High Performance: Capable of handling significant loads with a 51 A rating and 22 kW power capacity.
• Reliable Operation: Designed for AC-3e/AC-3 applications, ensuring smooth and safe motor control.
• Integrated Auxiliary Contacts: Includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for flexible control and signaling circuits.
• Easy Installation: Features a convenient screw terminal for secure and straightforward wiring.
• Compact Design: The S2 size minimizes panel space requirements, ideal for efficient control cabinet layouts.
• Global Standard Compliance: Meets international standards for safety and performance, ensuring compatibility and reliability worldwide.

Function

The Siemens 3RT2036-1AR60 serves as a crucial component in industrial automation and control systems. Its primary functions include:

• Motor Switching: Safely and efficiently switching on and off electric motors for various applications.
• Load Control: Controlling the flow of power to resistive and inductive loads.
• Automation Integration: The auxiliary contacts allow for seamless integration into control circuits, providing feedback on the contactor’s status to PLCs and other control devices.
• Safety Interlocking: Can be used in safety circuits to prevent accidental machine starts or to create interlocking systems.

Technical Specification

• Product Number: 3RT2036-1AR60
• Rated Current (AC-3e/AC-3): 51 A
• Rated Power: 22 kW at 400 V
• Number of Poles: 3-pole
• Operating Voltage: 400 V AC (50 Hz) / 400-440 V AC (60 Hz)
• Auxiliary Contacts: 1 NO + 1 NC
• Terminals: Screw Terminal
• Size: S2
• Series: SIRIUS 3RT2
• Application: Power Contactor
