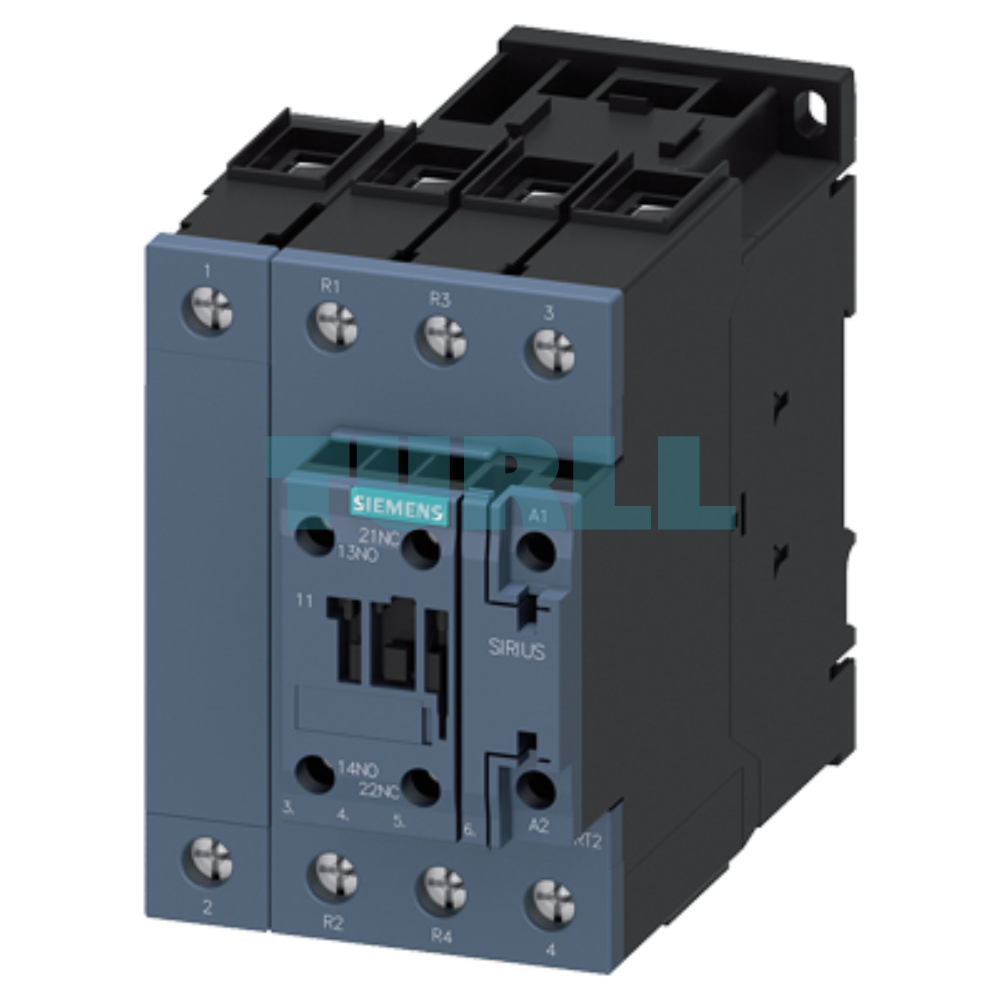

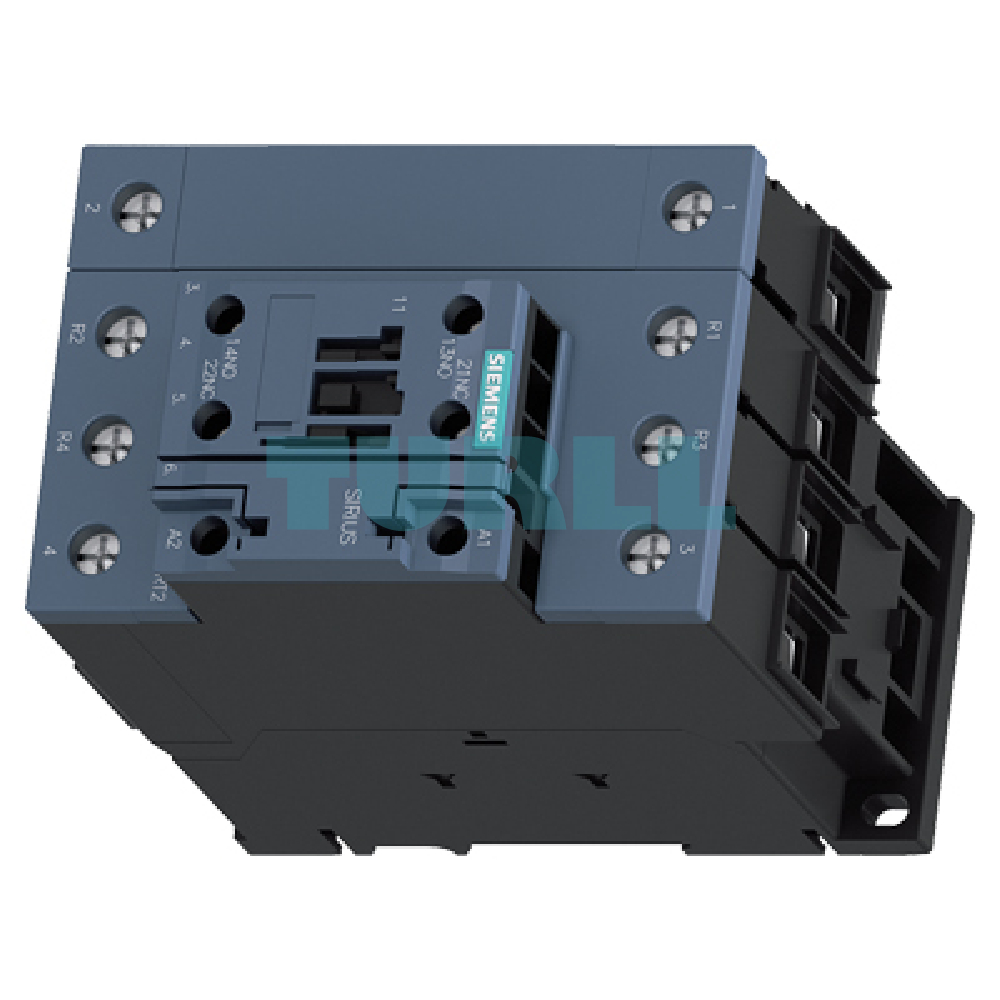

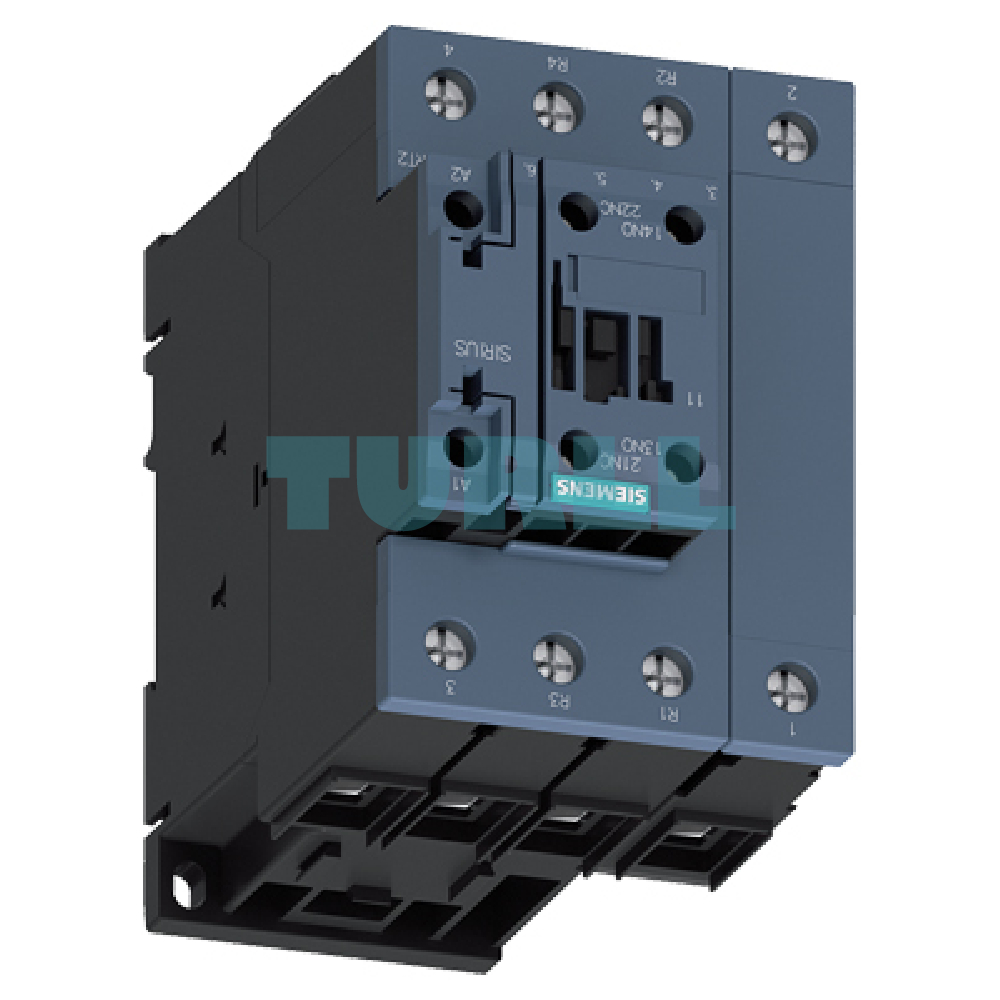

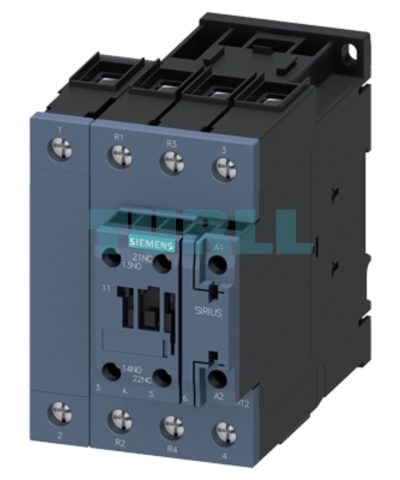

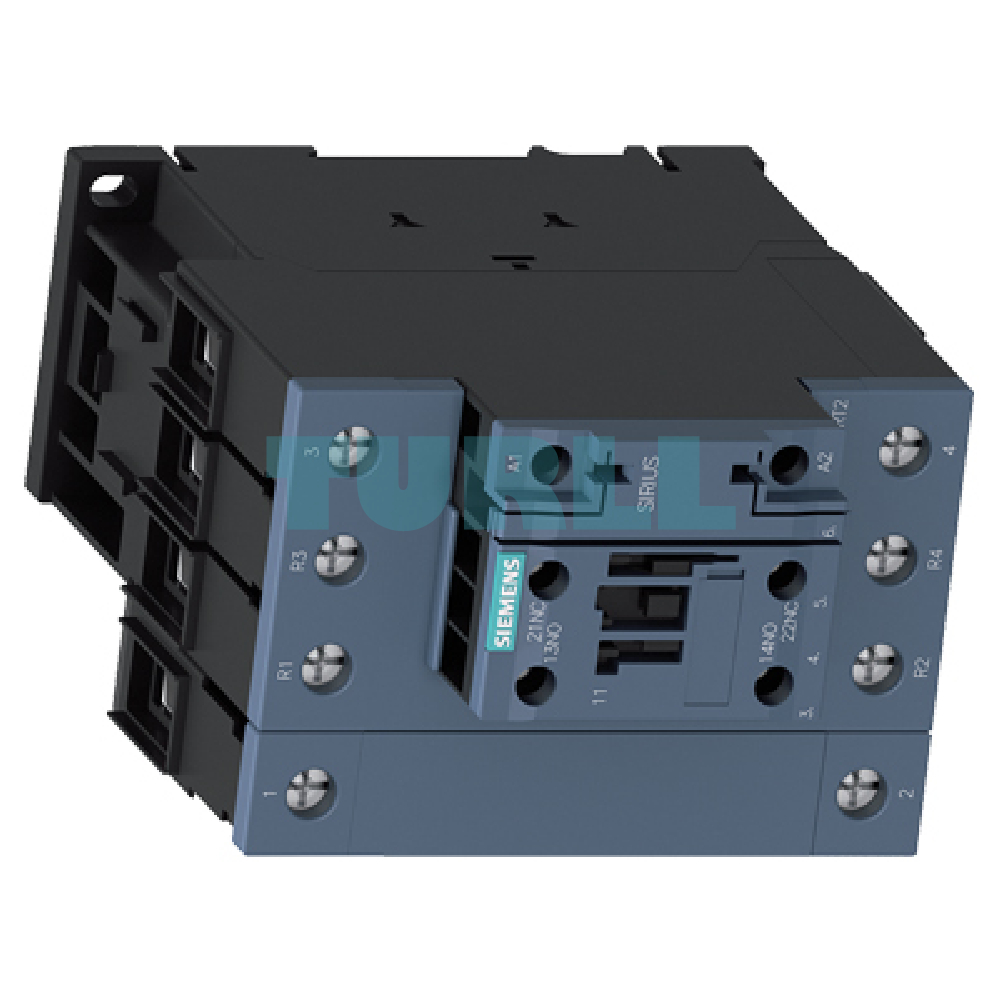

Siemens 3RT2535-1AD00 Power Contactor 35A, 4-Pole, AC-3, 18.5 kW / 400V Original Brand New

Overview

The Siemens 3RT2535-1AD00 is a high-performance power contactor designed for industrial and commercial applications. Engineered for reliability and efficiency, this 4-pole contactor supports AC-3 switching operations with a current rating of 35 A and a power rating of 18.5 kW at 400 V. Its versatile configuration includes main contacts (2 NO + 2 NC) and auxiliary contacts (1 NO + 1 NC), making it ideal for complex electrical circuits. The screw terminal design ensures secure and stable connections.

Function

• Load Switching: Specifically designed for switching AC motors (AC-3 duty) and resistive loads.

• Safety Interlocking: The combination of 2 Normally Open (NO) and 2 Normally Closed (NC) main contacts, along with a 1 NO + 1 NC auxiliary contact block, allows for complex control and interlocking circuits.

• System Integration: Operates with a safe and standard control voltage of 42 V AC at 50 Hz, making it suitable for various control panel configurations.

Benefits and Features

• High Performance: Capable of handling significant loads up to 35 A (AC-3) and 18.5 kW, ensuring reliable operation for medium-sized motor applications.

• Versatile Contact Configuration: Equipped with a 4-pole main contact setup (2 NO + 2 NC) for unique switching requirements, and integrated 1 NO + 1 NC auxiliary contacts for signaling and control circuit integration.

• Robust Connection: Screw terminals provide a time-tested, high-force connection point, ensuring excellent mechanical stability and low resistance.

• Standardized Size S2: The standardized S2 frame size allows for easy mounting and integration into existing control panels, offering consistency across the SIRIUS range.

• Global Standard: Built to the quality and reliability standards expected from Siemens industrial control gear.

Application

• Motor control circuits in manufacturing plants

• Industrial automation systems

• Electrical distribution panels

• HVAC systems and machinery control
