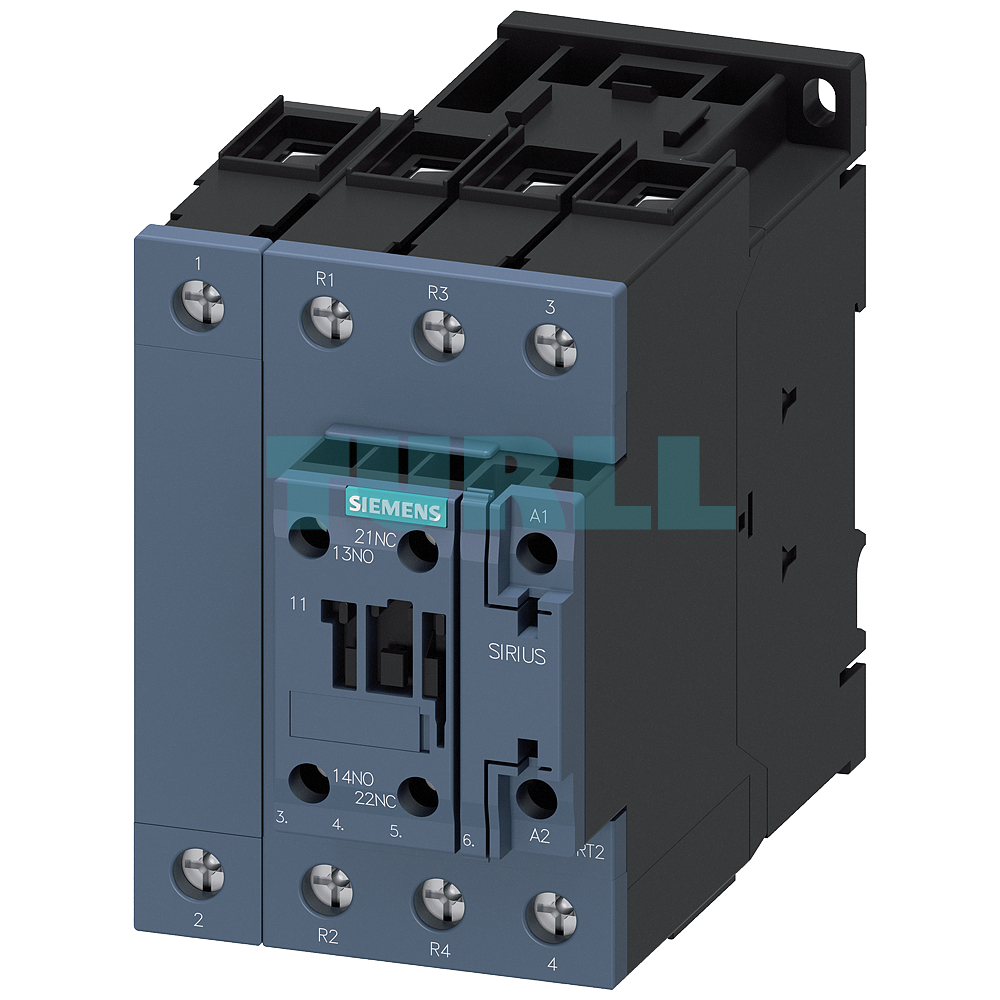

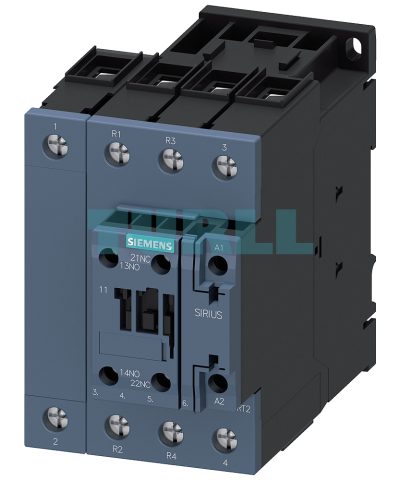

Siemens 3RT2535-1AL20 Power Contactor 35A, 18.5kW, 4-Pole, 230V AC Original Brand New
$114.20
High-performance Siemens power contactor, AC-3, 35A, 18.5 kW / 400V, 4-pole, 230V AC, 50/60 Hz with 2 NO + 2 NC main contacts, 1 NO + 1 NC auxiliary contacts, and screw terminals. Ideal for motor control and industrial applications.
Overview
The Siemens SIRIUS 3RT25 power contactor is a high-reliability switching device designed for controlling motors and general resistive loads in demanding industrial environments. Identified by the model 3RT2535-1AL20, this unit is engineered for AC-3 operation, capably handling a rated current of 35 A and motor power up to 18.5 kW at 400 V. Its 4-pole configuration (2 Normally Open / 2 Normally Closed main contacts) offers versatile control options for diverse load types. The contactor operates via a standard 230 V AC, 50/60 Hz control supply voltage, making it suitable for global applications.
Key Benefit
-
Reliable Performance: Handles demanding AC-3 loads efficiently, ensuring minimal downtime.
-
Versatile Application: Suitable for motor control, automation systems, and industrial machinery.
-
Durable Design: Built with 2 NO + 2 NC main contacts and 1 NO + 1 NC auxiliary contacts for long-lasting operation.
-
Easy Installation: Screw terminal connections make setup quick and secure.
-
Energy Efficient: Designed to operate at 230V AC (50/60 Hz), providing consistent energy usage.
Functions & Features
-
AC-3 rated contactor suitable for switching motors up to 18.5 kW / 400V.
-
4-pole main contactor configuration ensures reliable load handling.
-

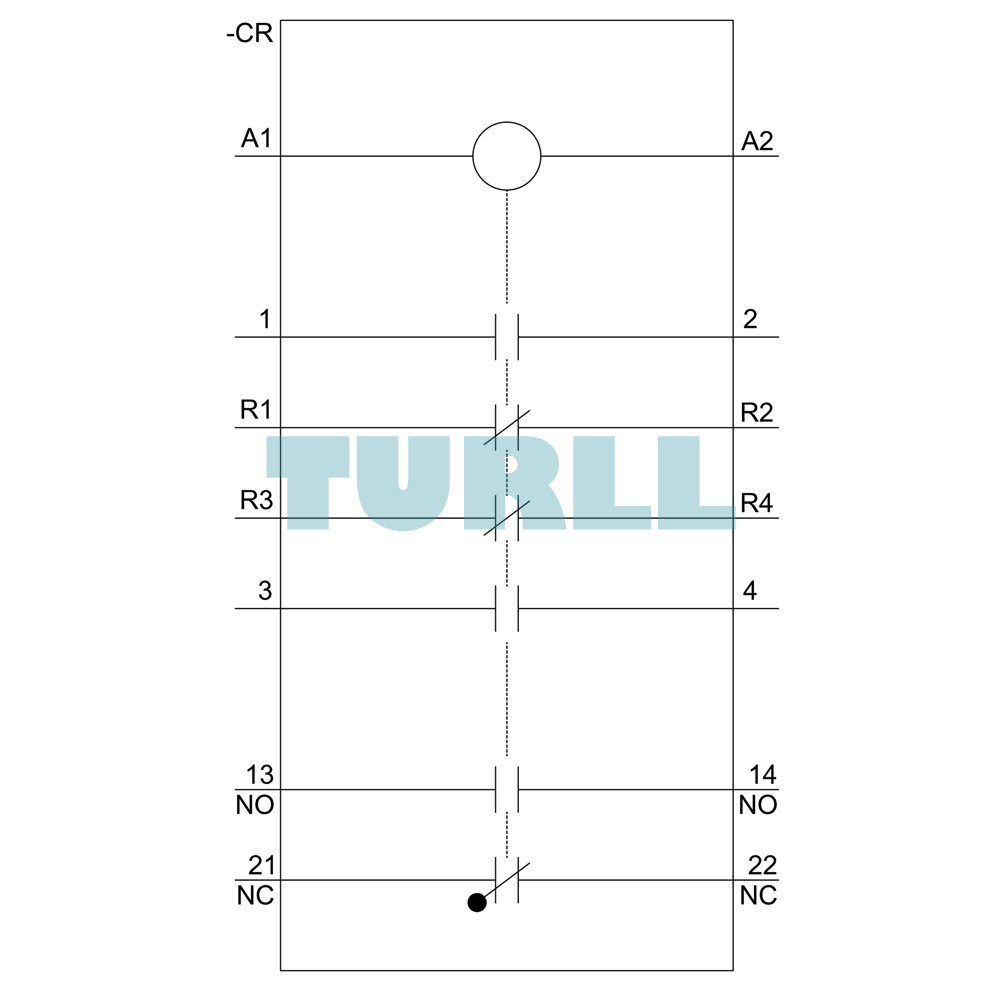

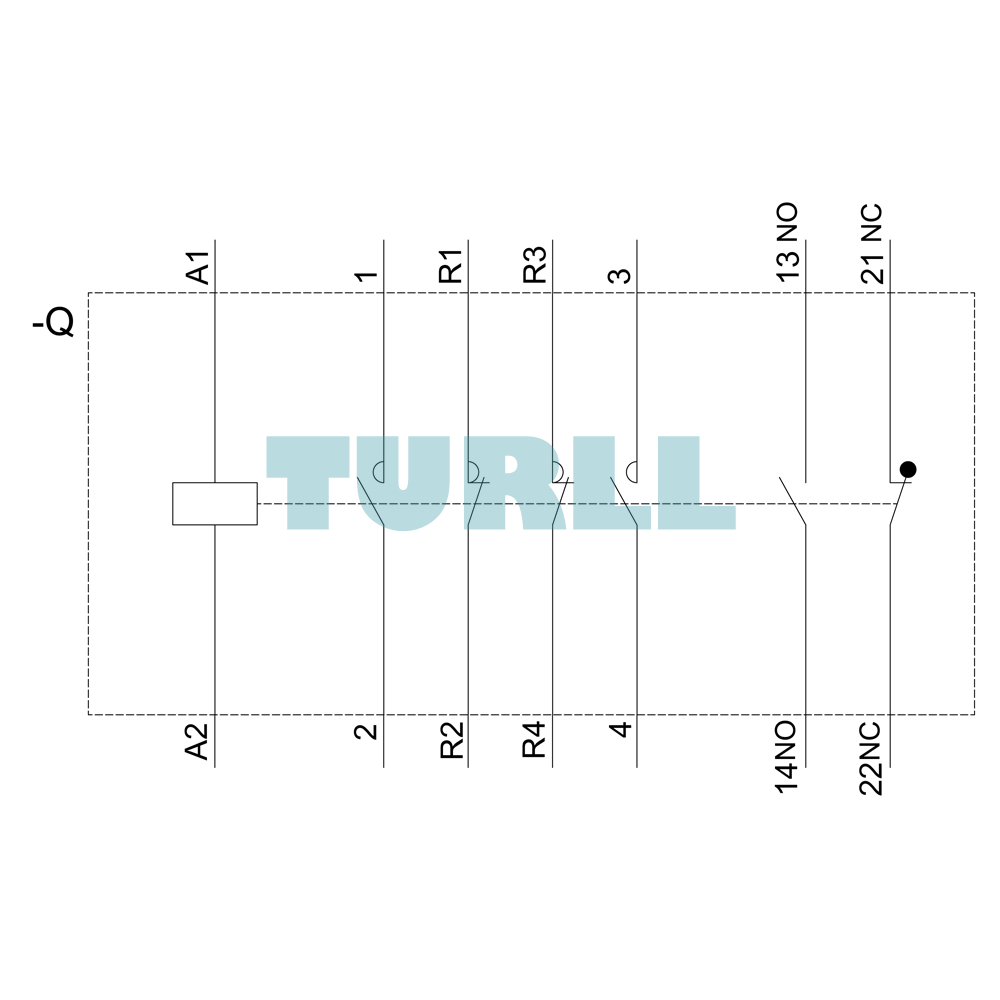

2 NO + 2 NC main contacts and 1 NO + 1 NC auxiliary contacts for flexible control.
-
Screw terminal connection type for secure and easy wiring.
-
Size S2 for compatibility with standard industrial control panels.
Visit 3RT2535-1AL20 for more detail info
For more our products visit turll
Download
| Weight | 1.143 kg |
|---|---|

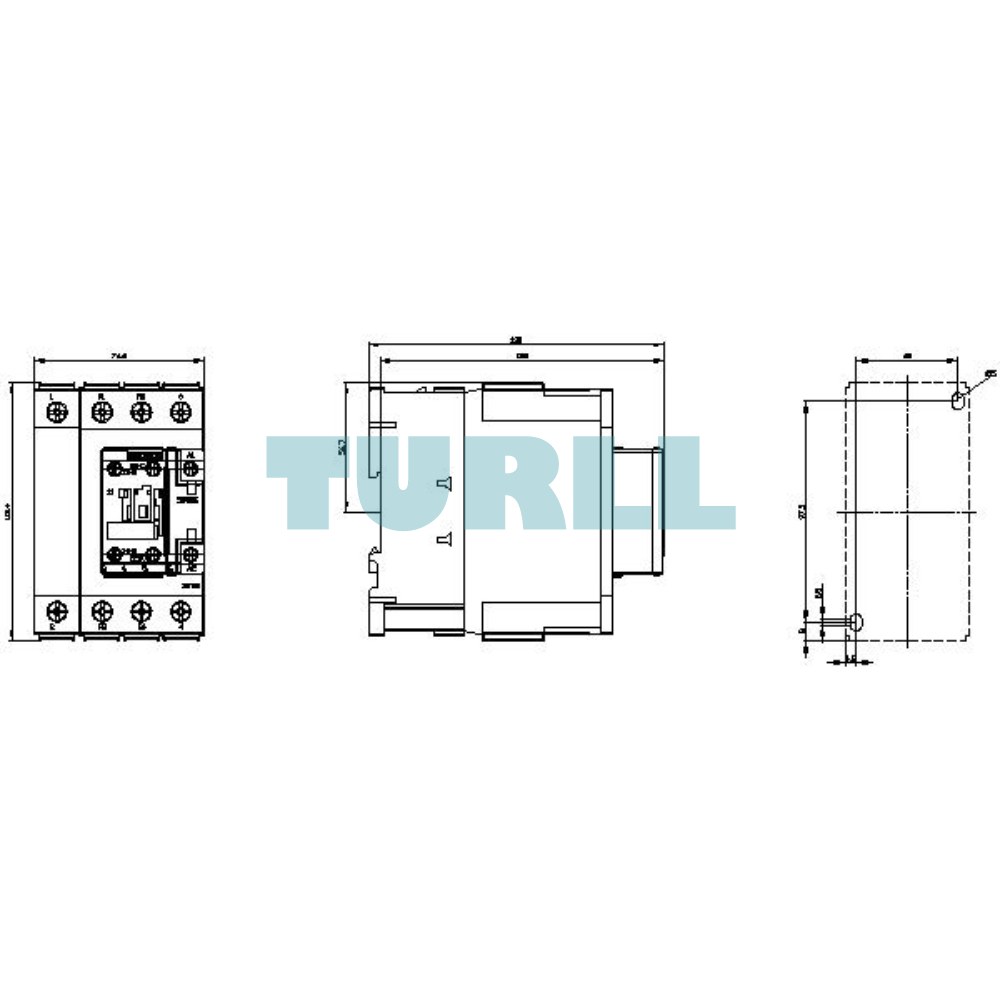

| Dimensions | 122.5 × 82 × 142 mm |
