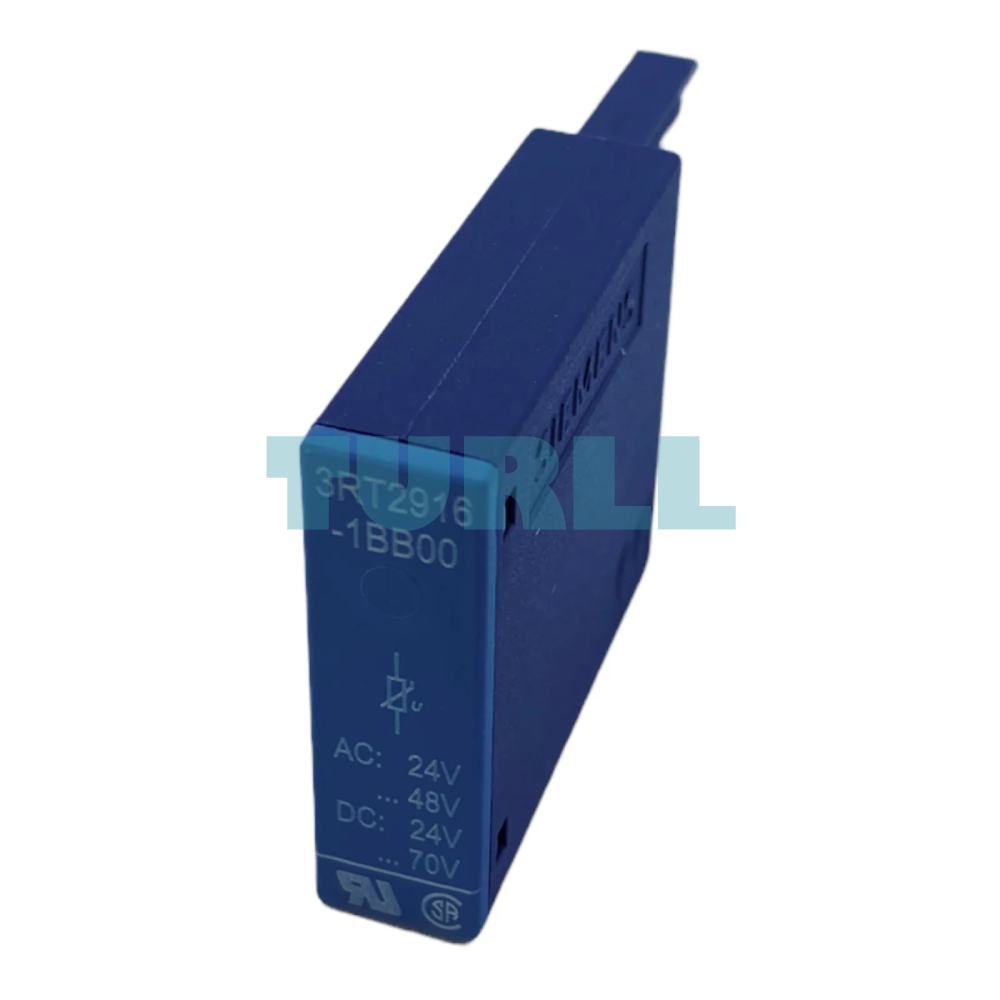

Siemens 3RT2916-1BB00 SIRIUS Surge Suppressor, Varistor for 3RT2.1 & 3RH2 Contactors Original Brand New
$16.68
Protect your control circuits with the Siemens 3RT2916-1BB00. This high-quality varistor surge suppressor is designed for SIRIUS 3RT2.1 contactors and 3RH2 auxiliary contactors, operating at 24-48V AC and 24-70V DC to prevent voltage peaks.
Availability: In stock
Overview
The Siemens 3RT2916-1BB00 is an essential plug-in accessory for the SIRIUS modular system. As a varistor-based surge suppressor, it clips directly onto the front of size S00 contactors. It is specifically engineered to damp opening surges (voltage spikes) at the coil, protecting sensitive electronic controllers (like PLCs) from electromagnetic interference and potential damage.
Key Benefit
-
Enhanced Equipment Lifespan: Prevents high-voltage peaks from damaging coil insulation and nearby electronic components.
-
Easy Installation: Tool-free, plug-in design allows for rapid mounting onto the front of the contactor.
-
Universal Compatibility: Works seamlessly with both AC and DC control voltages within the specified range.
-
Compact Footprint: Fits within the standard dimensions of the S00 frame size without requiring extra rail space.
Function
-
Suppresses transient voltage spikes during switching operations
-
Stabilizes electrical circuits in AC and DC applications
-
Minimizes electromagnetic interference (EMI)
-
Ensures smooth and safe contactor operation
Technical Specification
-
Product Number: 3RT2916-1BB00
-
Type: Surge Suppressor / Varistor
-
AC Voltage Rating: 24–48 V AC
-
Frequency: 50/60 Hz
-
DC Voltage Rating: 24–70 V DC
-
Compatibility:
-
Siemens 3RT2.1 Contactors
-
Siemens 3RH2 Auxiliary Contactors
-
Visit 3RT2916-1BB00 for more detail info
For more our products visit turll
Download
| Weight | 0.006 kg |
|---|---|

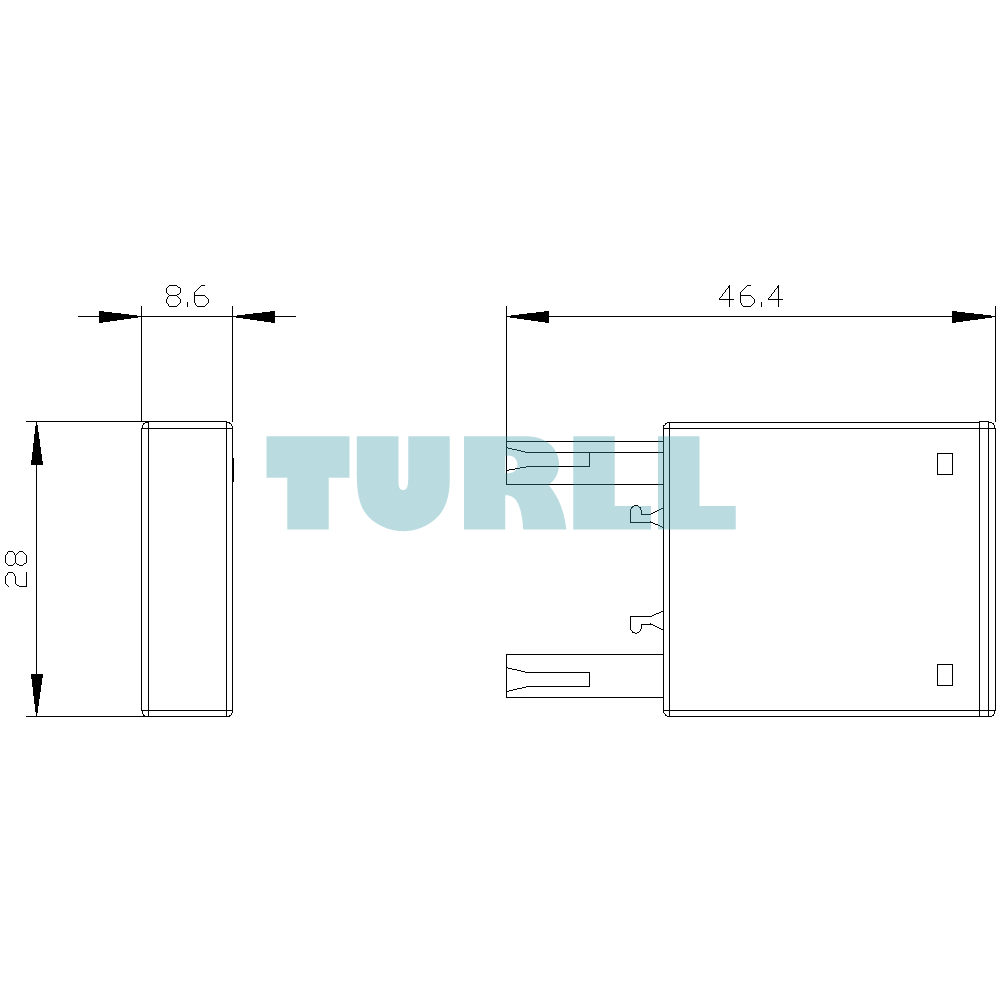

| Dimensions | 31.00 × 56.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | surge suppressor |
| size of contactor | S00 |
| design of the surge suppressor | with varistor |
| ● during storage | -40 … +80 °C |
| ● during operation | -25 … +60 °C |
| type of voltage of the control supply voltage | AC/DC |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| ● at DC | 24 … 70 V |
| — at 50 Hz | 24 … 48 V |
| — at 60 Hz | 48 … 24 V |
| mounting position | any |
| fastening method | clip-on |
| certificate of suitability | CE / UL / CSA |
| last modified: | 4/21/2021 |
