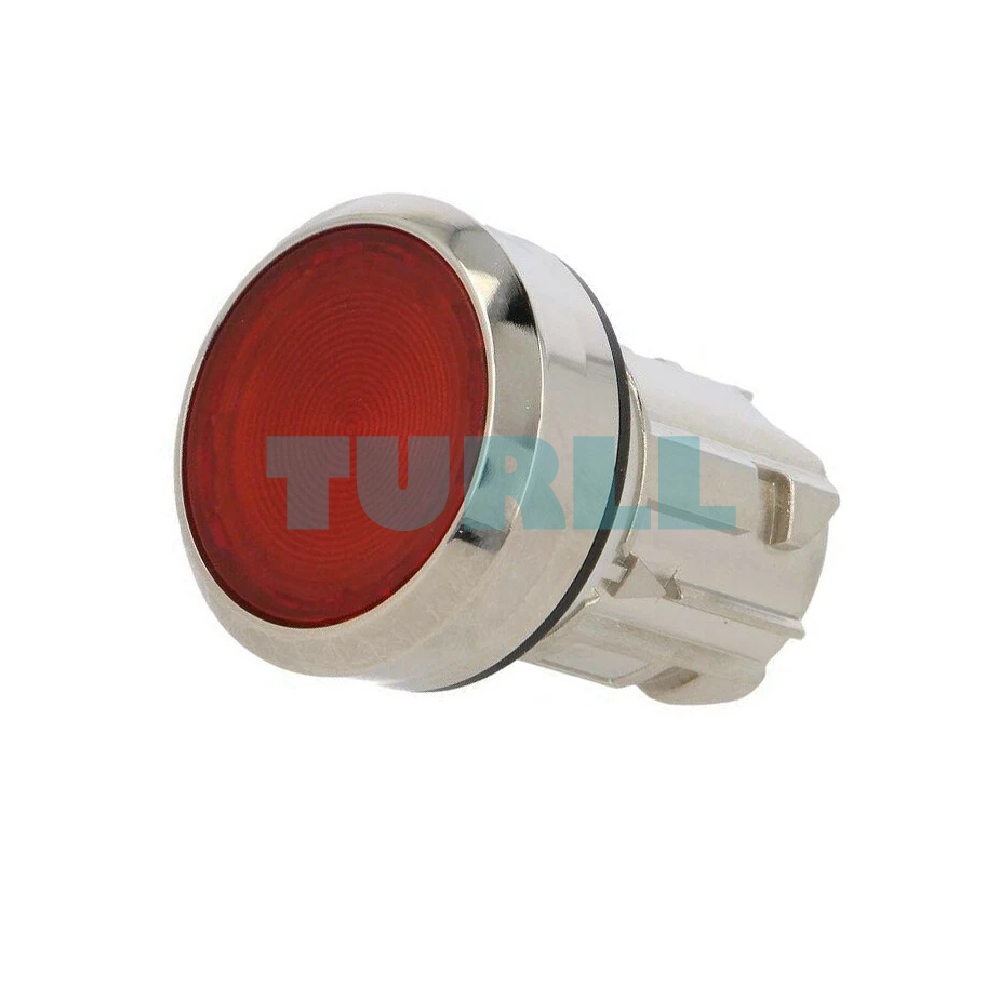

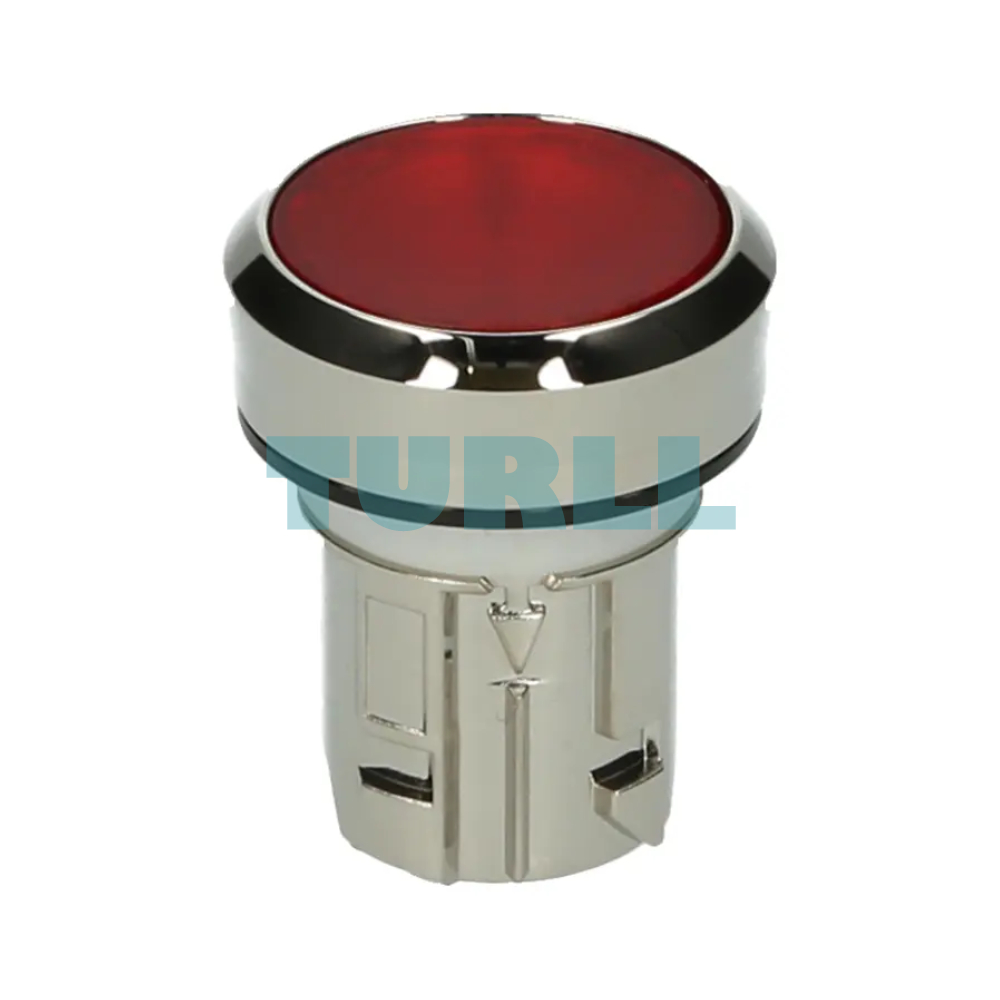

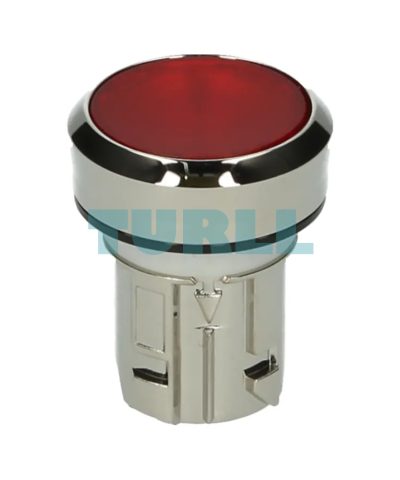

Siemens 3SU1051-0AB20-0AA0 Illuminated, 22 mm, Red Metal Pushbutton, Flat Momentary Contact Original Brand New
$6.27
A durable 22 mm, round, shiny metal illuminated pushbutton head. It features a red, flat, momentary contact button element from the SIRIUS ACT series, offering high IP66/67/69K protection for reliable performance in harsh industrial environments.
Availability: In stock
Overview
The Siemens 3SU1051-0AB20-0AA0 is a high-quality, front-panel actuating element from the SIRIUS ACT product line, designed for reliable command and signaling in industrial environments. This component is the illuminated pushbutton head (operator alone), featuring a durable, shiny metal design suitable for harsh conditions. It requires a separate holder and contact/LED modules for complete functionality.
Features & Benefit
-
-
Robust Industrial Design: Constructed with a shiny metal front ring and designed for a 22 mm mounting diameter, offering exceptional durability and a premium look.
-
High Degree of Protection: Engineered with IP66, IP67, and IP69K ratings, ensuring resistance to dust, water jets, and even high-pressure cleaning, making it suitable for tough, demanding applications (e.g., food & beverage, outdoor use).
-
Easy Installation: Part of the innovative SIRIUS ACT modular system, featuring a self-retaining actuator and snap-on concept for quick, tool-free, one-handed mounting behind the control panel.
-
Clear Visual Signaling: The red, flat button is designed for illumination, providing clear and immediate visual feedback on the operating status when paired with an LED module.
-
Momentary Contact Operation: Functions as a spring-return (impulse) operator, meaning the circuit is closed only while the button is pressed, ideal for start, stop, or reset commands.
-
Function
This device serves as the human-machine interface (HMI) for initiating a control function. When the user presses the flat, red button, the momentary contact principle means it immediately returns to its home position upon release. When combined with the appropriate LED module (sold separately), the red button illuminates to indicate the status of the operation or the machine.
Visit 3SU1051-0AB20-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.036 kg |
|---|---|
| Dimensions | 100.00 × 150.00 × 5.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |

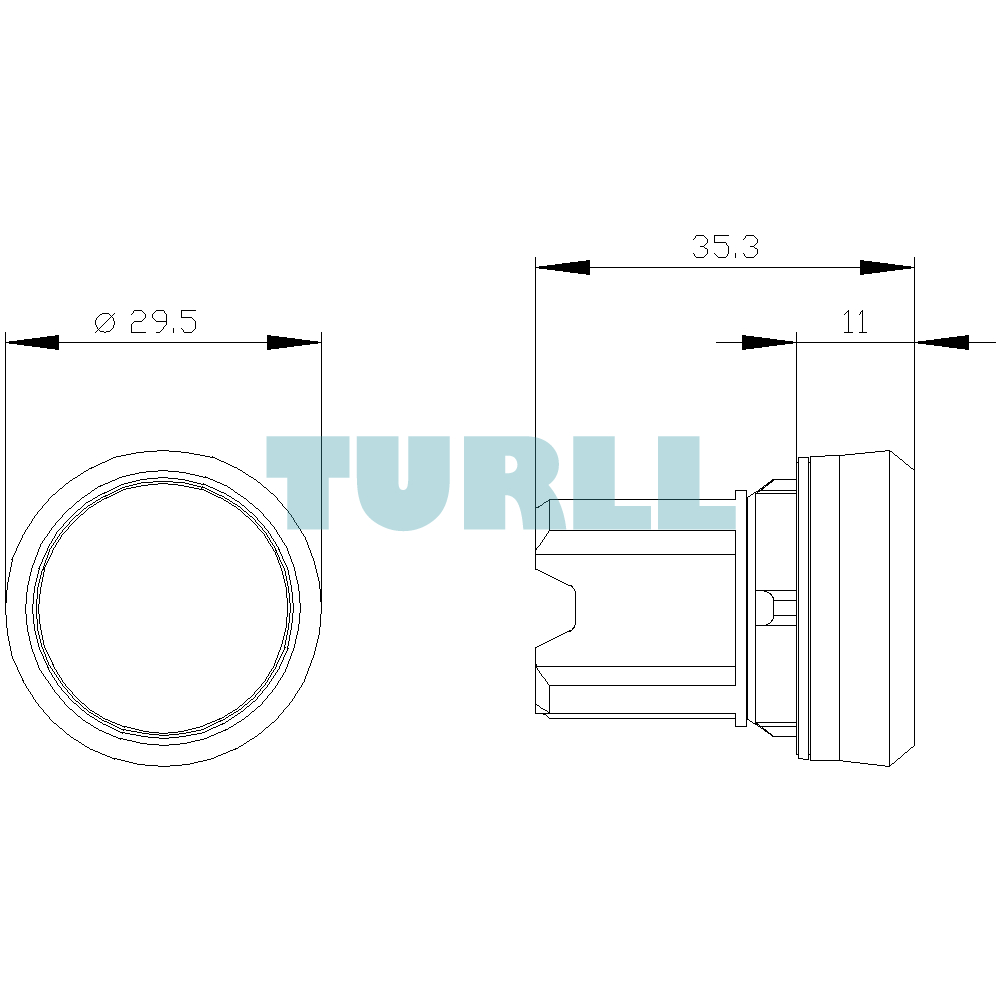

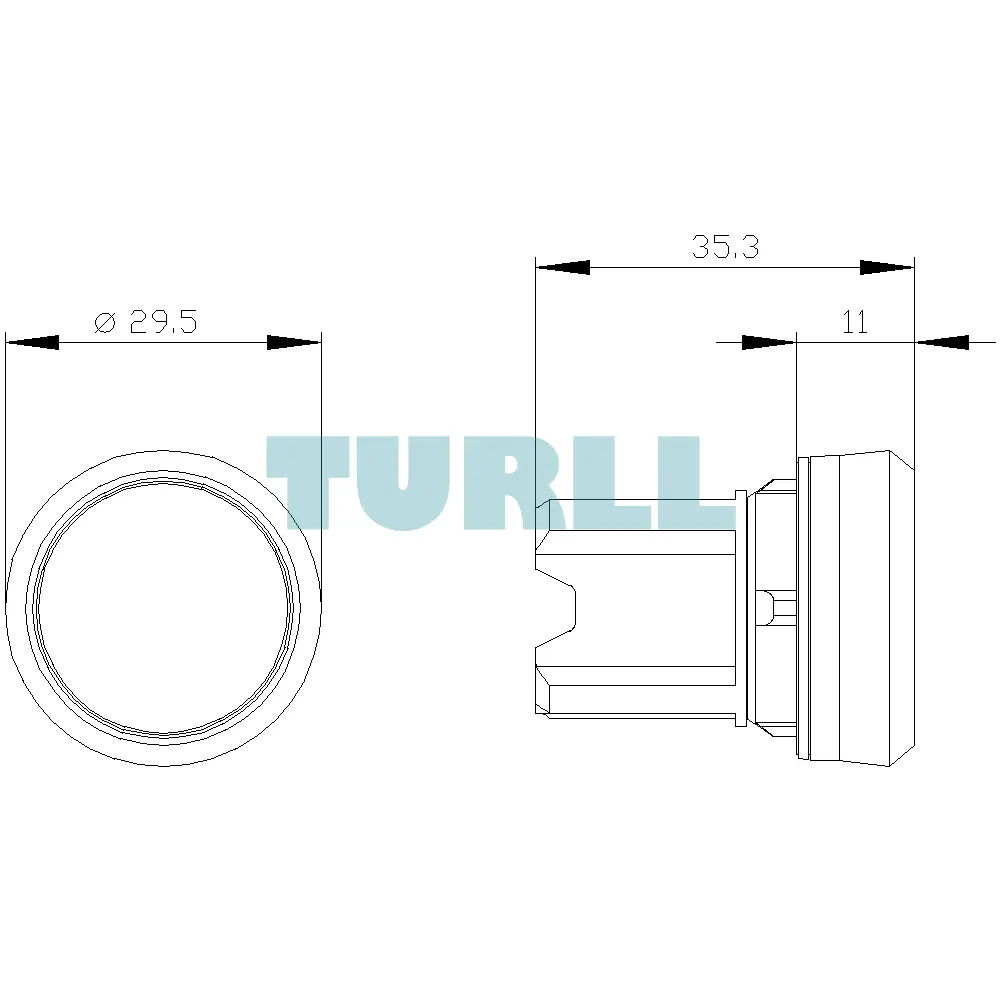

| outer diameter of the actuating element | 29.5 mm |
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 3 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
