High-performance 30mm illuminated pushbutton from the SIRIUS ACT series. Featuring a sleek matte metal finish and a vibrant yellow actuator, this momentary contact switch is designed for flush installation in demanding industrial environments.
Backorder available · Factory lead time 2–3 weeks.

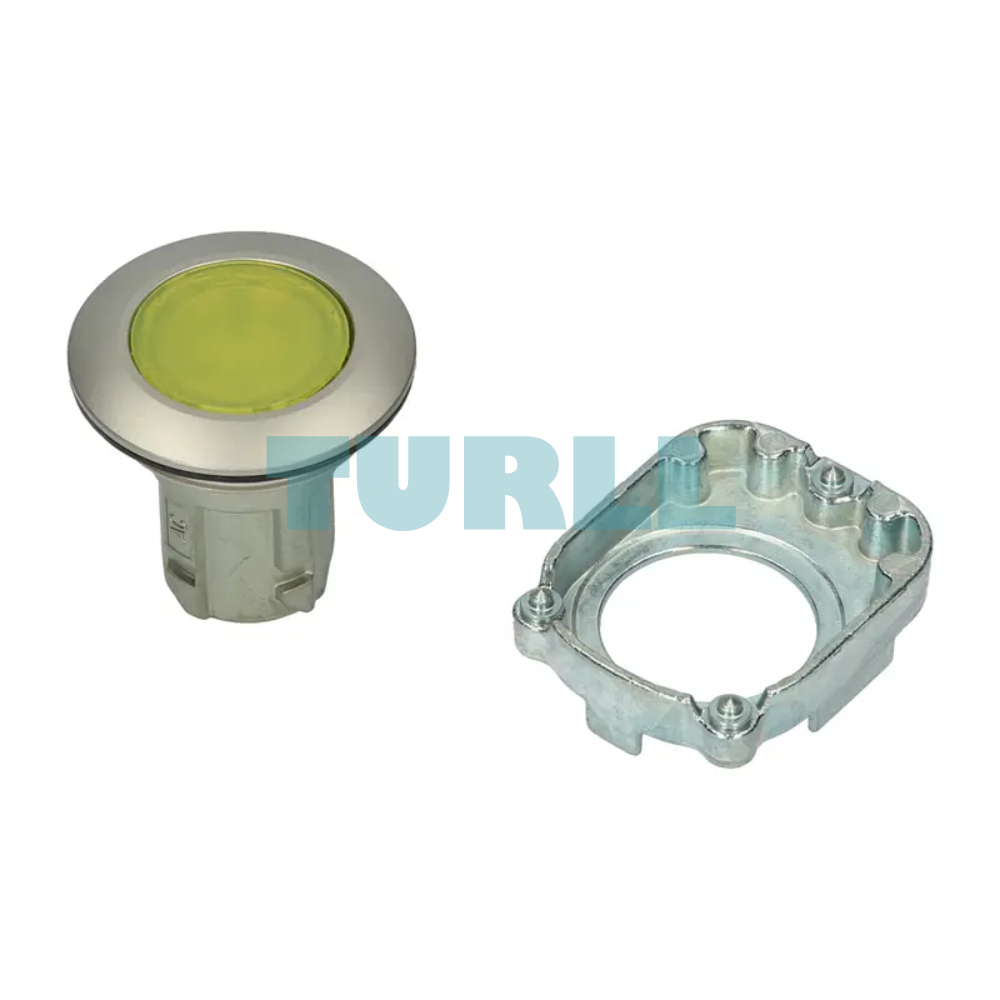

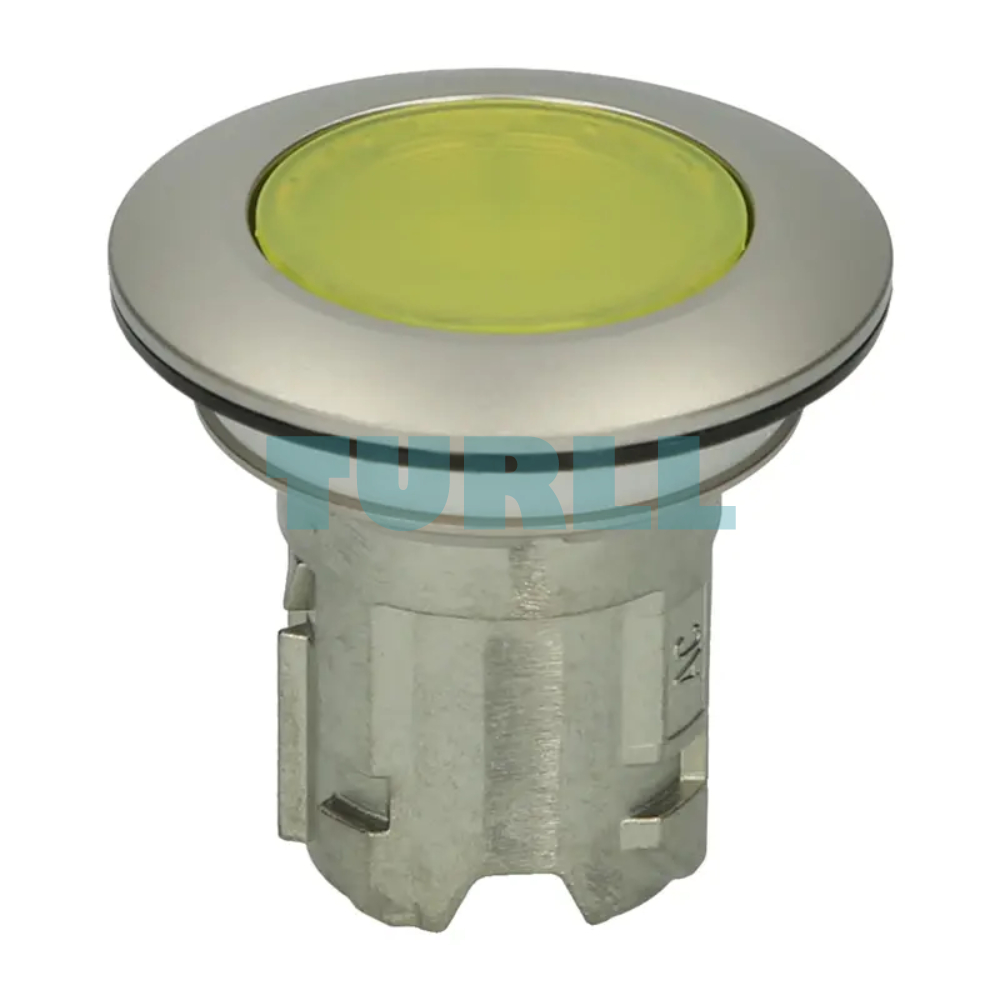

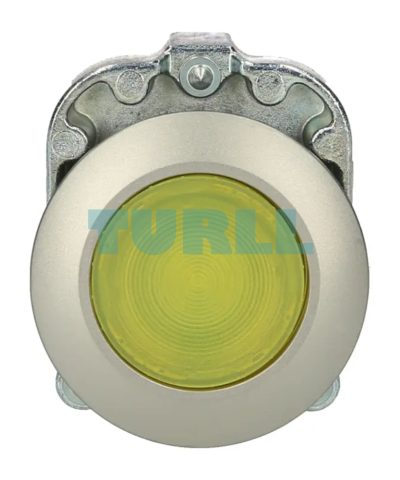

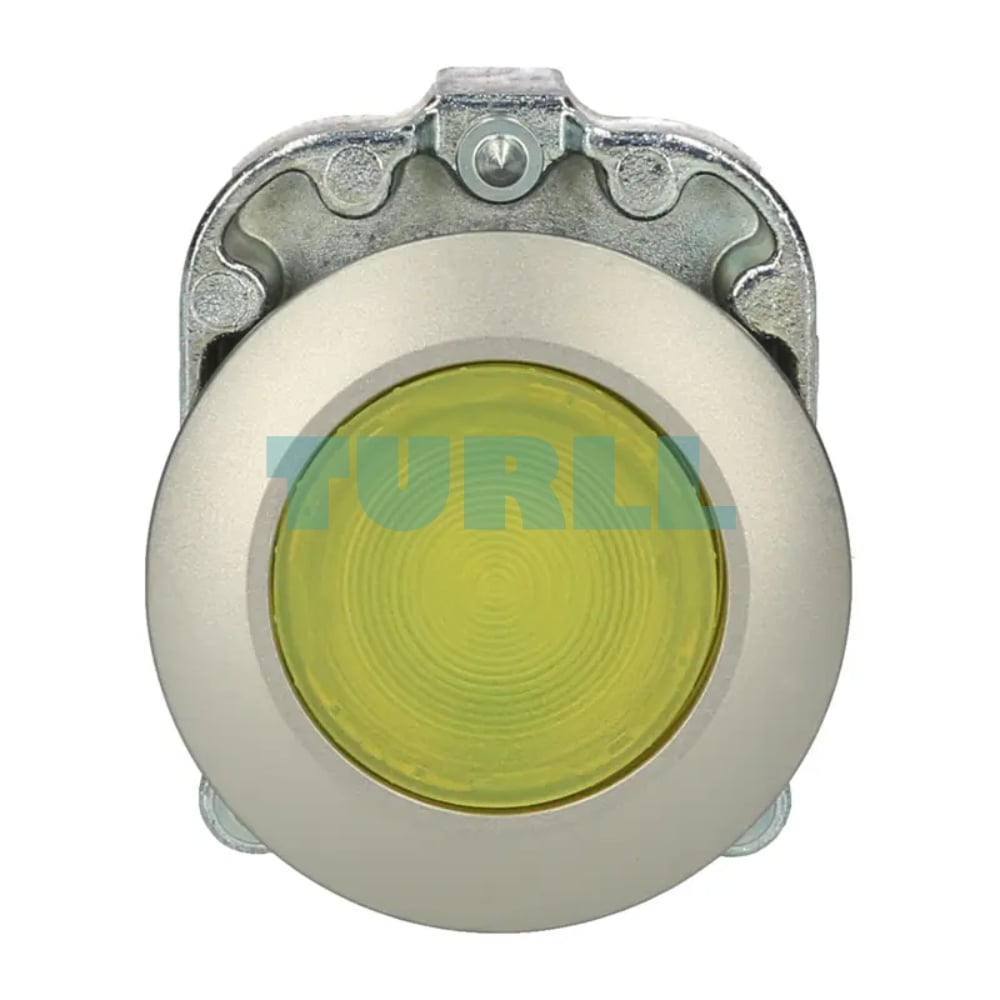

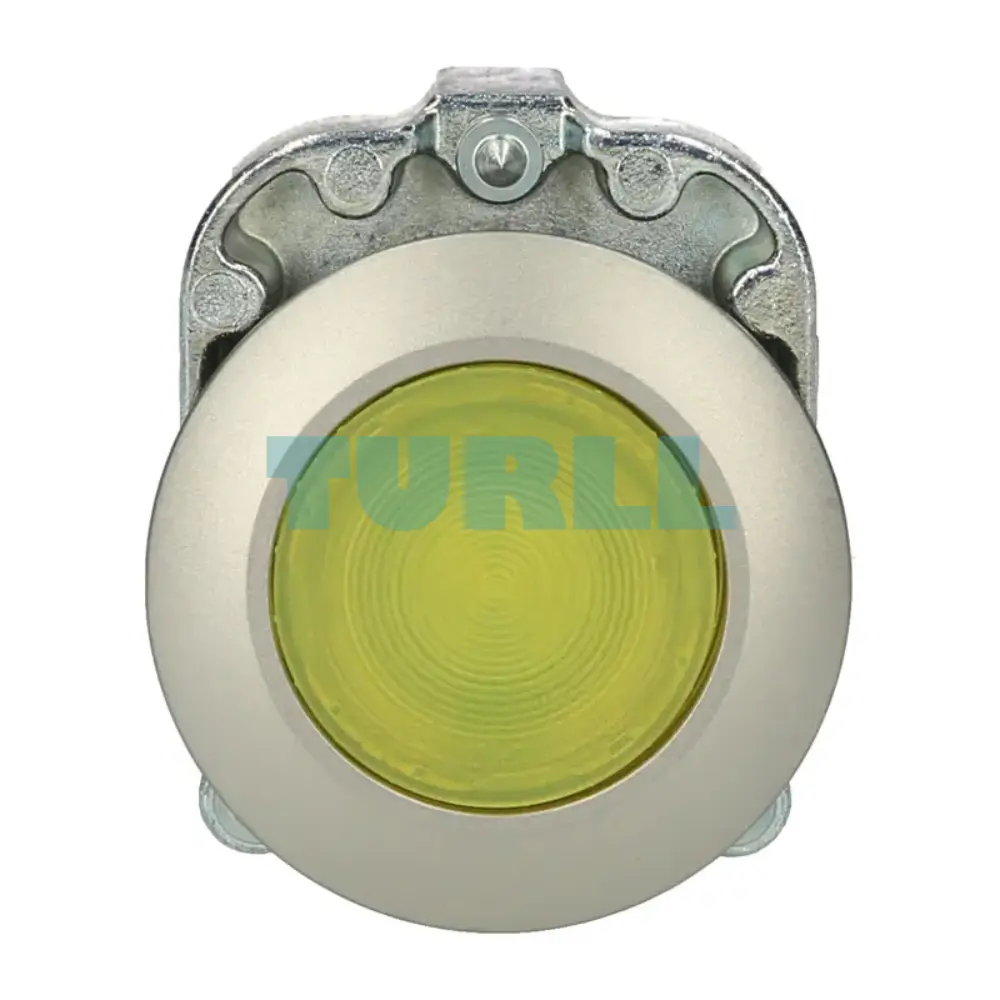

The Siemens 3SU1061-0JB30-0AA0 is a high-quality illuminated pushbutton switch designed for industrial control and automation applications. Featuring a 30 mm round metal actuator with a matte yellow finish, this pushbutton ensures excellent visibility, durability, and reliable performance. Its flush-mounted front ring provides a clean and professional panel appearance, while the momentary contact mechanism supports precise operational control.
Modern Aesthetics: The matte metal front ring offers a contemporary, non-reflective finish that hides fingerprints and resists scratching.
High Visibility: The bright yellow illumination ensures clear status indication, even in low-light industrial settings.
Easy Installation: Designed for flush mounting, providing a smooth, snag-free surface on your control cabinet.
Extreme Durability: Built to withstand harsh conditions with a rugged metal body designed for longevity.
Tactile Precision: Momentary contact type provides immediate, crisp feedback for manual override or machine Start/Stop functions.
Momentary Action: The button remains active only while pressed, perfect for "jogging" machinery or triggering specific timed events.
Illumination: Can be integrated with LED modules (sold separately) to provide backlighting for the yellow actuator.
Industrial Versatility: Commonly used in manufacturing lines, CNC control stations, and power distribution panels.
Manufacturer: Siemens
Product Number: 3SU1061-0JB30-0AA0
Actuator Diameter: 30 mm
Shape: Round
Material: Metal
Surface Finish: Matte
Color: Yellow
Mounting Type: Front ring, flush installation
Contact Type: Momentary
Illumination: Yes
Visit 3SU1061-0JB30-0AA0 for more detail info
For more our products visit turll
| SKU / Model | 3SU1061-0JB30-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | momentary contact type |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (switching cycles) typical | 3 000 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |
| shape of the installation opening | round |

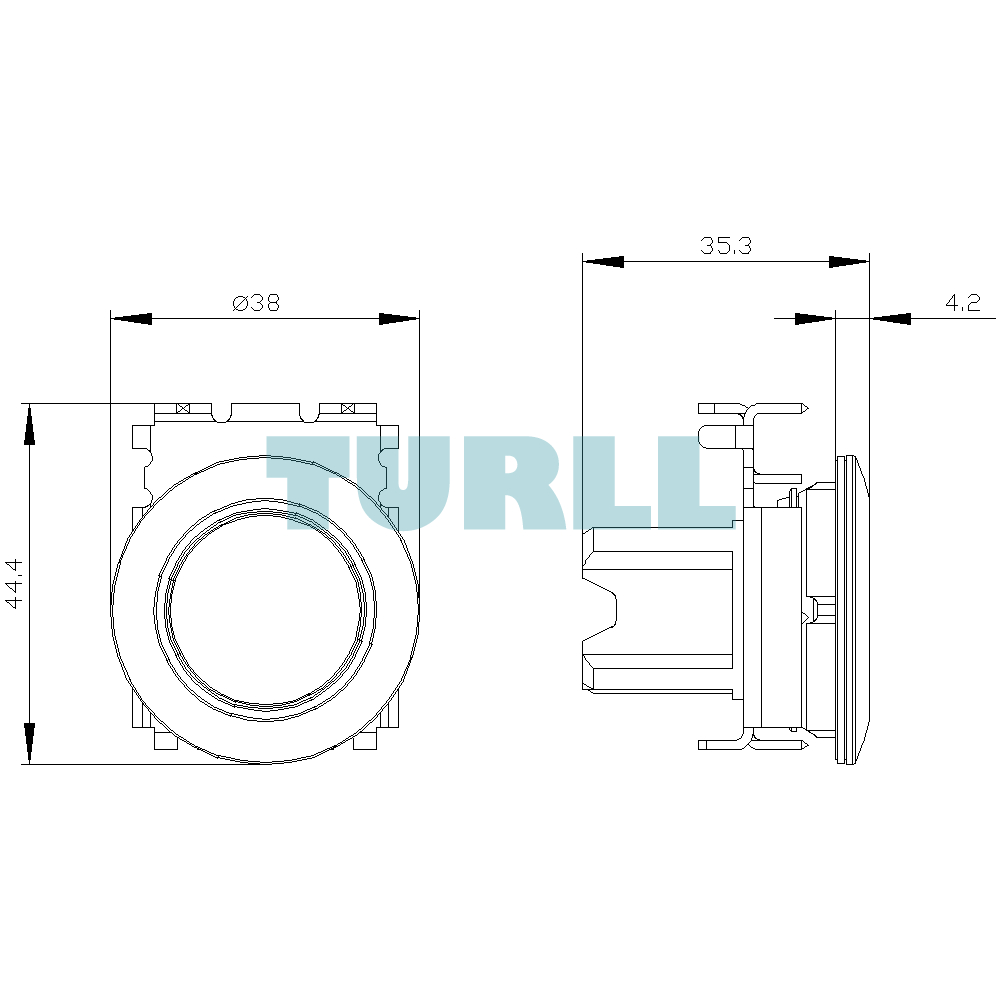

| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| last modified: | 10/6/2021 |
| Weight | 0.074 kg |
| Dimensions | 45.00 × 70.00 × 38.00 mm |
