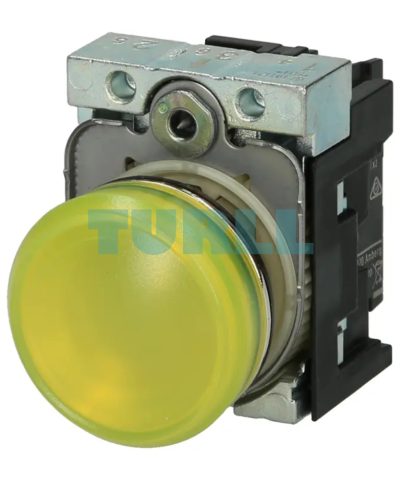

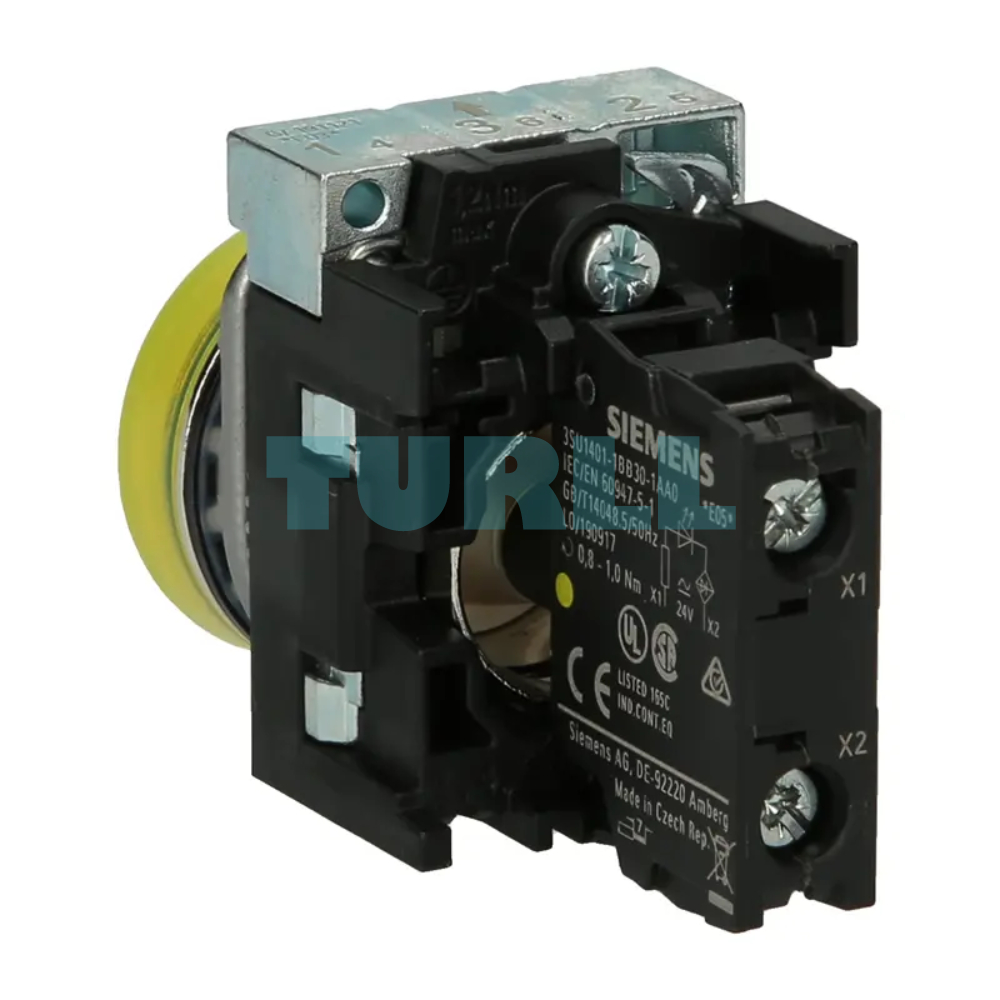

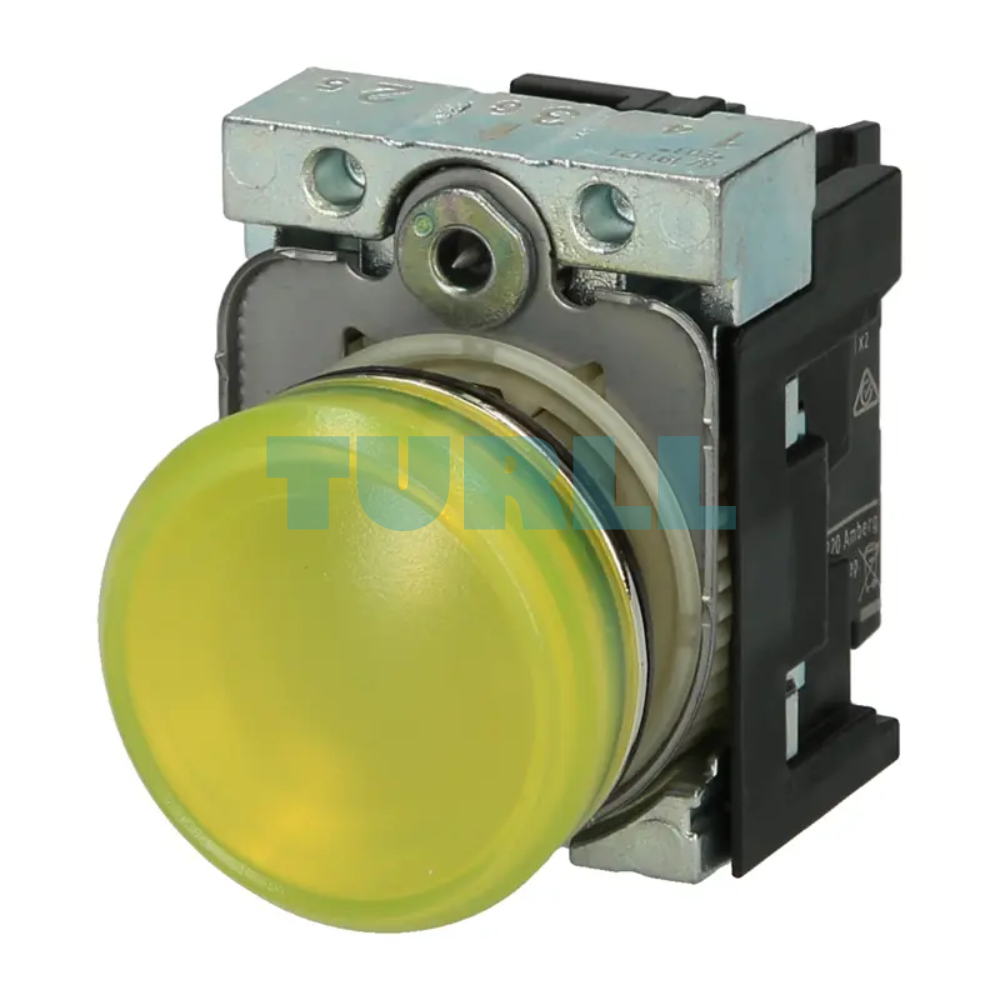

Siemens 3SU1152-6AA30-1AA0 Yellow LED Indicator Light, 22 mm Metal, 24 V AC/DC Original Brand New
$12.54
High-durability 22mm yellow indicator light from the SIRIUS ACT series. Featuring a shiny metal housing, smooth lens, and integrated 24V AC/DC LED module, it provides reliable status signaling for industrial control panels.
Availability: In stock
Overview
The Siemens 3SU1152-6AA30-1AA0 is a high-quality 22 mm LED indicator light designed for industrial control and automation applications. Featuring a round metal shiny bezel and a yellow smooth lens, this indicator light ensures clear visual signaling and long-term reliability. The unit comes with a holder and integrated LED module, supporting 24 V AC/DC operation and screw terminal connections for easy installation.
Built to Siemens’ rigorous standards, this indicator light is ideal for control panels, machinery status indication, and automation systems requiring durability and consistent performance.
Benefit
-
High visibility yellow LED for clear status indication
-
Durable metal housing with shiny finish for industrial environments
-
Integrated LED module reduces maintenance and replacement needs
-
24 V AC/DC compatibility for versatile applications
-
Screw terminals ensure secure and reliable wiring
-
Standard 22 mm mounting fits most control panels
Function & Application
-
Machine and process status indication
-
Control panel and operator interface signaling
-
Automation and factory control systems
-
Electrical cabinets and industrial machinery
-
OEM and system integrator projects
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 3SU1152-6AA30-1AA0
-
Type: Indicator Light
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal (shiny finish)
-
Lens Color: Yellow
-
Lens Type: Smooth
-
Light Source: LED (integrated)
-
Rated Voltage: 24 V AC/DC
-

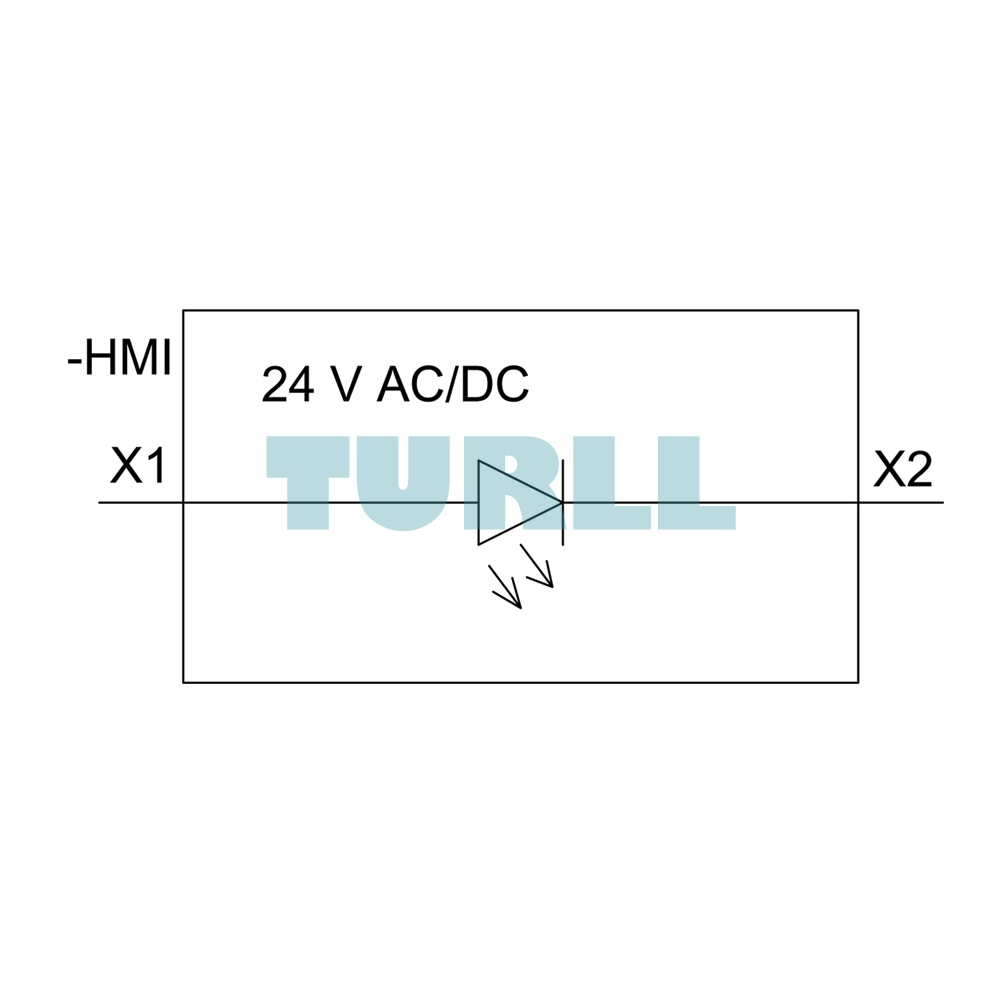

Connection Type: Screw terminal
-

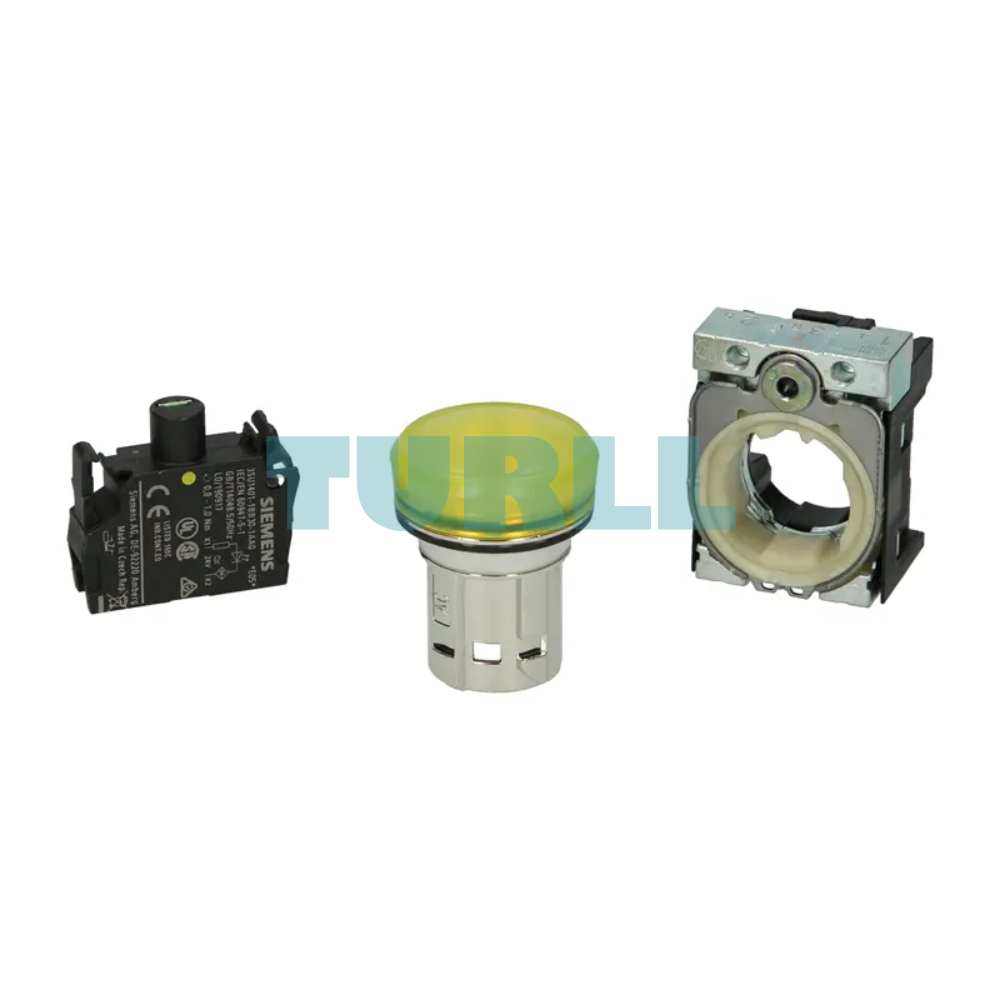

Includes: Holder
Visit 3SU1152-6AA30-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.082 kg |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number | – |
| ● of supplied LED module | 3SU1401-1BB30-1AA0 |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| ● of supplied repeater | 3SU1051-6AA30-0AA0 |
| number of command points | 1 |
| product extension optional light source | Yes |
| color | – |
| ● of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| product component front ring | No |
| material of the holder | Plastic |
| number of LED modules | 1 |
| product component light source | Yes |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | P |
| type of voltage of the supply voltage of the light source | AC/DC |
| supply voltage of the light source at AC | – |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 … 24 V |
| supply voltage of the light source at DC | – |
| ● rated value | 24 … 24 V |
| relative negative tolerance of the supply voltage | 20 % |
| relative positive tolerance of the supply voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | other |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | yellow |
| light intensity | 900 … 1 400 mcd |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |
| fastening method | front panel mounting |
| ● of modules and accessories | Front plate mounting |
| shape of the installation opening | round |

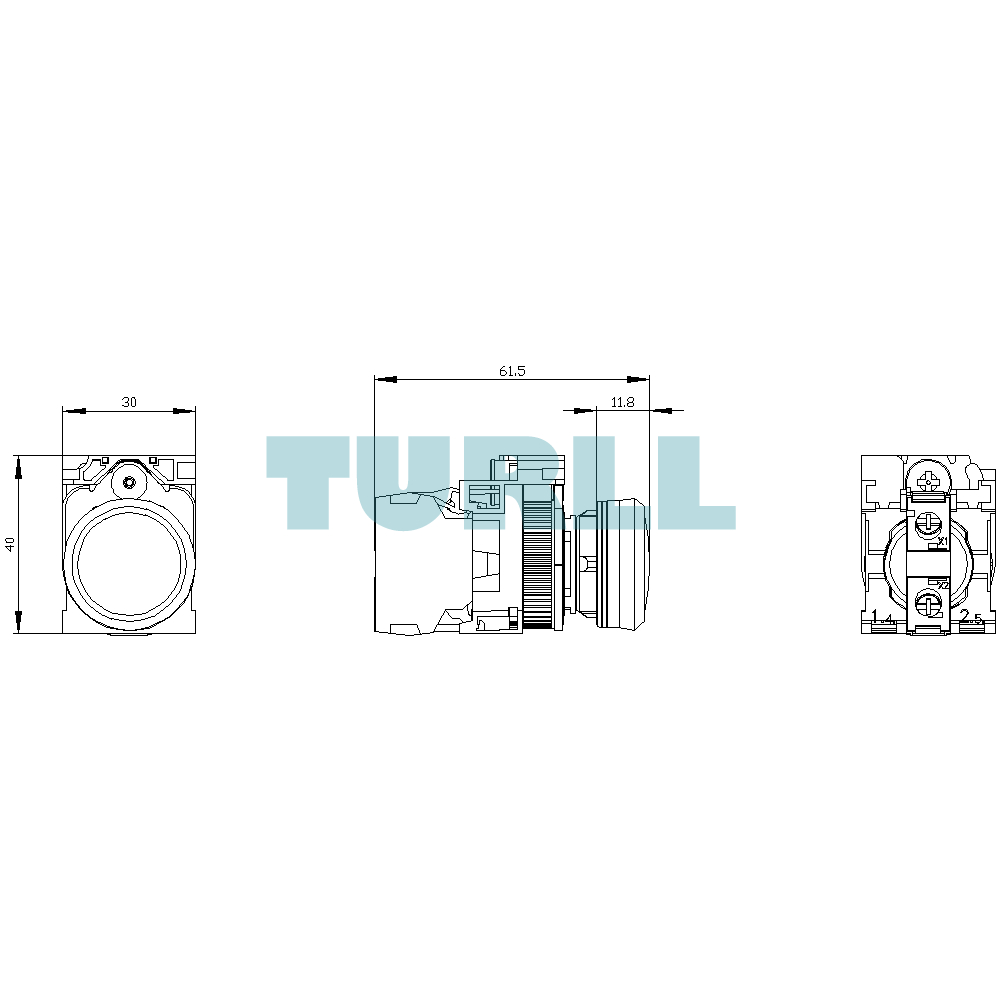

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 49.7 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/27/2021 |
