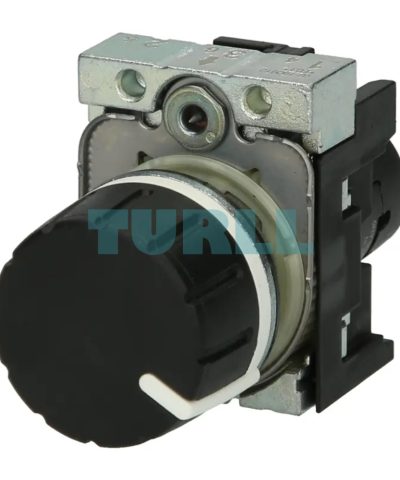

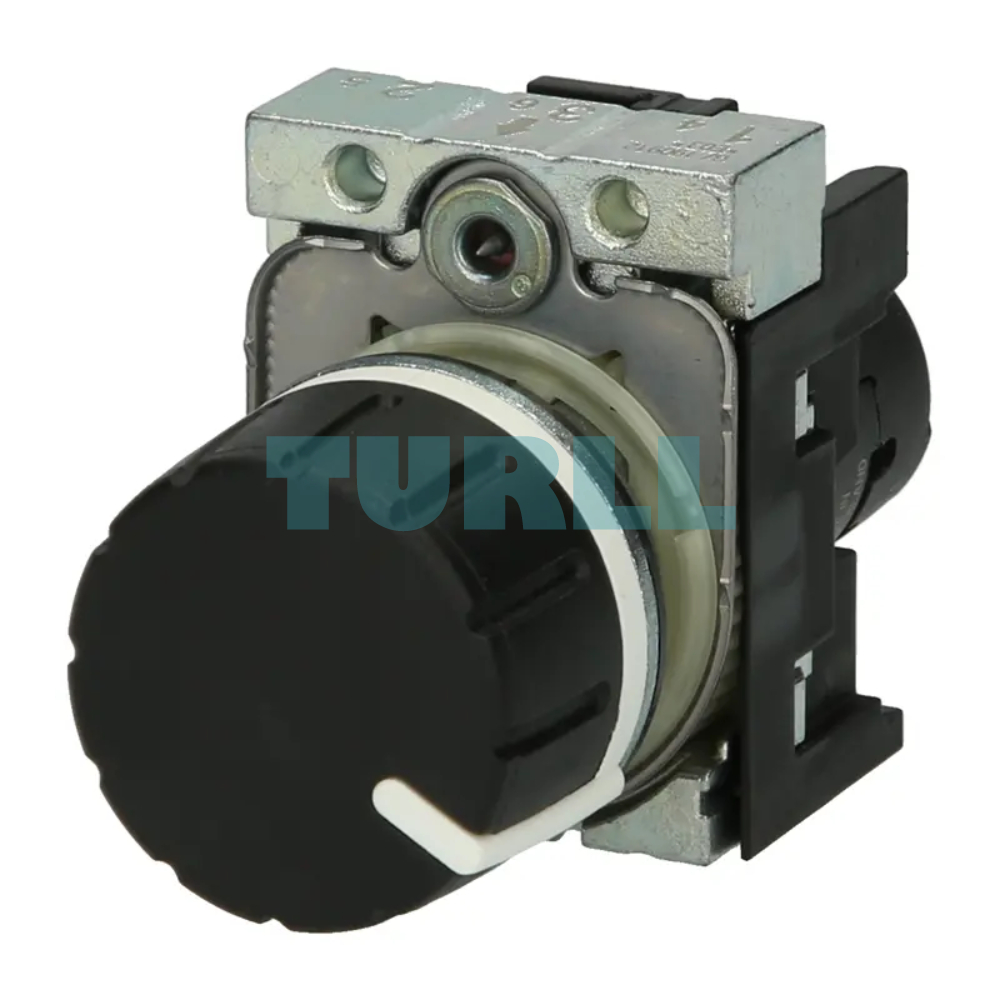

Siemens 3SU1250-2PT10-1AA0 Compact Potentiometer 47k Ohm, 22mm, Metal Black, with Holder Original Brand New

Model / SKU3SU1250-2PT10-1AA0

High-performance 47k Ohm compact potentiometer from the SIRIUS ACT series. Featuring a sleek 22mm round metal construction in black, this unit includes an integrated holder and secure screw terminals for easy industrial installation.

$46.53
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3SU1250-2PT10-1AA0 Potentiometer is a high-quality, compact control component designed for precise resistance adjustment in industrial and automation applications. Featuring a 22 mm round metal body, 47k ohm resistance, and screw terminal connections, this potentiometer ensures reliable performance, durability, and easy installation. Its sleek black metal finish makes it suitable for professional control panels and machinery.

Key Benefit

  • High Precision Control – Ensures accurate resistance adjustment for smooth operation

  • Durable Metal Construction – Long-lasting performance in demanding environments

  • Compact 22 mm Design – Ideal for space-saving control panels

  • Easy Installation – Includes holder and secure screw terminals

  • Trusted Siemens Quality – Reliable performance from a globally recognized brand

Function

  • Used for manual adjustment of electrical resistance

  • Enables speed, voltage, or signal control in automation systems

  • Suitable for industrial control panels, machinery, and electrical equipment

  • Provides stable and repeatable performance in control circuits

Technical Specification

  • Brand: Siemens

  • Product Number: 3SU1250-2PT10-1AA0

  • Type: Potentiometer

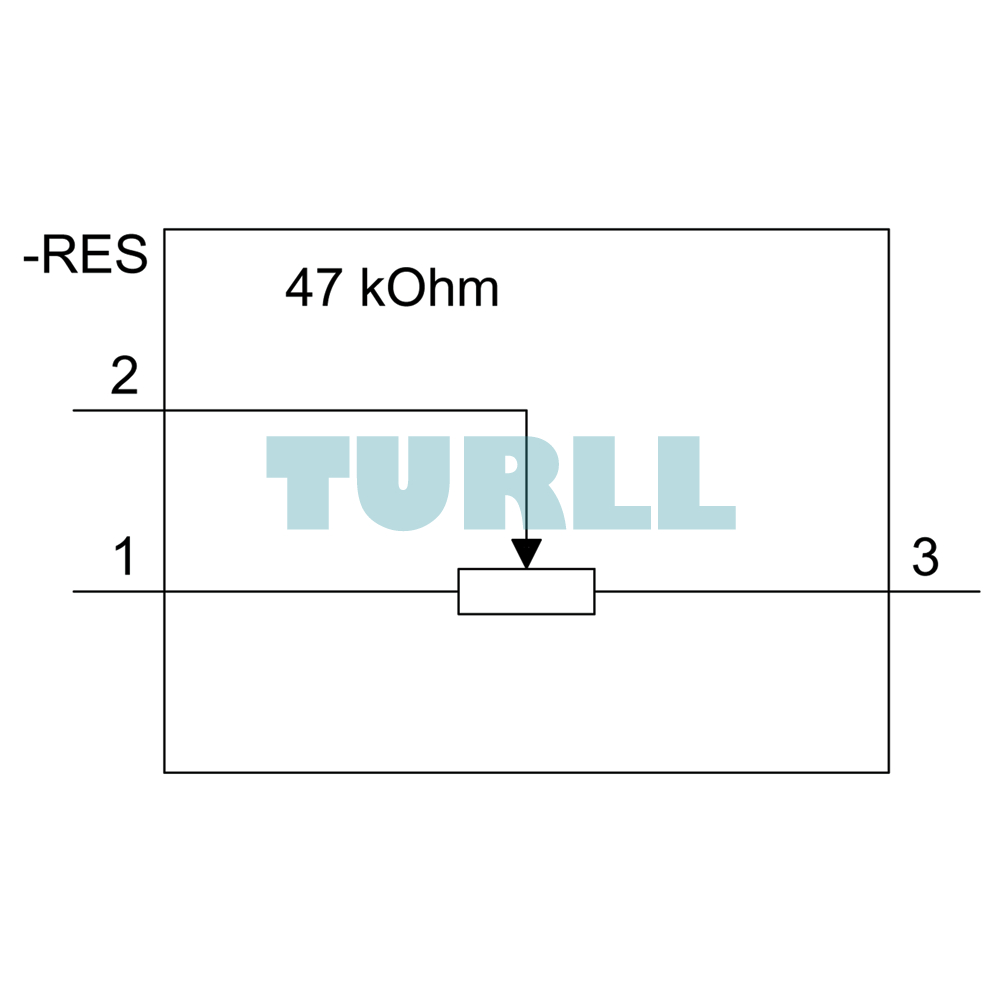

  • Resistance: 47k Ohm

  • Mounting Size: 22 mm

  • Shape: Round

  • Material: Metal

  • Color: Black

  • Terminal Type: Screw Terminal

  • Included: Holder

Visit 3SU1250-2PT10-1AA0 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model3SU1250-2PT10-1AA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationPotentiometers
design of the productCompact unit
product type designation3SU1
product lineMetal, shiny, 22 mm

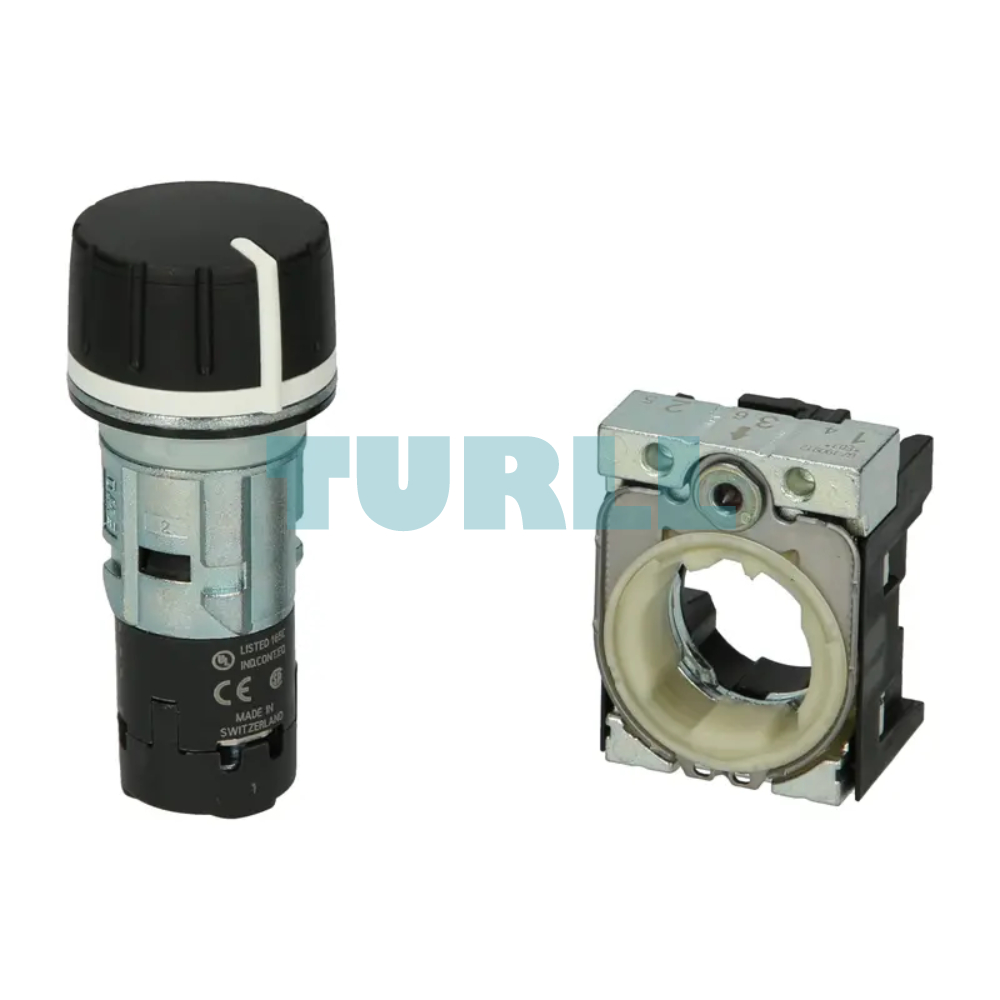

manufacturer's article number of the supplied holder3SU1550-0AA10-0AA0
number of command points1
design of the actuating elementRotary knob
principle of operation of the actuating elementInfinitely variable adjustment, angle of rotation 280°
color of the actuating elementblack
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element30 mm
marking of the actuating elementAny inscription, text or symbol, can only be ordered via SIRIUS ACT configurator/Configuration Identification Number (CIN)
Maximum deflection angle [°]280°
product component front ringNo
material of the holderPlastic
insulation voltage rated value500 V
degree of pollution3
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20, clamping screw tightened
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
mechanical service life (switching cycles) typical25 000
reference code acc. to IEC 81346-2S

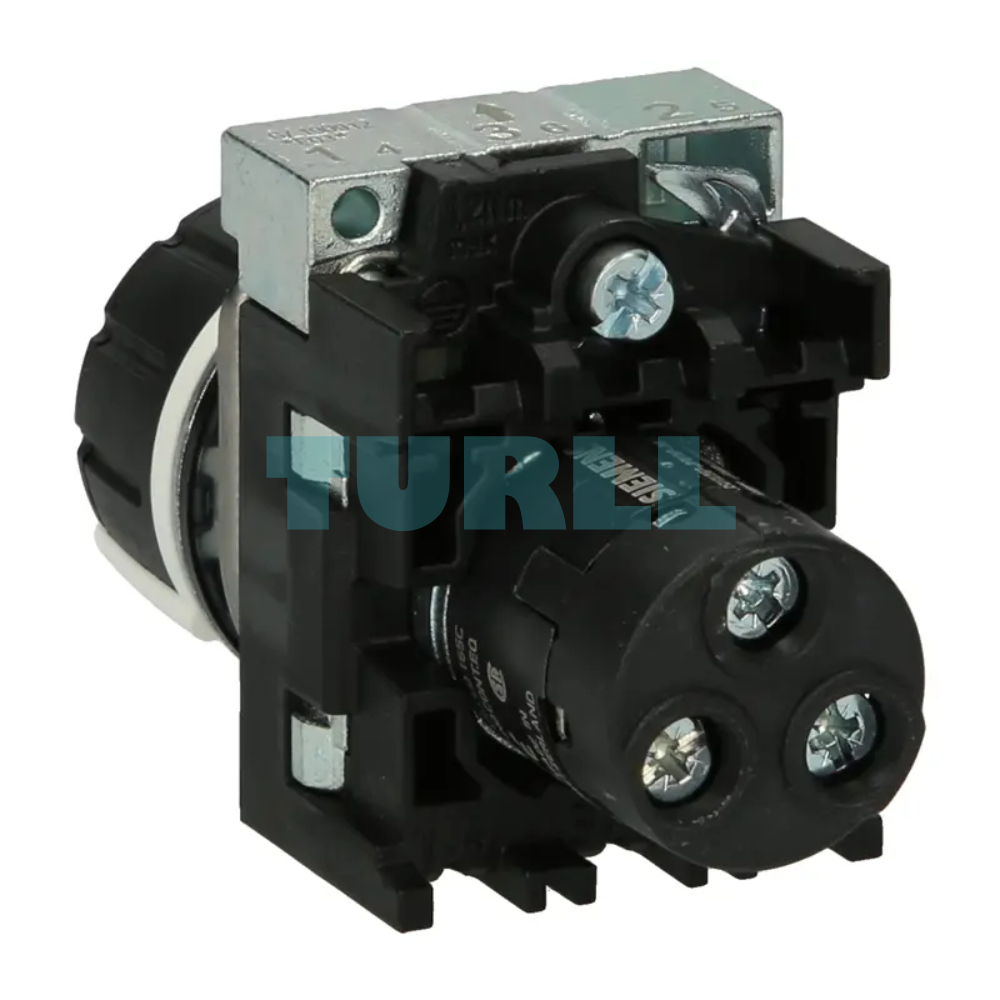

type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections-
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque with screw-type terminals0.8 ... 1 N·m
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)

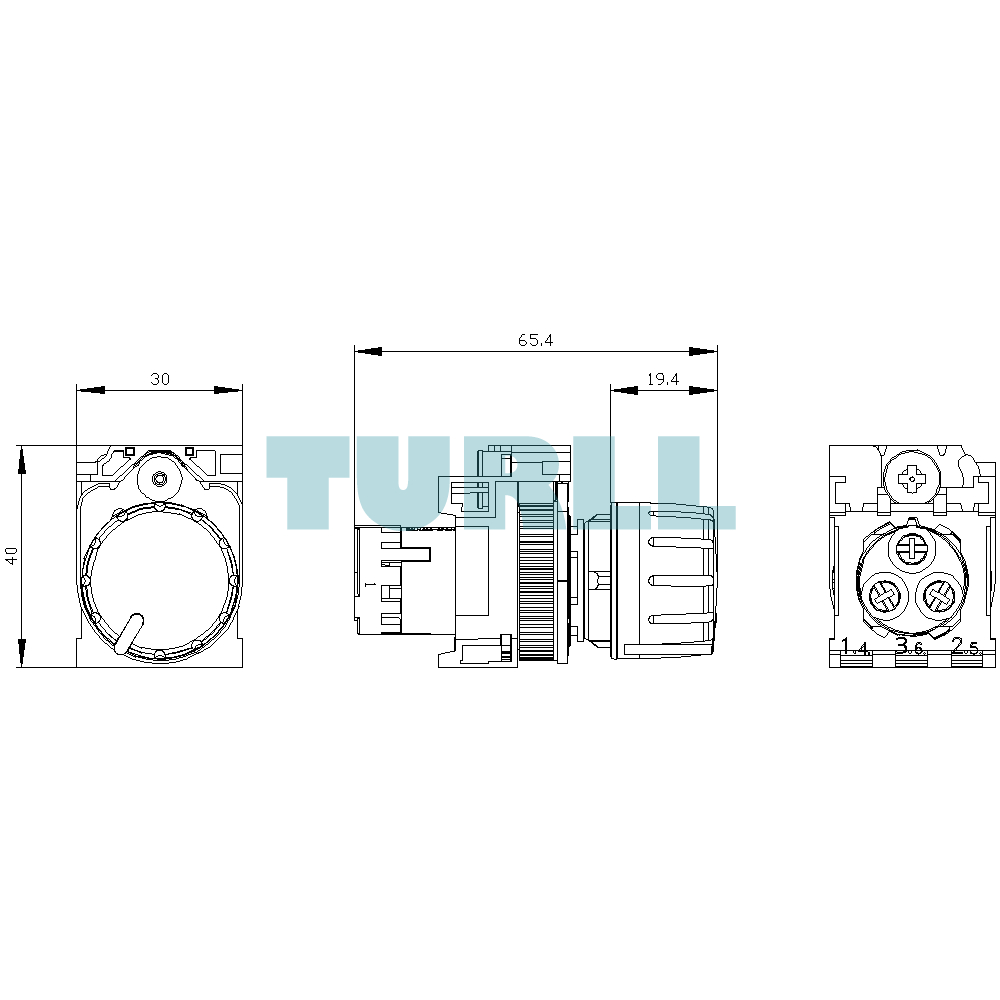

shape of the installation openinground
mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height19.4 mm
installation width30 mm
installation depth46 mm
last modified:10/1/2021
Weight0.104 kg
Dimensions111.00 × 89.00 × 47.00 mm
