Siemens 3SU1401-2BB20-1AA0 Red LED Module, 24V AC/DC, Screw Terminal, Floor Mounting Original Brand New
$7.15
SIRIUS ACT Red LED module (light block) with an integrated LED. It operates on 24V AC/DC and features secure screw terminals for base mounting. Essential for visual signaling in industrial control applications. Min. Order Quantity: 5 units.
Availability: In stock
Overview
The Siemens 3SU1401-2BB20-1AA0 is a compact, high-efficiency LED module designed for seamless integration into the SIRIUS ACT control and signaling device series. This essential electrical component provides a brilliant red light indication for pushbuttons and indicator lights, ensuring maximum visibility in industrial and outdoor environments. Engineered for reliability, this module features an integrated LED, operates on a versatile 24V AC/DC supply, and uses dependable screw terminals for electrical connection. It is specifically designed for floor/base mounting in control panels and enclosures.
Benefit
-
Integrated LED: Red 24 V AC/DC LED for clear and efficient signaling.
-
Easy Installation: Screw terminal ensures quick and secure connections.
-
Durable Design: Built for floor mounting in industrial environments.
-
Reliable Performance: High-quality Siemens component with long operational life.
-
Flexible Order Quantity: Minimum order of 5 units or multiples thereof, suitable for large projects.
Functions & Features
-
Type: LED module with integrated LED
-
Voltage: 24 V AC/DC
-
Color: Red
-
Connection: Screw terminal
-
Mounting: Floor mounting
-
Applications: Ideal for industrial automation, machinery signaling, and control panels.
-
Durability: Designed to withstand industrial environments.
Visit 3SU1401-2BB20-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.012 kg |
|---|---|

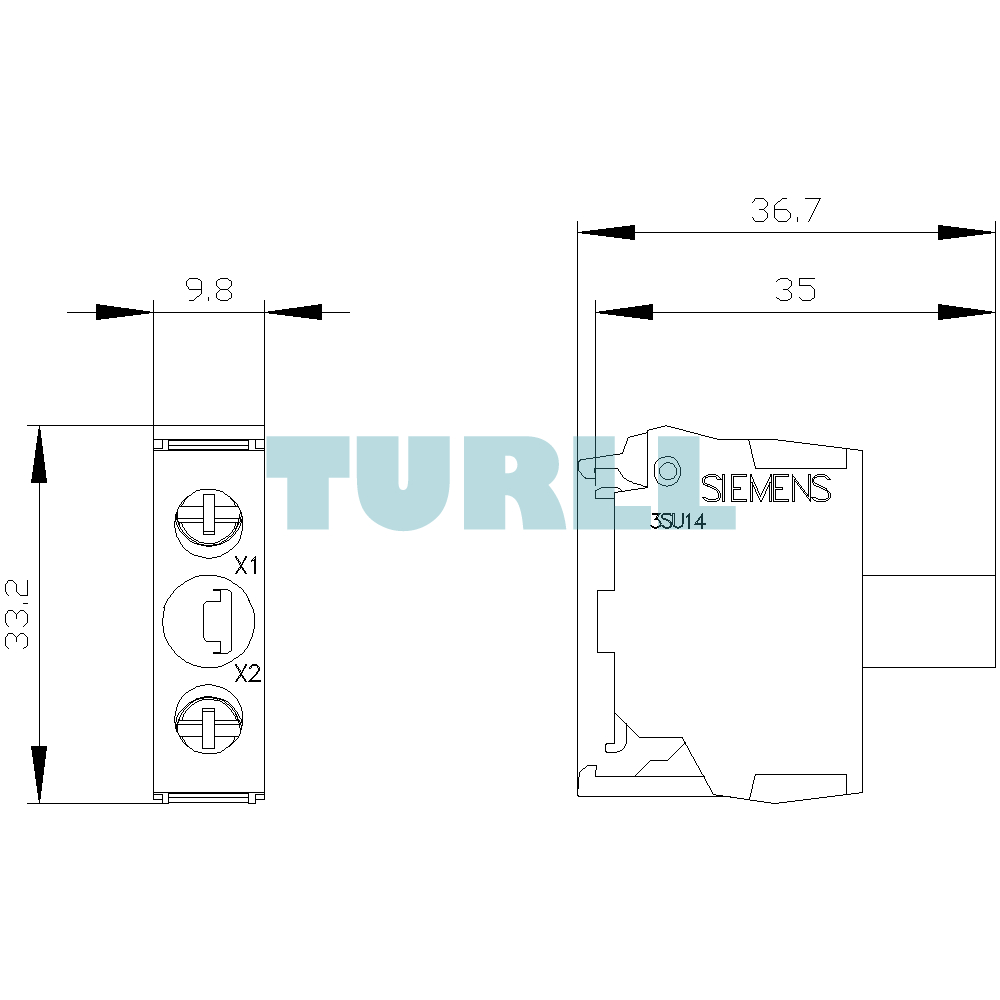

| Dimensions | 52.00 × 102.00 × 25.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | red |
| light intensity | 450 … 1 120 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
