High-efficiency Siemens SIRIUS ACT LED Module with integrated white LED. Operates on 24 V AC/DC supply and features reliable spring-loaded terminals for secure connection. Designed for floor/base mounting in industrial control enclosures. Minimum order quantity 5 or a multiple thereof.

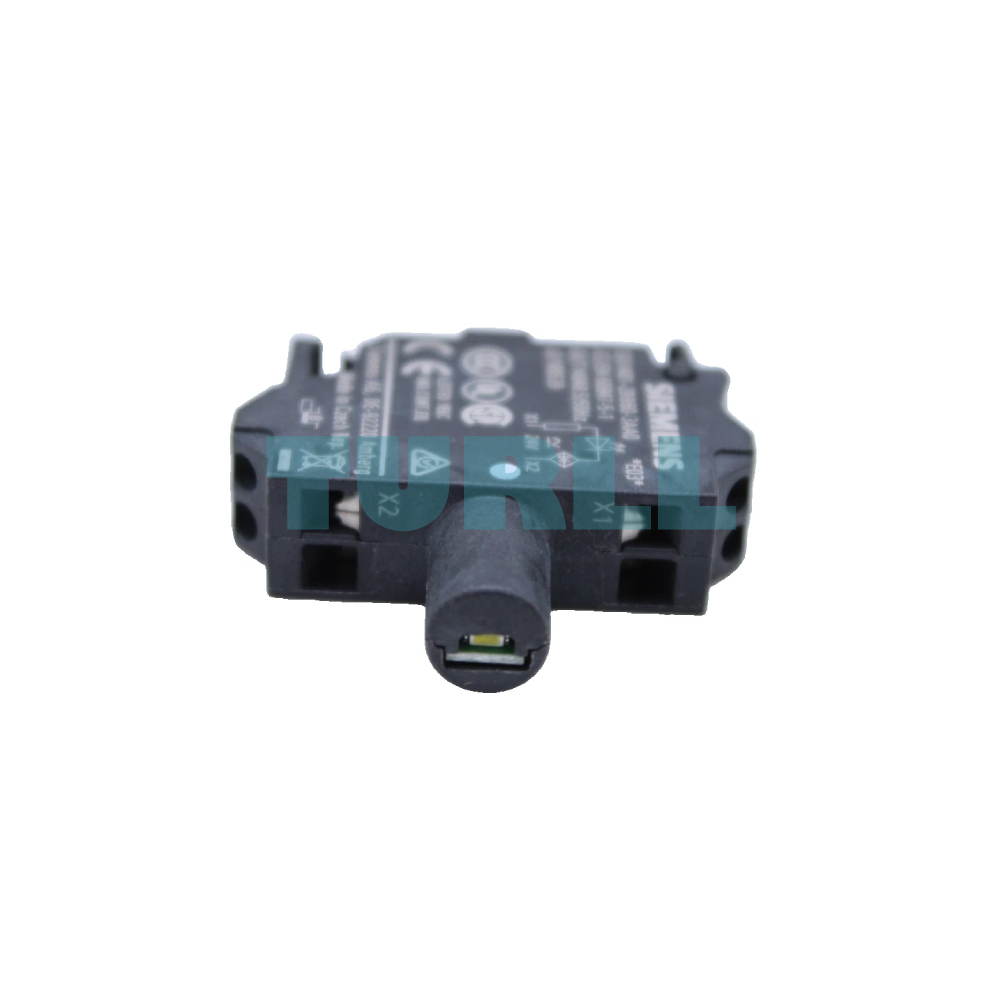

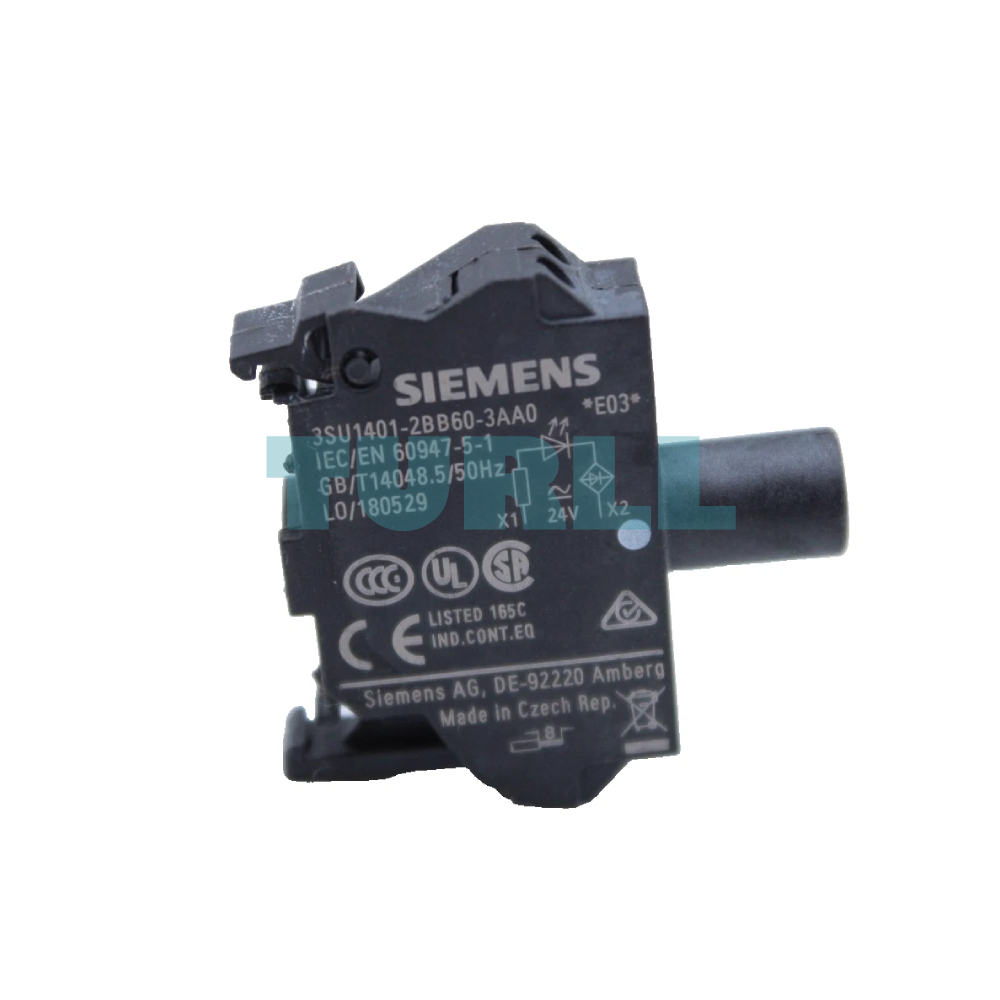

The Siemens 3SU1401-2BB60-3AA0 is a high-performance LED module from the SIRIUS ACT control and signalling device portfolio. Engineered for reliability and high visibility, this component features an integrated white LED and is designed for floor mounting (or base mounting) in industrial enclosures. It operates efficiently on a versatile 24 V AC/DC supply voltage and utilizes quick, secure spring-loaded terminals (also known as spring-type or cage clamp connections) for wiring. It is the essential illumination unit for use with SIRIUS ACT pushbuttons and indicator lights.
Integrated LED 24 V AC/DC: Provides bright, reliable illumination with low energy consumption.
White LED: Offers clear visibility for industrial applications.
Spring-Loaded Terminal: Ensures quick and secure electrical connections without tools.
Floor Mounting Design: Enables flexible installation in industrial environments.
Durable Build: Designed for long-lasting performance in demanding conditions.
Minimum Order Quantity: 5 units or multiples, making bulk orders simple.
Energy Efficiency: Reduces power consumption while maintaining bright illumination.
Easy Installation: Spring-loaded terminals save time and reduce wiring errors.
Versatility: Floor mounting allows for flexible positioning in panels or systems.
Reliable Performance: Siemens quality ensures long operational life.
Cost-Effective Bulk Orders: Purchase in multiples of 5 for large projects.
Visit 3SU1401-2BB60-3AA0 for more detail info
For more our products visit turll
| SKU / Model | 3SU1401-2BB60-3AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | - |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| ● for actuation | AC/DC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 25 mA |
| protection class IP | - |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | - |
| ● at AC | - |
| — at 50 Hz rated value | 24 V |
| — at 60 Hz rated value | 24 V |
| ● at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 2 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | - |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● at AWG cables | 2x (24 ... 16) |
| type of light source | LED |
| color of the light source | white |
| light intensity | 900 ... 1 400 mcd |
| certificate of suitability | - |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted) |
| fastening method | - |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
| Weight | 0.010 kg |

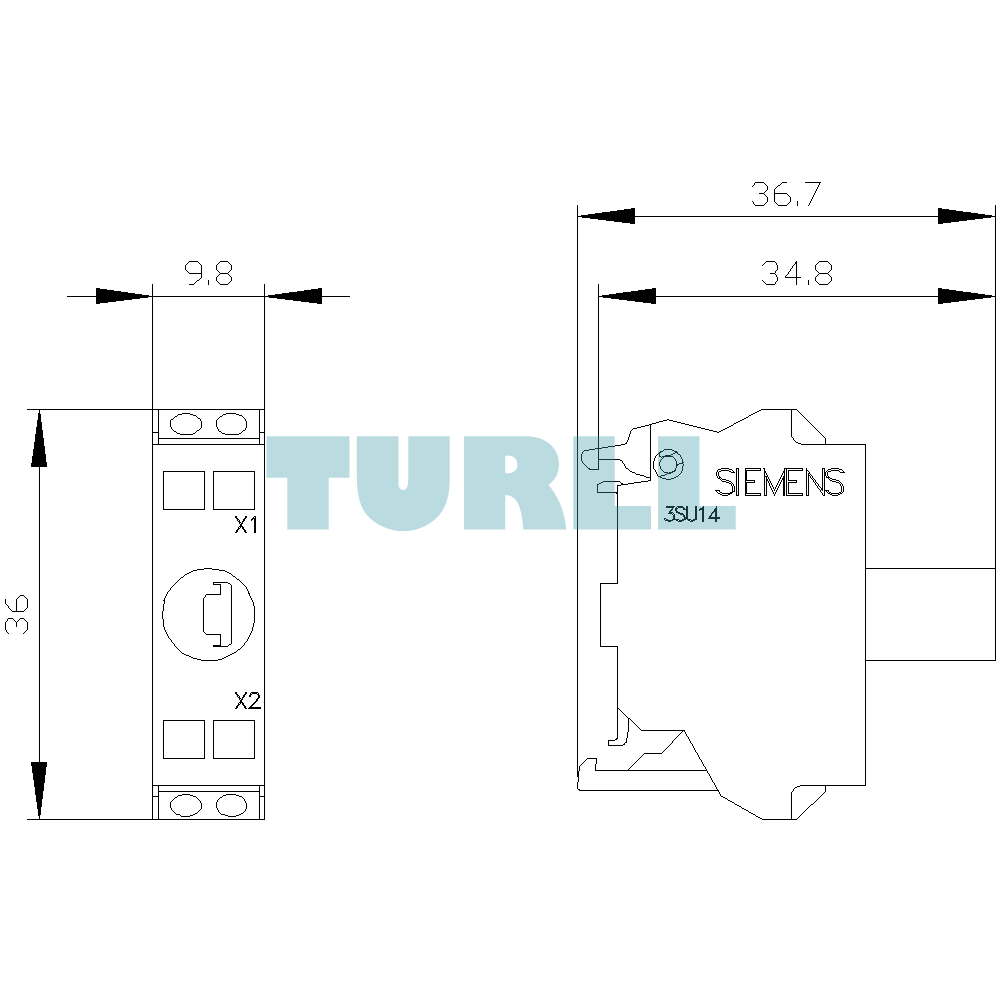

| Dimensions | 103.00 × 56.00 × 20.00 mm |
