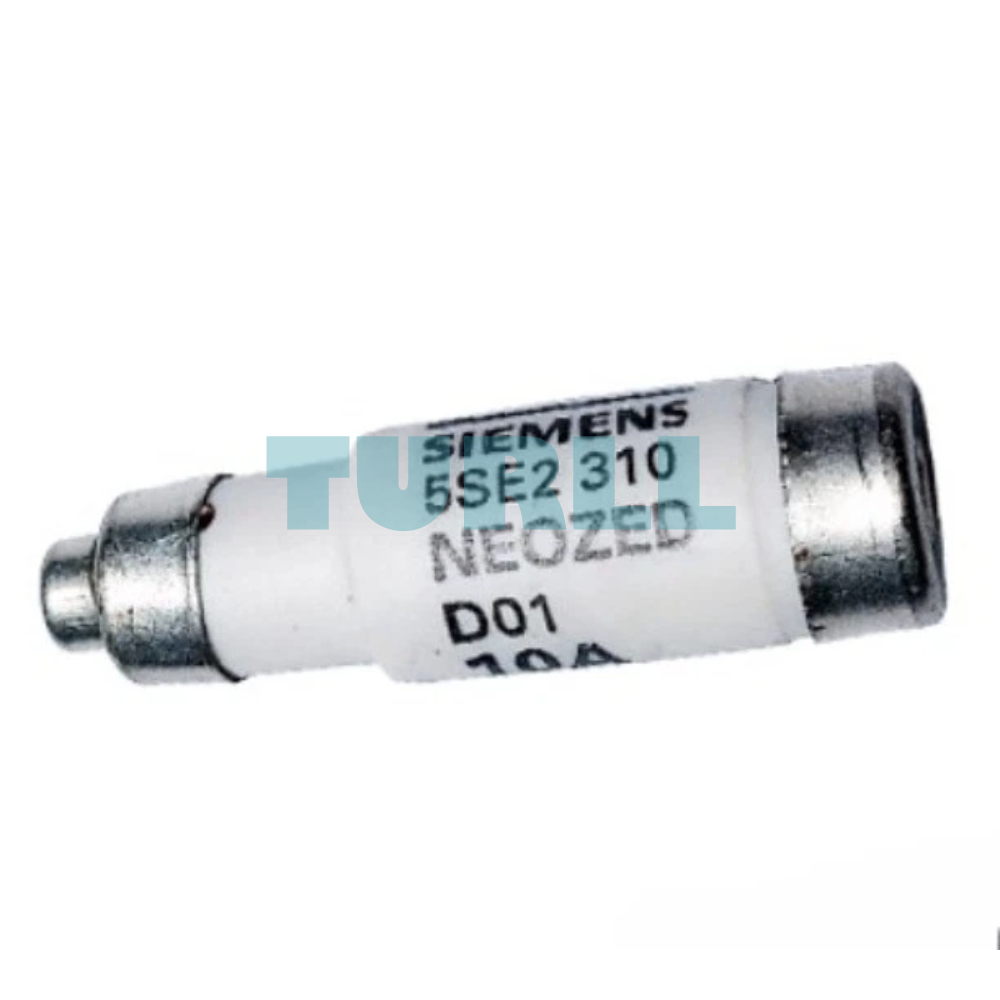

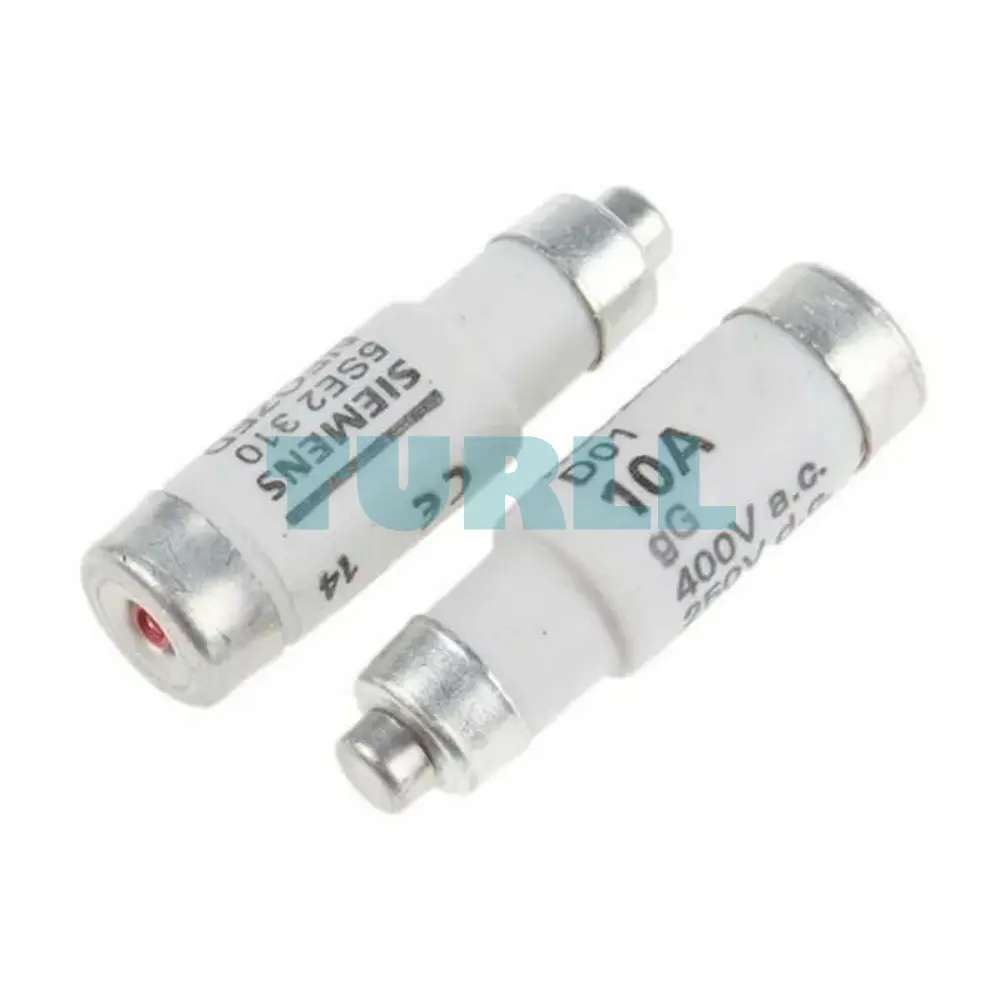

Siemens 5SE2310 NEOZED Fuse-link, Size D01, 10A, gG Class, 400V AC Original Brand New
$2.76
High-quality NEOZED fuse-link designed for space-saving circuit protection. This D01 size fuse features a 10A current rating and a gG operating class, making it ideal for general-purpose cable and line protection in both AC and DC environments.
Availability: In stock
Overview
The Siemens 5SE2310 NEOZED system is primarily used in distribution boards and industrial control systems. Unlike older bottle fuses, the NEOZED design is significantly more compact, allowing for higher-density installations. The 5SE2310 model is equipped with tin-coated contact caps, which ensure superior conductivity and long-term resistance against corrosion and oxidation.
Key Benefit
-
Compact Design: The D01 size allows for a smaller footprint in switchgear and distribution boards.
-
Enhanced Reliability: Tin-coated contact caps provide excellent electrical contact and prevent aging of the contact points.
-
Versatile Application: Rated for both 400V AC and 250V DC, making it suitable for a wide range of industrial power requirements.
-
Easy Identification: Color-coded indicators allow for quick visual inspection of the fuse status.
-
Low Power Loss: Engineered by Siemens to ensure minimal heat dissipation during operation.
Features
-
Type: NEOZED fuse-link
-
Size: D01
-
Current Rating: 10 A
-
Fuse Characteristic: gG (general purpose)
-
Voltage Rating: AC: 400 V, DC: 250 V
-
Tin-coated contact caps for corrosion resistance
-
High reliability and long lifespan
-
Compliant with international safety standards
Application / Function
-
Industrial control panels
-
Electrical distribution systems
-
Motor protection circuits
-
Renewable energy systems (DC applications)
-
Residential and commercial circuit protection
Visit 5SE2310 for more detail info
For more our products visit turll
Download
| Weight | 0.007 kg |
|---|---|

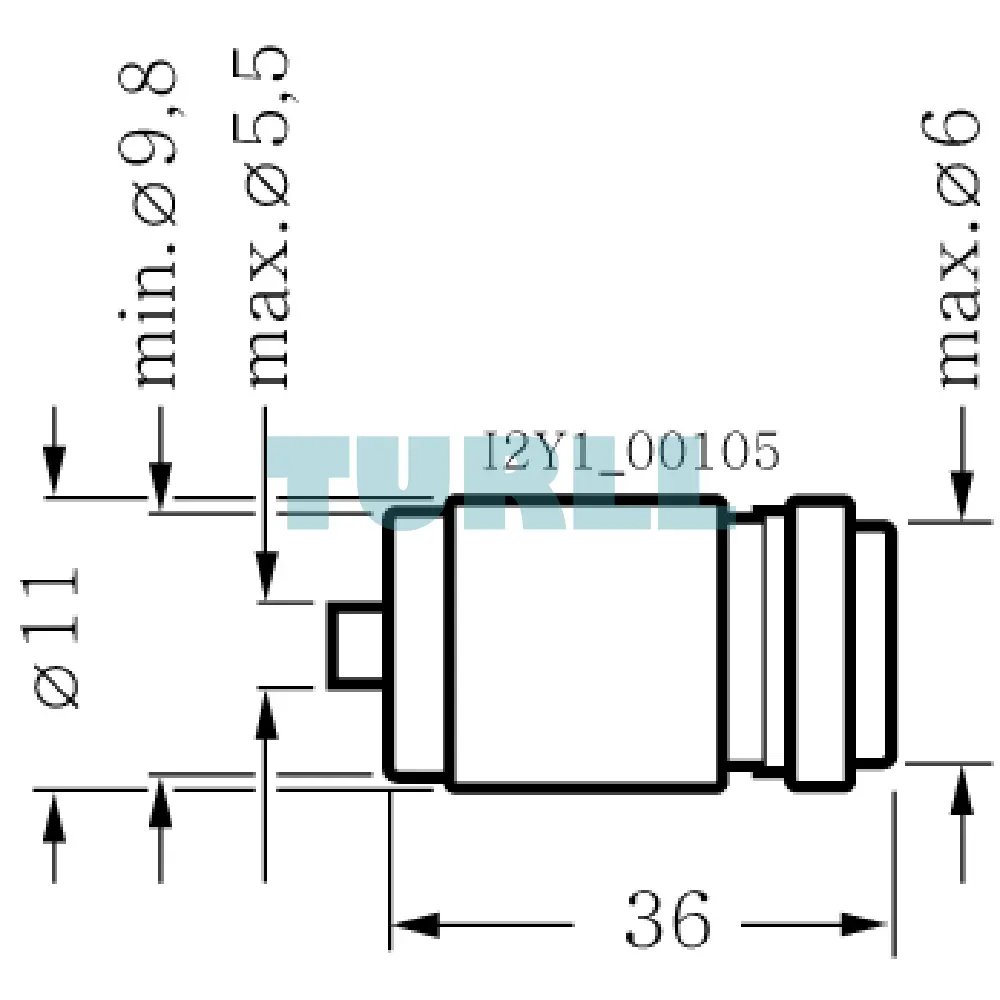

| Dimensions | 23.00 × 57.00 × 39.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | NEOZED fuse link |
| design of the product | With tin-coated contact caps |

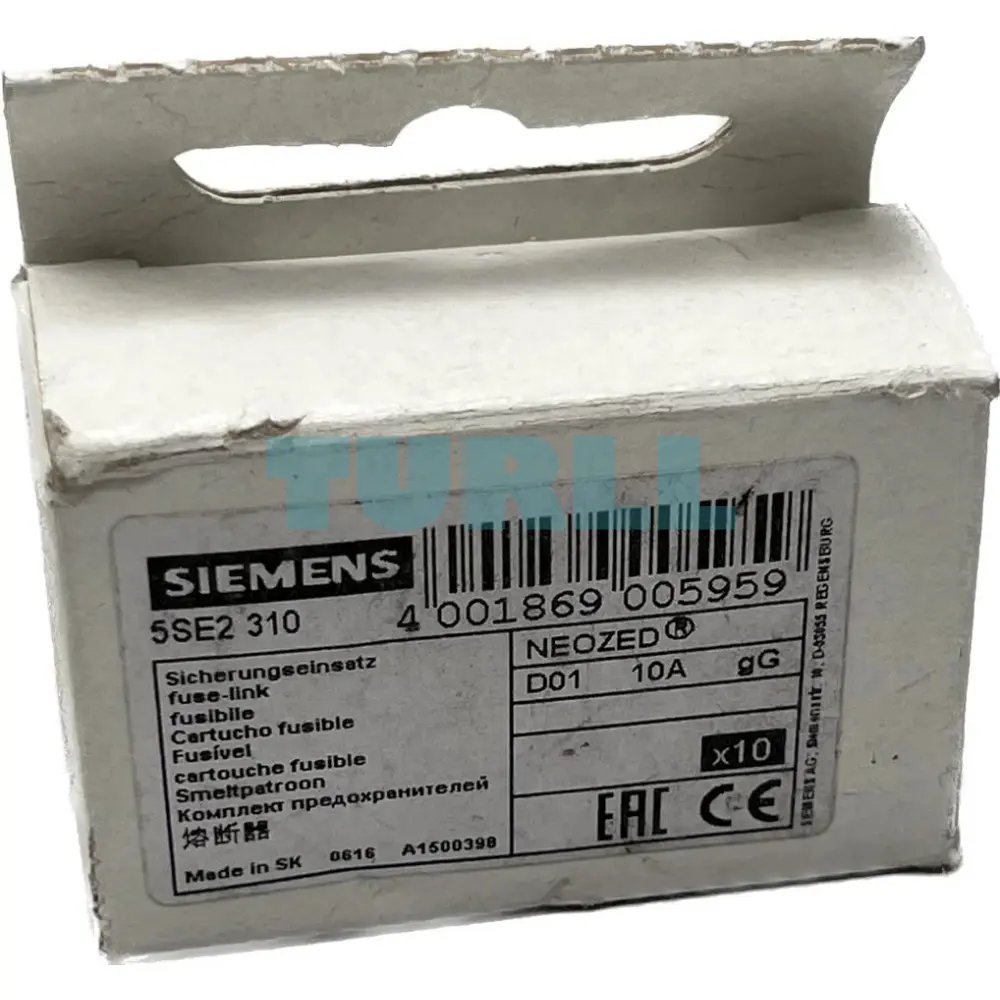

| product variations | Pack of 10 |
| design of the fuse link | NEOZED fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | D01 |
| operating class of the fuse link | gG |
| supply voltage | – |
| ● at DC | 250 V |
| operating voltage / rated value | 400 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current / acc. to IEC 60947-2 / rated value | 50 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1 W |
| operational current | – |
| ● at 30 °C / rated value | 9.8 A |
| ● at 40 °C / rated value | 9.5 A |
| ● at 45 °C / rated value | 9.2 A |
| ● at 50 °C / rated value | 9 A |
| ● at 55 °C / rated value | 8.8 A |
| ● at 60 °C / rated value | 8.6 A |
| ● at AC / rated value | 10 A |
| operational current / rated value | 10 A |
| color coding of the fuse link | Red |
| breaking capacity maximum short-circuit current (Icu) / at AC / rated value | 50 kA |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | 40 °C |
| ● maximum | 40 °C |
| environmental category | Up to 45°C at 95 % rel. humidity |
| Test Certificates | other |
