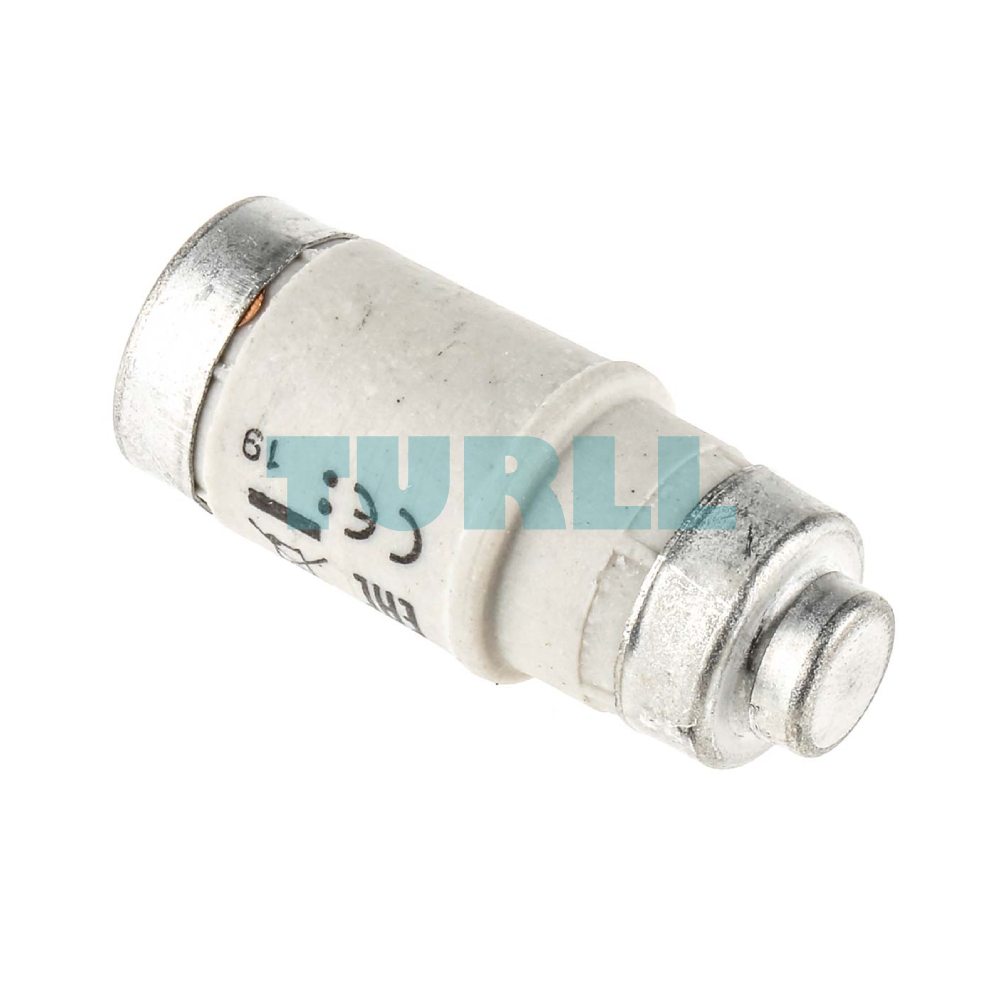

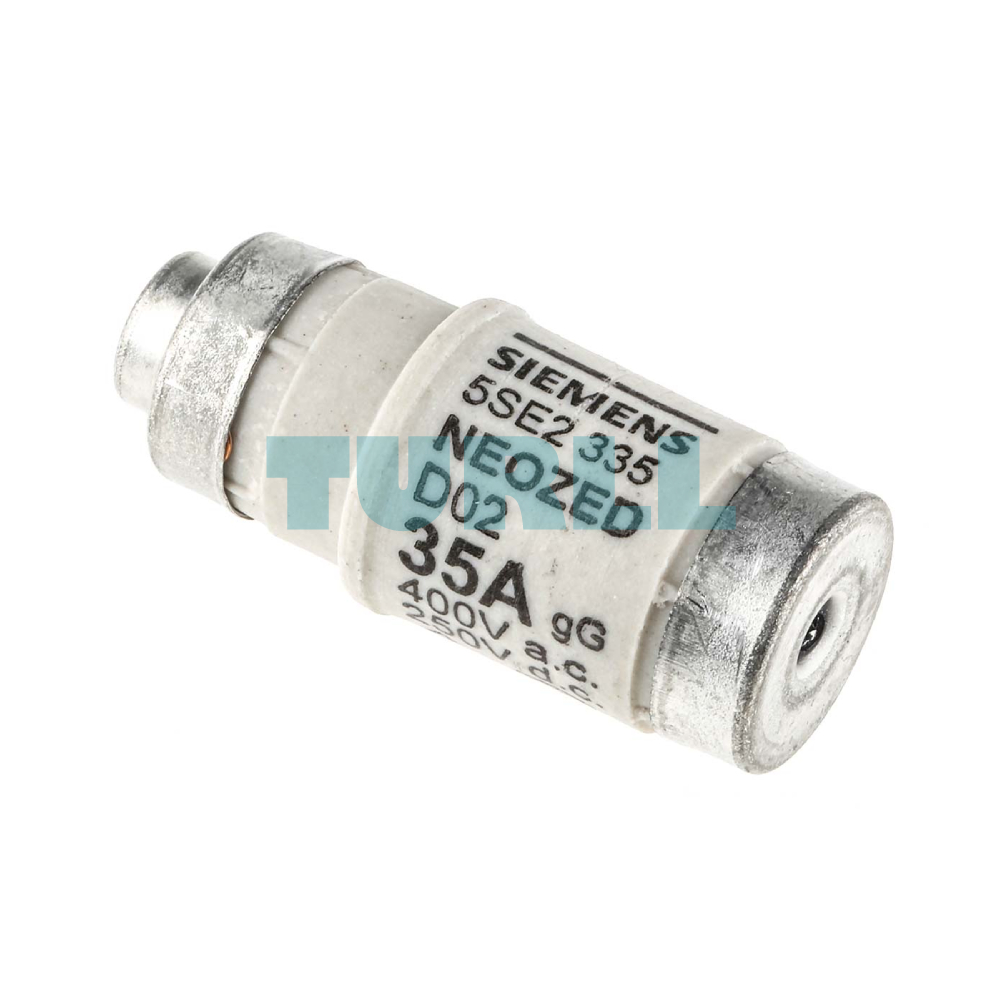

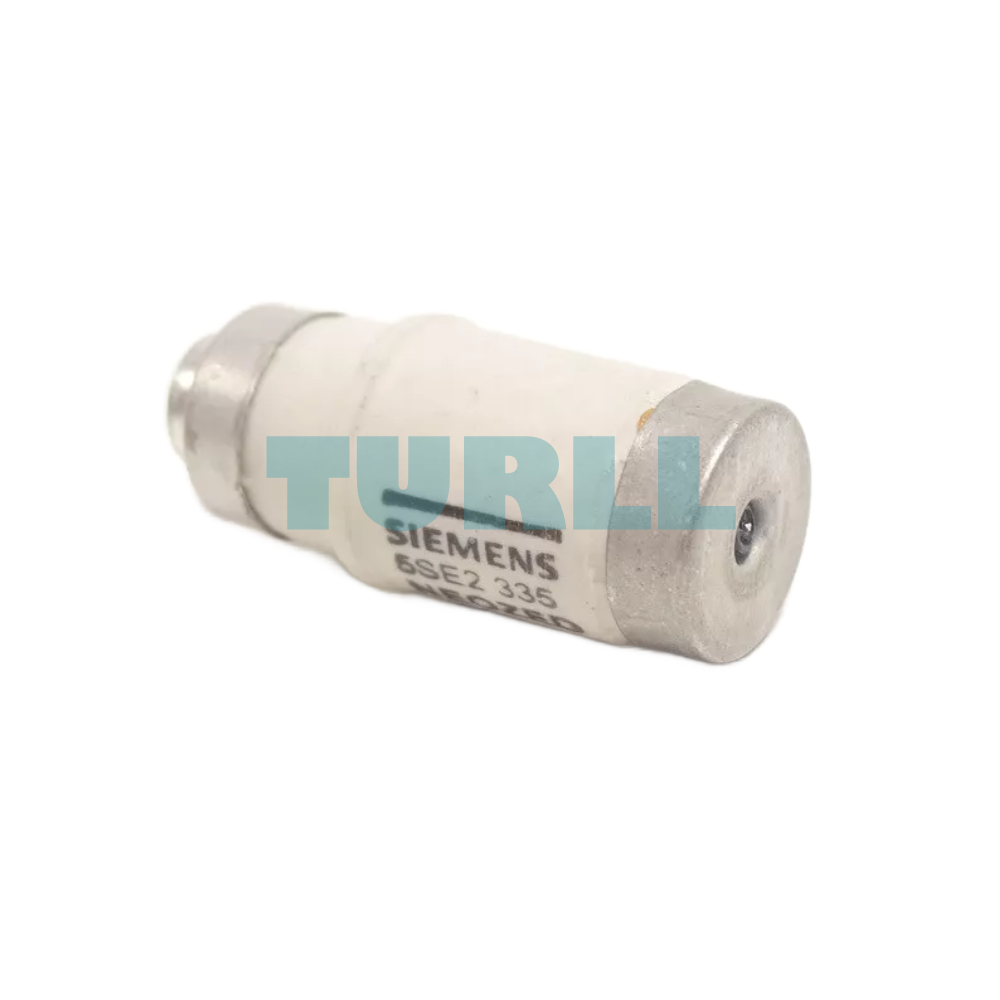

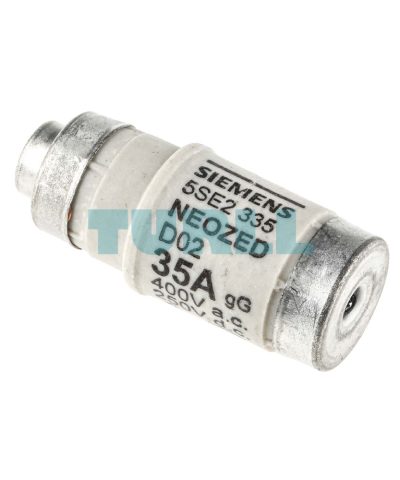

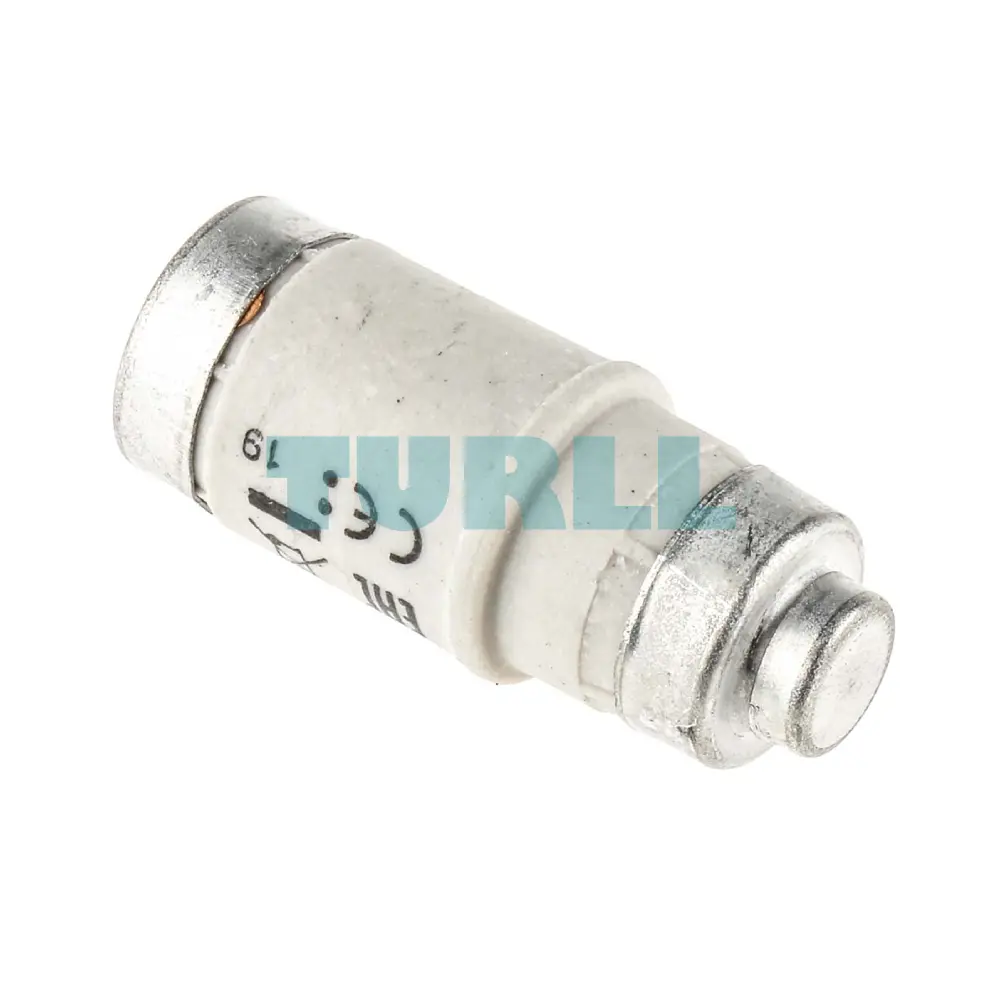

Siemens 5SE2335 NEOZED Fuse-Link, Size D02, 35A, gG, 400V AC / 250V DC Original Brand New
$4.08
High-performance NEOZED fuse-link designed for superior line protection. Featuring a 35A current rating and size D02 compatibility, this gG-class fuse ensures reliable operation in both AC (400V) and DC (250V) environments. Its tin-coated contact caps offer enhanced conductivity and corrosion resistance.
Availability: In stock
Overview
The Siemens 5SE2335 belongs to the world-renowned NEOZED family of circuit protection components. Specifically engineered for space-saving distribution boards, the D02 size provides a compact footprint without compromising on breaking capacity. As a gG characteristic fuse, it is optimized for general-purpose applications, protecting cables and power lines against both overload and short circuits.
Benefit
-
Enhanced Durability: Equipped with tin-coated contact caps to prevent oxidation and ensure a stable electrical connection over time.
-
Versatile Application: Rated for use in both alternating current (up to 400V) and direct current (up to 250V) systems.
-
Efficient Heat Dissipation: Designed to minimize power loss, reducing heat buildup within the switchboard.
-
Global Standards: Manufactured by Siemens, ensuring compliance with international safety and performance regulations.
Technical Function & Features
-
Operational Class: gG (General purpose, full-range breaking capacity).
-
Size: D02 (Standardized NEOZED dimensions).
-
Rated Current: 35 Amperes.
-
Voltage Ratings: 400V AC / 250V DC.
-
Contact Material: High-grade tin-coated caps for low contact resistance.
-
Mounting: Compatible with standard NEOZED fuse bases and screw caps.
Visit 5SE2335 for more detail info
For more our products visit turll
Download
| Weight | 0.014 kg |
|---|---|

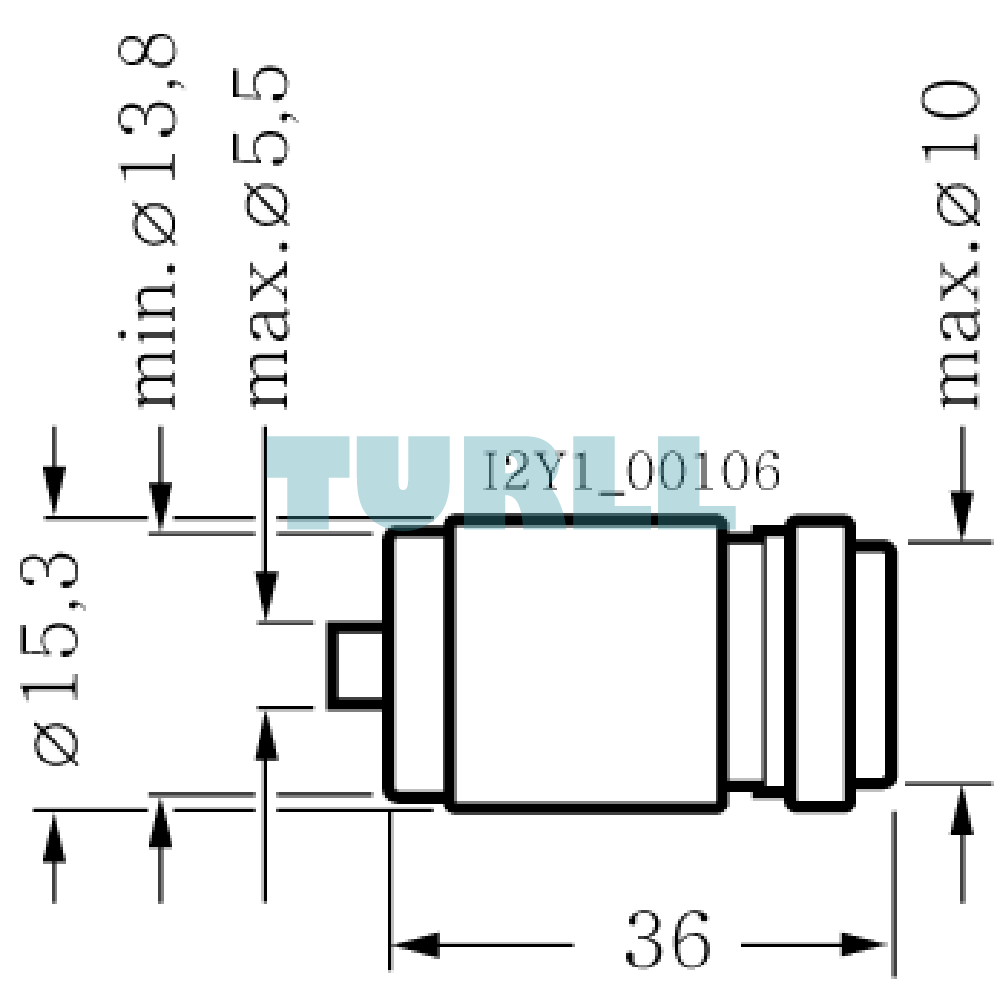

| Dimensions | 32.00 × 81.00 × 38.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | NEOZED fuse link |
| design of the product | With tin-coated contact caps |
| product variations | Pack of 10 |
| design of the fuse link | NEOZED fuse link |
| size of fuse system / acc. to DIN EN 60269-1 | D02 |
| operating class of the fuse link | gG |
| supply voltage | – |
| ● at DC | 250 V |
| operating voltage / rated value | 400 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current / acc. to IEC 60947-2 / rated value | 50 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 2.4 W |
| operational current | – |
| ● at 30 °C / rated value | 34.3 A |
| ● at 40 °C / rated value | 33.25 A |
| ● at 45 °C / rated value | 32.2 A |
| ● at 50 °C / rated value | 31.5 A |
| ● at 55 °C / rated value | 30.8 A |
| ● at 60 °C / rated value | 30.1 A |
| ● at AC / rated value | 35 A |
| operational current / rated value | 35 A |
| color coding of the fuse link | Black |
| breaking capacity maximum short-circuit current (Icu) / at AC / rated value | 50 kA |
| mounting position | Any, preferably vertical |
| ambient temperature / during operation | – |
| ● minimum | 40 °C |
| ● maximum | 40 °C |
| environmental category | Up to 45°C at 95 % rel. humidity |
| Test Certificates | other |
