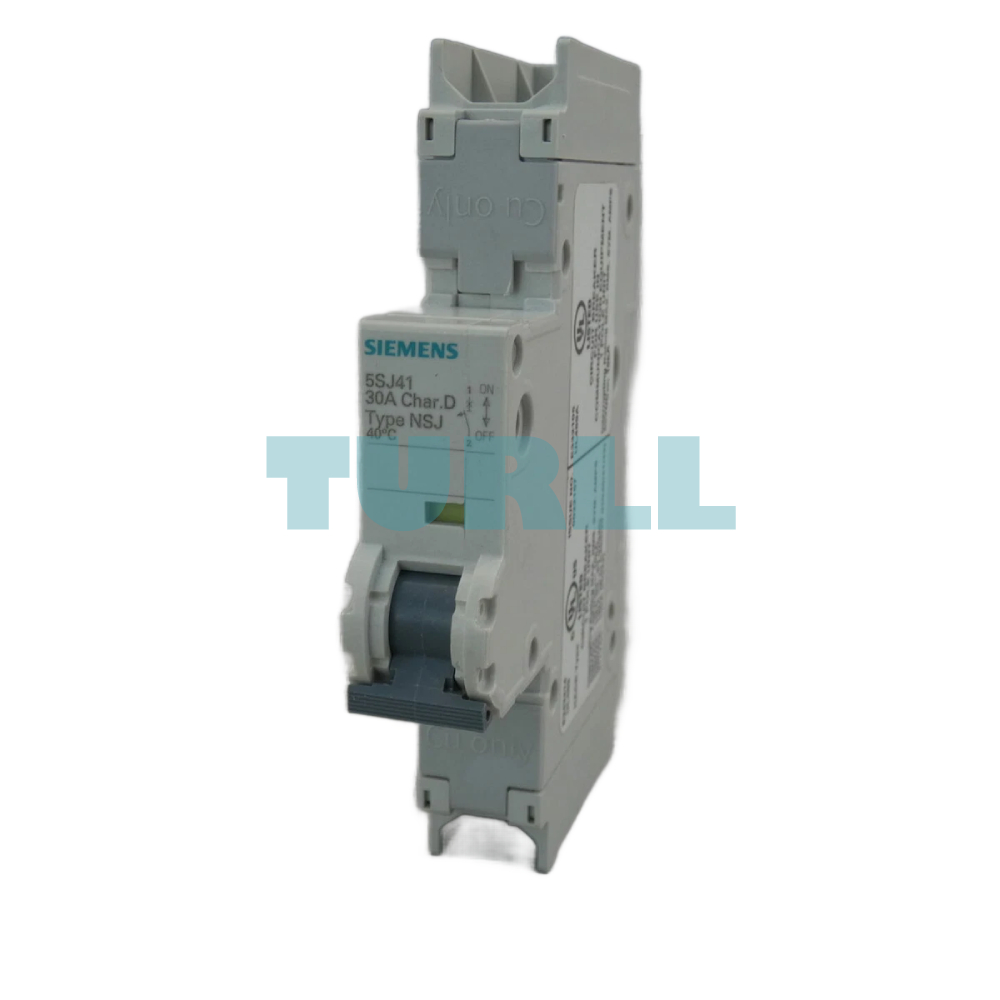

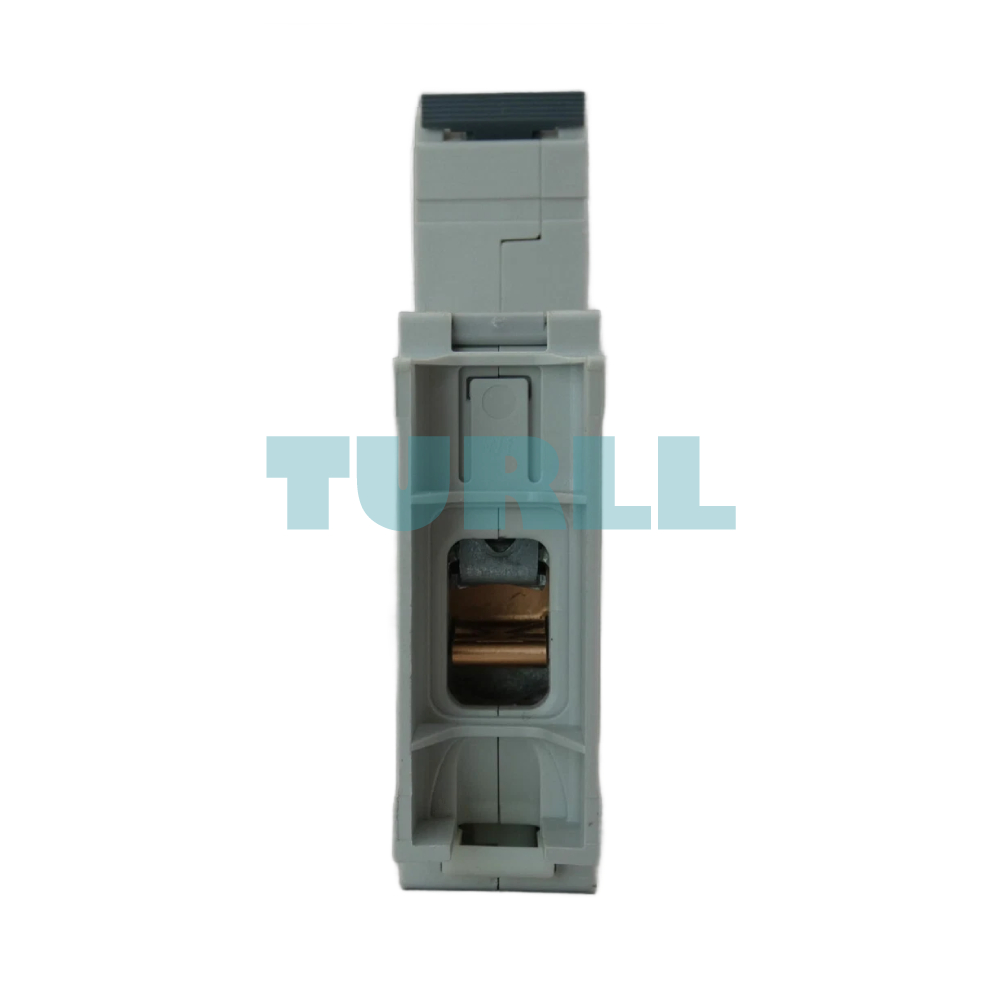

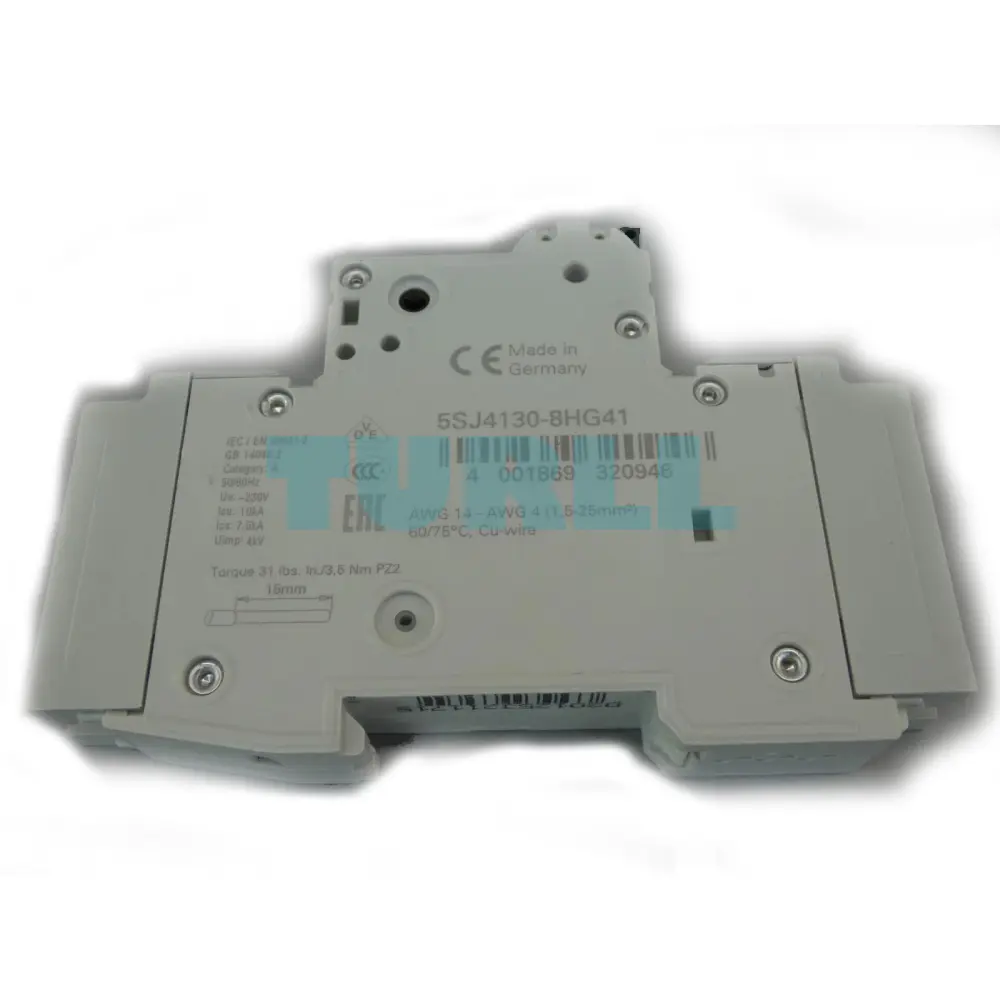

Siemens 5SJ4130-8HG41 Miniature Circuit Breaker 1-Pole, 30A, Class D, UL 489 Original Brand New
$48.44
High-performance 1-pole miniature circuit breaker (MCB) rated for 30A and 240V. Designed according to UL 489 standards, this Class D MCB provides superior protection for inductive loads and industrial applications with a 10kA breaking capacity.
Availability: In stock
Overview
The Siemens Sentron 5SJ4 series is engineered for demanding environments where UL 489 branch circuit protection is required. The 5SJ4130-8HG41 model features a Type D trip characteristic, making it ideal for circuits with high inrush currents, such as motors, transformers, and solenoid valves. With a compact 70mm mounting depth, it integrates seamlessly into standard industrial control panels.
Function
-
Branch Circuit Protection: Tested and certified according to UL 489 for use in branch circuits.
-
High Inrush Handling: The Class D tripping curve prevents nuisance tripping during high-current startup phases.
-
Enhanced Safety: Provides reliable thermal-magnetic protection against overloads and short circuits.
Key Benefit
-
Space-Saving Design: Standardized dimensions (D=70mm) allow for easy installation in compact enclosures.
-

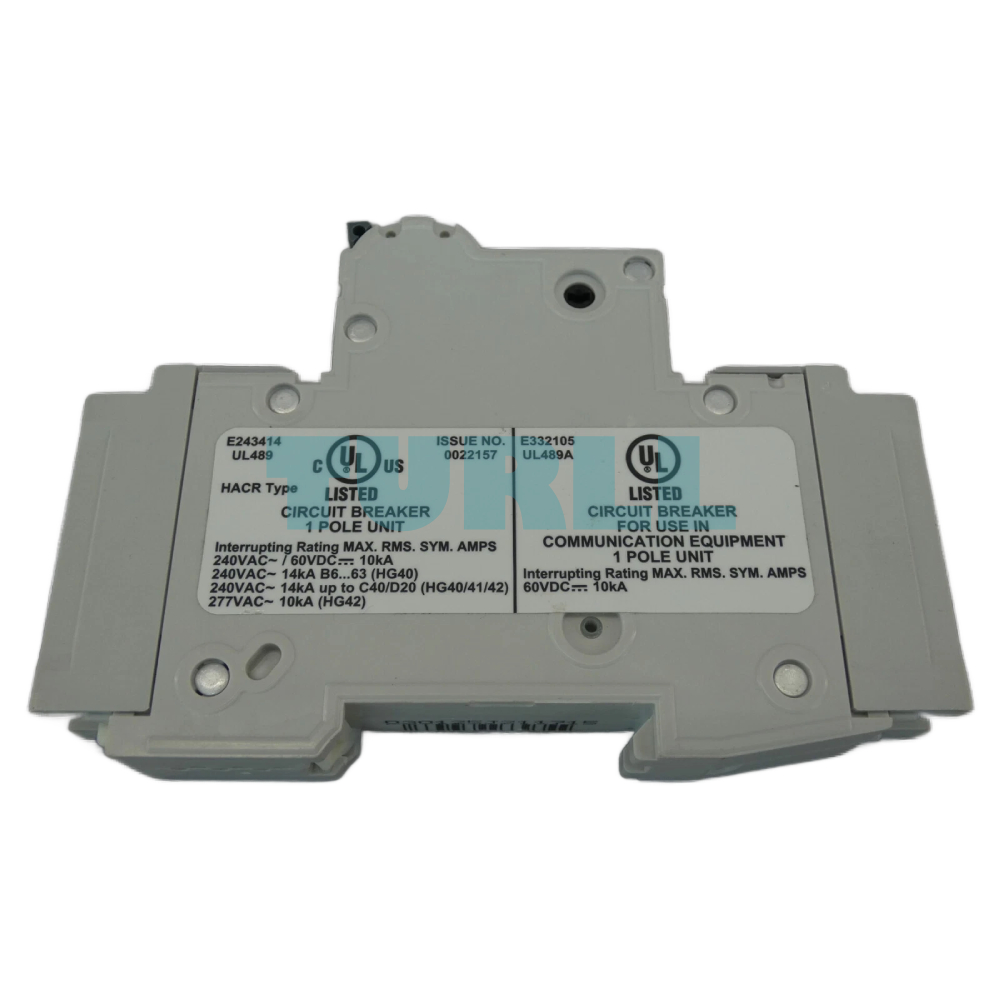

Global Compliance: Meets UL 489 and CSA C22.2 standards, allowing for worldwide application in industrial machinery.
-
Durability: Built with Siemens’ renowned engineering quality to ensure a long operational lifespan under heavy electrical loads.
-
Easy Identification: Clear front-face markings for technical specs and part identification.
Visit 5SJ4130-8HG41 for more detail info
For more our products visit turll
Download
| Weight | 0.176 kg |
|---|---|

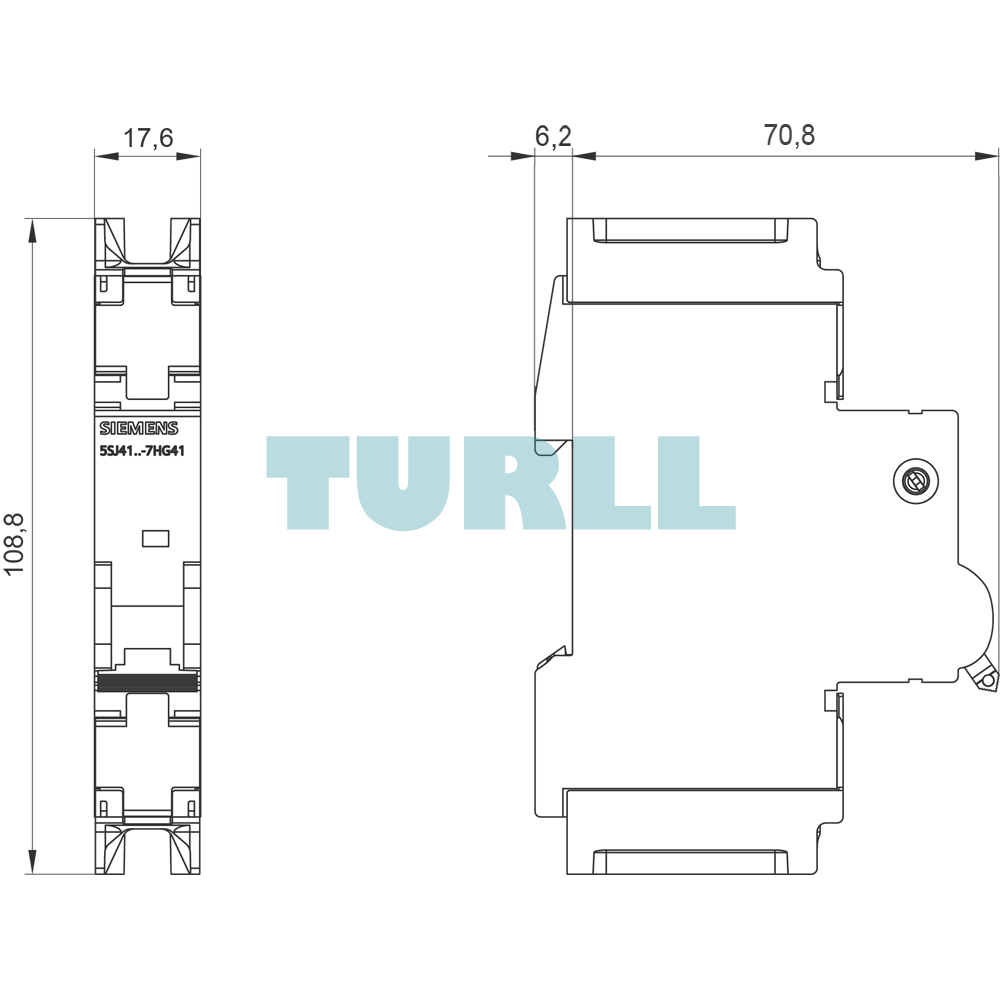

| Dimensions | 23.00 × 114.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
| number of poles | 1 |
| tripping characteristic class | D |
| mechanical service life (switching cycles) / typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC/DC |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| supply voltage / at AC / rated value | 400 V |
| operating voltage | – |
| ● at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 240 V |
| ● at DC / rated value / maximum | 60 V |
| ● at DC / single channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 60 V |
| ● at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum | 125 V |
| protection class IP | IP20, with connected conductors, IP 40 in the handle range |
| switching capacity current | – |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3.2 W |
| operational current | – |
| ● at 30 °C / rated value | 30 A |
| ● at 40 °C / rated value | 30 A |
| ● at 45 °C / rated value | 29.1 A |
| ● at 50 °C / rated value | 28.2 A |
| ● at 55 °C / rated value | 27.2 A |
| ● at 60 °C / rated value | 26.4 A |
| ● at AC / rated value | 30 A |
| type of voltage supply / at AC / acc. to UL 489 and CSA C22.2 No. 5-02 | 240 |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● tunnel terminals top | No |
| ● tunnel terminals bottom | No |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |

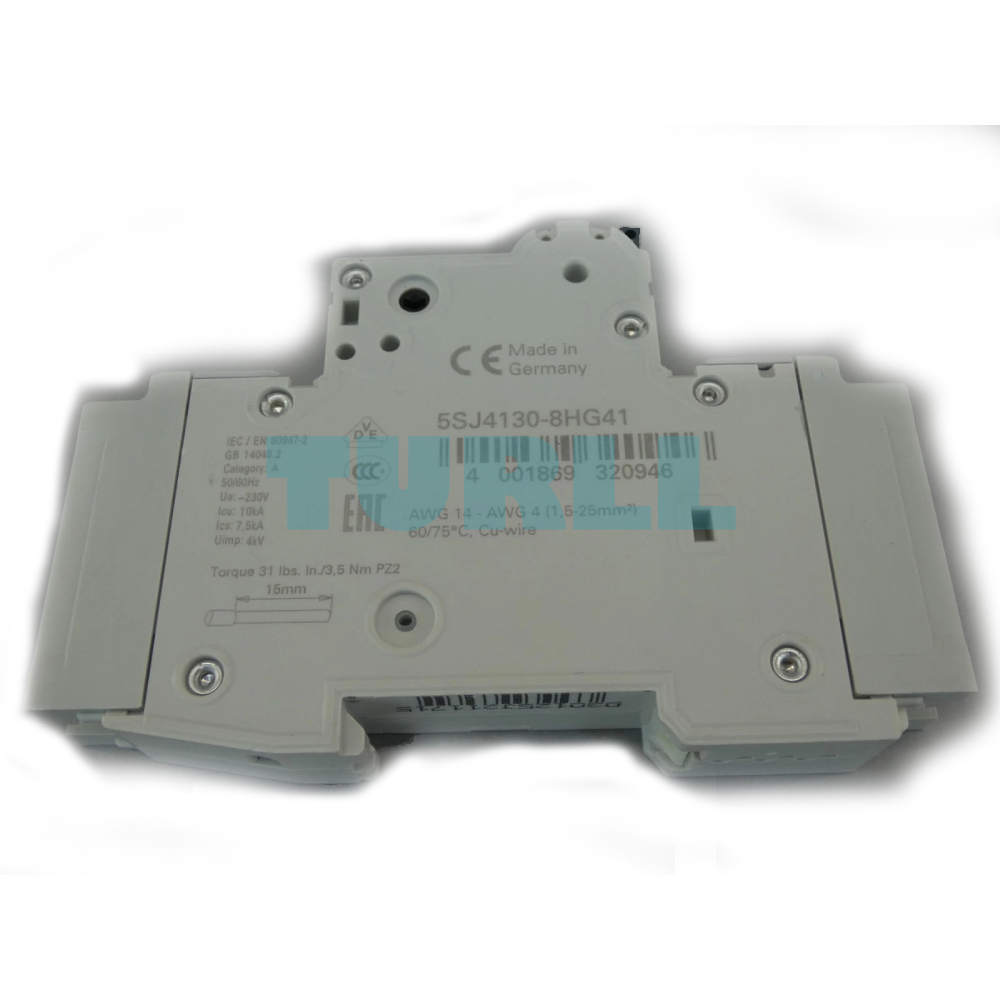

| product function / note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
| breaking capacity short-circuit current (Icn) / at AC / acc. to UL 1077 and CSA C22.2 No.235 | 10 kA |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| tightening torque / with screw-type terminals / maximum | 3.5 N·m |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Test Certificates | other |
| Special Test Certificate | Miscellaneous |
