Siemens 5ST3710-0HG Pin Busbar 3-Phase, 18mm², 1016mm, UL 508 Rated Original Brand New

Overview

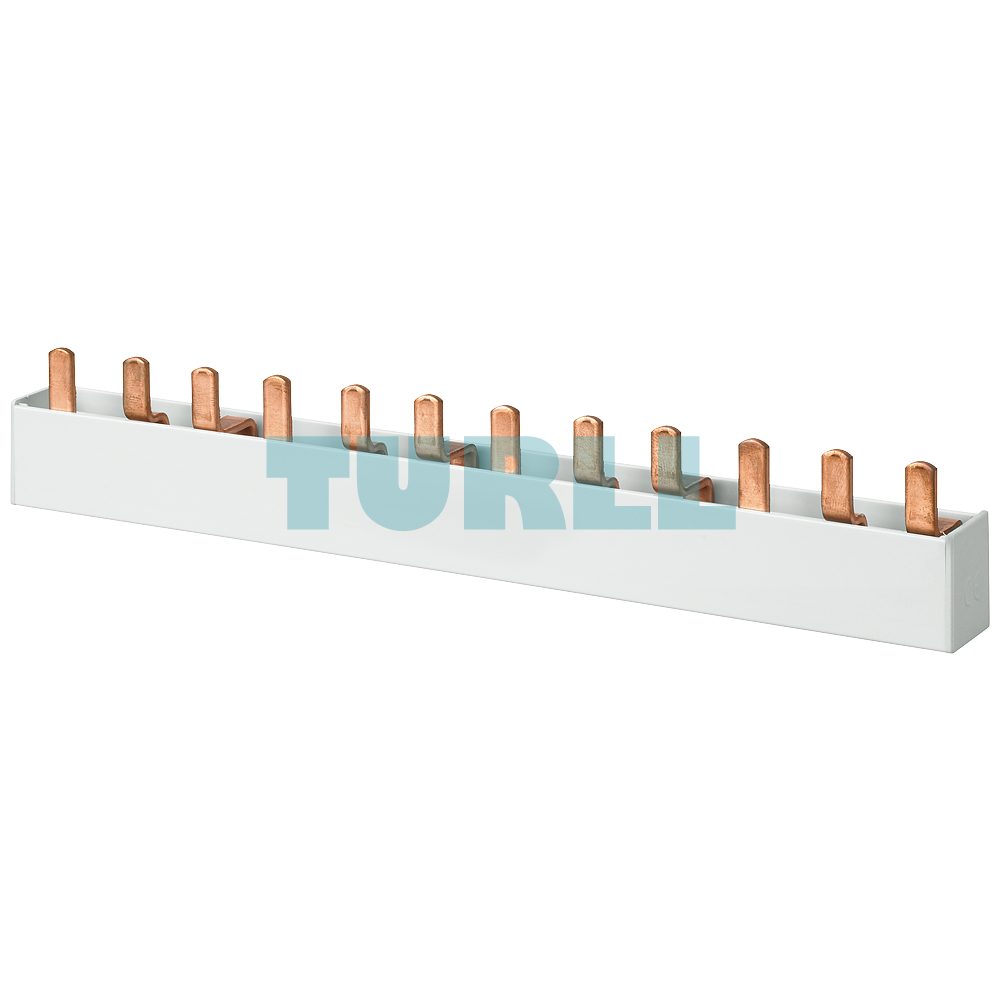

The Siemens 5ST3710-0HG is a high-performance 3-phase pin busbar designed for efficient and safe power distribution in electrical panels. Measuring 1016mm in length with an 18mm² cross-section, this busbar is engineered for durability and high conductivity. It is specifically designed to meet UL 508 standards, making it an ideal choice for North American industrial control equipment and global applications requiring rigorous safety certifications.

Key Benefit

• Enhanced Safety: The touch-safe design prevents accidental contact with live parts, increasing workplace safety.

• Space Efficient: Compact pin-style construction allows for neat and organized wiring within distribution boards.

• Certified Reliability: Fully compliant with UL 508, ensuring the product meets strict quality and safety benchmarks for industrial use.

• High Conductivity: The 18mm² copper cross-section ensures minimal power loss and stable performance under load.

Function & Specification

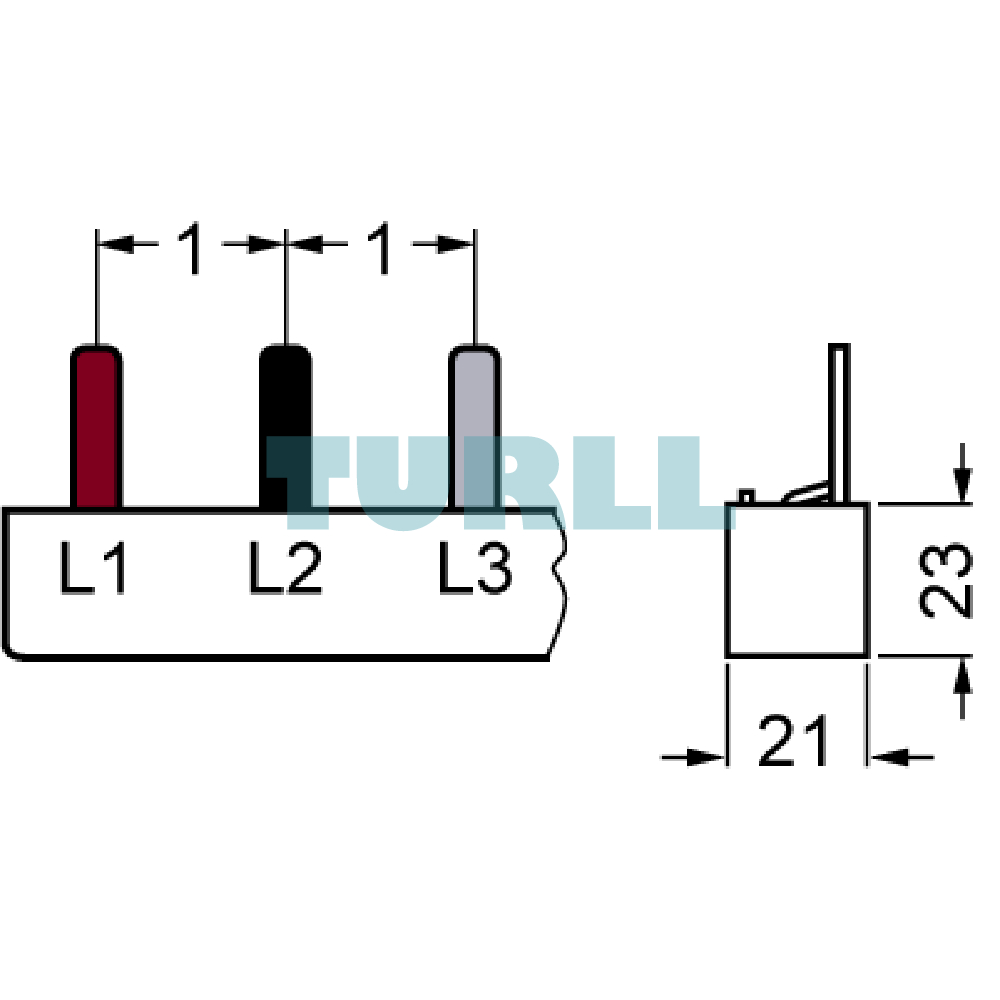

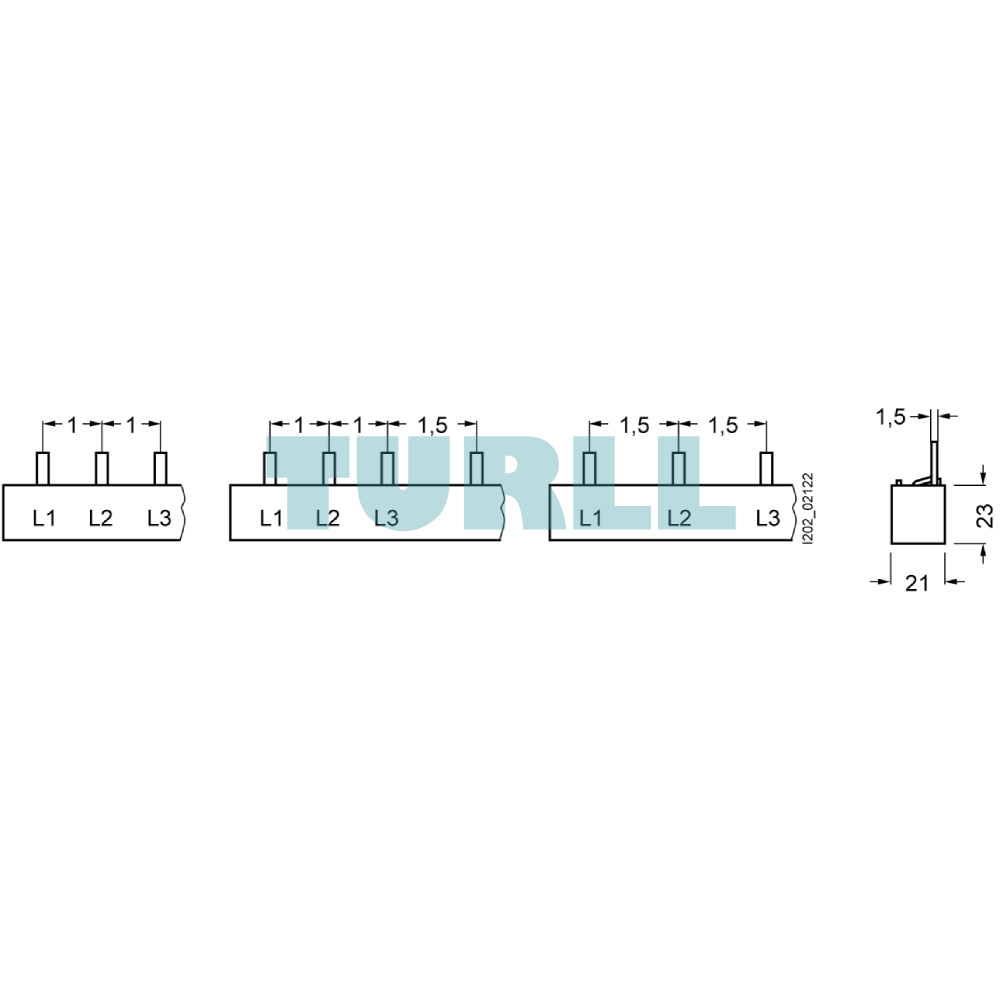

• Phase: 3-Phase (L1, L2, L3 distribution).

• Length: 1016 mm (can be cut to size if required).

• Cross-section: 18 mm².

• Connection Type: Pin-type busbar.

• Safety Feature: Touch-safe (IP20 protection when properly installed).

• Standards: According to UL 508 (Industrial Control Equipment).

• Note: Supplied without end caps (recommended to add 5ST3748 or equivalent for full insulation).
