SIEMENS

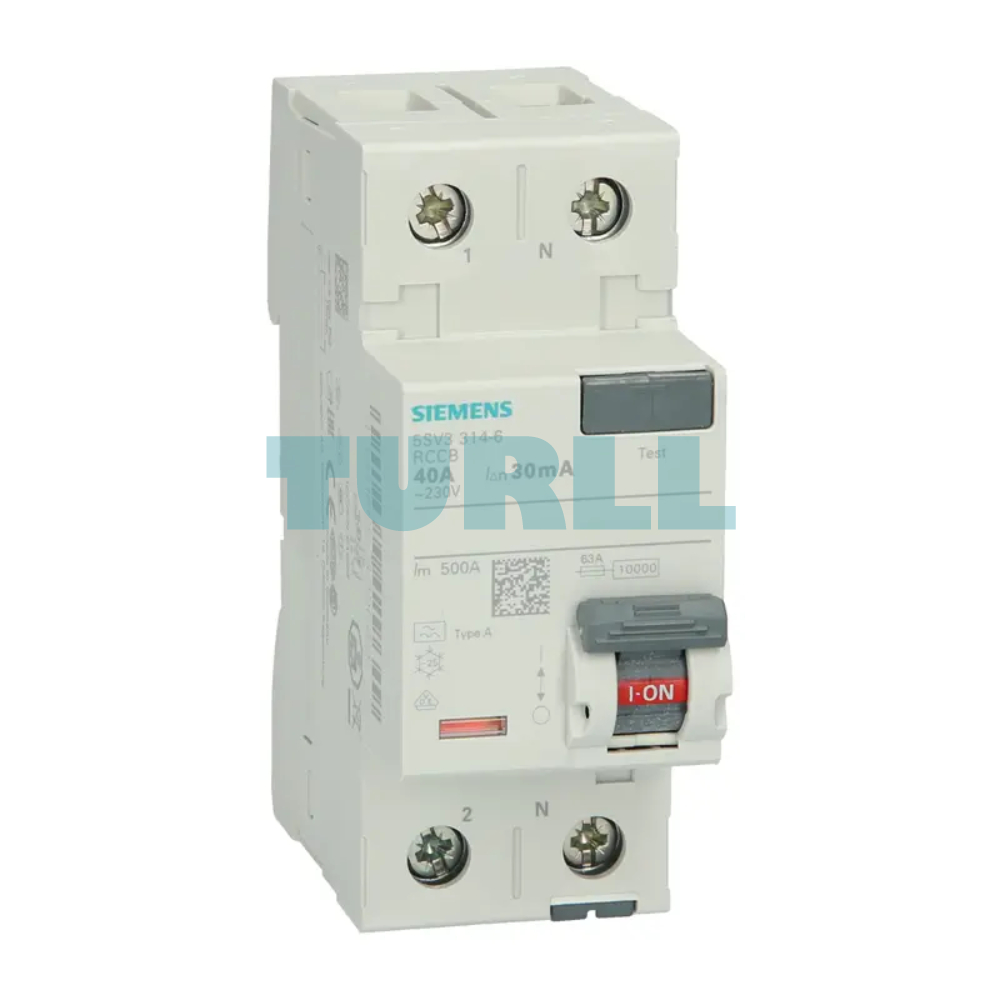

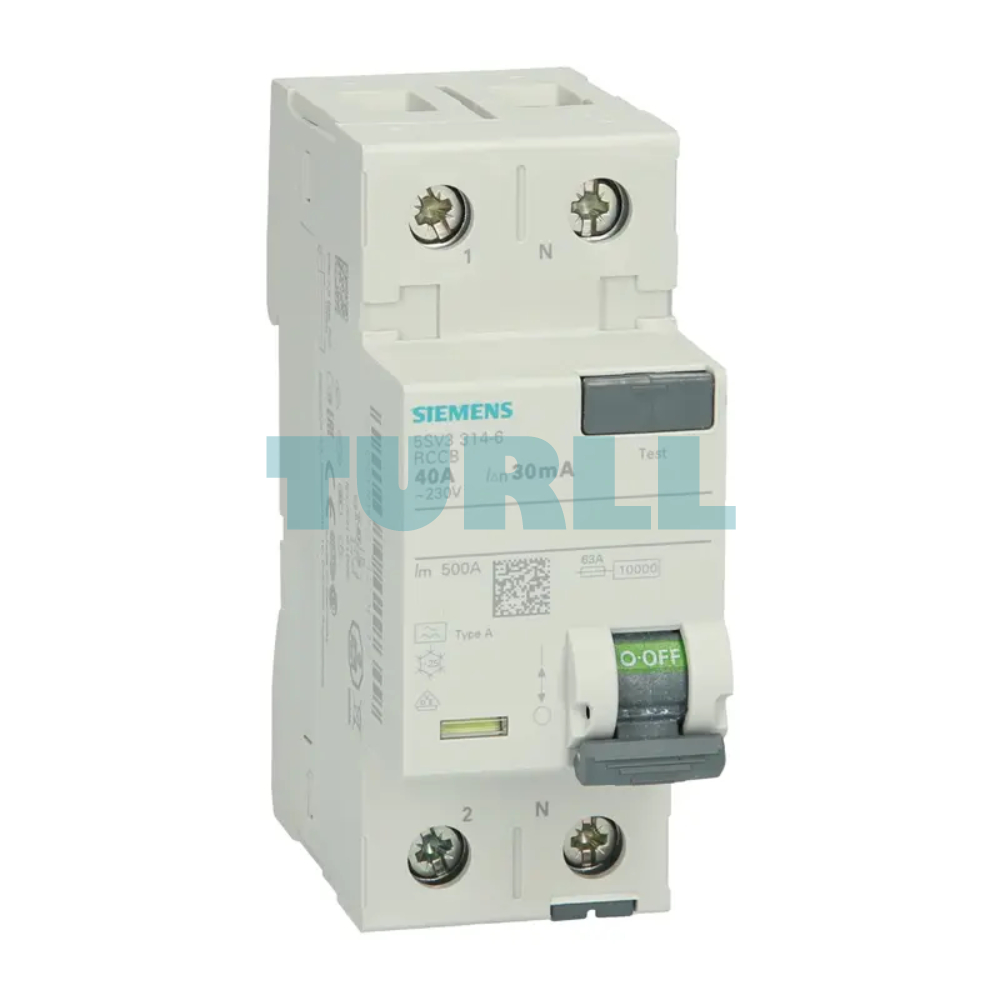

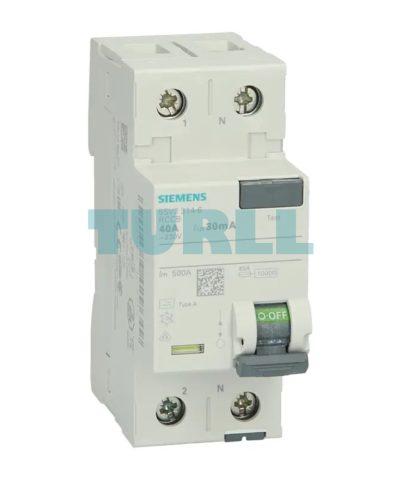

Residual current operated circuit breaker (RCCB), 2-pole, Type A, rated current 40 A, rated residual current 30 mA, rated voltage AC: 230 V. Essential for reliable personal and fire protection in accordance with DIN VDE 0100-410.
The Siemens 5SV3314-6 is a high-performance residual current operated circuit breaker (RCCB) designed for reliable protection against electric shock and fire hazards caused by earth leakage currents. Built with Siemens’ advanced safety technology, this 2-pole Type A RCCB ensures dependable performance in residential, commercial, and industrial installations. With a rated current of 40A, a residual operating current of 30mA, and an operating voltage of 230V AC, it provides optimal protection and operational stability.
Enhanced Safety Protection: Detects AC and pulsating DC residual currents for effective shock protection.
Reliable Fire Prevention: Helps prevent electrical fires caused by leakage currents.
High Durability: Built with Siemens’ precision engineering for long service life.
Easy Installation: Compact design for efficient installation in distribution boards.
Stable Performance: Delivers consistent protection in diverse electrical environments.
Product Type: RCCB – Residual Current Circuit Breaker
Poles: 2-pole
Type: A (sensitive to AC and pulsating DC currents)
Rated Current (In): 40 A
Rated Residual Current (IΔn): 30 mA
Rated Voltage (Un): AC 230 V
Application: Residential, commercial, and industrial electrical protection
Function: Protects circuits and users against earth faults and residual currents
Visit 5SV3314-6 for more detail info
For more our products visit turll
| SKU / Model | 5SV3314-6 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | RCCB |
| design of the product | Instantaneous |
| number of poles | 2 |
| size of installation devices / acc. to DIN 43880 | 1 |
| mechanical service life (switching cycles) / typical | 10 000 |
| short-circuit current / of series fuse / maximum permissible | 63 A |
| short-circuit current rating | 10 kA |
| switching function / short-term delayed | No |
| overvoltage category | III |
| supply voltage | - |
| ● for testing equipment / minimum | 195 V |
| operating frequency | 50 Hz |
| supply voltage frequency / rated value | 50 Hz |
| protection class IP | IP20, if the distribution board is installed, with connected conductors |
| switching capacity current | - |
| ● acc. to EN 60898 / rated value | 0.5 kA |
| ● according to IEC 61008-1 / rated value | 0.5 kA |
| power loss [W] | - |
| ● for rated value of the current / at AC / in hot operating state / per pole | 2.6 W |
| tripping fault current / rated value | 30 mA |
| operational current | - |
| ● at 40 °C / rated value | 40 A |
| ● at 45 °C / rated value | 38.1 A |
| ● at 50 °C / rated value | 35.59 A |
| ● at 55 °C / rated value | 32.29 A |
| ● at 60 °C / rated value | 28.19 A |
| ● at 65 °C / rated value | 23.3 A |
| ● at 70 °C / rated value | 17.6 A |
| ● at AC / rated value | 40 A |
| residual current type | A |
| let-through current / permissible | 5 200 kA |
| I2t value / permissible | 58 000 A²·s |
| surge current resistance / rated value | 1 kA |
| product feature / silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | top or bottom |

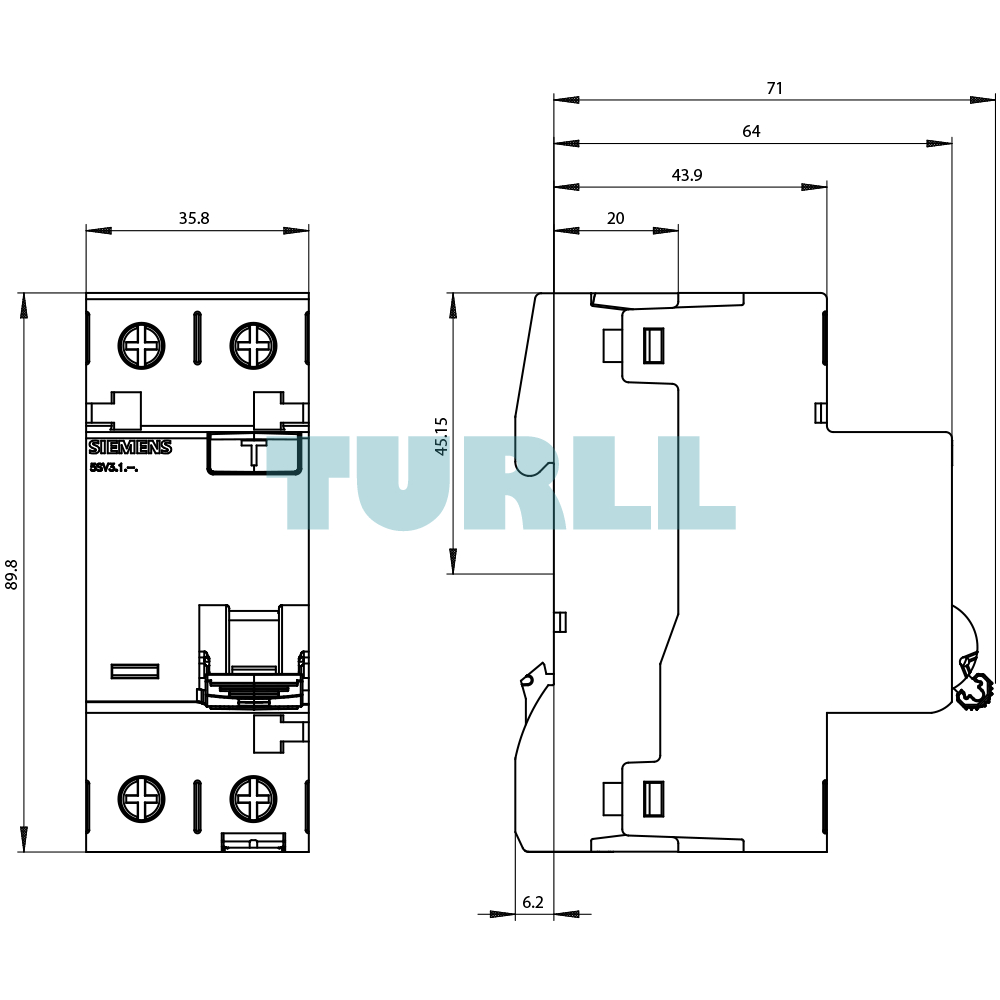

| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | DIN rail (REG) |
| mounting position | any |
| ambient temperature / during operation | - |
| ● minimum | -25 °C |
| ● maximum | 45 °C |
| ambient temperature / during storage | - |
| ● minimum permissible | -40 °C |
| ● maximum permissible | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 28 |
| Transport Information | - |
| Weight | 0.186 kg |
| Dimensions | 97.00 × 42.00 × 85.00 mm |
