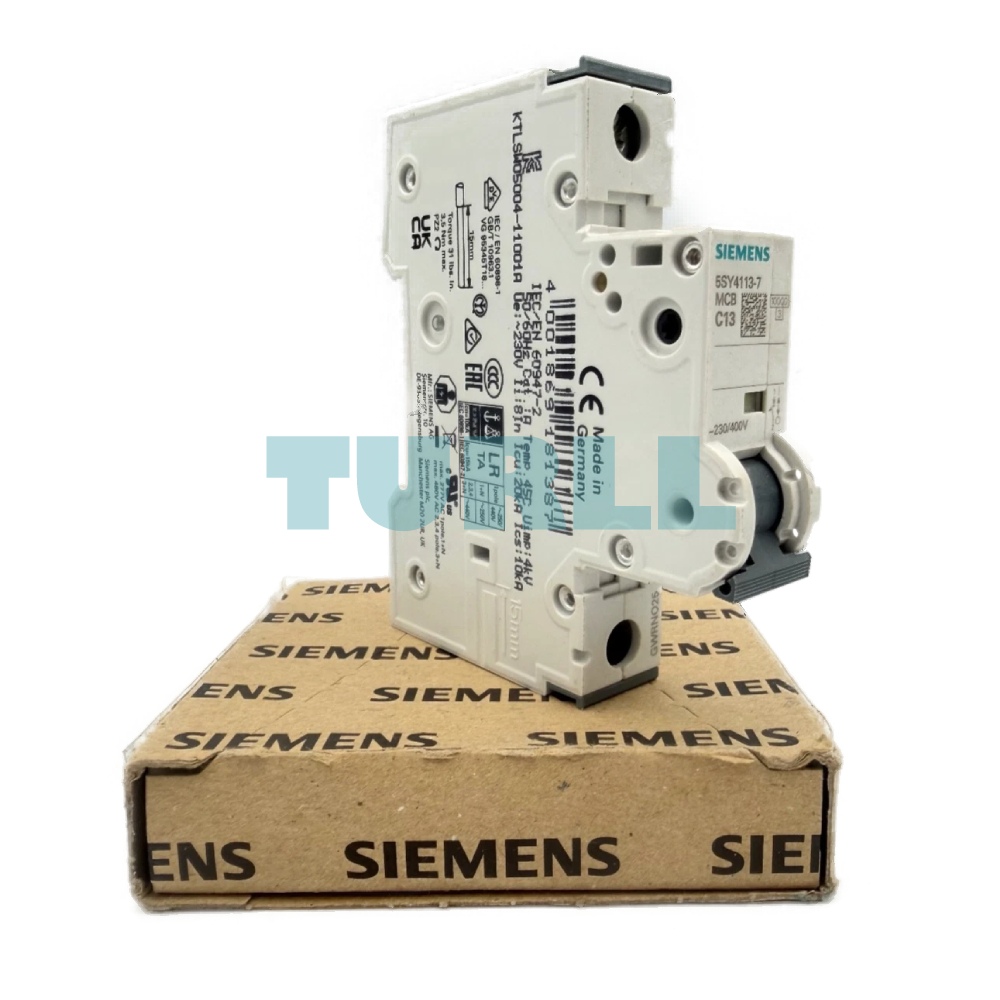

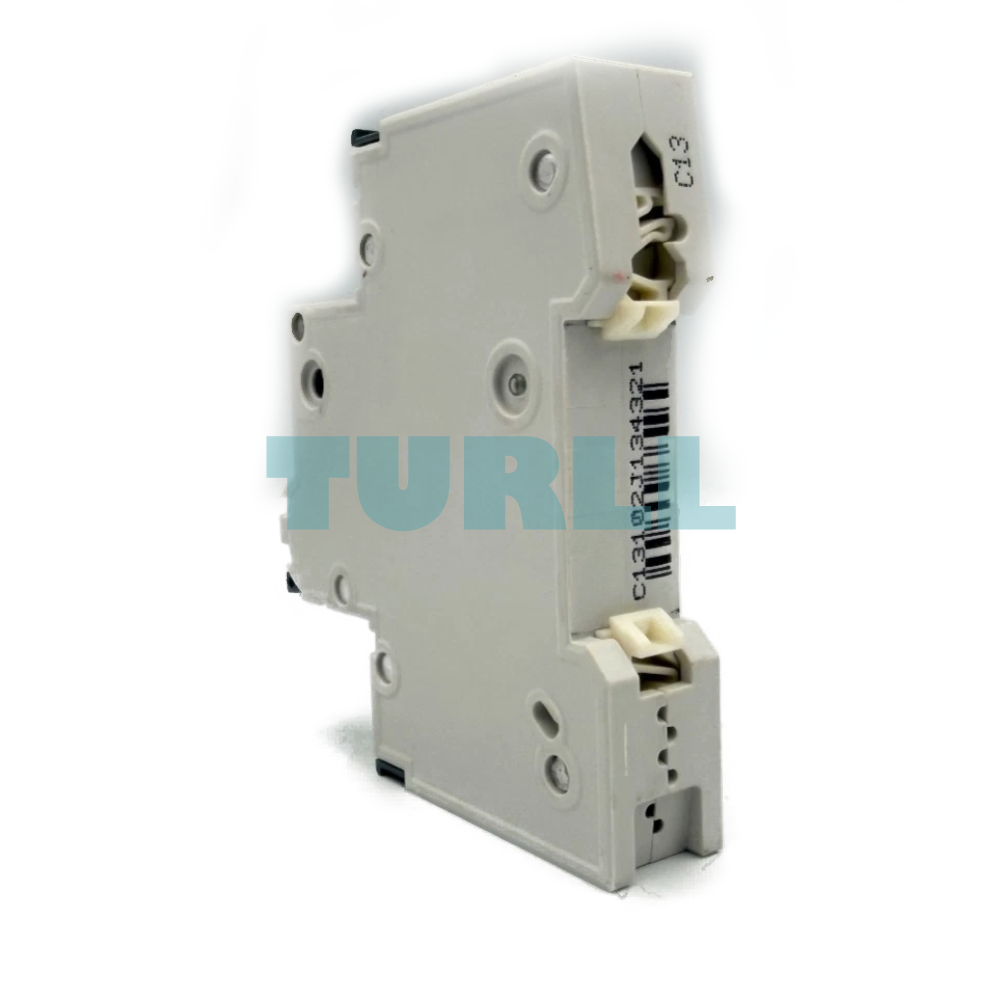

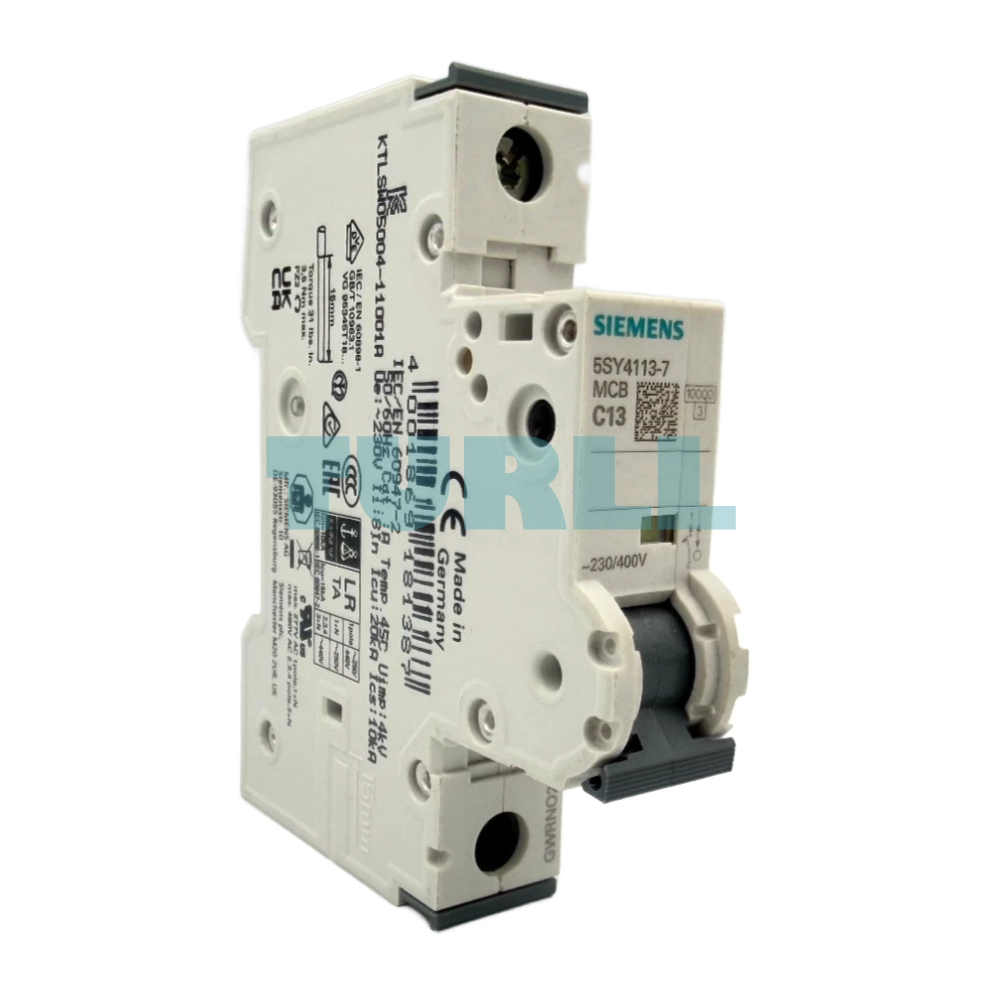

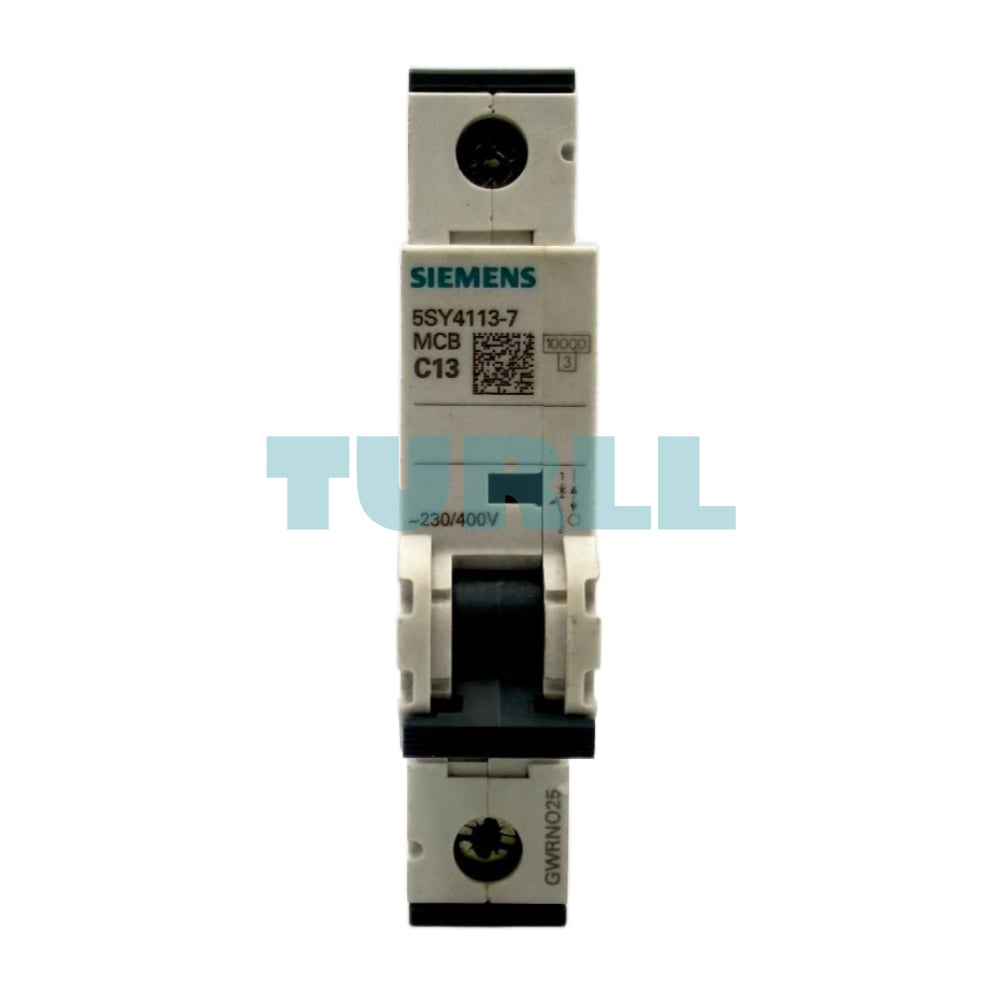

Siemens 5SY4113-7 Miniature Circuit Breaker 1-Pole, C Curve, 13A, 230/400V, 10kA, D70mm Original Brand New
Model / SKU5SY4113-7
High-performance 1-pole Miniature Circuit Breaker from the Sentron series. Designed for 230/400 V AC systems, it features a 13A rated current and a Type C tripping characteristic, offering a 10kA switching capacity for superior electrical protection.
Original price was: $17.49.$12.76Current price is: $12.76.
Out of stockSubject to sourcing — request a quote
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens 5SY4113-7 Miniature Circuit Breaker is a high-quality, reliable solution for protecting electrical circuits in residential, commercial, and industrial applications. Designed for 230/400V systems, this 1-pole breaker with a C curve offers precise overcurrent protection up to 13 amps and withstands short-circuit currents up to 10kA. Its compact D=70 mm design ensures easy installation in tight spaces while maintaining top-notch safety standards.
Key Benefit
-
Enhanced Safety: The Type C tripping characteristic is perfect for circuits with higher inrush currents, preventing nuisance tripping.
-
High Breaking Capacity: Rated at 10kA, ensuring the device can safely interrupt high-fault currents.
-
Compact Design: A uniform 70mm depth allows for easy installation in tight control cabinets.
-
Global Standards: Manufactured by Siemens, ensuring compliance with international safety and quality certifications.
Function
-
Circuit Protection: Automatically disconnects power when overload or short-circuit occurs.
-
Single-Pole Operation: Efficient protection for individual circuits.
-
Easy Installation: Standard D70mm size simplifies panel integration.
-
Durable Construction: Designed for long-term reliability and safety compliance.
Visit 5SY4113-7 for more detail info
For more our products visit turll
Download
Specifications
| SKU / Model | 5SY4113-7 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | - |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | - |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | - |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| ● acc. to IEC 60947-2 / rated value | 20 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.4 W |
| operational current | - |
| ● at 35 °C / rated value | 13 A |
| ● at 45 °C / rated value | 12.05 A |
| ● at 50 °C / rated value | 11.73 A |
| ● at 55 °C / rated value | 11.38 A |
| ● at 60 °C / rated value | 11.02 A |
| ● at AC / rated value | 13 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | - |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | - |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | - |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| AWG number / as coded connectable conductor cross section | - |
| tightening torque [lbf·in] / with screw-type terminals | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | Any |

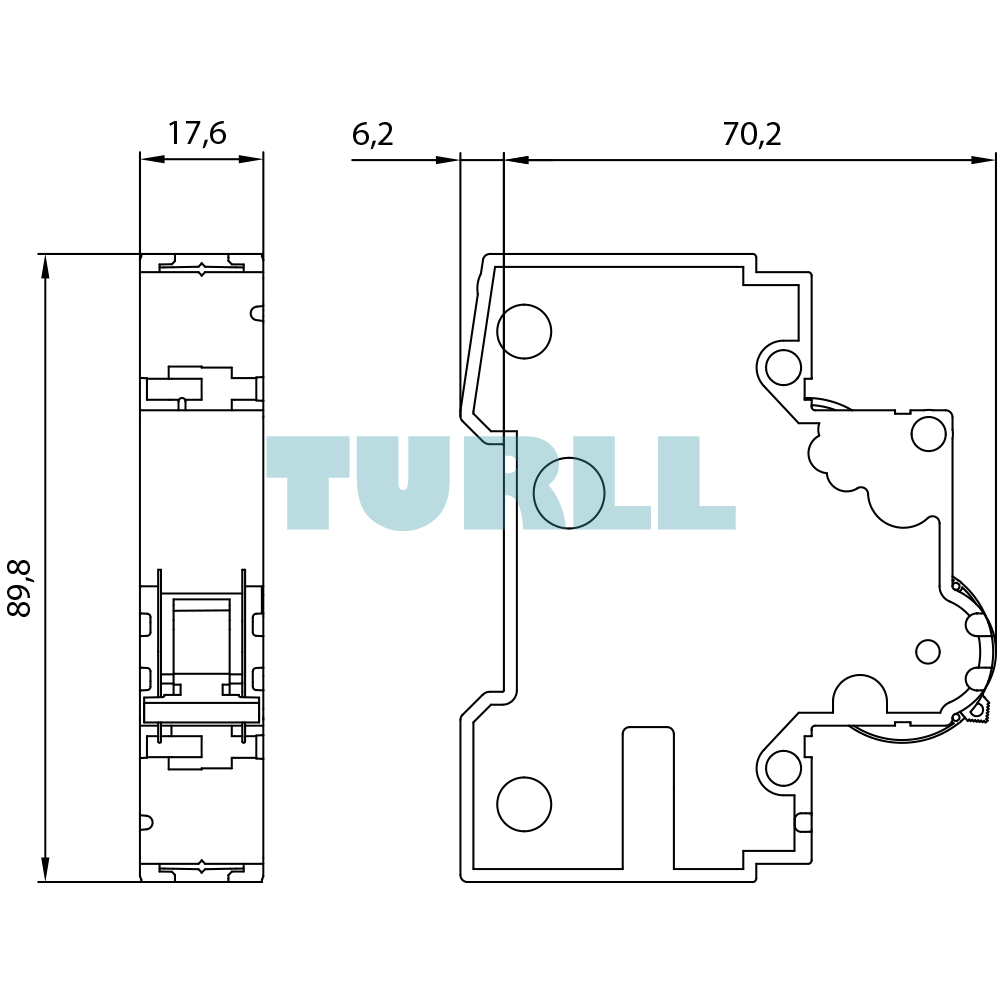

| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | - |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Weight | 0.154 kg |
| Dimensions | 21.00 × 93.00 × 83.00 mm |
